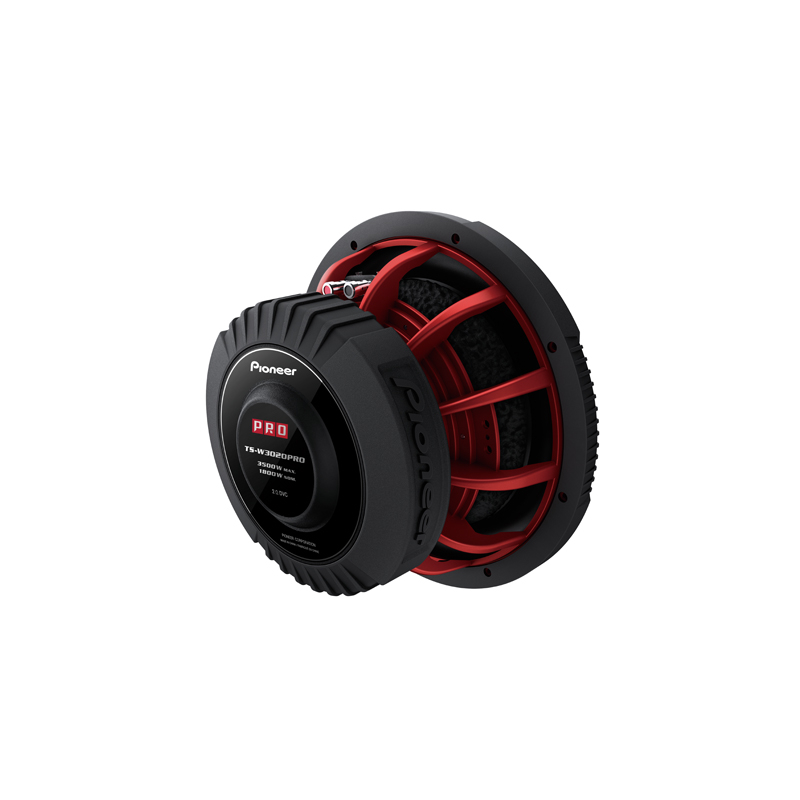

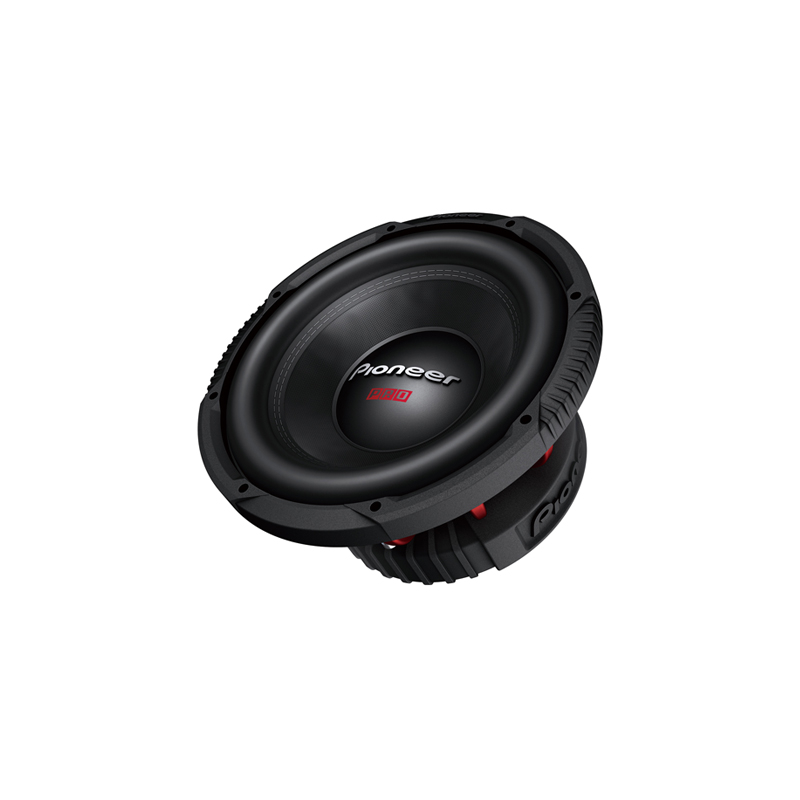

Pioneer TS-W3020PRO PRO Series 12" 1800W RMS (3500W Peak Power Handling) Dual 2 ohms Subwoofer
We are a Pioneer authorized dealer so you get up-to-date, fully warrantied products. Shipping is free to the lower 48 states on everything you order!
What's Inside?
- • PRO Series 12" Dual 2 ohms Subwoofer
- • Owner's Manual
Match Your Subwoofer's Might with an Amplifier that Delivers
The Pioneer TS-W3020PRO is a part of Pioneer's PRO Series of subwoofers. It is a 12-inch subwoofer with a power handling capability of 1800 watts RMS (root mean square) and a peak power handling of 3500 watts. The subwoofer has a dual 2-ohm voice coil configuration, allowing for flexible wiring options and impedance matching with your amplifier. It is a high-quality subwoofer suitable for car audio enthusiasts who are looking for a powerful and impact bass experience.
Immerse Yourself in Deep, Clear Bass with Unmatched Durability and Cooling

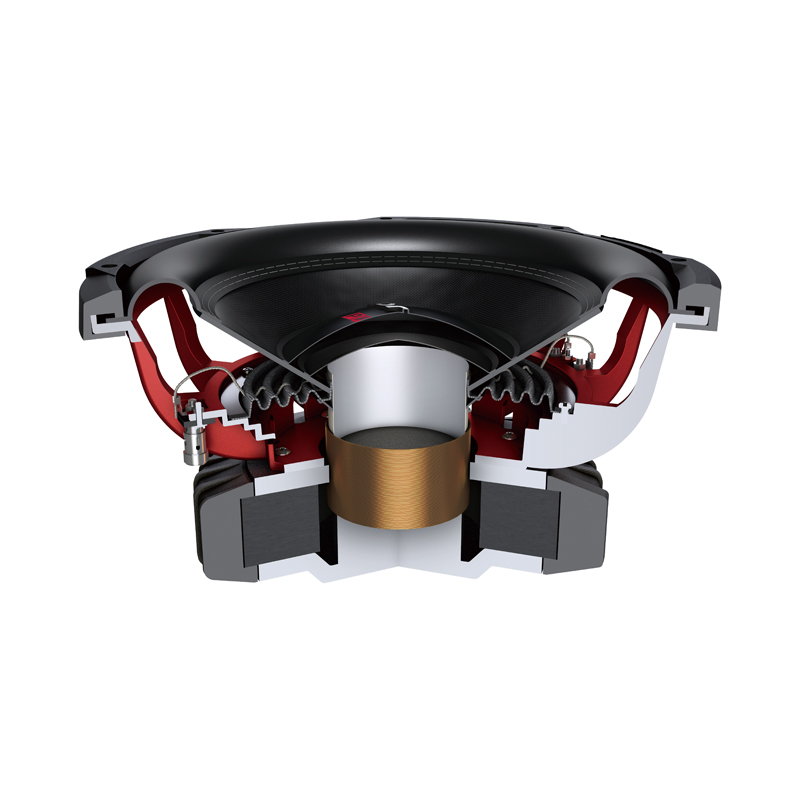

The Pioneer TS-W3020PRO is designed to produce deep and powerful bass with excellent clarity. It features a rigid cone made of a composite IMPP (Injection Molded Polypropylene) material, which helps to minimize distortion and improve durability. The subwoofer also has a large double-stacked magnet and a vented pole yoke for improved cooling and power handling.
Match Your Subwoofer's Might with an Amplifier that Delivers
The RMS power rating indicates the continuous power that the subwoofer can handle without getting damaged, while the peak power handling indicates the maximum power it can handle in short bursts. It's important to match the subwoofer's power handling capabilities with an amplifier that can deliver the required power.
- Diameter : 12 Inch
- Sensitivity : 86 dB
- Impedance : 2 Ohm
- Frequency Response : 20-200 Hz
- Peak Power Handling : 3500 Watts
- Number of Voice Coils : Dual
- Mounting Depth : 6.06 Inches
- RMS Power Handling : 1800 Watts
Features:
- Power handling: 1800W RMS / 3500W Max.
- Optimally Blended Pulp Cone Woofer
- Urethane Surround
- 4-layer Copper Long Voice Coil with Aluminum Bobbin
- Frequency response: 20Hz to 200Hz
- Impedance: Dual 2 ohms
- Sensitivity: 88dB (1W/1M)
Specifications:
- Sound Pressure Level (Sensitivity): 86dB (± 1.5dB)
- Frequency Range: 20 Hz to 200 kHz
- Continuous Power Handling (RMS): 1800 Watts
- Maximum Peak Power Handling: 3500 Watts
- Nominal Impedance: 2 ohms x2
- Resonance Frequency (f0): 47.9
- Diameter: 12”
- Cone Material: Blended Pulp / Cellulose
- Surround Type: Urethane
- Basket Material: Die-cast Aluminum
- Spider Material: Polycotton
- Magnet Material: Ferrite
- Voice Coil Wire Material: 4-layer Copper-clad Aluminum
- Mounting Depth (mm / inch): 154mm - 6.06"
- Cut-out dimension (mm / inch): 282mm - 11.1"
- Fs (Hz): 47.9
- Qts: 1.3
- Vas (liters / cu ft.): 8.3 - 0.293
- Xmax (mm / inch): 22.8 - 0.897
-
- Recommended Volume
- Sealed: 1.25 cu.ft (34.4 liters)
- Ported: 1.75 cu.ft (50 liters)
- UPC: 884938502375
- Weight: 55
