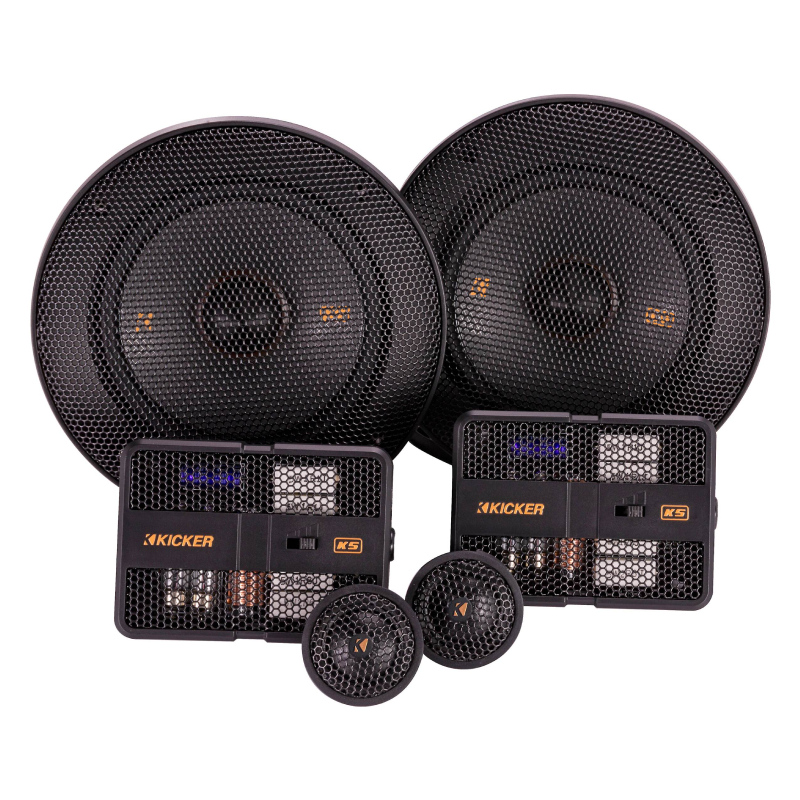

Kicker 51KSS504 KS Series 5.25" 100W RMS (200W Peak Power Handling) 4 Ohms, 2-way Car Component Speaker System
We are a Kicker authorized dealer so you get up-to-date, fully warrantied products. Shipping is free to the lower 48 states on everything you order!

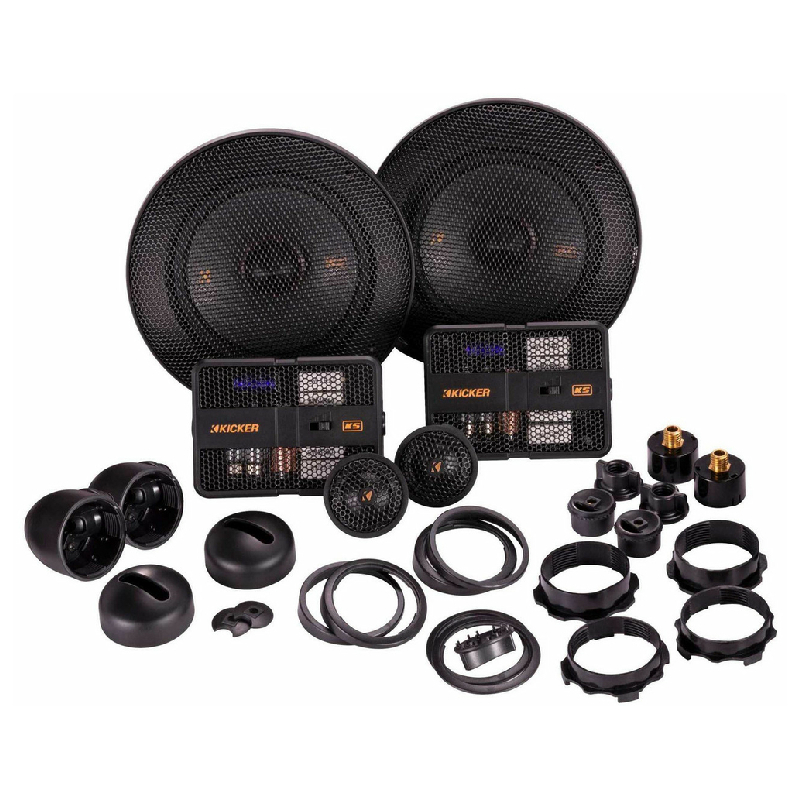

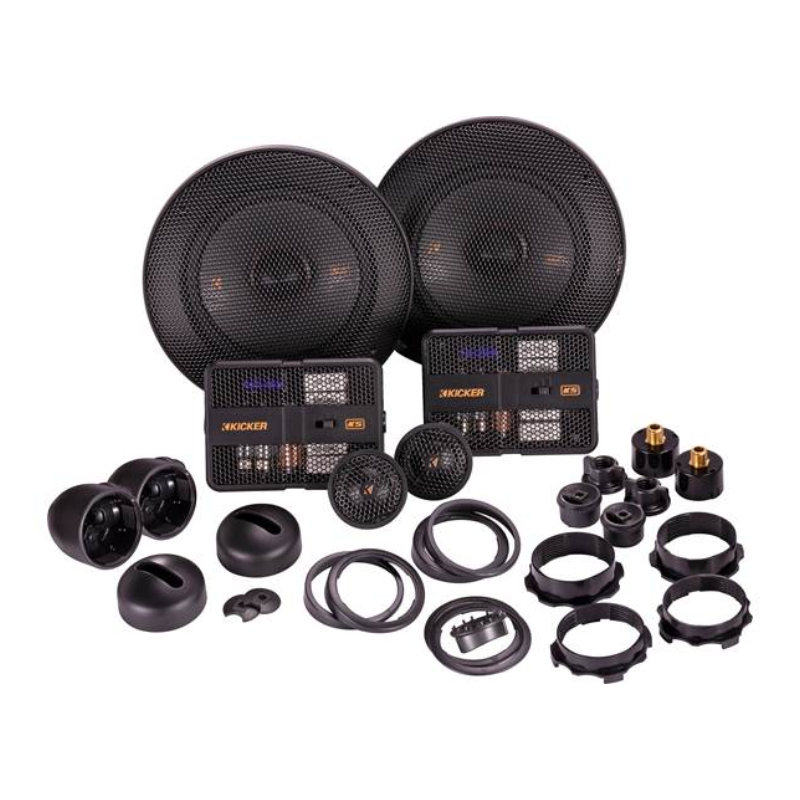

What's Inside?
- • (2) 5.25" KS Series Car Component Speaker System
- • (2) Phase plugs (installed)
- • (2) 1" Tweeters (each with 6" Wire attached)
- • (2) Woofer grilles
- • (2) Grille mounting rings
- • (2) Crossovers
- • (2) Upper tweeter mounting posts
- • (2) Lower tweeter mounting posts
- • (2) Tweeter housings
- • (2) Tweeter housing washers
- • (2) Flush mount rings (tweeter)
- • (2) Front angle rings (tweeter)
- • (2) Back angle rings (tweeter)
- • (2) Short mounting nuts (tweeter)
- • (2) Long mounting nuts (tweeter)
- • (2) Surface mount pods
- • (2) Pod nuts
- • Tweeter tool
- • (2) 10" Zip ties
- • Grille putty
- • (4) red plastic wire caps
- • (2) M4x7mm Machine screws
- • (12) 1-1/8" Screws
- • Woofer template
- • Owner's Manual
Why Choose Kicker 51KSS504 Component System?
Powerful, Clear, and Durable Car Speakers
These speakers offer high power handling, delivering impressive audio performance for your vehicle. Silk-dome tweeters provide smooth, detailed highs, while polypropylene woofers with durable rubber surrounds ensure long-lasting performance and enhanced bass response for a full, rich sound experience.
Slim Design with Customizable Sound
The thin-mount design allows for easy installation behind factory grilles, making these speakers ideal for tight spaces. With four tweeter mounting options, you can customize sound staging to achieve the perfect audio balance in your vehicle.
Flexible Installation with Added Protection
These speakers feature an articulating tweeter pod for versatile tweeter placement, allowing you to fine-tune your sound staging. A smaller crossover simplifies mounting in tight spaces, and the included grilles provide both protection and a sleek, finished look.
Frequently Asked Questions (FAQ)
- • Why do my woofers have very little bass after installation?
Weak bass is usually caused by incorrect speaker polarity or poor door sealing. Make sure the woofers are wired correctly and mounted securely to minimize air leaks.
- • Can I mount the tweeters on my dashboard instead of the doors?
Yes. The included flush mounts, angle rings, and surface-mount pods give you several installation options for better sound staging.
- • Why do my tweeters sound too harsh?
Tweeters aimed directly at the listening position or excessive treble boost can make the highs sound aggressive. Lowering the treble settings or changing the tweeter angle usually improves the sound.
- • Why do my speakers distort when I turn the volume up?
Amplifier clipping or incorrect gain settings are common causes of distortion. Proper amplifier tuning helps deliver cleaner sound at higher volumes.
- • Do I need to use the included crossovers?
Yes. The passive crossovers send the correct frequencies to the woofers and tweeters for balanced sound and reliable operation.
- • Can these speakers work with my factory stereo?
Yes. They can be powered by most factory radios, although an aftermarket amplifier will provide greater output and improved sound quality.
- • Why does one tweeter stop working from time to time?
A loose wire or crossover connection is the most common cause of intermittent sound. Check all terminals and secure the crossover to prevent vibration from loosening the connections.
- • What are the phase plugs on the woofers for?
Phase plugs help improve midrange performance while helping dissipate heat from the voice coil. They are built into the woofers and should not be removed.
- • Why do my doors rattle after installing the speakers?
The improved speaker output can cause loose door panels, clips, or wiring to vibrate. Tightening the hardware and adding sound-deadening material will usually reduce the rattling.
- • Can I install this component system without cutting my factory wiring?
Many vehicles allow installation with aftermarket wiring adapters that plug into the factory connectors. Some vehicles may still require minor wiring modifications depending on the factory audio system.
- Diameter : 5.25 Inch
- Sensitivity : 88 dB
- Frequency Response : 38-21000 Hz
- Peak Power Handling : 200 Watts
- RMS Power Handling : 100 Watts
Features:
- High Power Handling: Capable of handling high power for impressive audio performance.

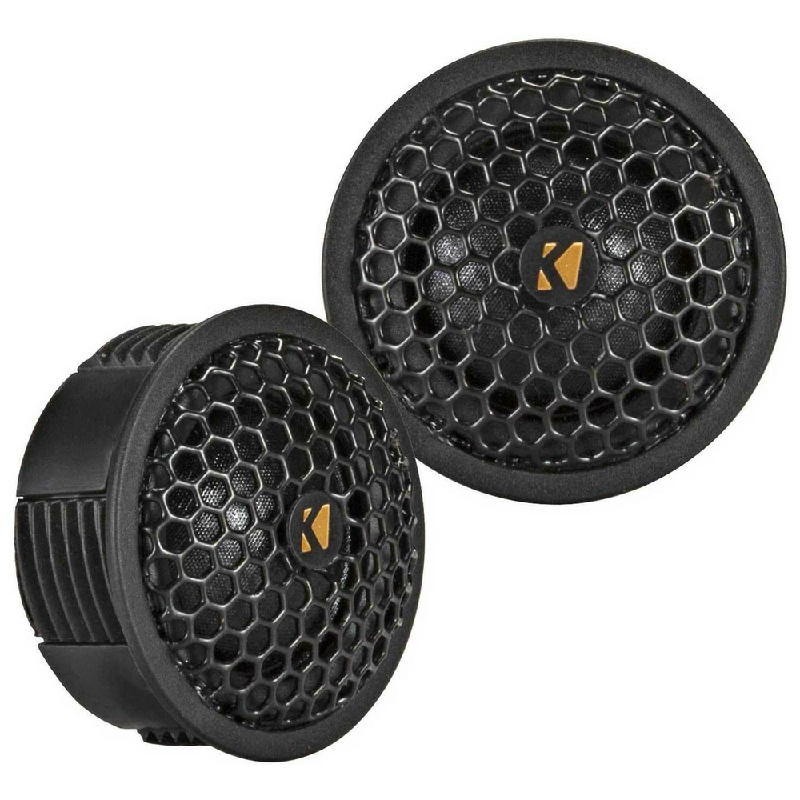

- Silk-Dome Tweeters: Equipped with silk-dome tweeters to deliver smooth and detailed sound.
- Polypropylene Woofer and Rubber Surrounds: Features polypropylene woofers and tough rubber surrounds for durability and enhanced bass response.
- Thin-Mount Design: Designed with a thin-mount profile, allowing easy installation behind factory grilles.
- Four Tweeter Mounting Options: Offers versatility with four tweeter mounting options for customizable sound staging.
- Articulating Tweeter Pod: Includes an articulating tweeter pod for flexible tweeter placement.

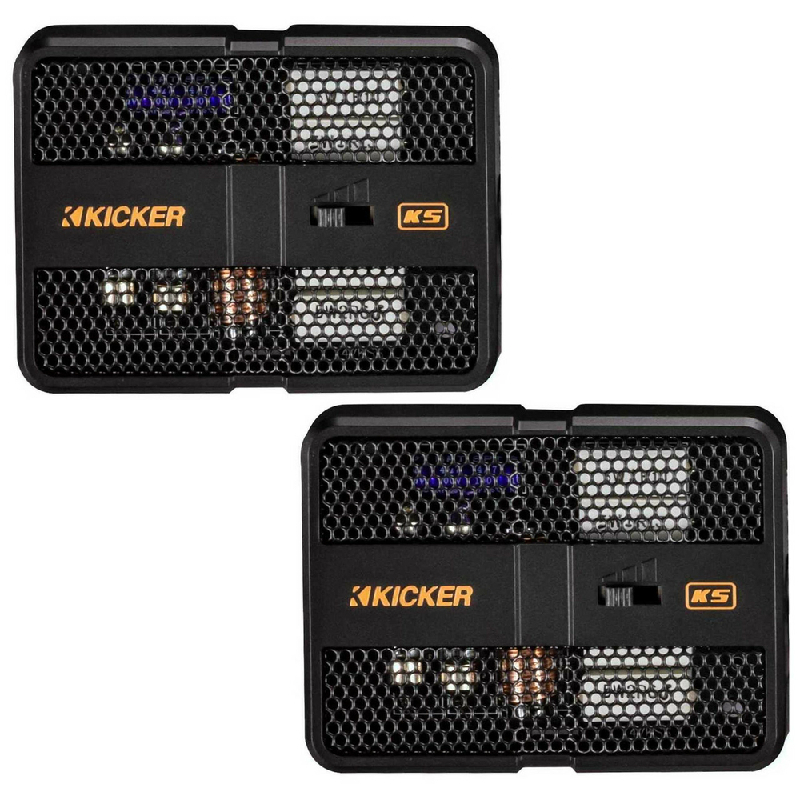

- Smaller Crossover: Features a smaller crossover for easier mounting.
- Grilles Included: Comes with grilles for added protection and aesthetics.
Specifications:
- Woofer Size (in, mm): 5-¼, 130
- Tweeter Size (in, mm): 1, 25
- Dome Material: Silk
- Rated Impedance (?): 4
- Recommended Amplifier Power (Watts RMS): 100
- Sensitivity (1W, 1m): 88
- Frequency Response (Hz): 38-21k
- Woofer Mounting Hole Diameter (in, mm): 4-½, 115
- Woofer Bottom Mount Depth (in, mm): 1-¾, 45
- Flush Mount Tweeter Hole Diameter (in, mm): 1-¾, 45
- Flush Mount Tweeter Depth (in, mm): 11⁄16 , 17
- High Pass (dB), at Frequency (Hz): 12, 4,000
- Low Pass (dB), at Frequency (Hz): none
- High Frequency Output Attenuation (dB): 0, 4.5, 9
- UPC: 713034045328
- Weight: 3
- Authorized Internet Dealer
Warranty: 2 Year(s) Warranty.
This item is accompanied by a manufacturer's warranty. If it is found to be defective, it may be returned to OnlineCarstereo.com for replacement within 2 Year(s) from the original date of purchase with proper return authorization.
