JL Audio C2-525
alternate product image 1alternate product image 2alternate product image 3alternate product image 4
Item# 22221 / Condition:  Brand New

JL Audio C2-525 (99620)

C2-525
5-1/4" 2-Way Component Speaker System 225W Peak Power
$269.99

FREE Shipping in US 48!

Save $30.00 | Reg. Price $299.99 In Stock
Add Extended Warranty

JL Audio Banner for Onlinecarstereo

JL Audio C2-525 2-Way Component Speaker System

The Evolution C2 systems deliver sparkling high-frequency detail, smooth mid-range and powerful mid-bass, thanks to real silk dome tweeters and long linear excursion woofer designs.

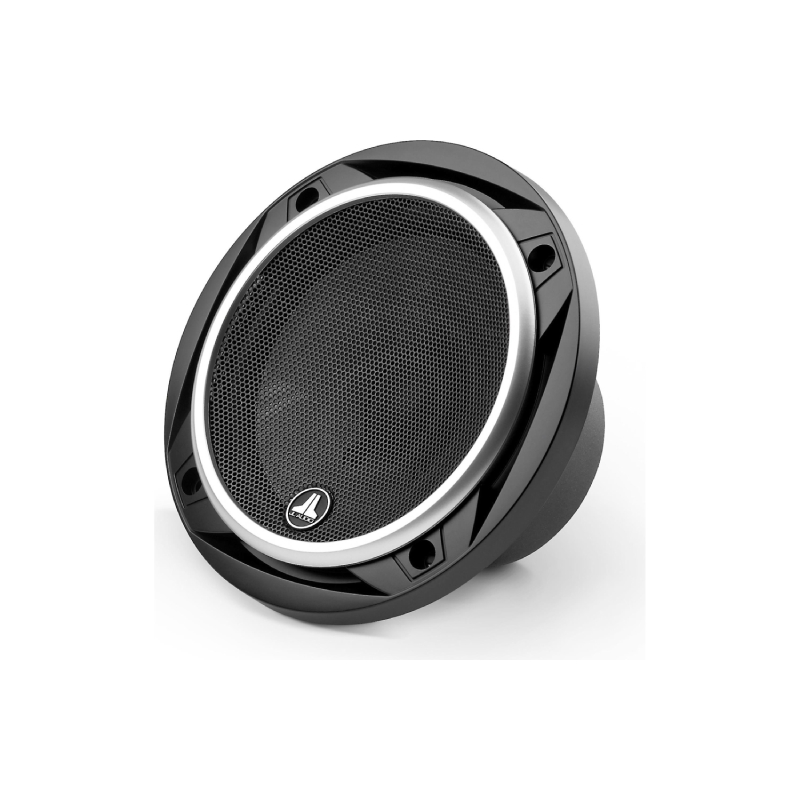

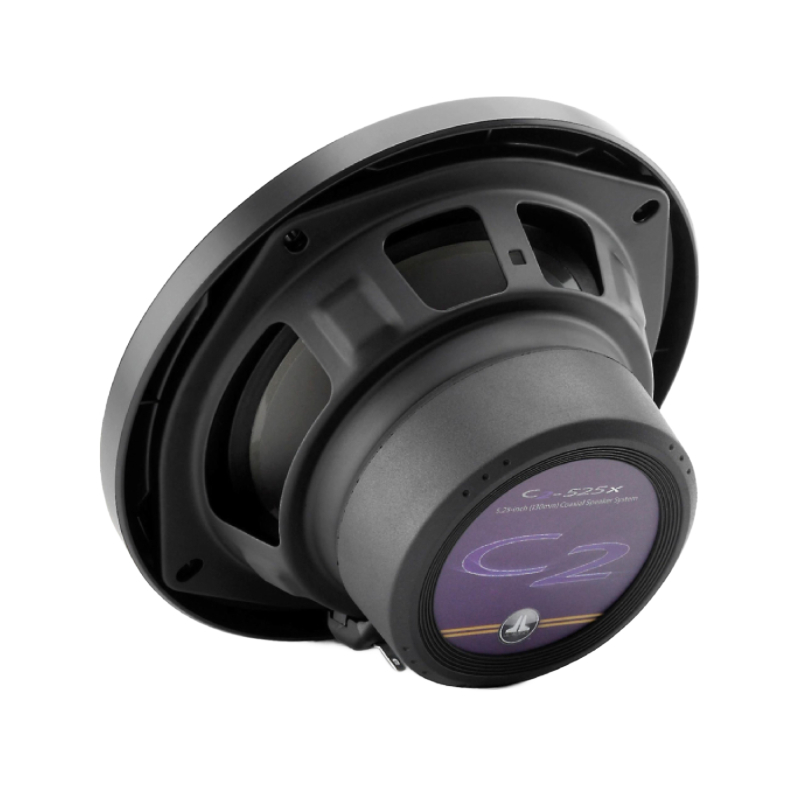

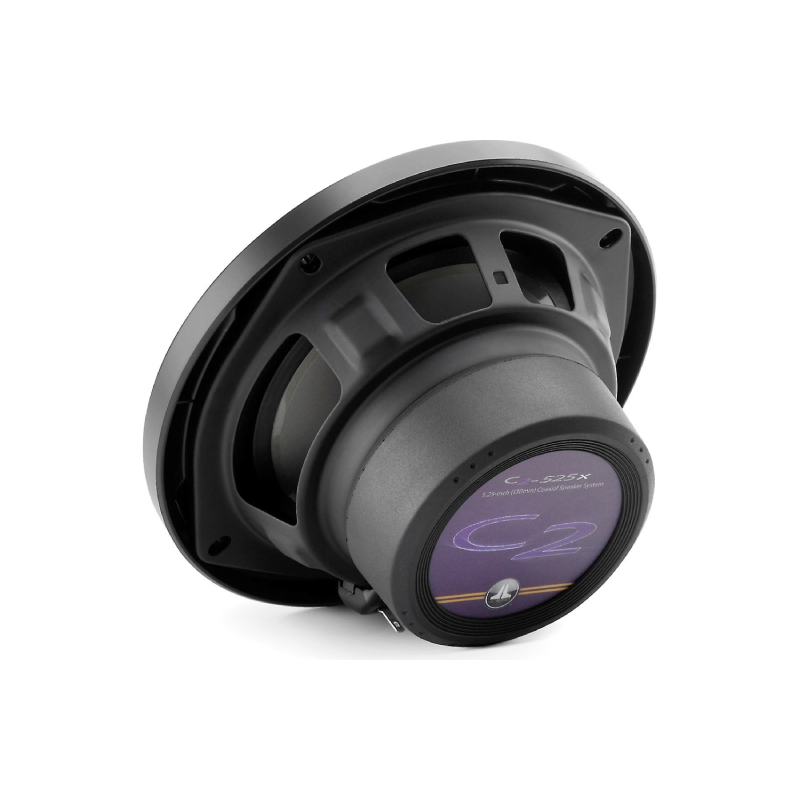

The C2-525 system features 5.25-inch (130 mm) component woofers with mineral-filled polypropylene cones, long excursion capabilities and stamped steel frames. The woofer design benefits from JL Audio's vast woofer design experience and advanced modeling systems.

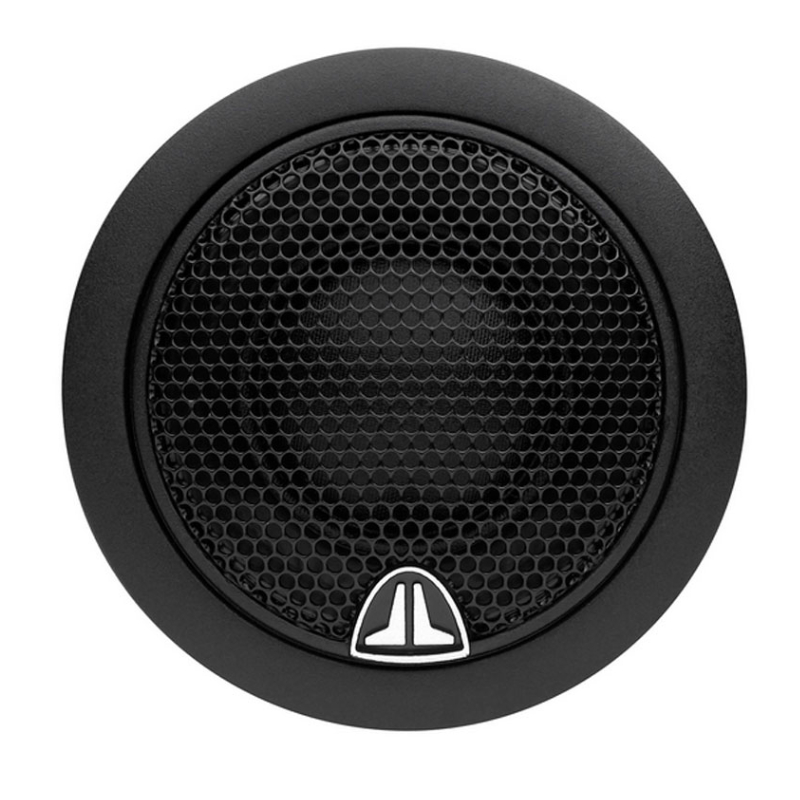

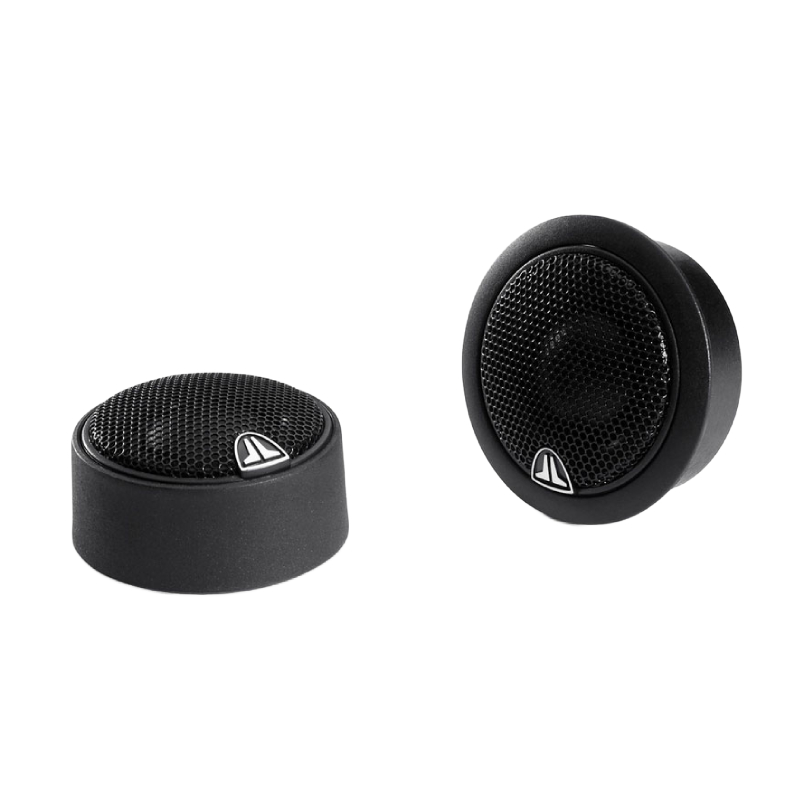

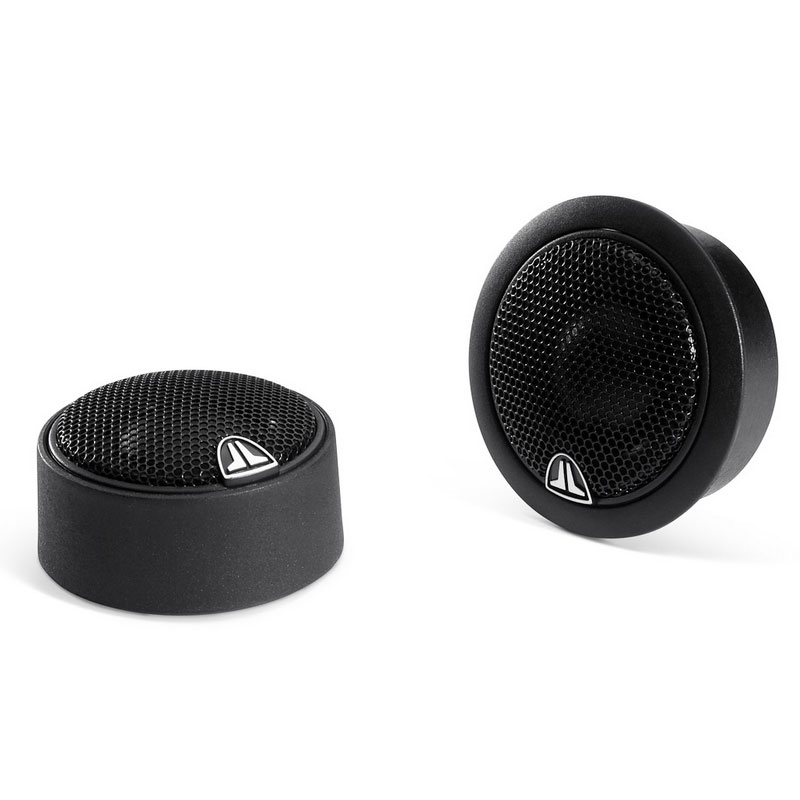

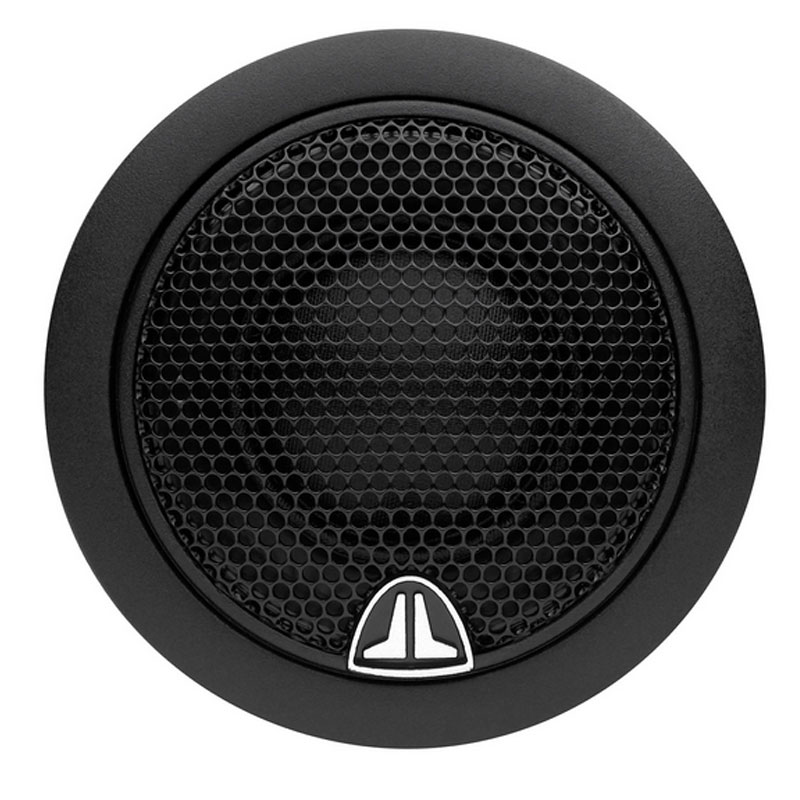

The C2 component tweeters are built with 0.75-inch silk dome diaphragms that deliver smooth, extended response, on and off axis. Flush-mounting and surface-mounting fixtures are included to fit a wide variety of installation needs.

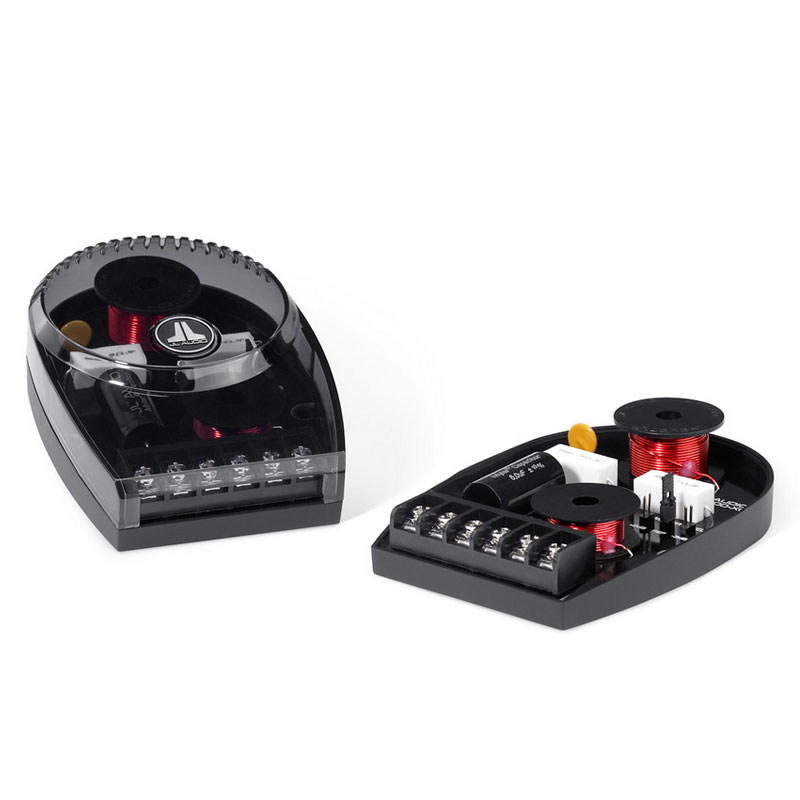

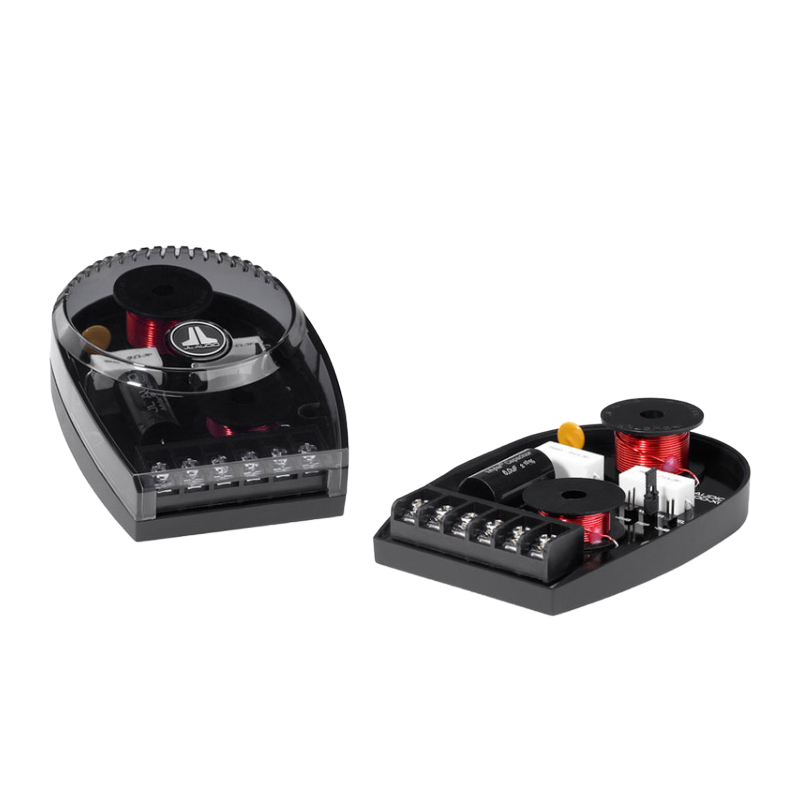

C2 crossover networks are compact and built with premium component parts, including Mylar® capacitors and segmented air-core inductors. Three levels of tweeter attenuation are provided, as well as a tweeter protector.

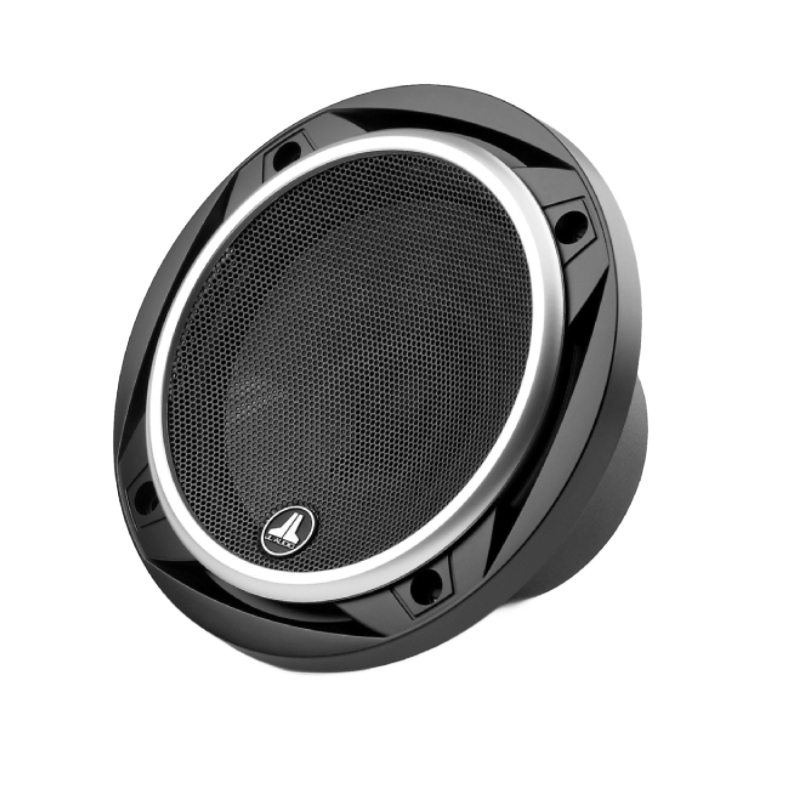

Woofer grilles are included, each consisting of a black grille tray with satin silver accents and a black steel mesh grille with an electroformed JL Audio logo.

Sonic character: Clean and Dynamic

JL Audio C2-525 2-Way Component Speaker System


Product Highlights:

  • Continuous Power Handling (RMS) 60 W
  • Peak Music Power 225 W
  • Recommended Amplifier Power (RMS) 15 - 100 W / Ch.
  • System Efficiency 89.0 dB @ 1 W / 1 m
  • System Nominal Impedance 4 Ω
  • System Frequency Response 63 Hz - 22 KHz ± 3 dB
  • Continuous Power Handling (RMS) 60 W
  • Peak Music Power 225 W
  • Recommended Amplifier Power (RMS) 15 - 100 W / Ch.
  • System Efficiency 89.0 dB @ 1 W / 1 m
  • System Nominal Impedance 4 Ω
  • System Frequency Response 63 Hz - 22 KHz ± 3 dB
  • Frame Outer Diameter* (A) 5.20 in / 132 mm
  • Grille Tray Outer Diameter (B) 6.01 in / 153 mm
  • Motor Outer Diameter (C) 2.76 in / 70 mm
  • Frontal Coaxial Tweeter Protrusion (D) N/A
  • Frontal Grille Protrusion** (E) 0.72 in / 18 mm
  • Mounting Hole Diameter (F) 4.56 in / 116 mm
  • Mounting Depth (G) 2.50 in / 64 mm
  • Flush Mount Fixture Diameter (A1) 1.87 in / 48 mm
  • Surface Mount Fixture Diameter (A2) 1.69 in / 43 mm
  • Flush Mount Mounting Hole Diameter (B) 1.625 in / 41 mm
  • Flush Mount Mounting Depth (C) 0.76 in / 19 mm
  • Flush Mount Tweeter Frontal Protrusion (D1) 0.29 in / 7 mm
  • Surface Mount Tweeter Frontal Protrusion (D2) 0.92 in / 23 mm
  • Width (W) 3.36 in / 85 mm
  • Height (H) 1.44 in / 37 mm
  • Depth (D) 4.72 in / 120 mm
  • UPC: 699440996204
  • Weight: 7.01
  • Sku: 99620
  • Authorized Internet Dealer
*Warranty: 1 Year Manufacturer warranty.
This item is accompanied by a manufacturer's warranty. If it is found to be defective, it may be returned to OnlineCarstereo.com for replacement within 1 year from the original date of purchase with proper return authorization.
