JBL R4-500 Wake Series 4" Marine Digital Multimedia Receiver with AM/FM tuner, 4-channel High Power, Bluetooth, DIN Style Radio w/ Color LCD Screen / Zone control
We are a JBL authorized dealer so you get up-to-date, fully warrantied products. Shipping is free to the lower 48 states on everything you order!
What's Inside?

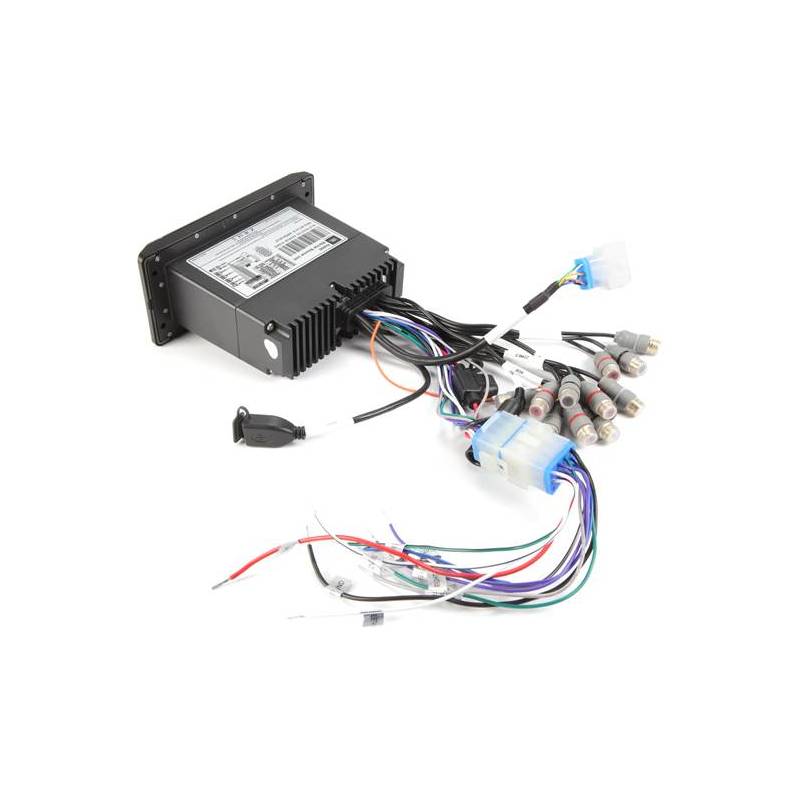

- • Marine digital media receiver (15A fuse)
- • Wiring harness
- •(2) Endcaps (pre-installed)
- • Foam gasket
- •(4) Screws
- • Operation Manual for Users
- • Warranty Statement
Dive into Superior Audio
The JBL R4-500 Wake Series emerges as a highly adaptable marine audio receiver, boasting a comprehensive set of functionalities specifically engineered to thrive within the demanding conditions prevalent in marine settings, such as its robust water-resistant design tailored to withstand various environmental elements.
Amplify Your Journey
The audio receiver can provide strong power output through four separate channels, guaranteeing ample audio power suitable for marine environments. Its design follows the DIN style standard, universally acknowledged for car and marine stereos, making installation in appropriate mounting positions easy and straightforward.
Elevate Your Audio Experience
Equipped with cutting-edge Bluetooth functionality, this device effortlessly wirelessly transmits audio from various compatible gadgets like smartphones, tablets, and laptops. Additionally, it features a sophisticated color LCD screen that aids users by displaying radio station frequencies, showing track information during Bluetooth music playback, and offering access to menu settings for improved user control and customization options.
Customize Your Sound, Zone by
It presents a range of sophisticated zone control features, allowing users to finely tune audio settings independently for different areas or zones on the boat. This feature allows users to customize the audio experience according to their preferences in various parts of the vessel, enhancing the personalized audio atmosphere throughout the entire boat.
- Maximum Power : 55 Watts
- Satellite Radio Ready : No
- RMS Power Output : 20 Watts
- Preamp Voltage : 4 volts
- Bluetooth : Yes
- Aux Input : Yes
- MP3 Playback : Yes
- WMA Playback : Yes
- Rear USB Input : 1
- Preamp Outputs : 9
Features:
- Marine digital media receiver (does not play CDs)
- Built-in amplifier (20 watts RMS/55 peak x 4 channels)

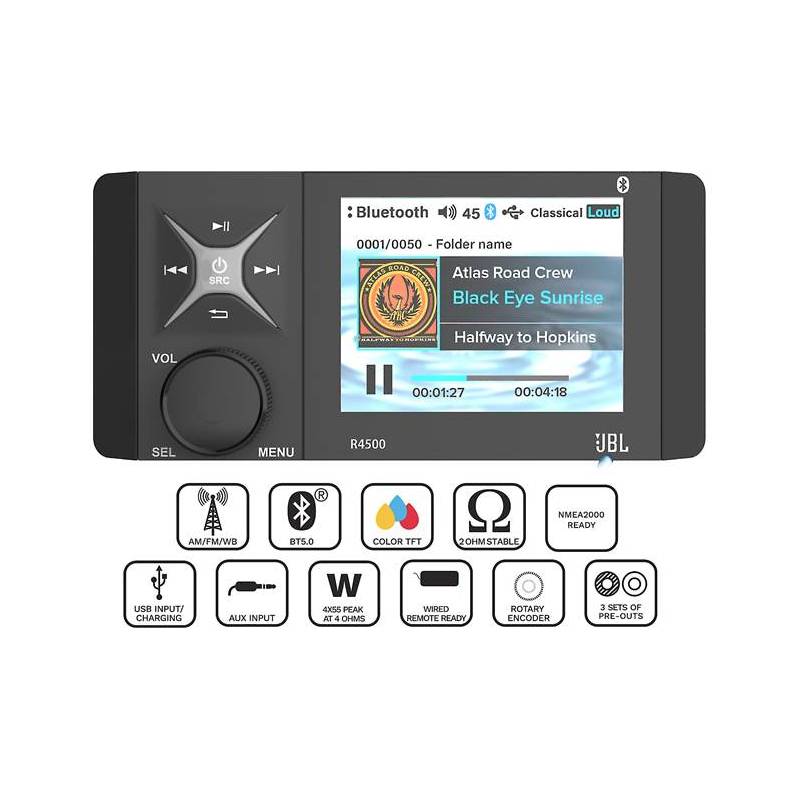

- 4" color LCD screen
- Built-in Bluetooth® 5.0 for music streaming
- AM/FM/Weather Band tuner
- IPX7-rated watertight; UV-resistant front panel
- NMEA 2000-ready
- Inputs: rear AUX and USB ports
- Outputs: 9-channel preamp outputs
- 2-ohm stable so built-in amp can power up to 8 speakers
- Three sets of line level differentials
- Wired to work with select Infinity or Milennia remotes
Specifications:
- AUX Input: RCA (rear)
- USB Input: Rear
- USB Port Power: 0.5A
- Backup Camera Input: No
- Second Camera Input: No
- CarPlay: No
- Android Auto: No
- Siri Control: No
- Alexa Voice Control: No
- Android Control: Yes
- Memory Card Slot: USB memory
- Bluetooth Compatible: Built-in
- Satellite Radio Ready: No
- HD Radio: No
- Full size: No
- Nano: No
- Touch: No
- iPhone: No
- RMS Power (CTA-2006): N/A
- RMS Power (Manufacturer): 20 watts
- Peak Output: 55 watts
- RMS Power Bandwidth: 1kHz
- Preamp Outputs: 9-channel
- Sub Preamp Outputs: Yes
- Switchable Rear Preamp Outputs: No
- Video Screen: No
- Preamp Voltage: 4 volts
- Display Color: Full Color
- Key Button Color: White
- EQ Bands: 3
- Wireless Remote: No
- Steering Wheel Control Compatible: No
- European Tuning: Yes
- Seek/Scan: Seek
- Radio Data System: Yes
- Music File Playback: MP3, WMA
- UPC: 648701264514
- Weight: 7
