Onlinecarstereo Exclusive Bundle
This exclusive package is brought to you by Onlinecarstereo. We have put together this bundle to kickstart your vehicle to the path of excellent car audio.
Alpine S2-W10D4 S Series 10" 1800W Power Peak Handling 4 Ohms Dual Voice Coils Subwoofer + Alpine S2-A120M S Series 1200W x 1 @2Ohms Class D Monoblock Subwoofer Amplifier
We are an authorized dealer so you get up-to-date, fully warrantied products. Shipping is free to the lower 48 states on everything you order!
What's Inside?
- • S2-W10D4 10" Dual 4-ohm voice coil subwoofer
- • S2-W10D4 Trim ring (installed)
- • S2-W10D4 (2) 3" jumper cables (each has a single banana connector on each end)
- • S2-W10D4 Subwoofer Application Guide (English/ French)
- • S2-W10D4 On-line product registration information (English/ French/ Spanish)
- • S2-W10D4 Owner's Manual
- • S2-A120M Mono subwoofer amplifier (four 25A ATO fuses installed)2 End caps
- • S2-A120M (4) 3/4" screws
- • S2-A120M (4) 1/4" screws
- • S2-A120M 2.5mm Allen key
- • S2-A120M Owner's Manual
Why Choose Alpine S2-W10D4 Bass Package?
Performance & Value
With an impressive power handling of 600W RMS and a peak power handling of 1800W, the Next-Gen 10” S-Series Subwoofers deliver outstanding performance value. Boasting a wide frequency response range of 25Hz to 215Hz and a sensitivity of 85dB (1W/1m), these subs ensure powerful and accurate bass reproduction across a diverse range of music genres.
Perfect Power Match
Maximize the potential of your S-Series subwoofers with Alpine's perfectly power-matched S-Series amps. Power up to two S2-W10D4 subwoofers effortlessly with the 600W S2-A60M mono amplifier, or for an even bigger impact, pair up to four S2-W10D4 subs with the powerful 1200W S2-A120M amp to ensure optimal sound quality and performance.
Massive Bass Power
Alpine's Next Generation S-Series S2-A120M mono subwoofer amplifier makes it a lot easier to get great bass in your ride, delivering up to 1200 watts RMS power to your sub. A variable bass boost allows you to dial in some extra kick and impact for more low-frequency enjoyment. You can even add an optional wired remote to control the level of bass from your front seat.
More Convenient Features
A low-pass filter puts you in command of the frequency spectrum that reaches your sub. The amp includes preamp- and speaker-level inputs, so you can install it in almost any vehicle, even one with a factory radio. When using the speaker-level inputs, the amp can sense the incoming signal and turn itself on, eliminating the need to run a separate turn-on wire to the receiver or fuse box.
Frequently Asked Questions (FAQ)
- • Is the included amplifier powerful enough for the 10-inch subwoofer?
Yes, the mono amplifier is specifically matched to provide clean and efficient power for the included subwoofer. This combination delivers strong bass performance while helping protect the speaker from improper power levels.
- • Can I wire the dual voice coil subwoofer in different impedance configurations?
Yes, the dual 4-ohm voice coil design offers multiple wiring options depending on your amplifier's recommended load. Following the wiring diagrams in the owner's manual helps ensure safe operation and maximum performance.
- • Why is the bass output weaker than I expected?
Incorrect gain settings, crossover adjustments, or voice coil wiring are common reasons for reduced bass output. Proper amplifier tuning and confirming the wiring configuration usually restore the expected performance.
- • Why does the amplifier go into protection mode after playing music loudly?
This typically happens because of overheating, incorrect speaker impedance, low battery voltage, or faulty wiring. Inspecting the power connections and verifying the wiring setup usually prevents the amplifier from entering protection mode.
- • Can I use this bass package with my factory stereo?
Yes, the package can be integrated with many factory audio systems using the proper installation accessories. Depending on your vehicle, you may need a line output converter or compatible signal interface.
- • Is the bass suitable for all types of music?
Yes, the system is designed to deliver tight, controlled low frequencies across a wide variety of music genres. Proper tuning allows you to balance the bass output for everything from rock and country to hip-hop and electronic music.
- • Can I upgrade to a larger amplifier later?
Yes, as long as the new amplifier matches the subwoofer's power handling and recommended impedance. Choosing the correct amplifier helps maximize performance while protecting the subwoofer from damage.
- • Why do I hear rattles inside my vehicle after installing the bass package?
The stronger low-frequency output can cause loose trim panels, license plates, or interior components to vibrate. Securing loose parts and adding sound-deadening material can greatly reduce unwanted rattles.
- • Is this package suitable for someone installing their first subwoofer system?
Yes, the matched amplifier and subwoofer simplify system selection and help eliminate compatibility concerns. Following the installation guide carefully or seeking professional installation can make the process much easier.
- • Will this bass package noticeably improve my overall listening experience?
Most users experience significantly deeper bass, improved low-frequency impact, and a fuller overall sound compared to factory audio systems. The matched components are engineered to work together for reliable performance and consistent sound quality.
S2-W10D4 S Series 10" 1800W Power Peak Handling 4 Ohms Dual Voice Coils Subwoofer
Features:
- Dual Voice Coil Subwoofers with Configuration Jumpers
- Carbon Fiber / Poly Propylene Cone
- Poly Propylene / Ceramic Dust Cap
- High-Grade Strontium Ferrite Magnets
- Twist-Lock Grille Mount System
- High-Amplitude Multi-Roll (H.A.M.R.) Surround
- Push-Type Speaker Terminals (Up to 8AWG Wire Size)
- 1800W Peak Power Handling
- 600W RMS Power Handling
- Dual 4-Ohm Impedance
- 25Hz - 215Hz Frequency Response
- High-Amplitude Multi-Roll (H.A.M.R.) Surround
- Grey Finish
Specifications:
- RMS Power Handling (W): 600
- Peak Power Handling (W): 1800
- Impedance (ohms): 4
- Frequency Response: 25Hz - 215Hz
- Sensitivity (dB): 84.9
- Powered: No
- Voice Coil: Dual
- Enclosed: No
- Voice Coil Diameter (in): 2.6

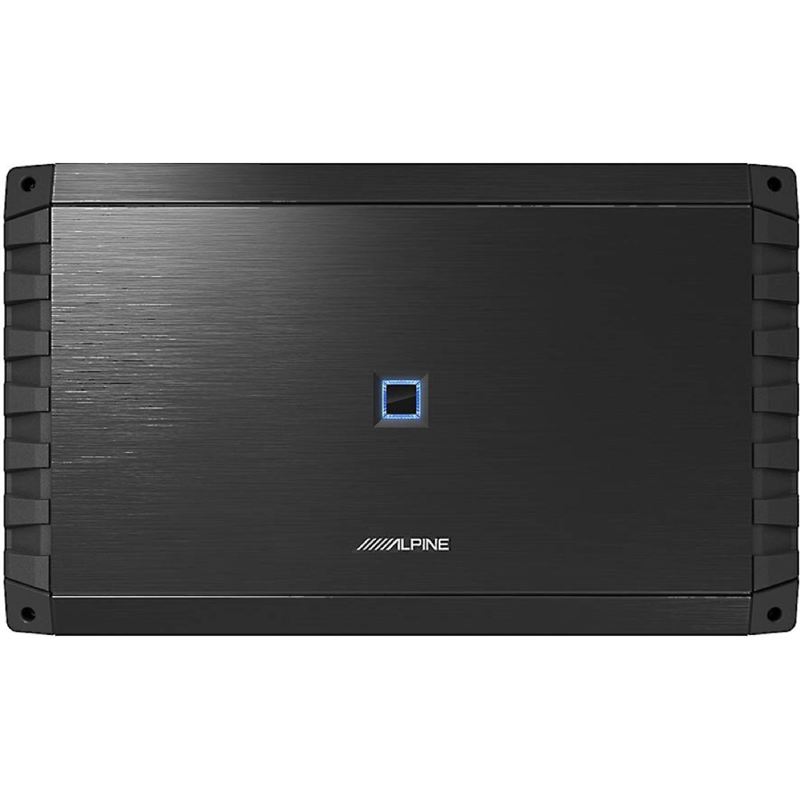

S2-A120M S Series 1200W x 1 @2Ohms Class D Monoblock Subwoofer Amplifier
Features:
- mono subwoofer amplifier
- 600 watts RMS x 1 at 4 ohms
- 1200 watts RMS x 1 at 2 ohms
- 1200 watts RMS x 1 at 1 ohm
- variable low-pass filter (50-400 Hz, 24 dB/octave)
- variable bass boost (0-12 dB at 50 Hz)
- optional wired remote available

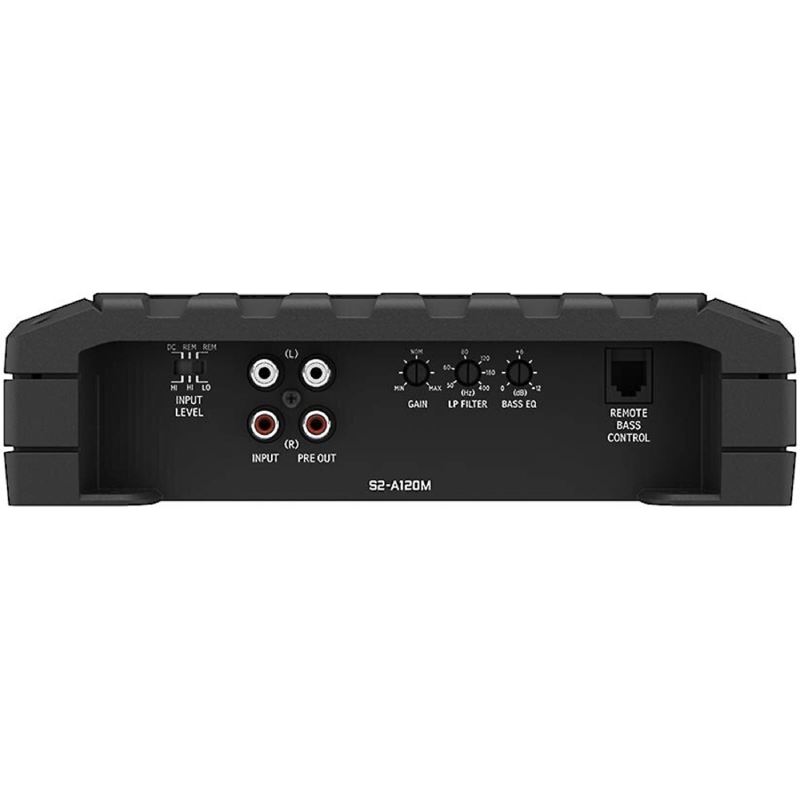

- preamp and speaker-level inputs
- speaker-level inputs handle up to 10V
- RCA adapters required for speaker-level input
- signal-sensing turn-on with speaker-level inputs
- preamp outputs
- wiring and hardware not included with amplifier
- 4-gauge power and ground leads recommended

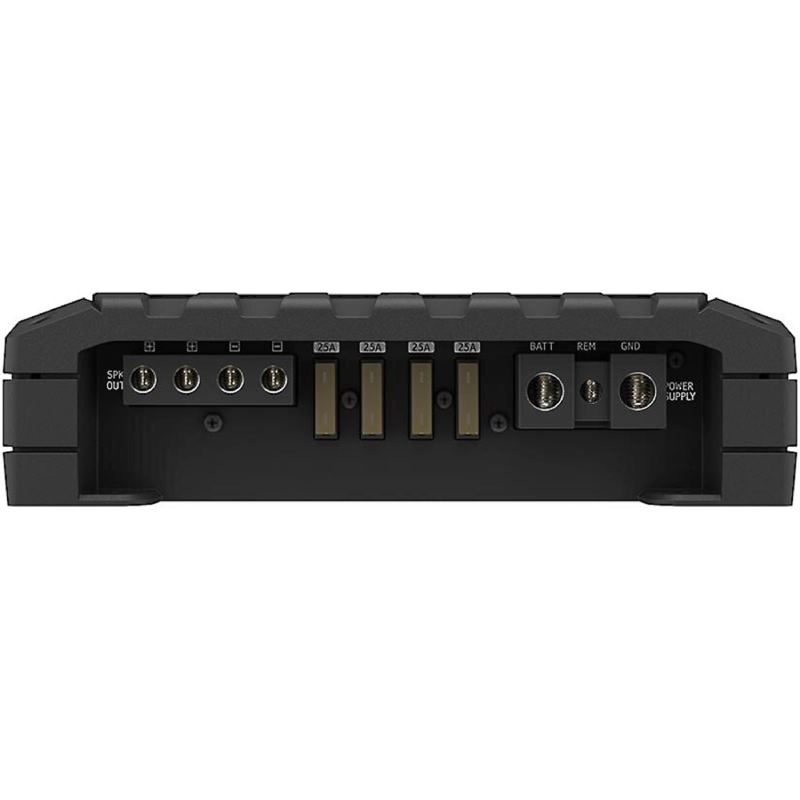

- fuse rating: 25A x 4
- 13.1"W x 2.25"H x 8.25"D
Specifications:
- RMS Power Output (Watts x Channels): 600 x 1
- Peak Power Output (Watts x Channels): ---
- Power at 2 Ohms (Watts x Channels): 1200 x 1
- Bridged Power (Watts x Channels): ---
- Minimum Impedance Bridged: ---
- Minimum Impedance Unbridged: 1
- Minimum Impedance: 1
- Best Frequency Response: 20-400 Hz
- THD at Rated RMS Power: ---
- Signal to Noise Ratio: ---
- Input Voltage: ---
- Amplifier Class: D
- Low-Pass Crossover Frequency: 50-400 Hz
- Low-Pass Slope (dB/octave): 24 dB/octave
- High-Pass Crossover Frequency: ---
- High-Pass Slope (dB/octave): ---
- Bass Boost: 0-12 dB
- Bass Boost Frequency: 50 Hz
- Fan Cooled: ---
- Fuse Rating: 100
- Speaker Level Inputs: Yes
- Preamp Outputs: 2
- Width (inches): 13-1/8
- Height (inches): 2-1/4
- Depth (inches): 8-1/4
- UPC:
- Weight: 21
- Authorized Internet Dealer
Warranty: 2 Year(s) Warranty.
This item is accompanied by a manufacturer's warranty. If it is found to be defective, it may be returned to OnlineCarstereo.com for repair within 1 year from the original date of purchase with proper return authorization.
