Orion  CPE120

Cobalt Series 12" 2000W Peak Power Handling 4 Ohm, Sealed Active Down-Firing Enclosure

Item #97190

Product Highlights

  • Cobalt Series
  • 12"
  • 2000W Peak Power Handling
  • 4 Ohm
  • Sealed
  • Active Down-Firing Enclosure

  Free 2-Years Warranty Included!
60 DAYS Returns Accepted.
FREE Lifetime Tech Support.
FREE Shipping.
60 DAYS Price change protection.
Sorry, this product is no longer available.
Checkout other products listed below

Huge Saving on Other items:



Huge Saving on Other items:


Rockford Fosgate Banner

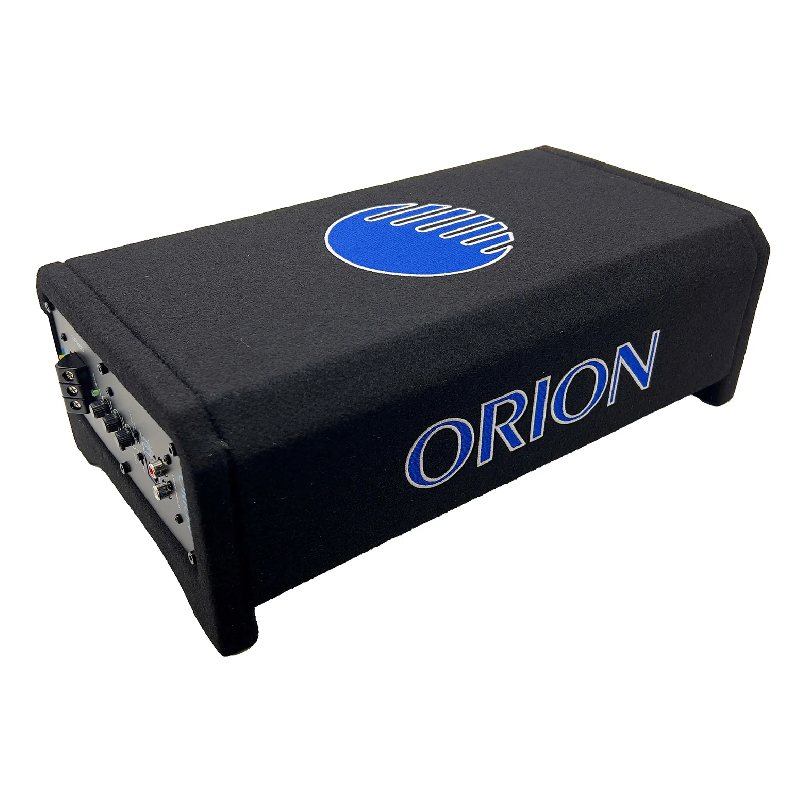

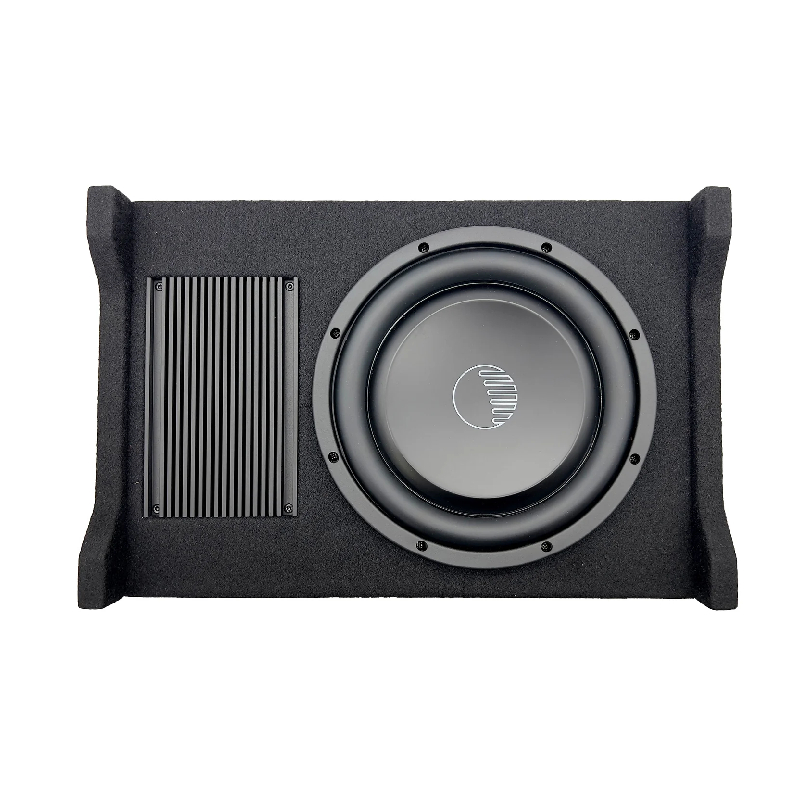

Orion CPE120 Cobalt Series 12" 500W RMS (2000W Peak Power Handling) 4 Ohm, Sealed Active Down-Firing Enclosure


We are a Orion authorized dealer so you get up-to-date, fully warrantied products. Shipping is free to the lower 48 states on everything you order!

What's Inside?
  • • 12" 2000W, Sealed Active Down-Firing Enclosure
  • • Owner's Manual
Powerful Integrated Design for Deep, Clean Bass

Featuring a built-in amplifier and down-firing configuration, this all-in-one system delivers optimized power and enhanced low-frequency response. By reflecting sound off the vehicle floor, it produces deeper, richer bass while maintaining clean, distortion-free performance—no external amp required.

Durable Construction with Premium Finish

Built from high-density MDF for maximum rigidity and reduced vibrations, this enclosure ensures clean, powerful bass with minimal distortion. Its sleek, automotive-grade carpet finish adds a professional look while providing a secure, non-slip fit for stable performance on the road..

Compact All-in-One Powerhouse

Featuring a space-saving design with a built-in amplifier, this all-in-one solution delivers powerful, deep bass without the need for additional components—perfect for vehicles with limited space and those who demand easy installation with uncompromised performance.


Frequently Asked Questions (FAQ)


  • • Why does my CPE120 take several minutes before producing sound?
    One customer reported that the amplifier initially showed a dim power light and took roughly 10 minutes before becoming fully operational, although this appears to be an individual experience rather than a documented normal startup procedure.
  • • Why does my CPE120 distort when I increase the bass control?
    A customer reported cracking and popping when increasing the EQ and gain, which makes proper gain adjustment and avoiding excessive bass boost important.
  • • Why isn't my CPE120 as powerful as the advertised wattage suggests?
    The CPE120 is listed with 500W RMS and 2000W peak output, so the maximum wattage should not be interpreted as continuous amplifier power.
  • • What should I check if the CPE120 produces very little bass?
    The manual identifies low gain, incorrect input connections, unsuitable LPF settings, phase mismatch, and source quality as possible causes of weak or distorted bass.
  • • Why does the CPE120 get hot during extended listening?
    The built-in amplifier needs unobstructed ventilation, while excessive gain or bass EQ can increase operating stress and heat.
  • • Why won't my CPE120 turn on with my factory radio?
    When using the factory system, the remote-turn-on connection or high-level input's automatic turn-on function may need to be configured correctly for the powered enclosure to activate.
  • • Why does the bass sound out of phase with my factory speakers?
    The CPE120 includes a 0°/180° phase control, allowing the user to change the subwoofer's phase when bass cancellation occurs between the enclosure and the vehicle's main speakers.
  • • Why does the CPE120 seem quieter when I remove the low frequencies from the EQ?
    One customer reported that reducing the higher-frequency content also resulted in very little audible output, suggesting that source EQ settings and signal processing can significantly affect the enclosure's perceived bass level.
  • • Is the CPE120 difficult to install in a tight vehicle interior?
    The active enclosure combines the 12-inch woofer and amplifier in a compact 14 × 21 × 7-inch enclosure, and one customer specifically reported an easy installation because the amplifier is already built into the enclosure.
  • • What should I do if the CPE120 suddenly stops producing bass?
    Check the power and ground connections, fuse, input wiring, protection indicator, ventilation, and gain settings because the manual lists these areas among the primary troubleshooting points for a powered CPE120 enclosure.

SPECIFICATIONS


  • Diameter : 12 Inch
  • Sensitivity : 90 dB
  • Impedance : 4 Ohm
  • Frequency Response : 25-600 Hz
  • Peak Power Handling : 2000 Watts
  • Enclosure Type : Sealed
  • Color : Black, Grey
  • RMS Power Handling : 500 Watts

FEATURES


Features:

  • Integrated Amplifier for Hassle-Free Power: Built-in amplifier delivers optimized power output, eliminating the need for an external amp while ensuring clean, distortion-free bass.
  • Down-Firing Design for Enhanced Bass Response: Utilizes vehicle floor reflection to maximize low-end output, producing deeper, richer bass with minimal distortion.
  • Premium MDF Construction for Reduced Vibrations: Crafted from high-density MDF for superior rigidity and durability, minimizing resonance to deliver accurate and powerful bass performance.
  • Sleek Automotive-Grade Carpet Finish: Features a professional, non-slip covering that enhances aesthetics while keeping the enclosure securely in place during driving.
  • Compact, All-in-One Solution: A space-saving design with an integrated amplifier—ideal for vehicles with limited space—offering effortless installation without sacrificing bass power.





Specifications:

  • Speaker Size: 12 (Inches)
  • Enclosure Type: Active Down-Firing
  • Power Handling (Peak): 2000 Watts
  • Power Handling (RMS): 500 Watts
  • Sensitivity: 90 dB
  • Frequency Response: 26 Hz - 500 Hz
  • Enclosure Volume: 0.84 cu. ft.
  • Dimensions (L x W x H): 14" x 21" x 7" (355.6 x 533.4 x 177.8mm)
  • Final Impedance: 4 Ohms
  • Bass Boost: 0 -+ 12 dB
  • Low Pass Crossover: 50Hz - 200Hz
  • Hi and Low-Level Inputs
  • Cone Material: Spun Aluminum Cone
  • Surround Material: Hi Strength Rubber EPDM Enhanced Surround
  • Enclosure Type: Air Tight Sealed Enclosure
  • Terminal Type: Push Type Terminals
  • Carpet Type: Black and Grey Industrial Strength Carpet
  • UPC: 818550019003
  • Weight: 28.9
  • Authorized Internet Dealer
Warranty: 2 Year(s) Warranty.
This item is accompanied by a manufacturer's warranty. If it is found to be defective, it may be returned to OnlineCarstereo.com for replacement within 2 Year(s) from the original date of purchase with proper return authorization.
