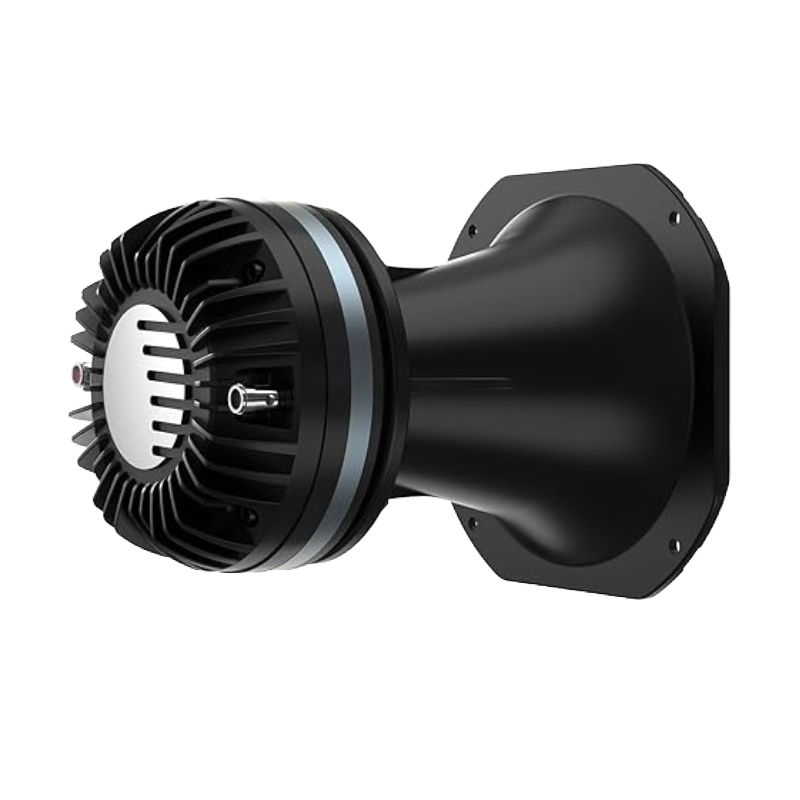

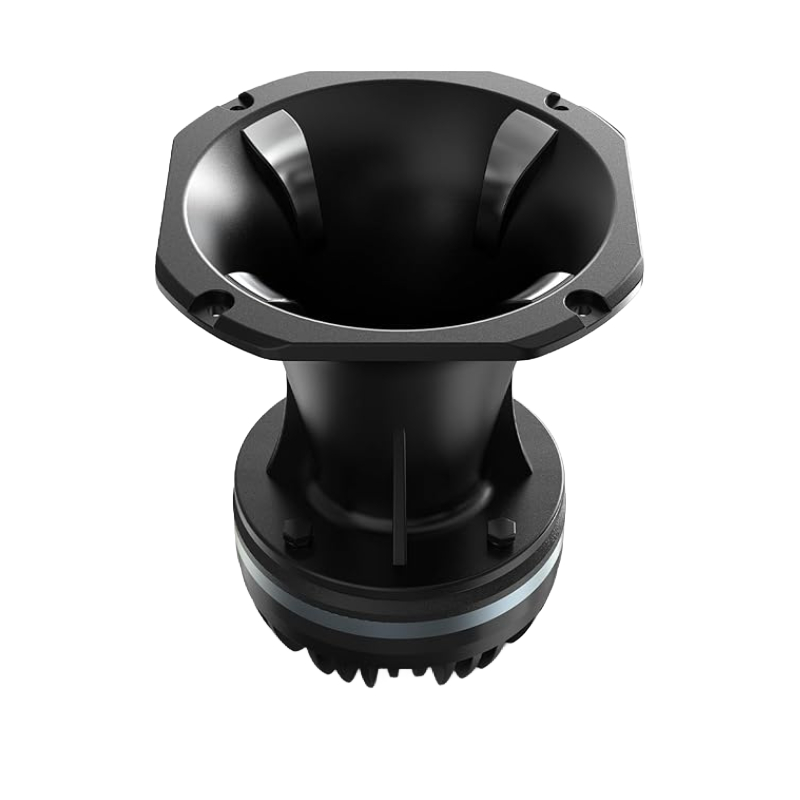

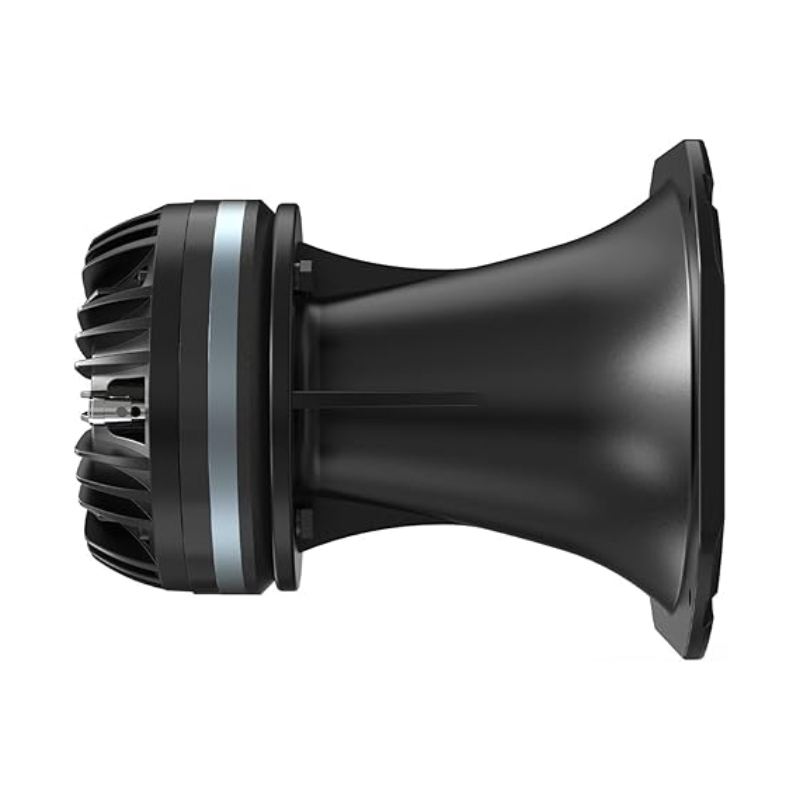

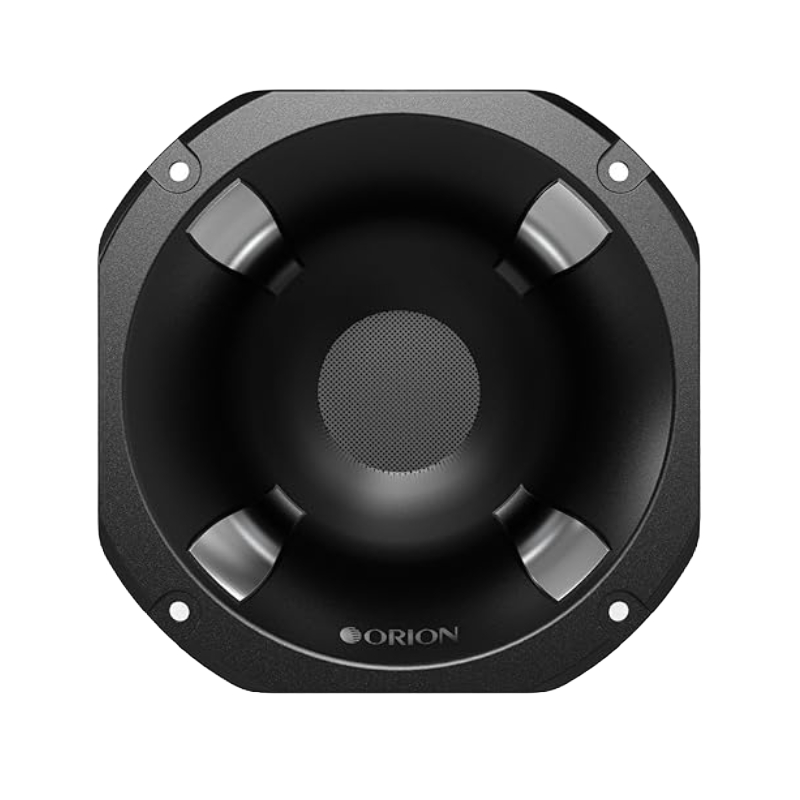

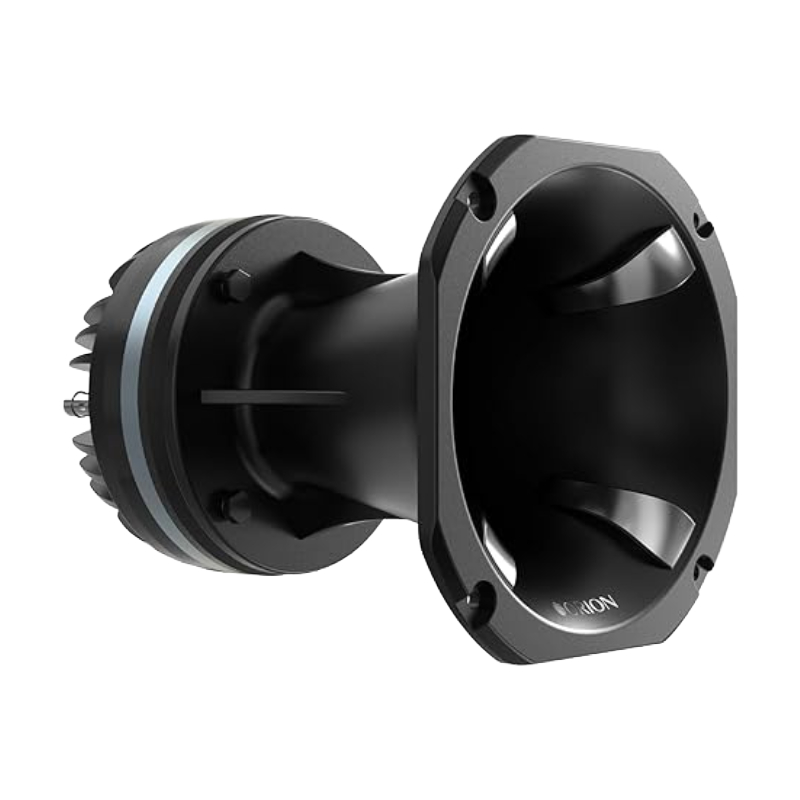

Orion HCCA3DK HCCA Pro Series 3" 400W RMS (1600W Peak Power Handling) 8 Ohm, Neodymium Horn Tweeters (Single)
We are a Orion authorized dealer so you get up-to-date, fully warrantied products. Shipping is free to the lower 48 states on everything you order!
What's Inside?
- • 3" HCCA Pro Series Neodymium Horn Tweeters (Single)
- • Owner's Manual
Crisp, Powerful Highs for Any Ride
Enjoy exceptional high-frequency clarity for precise, detailed sound in pro car audio systems, backed by robust power handling of 400W RMS (1600W peak at 8 Ohms) to maintain clean, distortion-free highs at maximum volume.
Precision Engineered for Superior Sound
Featuring an advanced 2.94” CCAR voice coil with a polyimide diaphragm for durability and heat resistance, this driver delivers ultra-efficient output with 112 dB sensitivity and a 0.5 kHz – 18 kHz frequency range for precise, detailed sound reproduction.
Powerful, Balanced Sound for Audiophiles
Equipped with a 15.1 oz neodymium magnet for strong motor force, reduced weight, and balanced 50º x 50º sound coverage, this tweeter is professional-grade, perfect for audiophiles and high-performance car audio enthusiasts.
Frequently Asked Questions (FAQ)
- • Why does my HCCA3DK sound harsh or overly bright?
A compression driver can sound aggressive when the crossover point, equalizer settings, gain, or horn positioning are not properly matched to the rest of the system, so tuning should be checked before assuming the driver is defective.
- • Can I connect the HCCA3DK directly to my amplifier without a crossover?
The HCCA3DK is a high-frequency compression driver, so using an appropriate high-pass crossover is important to prevent unwanted low-frequency energy from reaching the diaphragm and to keep the driver operating within its intended range.
- • Why is my HCCA3DK much louder than my other speakers?
With a published sensitivity of 112 dB, the HCCA3DK can produce substantially more acoustic output from the same amplifier power than many conventional speakers, so its gain level may need to be balanced with the rest of the system.
- • What amplifier should I use with an 8-ohm HCCA3DK?
The amplifier should be stable at an 8-ohm load and provide power appropriate for the driver's 400W RMS rating rather than being selected solely by its maximum or peak wattage specification.
- • Why does the driver get distorted when I turn the system up?
Distortion at higher volume can result from excessive amplifier gain, clipping, an unsuitable crossover setting, inadequate amplifier headroom, or sending frequencies outside the driver's intended operating range.
- • Does the HCCA3DK need a special mounting arrangement?
The HCCA3DK combines a 3-inch compression driver with an integrated aluminum horn, so the mounting area needs enough clearance for its approximately 11.5 × 6 × 6-inch dimensions and should allow the horn to project into the listening area.
- • Why are the highs different depending on where I mount the HCCA3DK?
The horn's approximately 50° × 50° coverage means its orientation can affect how directly high-frequency energy reaches listeners, making mounting angle and placement important to the resulting sound.
- • What should I check if one HCCA3DK is quieter than the other?
Compare the amplifier channels, speaker wiring, crossover settings, gain levels, polarity, and source signal first, since unequal settings or connections can create a left-to-right output difference.
- • Can I use the HCCA3DK with a lower-power amplifier?
Yes, an amplifier does not need to equal the driver's 400W RMS rating, but it should provide clean power at the correct 8-ohm load and be configured to avoid clipping.
- • What should I do if the HCCA3DK stops producing high frequencies after heavy use?
First inspect the amplifier output, crossover, wiring, and connections before declaring the driver failed; Orion's warranty guidance specifically notes that improper installation, misuse, and burned voice coils caused by neglectful operation are not covered as manufacturer defects.
- Diameter : 3 Inch
- RMS Power Range : 400 Watts
- Peak Power Handling : 1600 Watts
Features:
- High-Frequency Performance: Delivers crisp, clear, and detailed sound for pro car audio systems
- High Power Handling: 400W RMS and 1600W Max Power at 8 Ohms for clean highs at high volumes
- Advanced Design: 2.94” CCAR voice coil with polyimide diaphragm ensures durability and heat resistance
- Ultra-Efficient Output: 112 dB sensitivity and 0.5 kHz – 18 kHz frequency range for precise sound reproduction
- Neodymium Magnet: 15.1 oz magnet provides strong motor force, reduced weight, and balanced 50º x 50º sound coverage
- Professional-Grade: Ideal for audiophiles and high-performance car audio enthusiasts
Specifications:
- Driver Type: 3” Compression Driver with Horn
- Power Handling (RMS): 400 Watts
- Power Handling (Peak/Max): 1600 Watts
- Impedance: 8 Ohms
- Voice Coil: 2.94” CCAR
- Diaphragm Material: Polyimide
- Sensitivity: 112 dB
- Frequency Response: 0.5 kHz – 18 kHz
- Magnet Type: Neodymium
- Magnet Weight: 15.1 oz
- Coverage Angle: 50º x 50º
- Application: Pro car audio systems / High-frequency driver
- UPC:
- Weight: 5
- Authorized Internet Dealer
Warranty: 2 Year(s) Warranty.
This item is accompanied by a manufacturer's warranty. If it is found to be defective, it may be returned to OnlineCarstereo.com for replacement within 2 Year(s) from the original date of purchase with proper return authorization.
