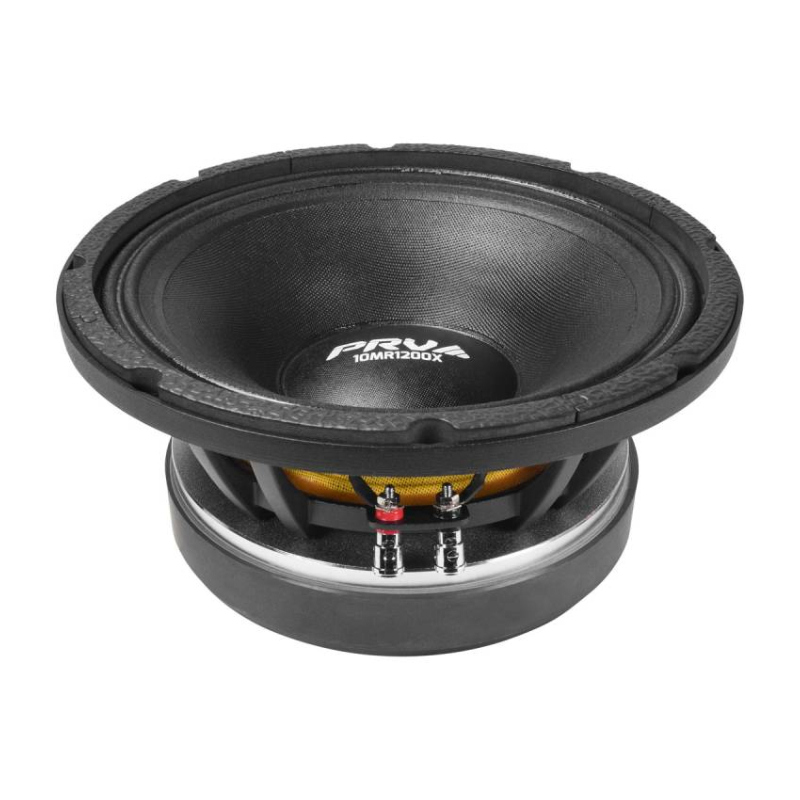

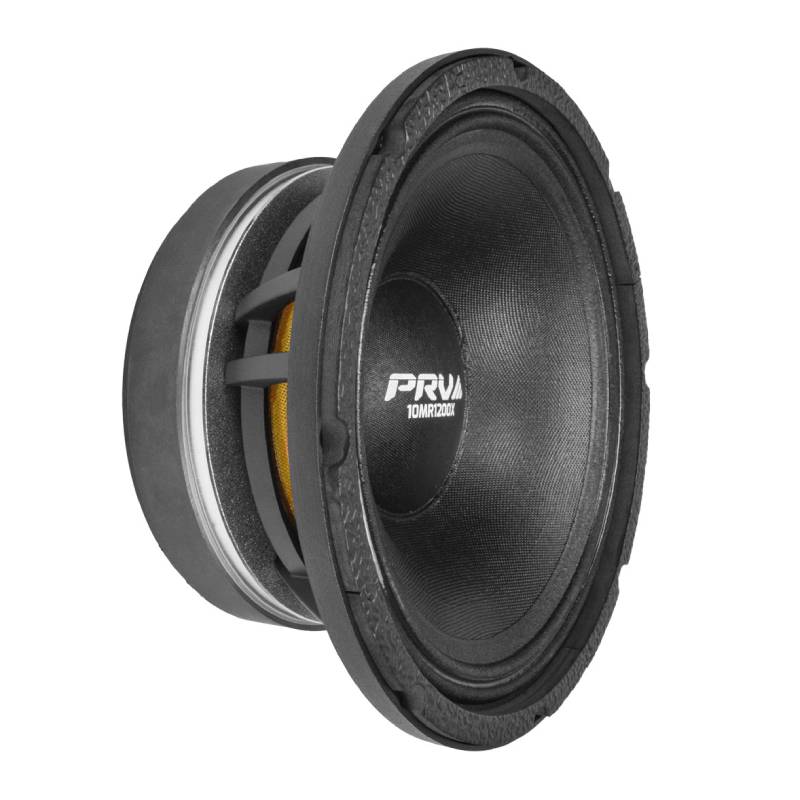

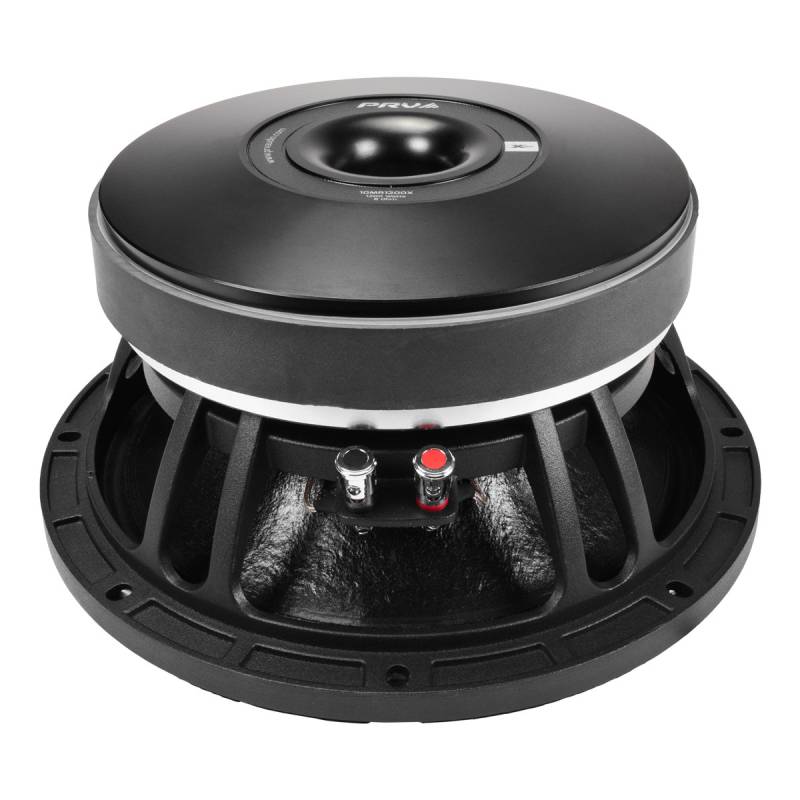

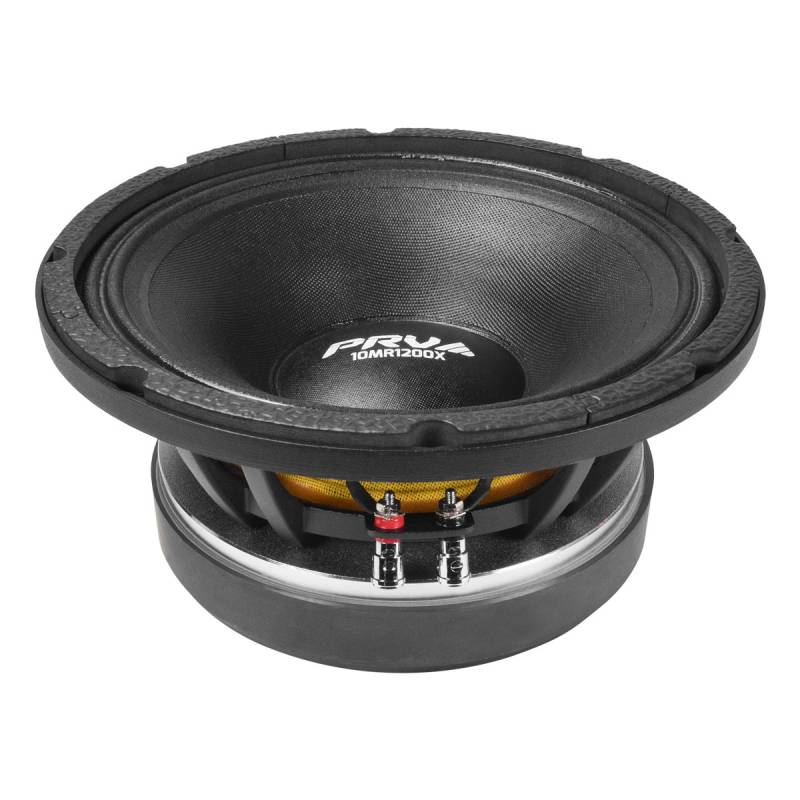

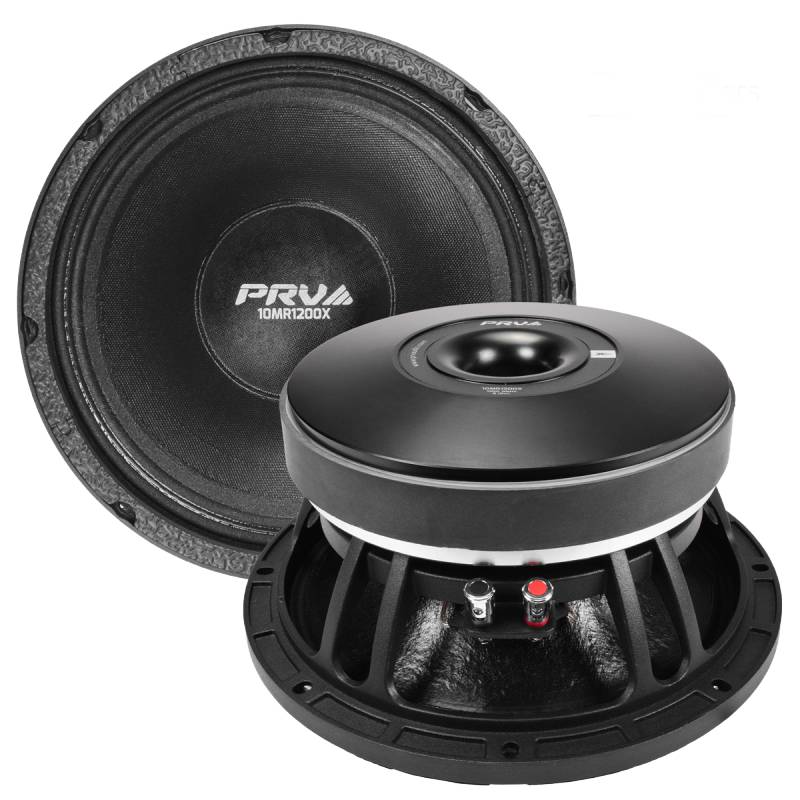

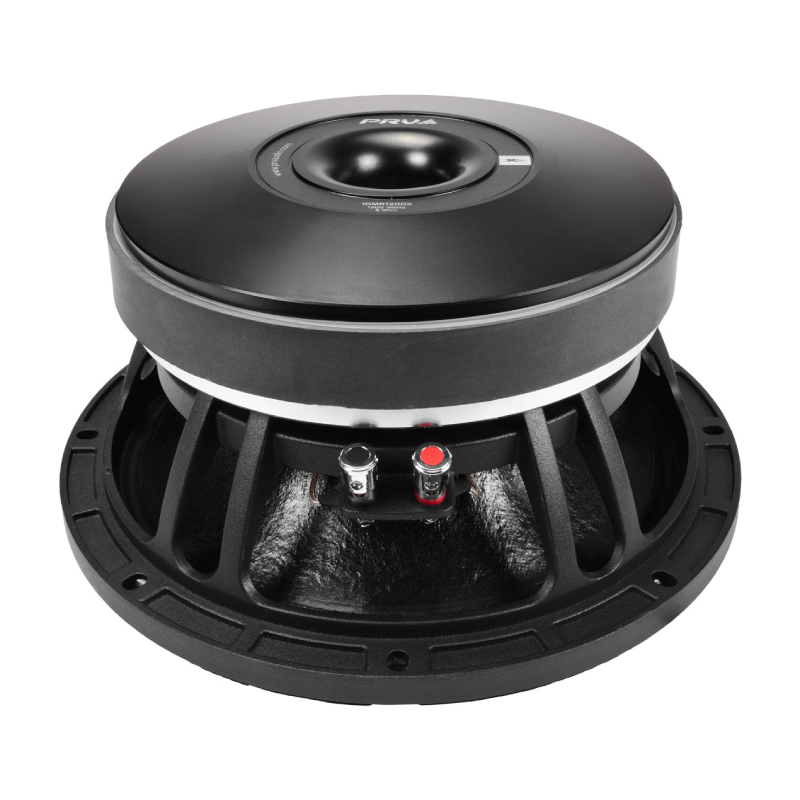

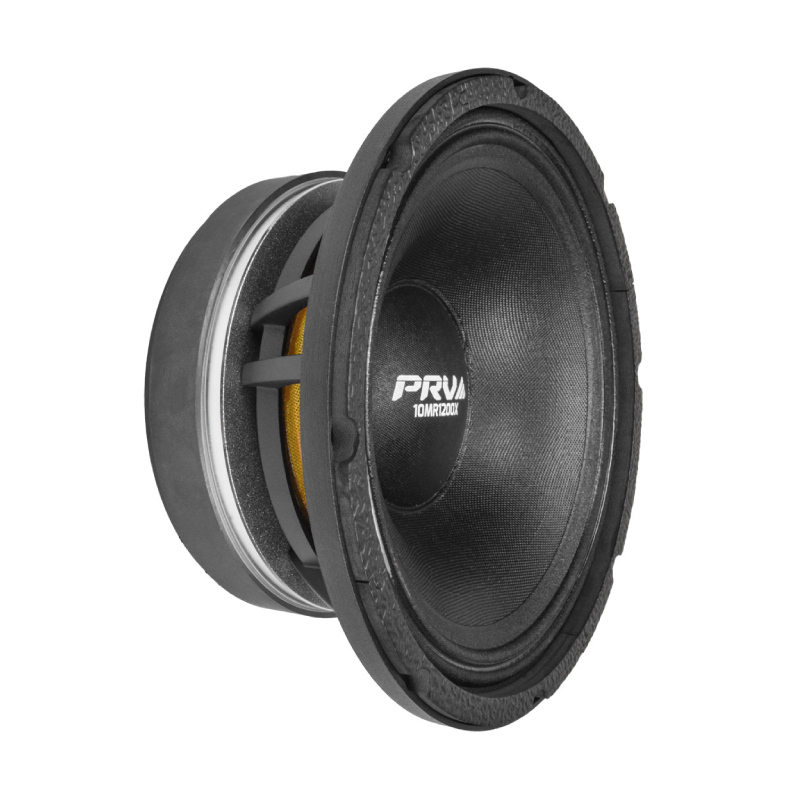

PRV Audio 10MR1200X X-Series 10" 1200W RMS (2400W Peak Power Handling) at 8-Ohms, Die Cast Aluminum Midrange Car Speaker (Single)
We are a PRV Audio authorized dealer so you get up-to-date, fully warrantied products. Shipping is free to the lower 48 states on everything you order!
What's Inside?
- • 10" X-Series Midrange Car Speaker
- • Installation Accessories
- • Owner's Manual
Why Choose PRV Audio 10MR1200X Midrange Car Speaker?
Insane Efficiency That Turns Small Power Into Big Sound
If you are building a system that needs to get loud fast without draining your amp, the PRV Audio 10MR1200X is on a different level. With a massive 101 dB sensitivity, it delivers extreme output with very little power input, making it perfect for competition style SPL setups. The 80 Hz to 7,000 Hz range keeps it flexible enough for strong midbass punch and clear vocal projection, so nothing feels missing in your front stage. Rated at 600W RMS and 1200W program power, it stays stable even when your system is pushed into hard, continuous use.
Built for Loud Vocals That Stay Clean Under Pressure
This midrange is tuned for clarity even when everything around it is aggressive and loud. Its lightweight cone design helps vocals and instruments stay sharp, detailed, and easy to hear even at extreme volume levels. The advanced ventilated cooling system works behind the scenes to keep heat under control, reducing power compression so your sound does not flatten out when you keep it playing hard for long periods. It is built to stay clean when other speakers start to struggle.
Competition Grade Strength With Real World Reliability
Under the hood, the 10MR1200X uses a heavy duty 3 inch inside and outside CCAW voice coil on a glass fiber former for serious thermal stability and long term durability. The die cast aluminum frame locks everything in place, reducing unwanted vibration so your sound stays tight and controlled. Designed for high output SPL environments, it integrates smoothly into DSP tuned multi way systems with compression drivers, giving you precise crossover control and a properly balanced loud front stage that feels powerful and refined at the same time.
PRV Audio 10MR1200X vs 10MR1000 PRO vs 10MR650A | Which PRV Audio 10" Midrange Speaker Is Best?
| PRV Audio 10" Midrange Speaker Comparison |
PRV Audio 10MR1200X 10" X-Series Competition Midrange Speaker
FLAGSHIP
- • 10" Competition Midrange
- • 1200 Watts RMS
- • 2400 Watts Peak Power Handling
- • 4 Ohms
- • 101 dB Sensitivity
- • 3" Voice Coil
- • Extreme Vocal Projection
- • Best for Competition SPL
|
PRV Audio 10MR1000 PRO 10" High Output PRO Midrange Speaker
BEST VALUE
- • 10" PRO Midrange
- • 1000 Watts RMS
- • 2000 Watts Peak Power Handling
- • 8 Ohms
- • 100 dB Sensitivity
- • 3" Voice Coil
- • Excellent Output
- • Ideal for High-Power Systems
|
PRV Audio 10MR650A 10" Alto Series Midrange Speaker
DAILY DRIVER
- • 10" Midrange Speaker
- • 650 Watts RMS
- • 1300 Watts Peak Power Handling
- • 8 Ohms
- • Smooth Frequency Response
- • Excellent Daily Performance
- • Easy to Power
- • Best Entry-Level Upgrade
|
Which PRV Audio 10" Midrange Speaker Should You Buy?
| If You Want... | Recommended Model |
| Best Overall 10" Midrange |
10MR1200X |
| Highest Output 10" Midrange |
10MR1200X |
| Best for Competition SPL |
10MR1200X |
| Best Value High-Power Upgrade |
10MR1000 PRO |
| Best Daily Driver |
10MR650A |
| Best Vocal Clarity |
10MR1200X |
| Best Efficiency (Sensitivity) |
10MR1200X |
| Best for Custom Door Panels |
10MR1000 PRO |
| Best Entry-Level PRO Audio System |
10MR650A |
Overall Ranking
DAILY DRIVER
10MR650A
An affordable 10-inch midrange that delivers smooth vocals and reliable performance for everyday car audio systems.
BEST VALUE
10MR1000 PRO
Built for enthusiasts who want powerful output, excellent efficiency, and impressive vocal projection without stepping up to the flagship X-Series.
FLAGSHIP
10MR1200X
PRV Audio's flagship 10-inch X-Series midrange, engineered for extreme SPL systems with outstanding vocal clarity, exceptional sensitivity, and maximum output capability.
Frequently Asked Questions (FAQ)
- • Why does my PRV Audio 10MR1200X sound harsh at high listening levels?
Harsh sound is often caused by amplifier clipping, excessive EQ, or crossover settings that allow unwanted frequencies to reach the speaker. Proper tuning usually restores clean vocal performance.
- • Can I use the PRV Audio 10MR1200X without adding horn tweeters?
The speaker reproduces powerful midrange frequencies, but pairing it with horn tweeters or compression drivers creates a more complete and balanced sound system.
- • Why do my vocals disappear when the bass is turned up?
This usually happens when the subwoofer level is too high or the crossover points are not properly adjusted. Balancing the crossover settings improves vocal clarity.
- • Is the PRV Audio 10MR1200X a good option for demo vehicles?
Yes. Many audio enthusiasts use it in demo and SPL builds because it delivers high-output midrange performance with excellent projection.
- • Why does my 10MR1200X make a buzzing noise on certain songs?
Buzzing is commonly caused by loose mounting hardware, vibrating panels, or wiring touching nearby components rather than the speaker itself.
- • Can I install multiple PRV Audio 10MR1200X speakers on a single amplifier?
Yes, provided the total speaker impedance matches the amplifier's supported load and sufficient clean RMS power is available.
- • Why does my amplifier enter protection mode while powering the 10MR1200X?
Protection mode may result from incorrect wiring, overheating, an impedance mismatch, or insufficient electrical support. Inspecting the installation is recommended.
- • Does the PRV Audio 10MR1200X require a DSP for the best results?
A DSP is optional, but it provides precise crossover, equalizer, and time alignment adjustments that can greatly improve overall sound quality.
- • Why does one PRV Audio 10MR1200X sound louder than the other?
Uneven output is often caused by polarity issues, mismatched amplifier gain settings, or balance adjustments. Verifying the wiring usually resolves the problem.
- • How can I get the loudest clean vocals from the PRV Audio 10MR1200X?
Use a properly matched amplifier, apply the recommended crossover settings, avoid clipping, and securely mount the speaker to maximize output while maintaining excellent vocal clarity.
- Diameter : 10 Inch
- Sensitivity : 101 dB
- Impedance : 8 Ohm
- Frequency Response : 80-7000 Hz
- Peak Power Handling : 2400 Watts
- RMS Power Handling : 1200 Watts
Features:
- Ultra High Sensitivity Output: 101 dB efficiency delivers extreme acoustic output with minimal power input, ideal for large SPL systems and competition builds.
- Extreme Power Handling: Rated at 600W RMS and 1200W program power for sustained high output performance under demanding audio conditions.
- Extended Midrange Coverage: 80 Hz to 7,000 Hz frequency response supports strong vocal clarity and instrument reproduction across a wide bandwidth.
- High Performance Voice Coil System: 3 inch inside and outside CCAW voice coil on glass fiber former ensures excellent thermal resistance and long term durability.
- Precision Vocal Reproduction: Lightweight cone design enhances clarity and detail for accurate vocal and instrument playback at high SPL levels.
- Advanced Cooling Design: Ventilated voice coil gap reduces heat buildup and minimizes power compression during extended high output use.
- Die Cast Aluminum Frame: Heavy duty basket construction improves rigidity and reduces unwanted resonance for cleaner and more controlled sound.
- High Output Competition Engineering: Designed for extreme SPL environments capable of sustained high output levels in large multi speaker systems.
- System Integration Flexibility: Optimized for DSP tuned multi way setups with high crossover compatibility for professional car audio applications.
Specifications:
- Nominal Diameter: 10″ (254 mm)
- Nominal impedance: 8 Ohm
- Nominal Power Handling: 600 Watts
- Continuous Program Power (RMS): 1200 Watts
- Max Peak Power: 2400 Watts
- Sensitivity 2.83V at 1m: 101 dB
- Recommended Hi Pass Crossover For Full Power Handling: 150 Hz 12db Per Octave Crossover
- Frequency Response: 80 – 7,000 Hz
- Voice Coil Diameter: 3″ (75 mm)
- Voice Coil Wire: CCAW
- Voice Coil Winding Depth: 10.0 mm
- Former Material: Glass fiber
- Magnetic Gap Depth: 10.0 mm
- Frame Material: Die Cast Aluminum
- Overall Diameter: 10.31” (262 mm)
- Front Mount Baffle Cutout: 8.78” (223 mm)
- Mounting Depth: 4.45” (113 mm)
- Overall Depth: 5.04” (128 mm)
- UPC: 810075526653
- Weight: 19.18
- Authorized Internet Dealer
Warranty: 1 Year Warranty.
This item is accompanied by a manufacturer's warranty. If it is found to be defective, it may be returned to OnlineCarstereo.com for replacement within 1 Year from the original date of purchase with proper return authorization.
