PRV D3500TiH-Nd Series 2" 150W RMS (300W Peak Power Handling) 8 Ohm, Exit Neodymium Titanium Hybrid Compression Driver (Sold as Single)
We are a PRV Audio authorized dealer so you get up-to-date, fully warrantied products. Shipping is free to the lower 48 states on everything you order!
What's Inside?

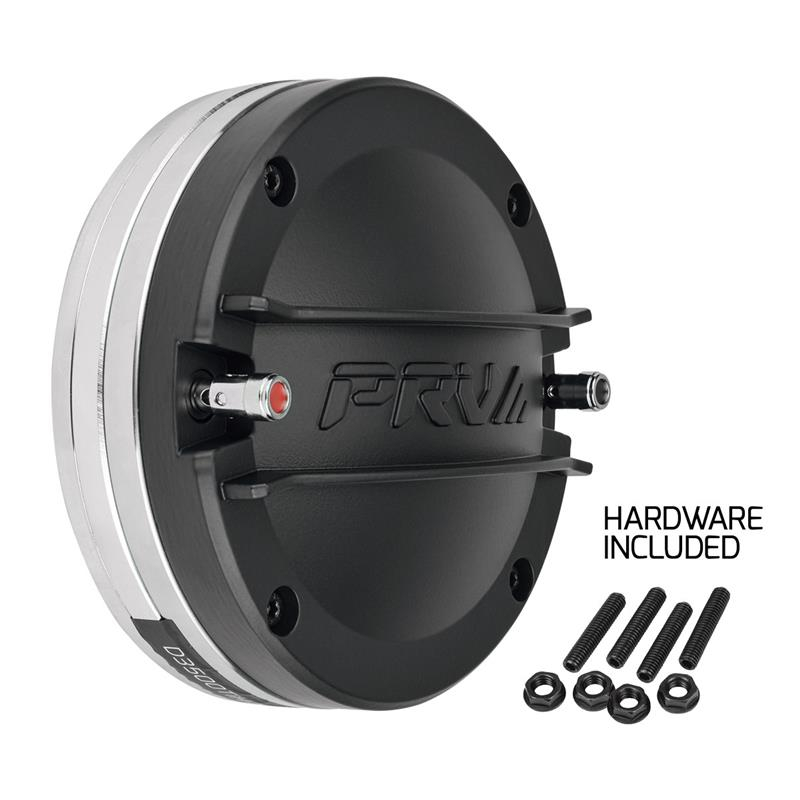

- • 2" D3 Series Exit Neodymium Titanium Hybrid Compression Driver
- • Owner's Manual
Big Output Energy in a Compact Frame
The PRV Audio D3500TiH-Nd is made for car audio enthusiasts who want loud, clean performance without bulky gear taking over their build. With 110 dB sensitivity, it delivers strong, efficient projection that cuts through even the loudest SPL systems. The compact neodymium motor with a 5.43 inch ring magnet keeps things lightweight and easy to install, especially for front mount setups where space matters.
Balanced Clarity That Stays Smooth When You Push It
This driver is tuned to keep vocals and upper mids sounding natural even when the system is cranked up. The hybrid titanium polyimide diaphragm blends rigidity and damping for a clean, controlled sound that does not turn harsh under pressure. Covering 800 Hz to 18,000 Hz, it delivers detailed midrange and crisp highs, making your vocals and instruments stand out with real clarity.
Built for Loud Systems That Never Back Down
When it comes to real-world power, this compression driver is ready for the challenge. The lightweight 3.5 inch voice coil supports up to 300 watts program power, giving you stable output during high demand use. Its 2 inch bolt on exit works perfectly with WGP horn systems, while precision phase control keeps heat in check and performance consistent. Designed for SPL builds and high output car audio setups, this driver is made to stay loud, clean, and reliable every time you turn it up.
Frequently Asked Questions (FAQ)
- • Why does my PRV Audio D3500TiH-Nd sound sharp even after adjusting the equalizer?
If the highs remain sharp, the crossover frequency may be set too low, the horn may not be the ideal match, or the amplifier could be clipping. Reviewing the entire system setup often improves sound quality.
- • Can I power the PRV Audio D3500TiH-Nd with a small amplifier?
Yes. A smaller amplifier can drive the compression driver effectively as long as it delivers clean power and is properly configured with the correct crossover settings.
- • Why is one PRV Audio D3500TiH-Nd louder than the other?
Differences in output are commonly caused by mismatched amplifier gains, wiring polarity, crossover settings, or a diaphragm that needs inspection or replacement.
- • Does the PRV Audio D3500TiH-Nd require a horn to operate correctly?
Yes. It is designed to work with a compatible horn that controls sound dispersion and allows the driver to achieve its intended efficiency and performance.
- • Why does my PRV Audio D3500TiH-Nd make a popping sound during loud music?
Popping can occur because of amplifier clipping, loose electrical connections, or a diaphragm that has been damaged by excessive power or improper crossover settings.
- • Can I replace the diaphragm without replacing the entire PRV Audio D3500TiH-Nd?
Yes. Replacing the diaphragm is a common repair when the driver body remains in good condition and can restore normal operation.
- • Is the PRV Audio D3500TiH-Nd suitable for touring or portable PA systems?
Yes. Its neodymium motor helps reduce weight, making it a popular option for portable speaker cabinets and professional sound reinforcement systems.
- • Why do vocals become distorted after several hours of use?
Distortion after extended playback may result from amplifier overheating, thermal stress on the system, or excessive input levels. Ensuring proper cooling and clean power can help maintain consistent performance.
- • Can I tune the PRV Audio D3500TiH-Nd with a DSP instead of using a passive crossover?
Yes. A DSP offers precise control over crossover frequencies, equalization, delay, and output levels, making it an excellent choice for active speaker systems.
- • What is the best way to maintain the PRV Audio D3500TiH-Nd for long term reliability?
Inspect the horn, wiring, and mounting hardware regularly, use the recommended crossover settings, avoid amplifier clipping, and keep the driver protected from moisture, dust, and excessive heat.
- Diameter : 2 Inch
- RMS Power Range : 150 Watts
- Peak Power Handling : 300 Watts
Features:
- High Sensitivity Output Performance: Delivers 110 dB efficiency for powerful and clear sound projection in high SPL systems.
- Hybrid Titanium Polyimide Diaphragm: Provides balanced rigidity and damping for natural vocal reproduction and extended clarity.
- Wide Frequency Response Range: Covers 800 Hz to 18,000 Hz for detailed midrange and extended high frequency output.
- Compact Neodymium Motor Design: Uses a 5.43 inch ring magnet for reduced weight and easier front mount installation.
- Lightweight 3.5 Inch Voice Coil: Enhances responsiveness while maintaining stable thermal performance under load.
- High Efficiency Vocal Tuning: Optimized for strong upper midrange reproduction with minimal distortion.
- Extended Power Handling Capability: Supports up to 300 watts program power for reliable high output performance.
- Precision Engineered Phase Control: Improves heat dissipation and maintains consistent sound quality at high volume levels.
- Bolt On 2 Inch Exit Configuration: Ensures secure compatibility with WGP horn systems for flexible installation.
- Competition Ready Design: Ideal for SPL builds, professional audio setups, and high performance car audio systems.
Specifications:
- Exit Throat Diameter: 2” (50 mm)
- Nominal Impedance: 8 Ohm
- Rated AES Power Handling (RMS): 150 W
- Program Power: 300 W
- Sensitivity (2.83V @ 1m): 110 dB
- Recommended High-Pass Crossover: 900 Hz (12 dB per octave) for full power handling
- Frequency Response (-10 dB): 800 – 18,000 Hz
- Voice Coil Diameter: 3.5” (89 mm)
- Voice Coil Wire Material: CCAW (Copper-Clad Aluminum Wire)
- Voice Coil Former Material: Kapton

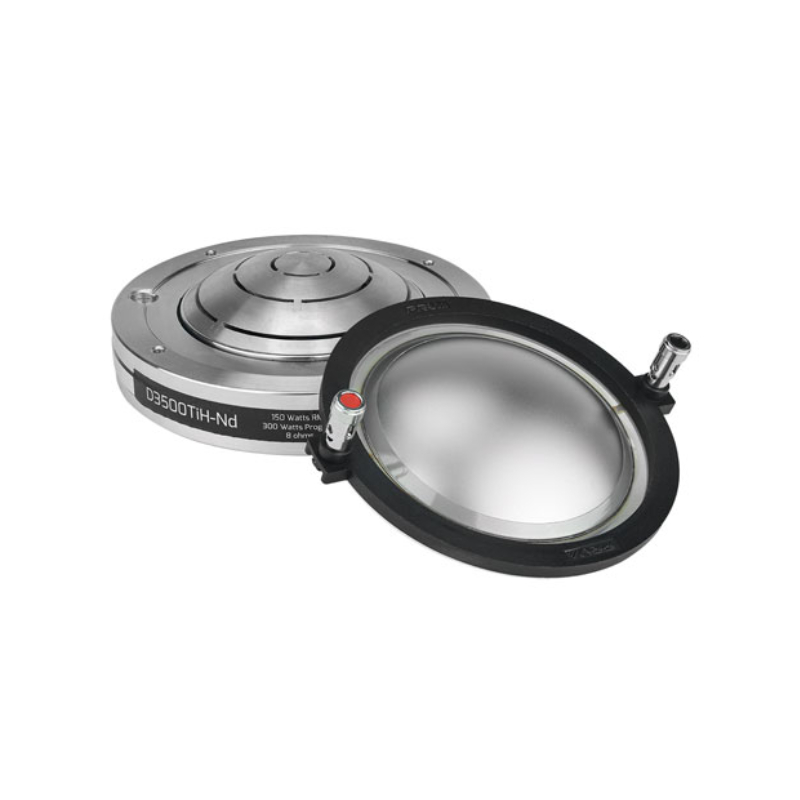

- Diaphragm Material: Ti+Py
- Flux Density: 1.80 T
- Magnet Material: Neodymium
- UPC: 810075521115
- Weight: 2
