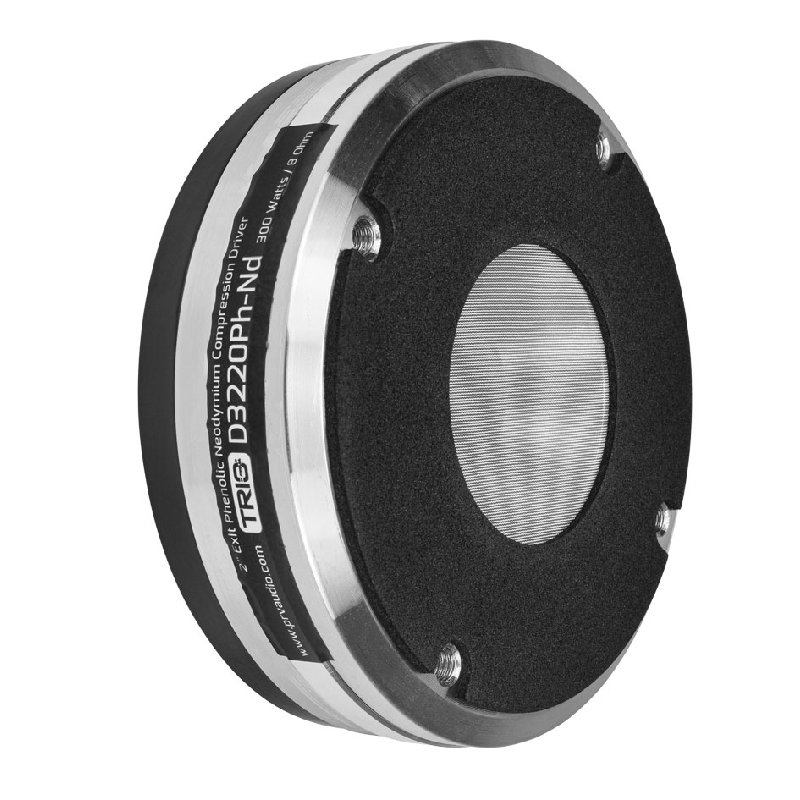

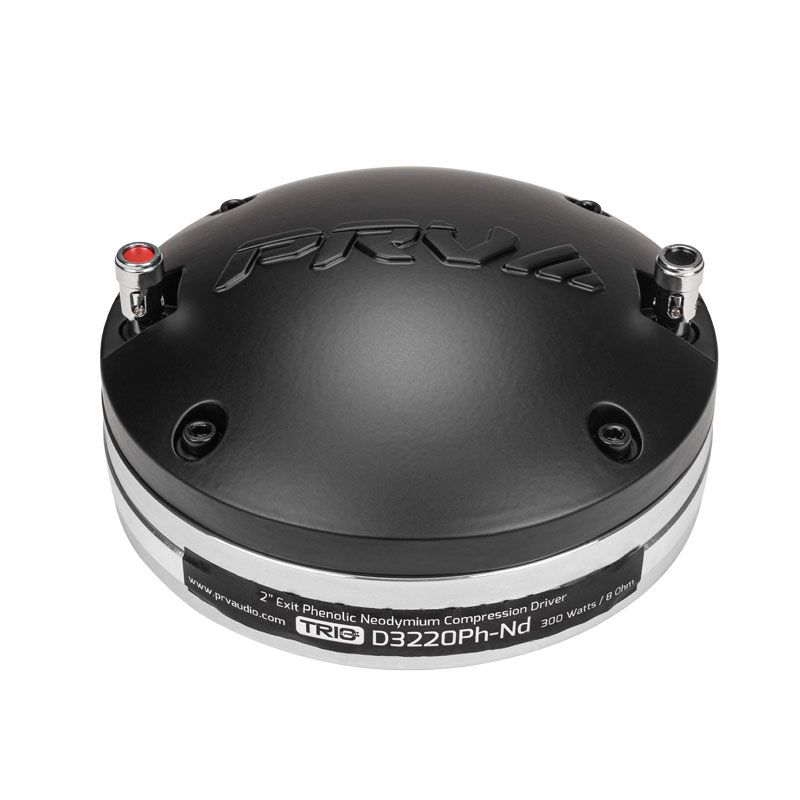

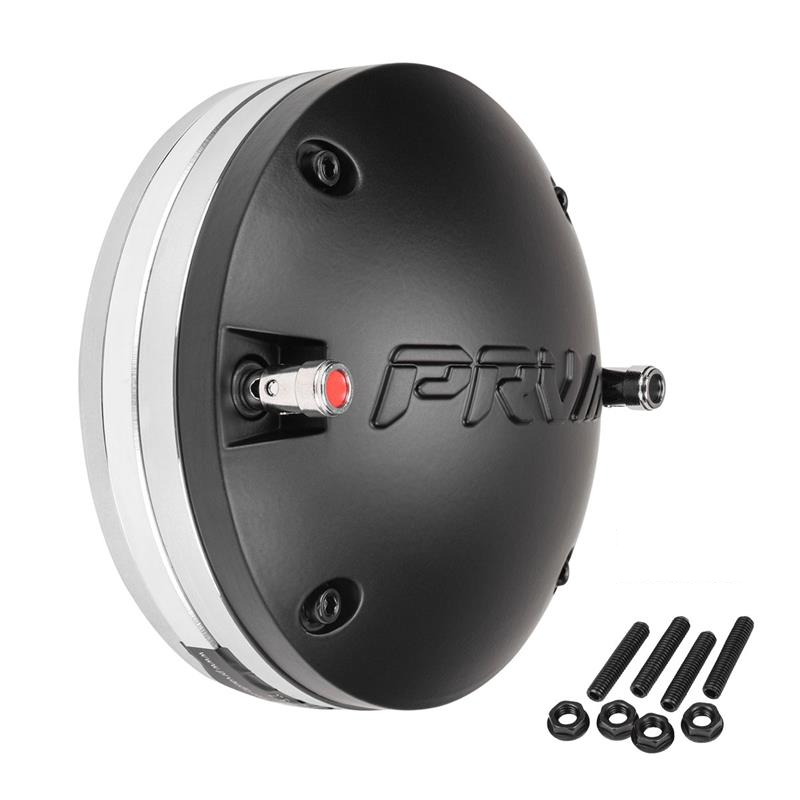

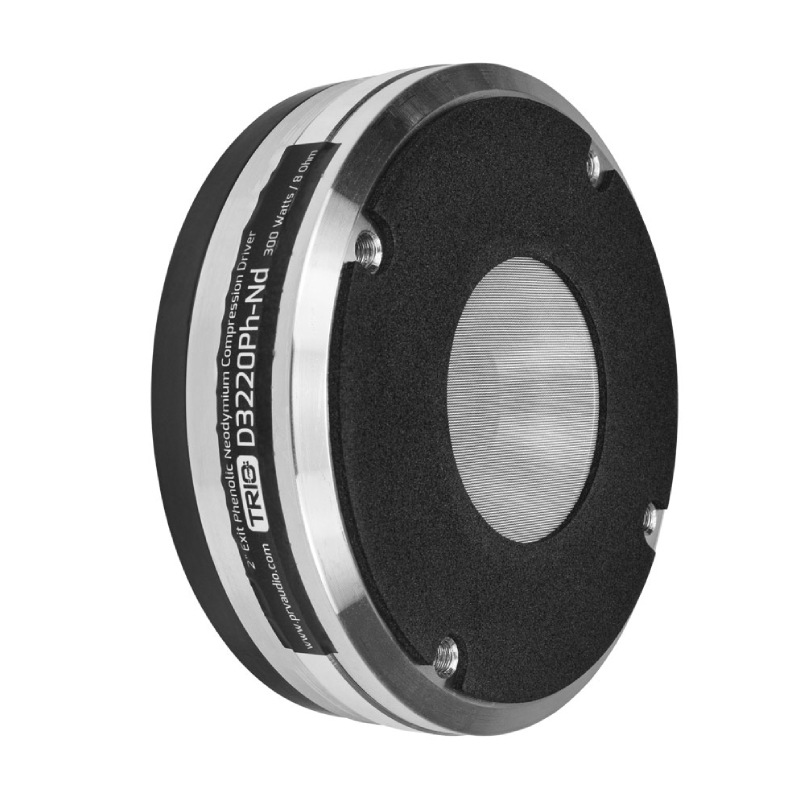

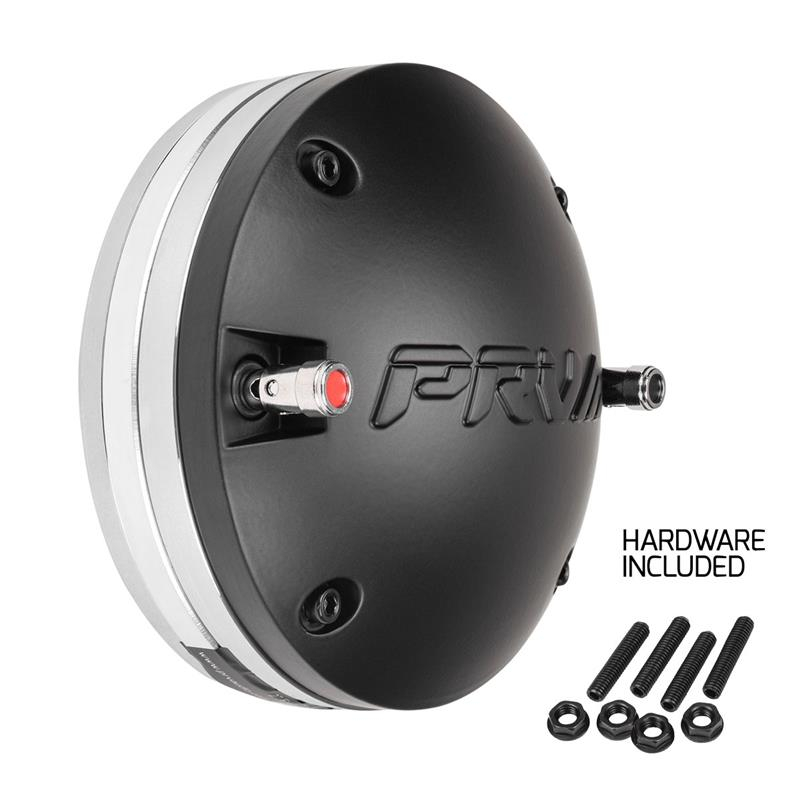

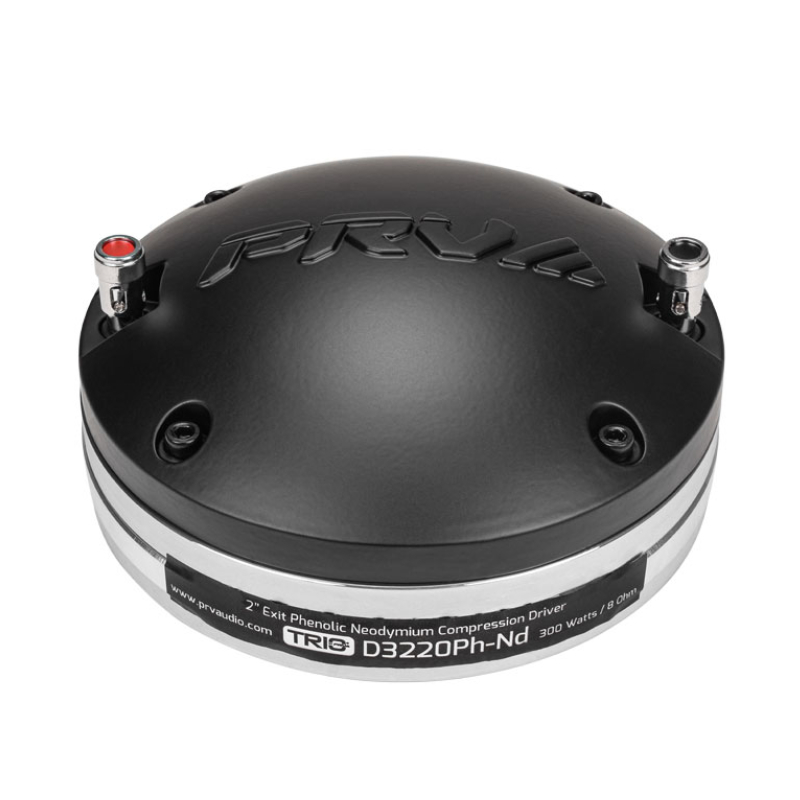

PRV D3220Ph-Nd Series 2" 300W RMS (600W Peak Power Handling) 8 Ohm, Exit Neodymium Phenolic Compression Driver (Sold as Single)
We are a PRV Audio authorized dealer so you get up-to-date, fully warrantied products. Shipping is free to the lower 48 states on everything you order!
What's Inside?
- • 2" D3 Series Exit Neodymium Phenolic Compression Driver
- • Owner's Manual
Vocal Power That Cuts Through Any Mix
The PRV Audio D3220Ph-Nd is built for systems that demand strong and clear vocal presence. With 109 dB sensitivity, it delivers powerful midrange projection that easily stands out even in bass heavy setups. Whether you are building a daily system or an SPL monster, this driver gives your vocals the energy and clarity they need to stay front and center.
Smooth Midrange That Sounds Natural and Controlled
This driver focuses on delivering clean and natural vocals without harshness. The phenolic diaphragm technology produces a smooth tone that holds its character even at high volume levels. Covering 600 Hz to 7,500 Hz, it fills the critical midrange space with detail and accuracy, while the 3 inch voice coil keeps thermal performance stable for consistent output during long listening sessions.
Compact Strength Built for Serious Audio Builds
With its lightweight neodymium motor, this compression driver keeps your setup efficient and easy to install without sacrificing performance. It handles up to 300 watts program power, giving you reliable output when it matters most. The front mount design simplifies installation, and the 2 inch bolt on exit ensures it pairs easily with a wide range of horn systems. Designed for 3 way systems and DSP optimized tuning, it delivers clean, controlled vocals that complete any high performance setup.
Frequently Asked Questions (FAQ)
- • Why does my PRV Audio D3220Ph-Nd sound harsh when I play music at high volume?
Harsh sound is usually caused by amplifier clipping, excessive treble boost, or crossover settings that allow frequencies below the recommended range to reach the driver.
- • Can I use the PRV Audio D3220Ph-Nd with a horn from another manufacturer?
Yes. As long as the horn is compatible with the driver's mounting specifications and acoustic design, it can provide excellent performance.
- • Why does my PRV Audio D3220Ph-Nd randomly cut out during playback?
Intermittent sound is often caused by loose wiring, poor electrical connections, overheating amplifier channels, or a failing diaphragm.
- • Does the PRV Audio D3220Ph-Nd require a passive crossover?
It can be used with either a passive crossover or an active DSP. The key is selecting the proper crossover frequency to protect the compression driver.
- • Why is my PRV Audio D3220Ph-Nd producing a rattling sound?
A rattling noise may come from loose horn hardware, mounting screws, nearby panels, or a damaged diaphragm. Carefully inspect the installation before replacing the driver.
- • Can I replace the diaphragm if my PRV Audio D3220Ph-Nd stops working?
Yes. Replacing the diaphragm is a common repair when the driver body remains undamaged and can restore normal performance.
- • Is the PRV Audio D3220Ph-Nd suitable for lightweight portable PA speakers?
Yes. Its neodymium motor helps reduce system weight, making it a popular choice for portable speaker cabinets and mobile sound applications.
- • Why do vocals sound uneven between my left and right speakers?
Uneven output may be caused by different amplifier gain settings, wiring polarity issues, crossover configuration, or a diaphragm problem on one side.
- • Can I pair the PRV Audio D3220Ph-Nd with high efficiency midrange speakers?
Yes. It is commonly combined with professional midrange drivers to create a balanced system with strong vocal projection and detailed high frequencies.
- • What is the best way to extend the lifespan of the PRV Audio D3220Ph-Nd?
Use clean amplifier power, follow the recommended crossover settings, avoid clipping, keep the driver protected from moisture and debris, and regularly inspect the horn, wiring, and mounting hardware for reliable long term performance.
- Diameter : 2 Inch
- RMS Power Range : 300 Watts
- Peak Power Handling : 600 Watts
Features:
- High Efficiency Vocal Output: Produces 109 dB sensitivity for strong and clear midrange projection in high output systems.
- Neodymium Motor Compact Structure: Reduces overall size and weight while maintaining powerful magnetic performance.

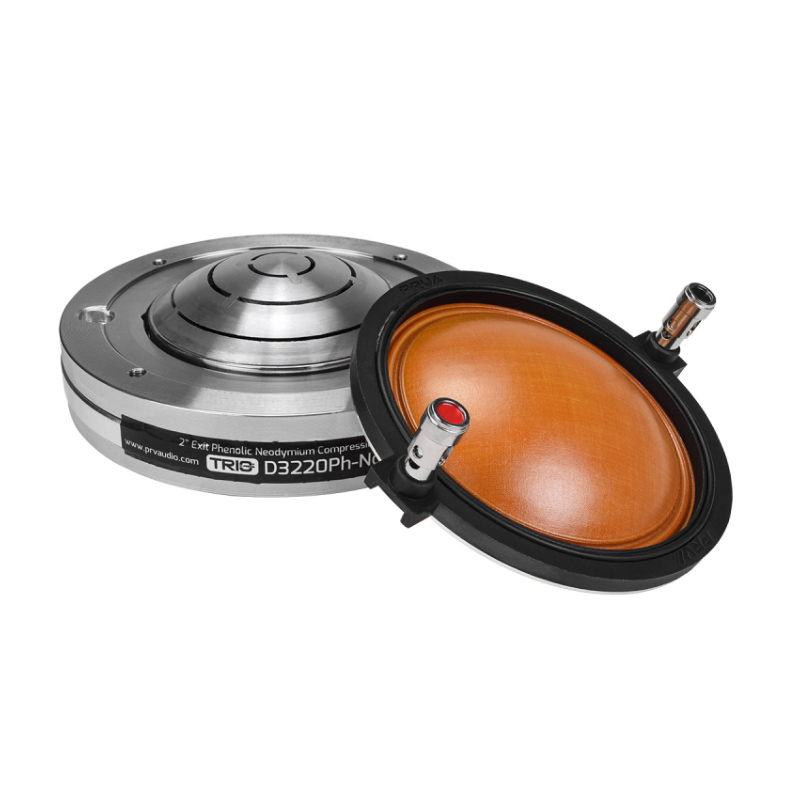

- Phenolic Diaphragm Technology: Provides smooth and natural vocal reproduction with enhanced durability under continuous use.
- Optimized Midrange Frequency Response: Covers 600 Hz to 7,500 Hz for accurate vocal reinforcement in multi way systems.
- Large 3 Inch Voice Coil Design: Ensures stable thermal performance and supports consistent high power handling.
- High Power Handling Capability: Supports up to 300 watts RMS program power for reliable and dynamic playback.

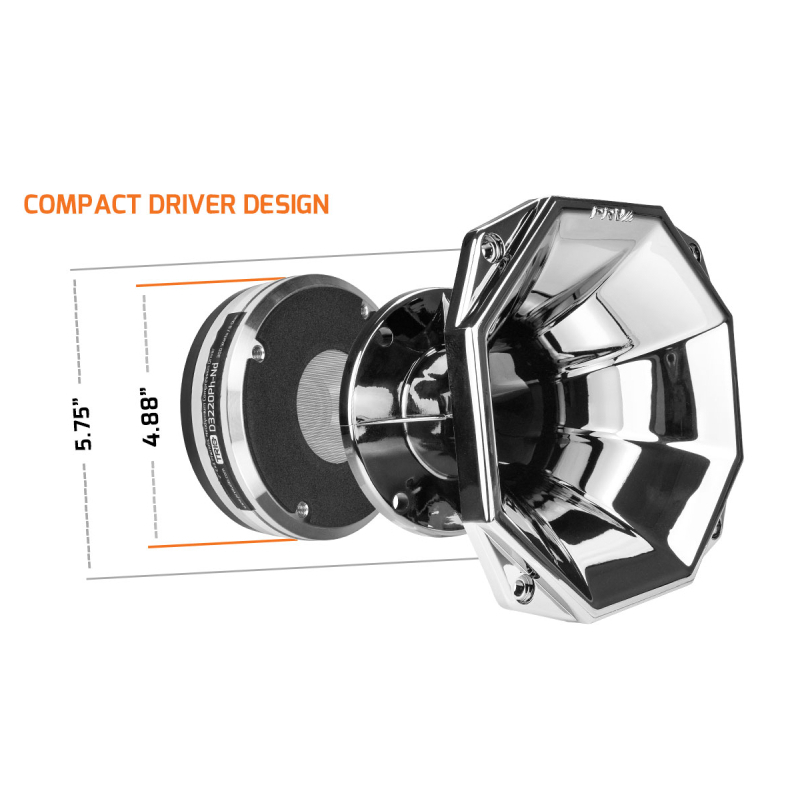

- Front Mount Installation Ready: Allows easy mounting without removing the driver from compatible shallow horn systems.
- Bolt On 2 Inch Exit Configuration: Ensures secure compatibility with a wide range of horn applications.
- Designed for 3 Way System Integration: Ideal for vocal reinforcement in custom car audio and SPL competition builds.
- DSP Optimized Performance: Designed to perform efficiently with recommended crossover settings for clean signal control.
Specifications:
- Exit Throat Diameter: 2” (50 mm)
- Nominal Impedance: 8 Ohm
- Nominal Power Handling: 150 W
- Continuous Program Power (RMS): 300 W
- Max Peak Power: 600 W
- Sensitivity (2.83V @ 1m): 109 dB
- Recommended High-Pass Crossover: 800 Hz (12 dB per octave) for full power handling
- Frequency Response (-10 dB): 600 – 7,500 Hz
- Voice Coil Diameter: 3” (76.2 mm)
- Voice Coil Wire Material: Copper
- Voice Coil Former Material: Kapton
- Diaphragm Material: Phenolic
- Flux Density: 1.80 T
- Magnet Material: Neodymium
- UPC: 810075524642
- Weight: 2
- Authorized Internet Dealer
Warranty: 1 Year Warranty.
