PRV Audio  WG2500Py SLIM

WG Series 2" 400W Peak Power Handling 8 Ohm, Polyimide Compression Horn Driver

Item #97363

Condition:   Brand New

0
❮ ❯

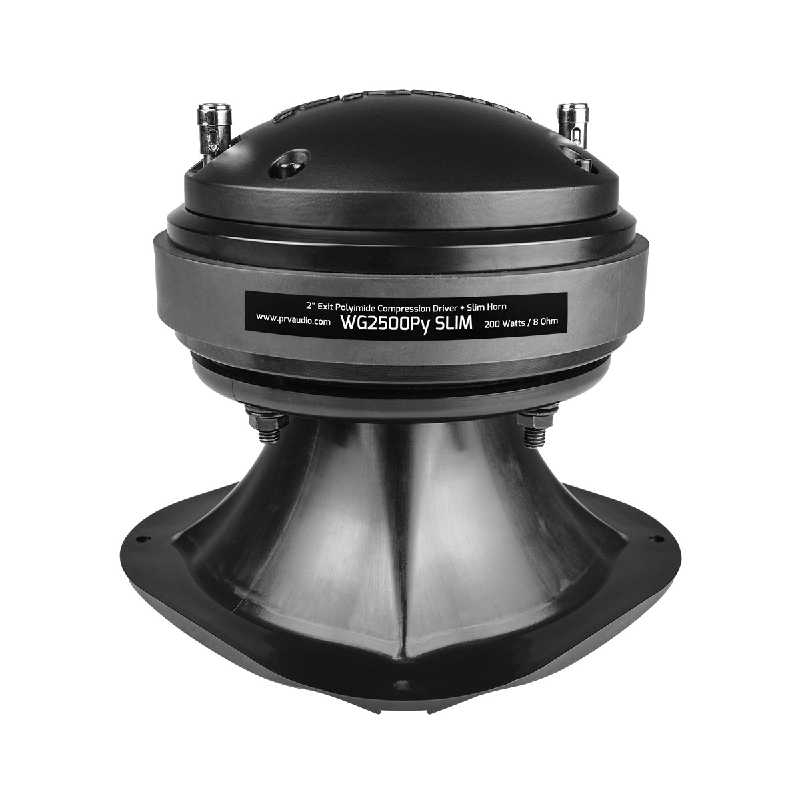

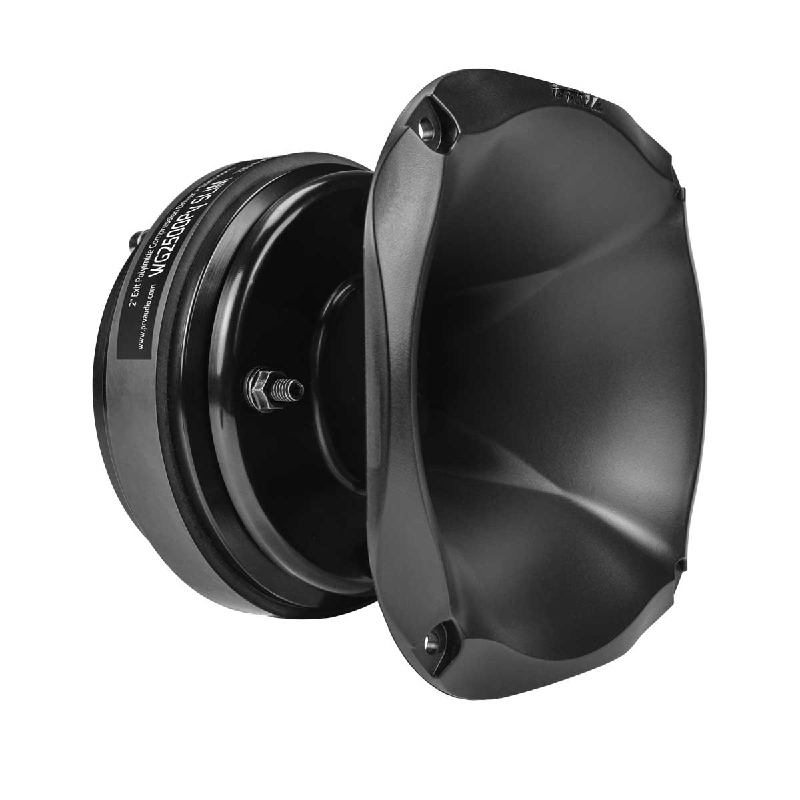

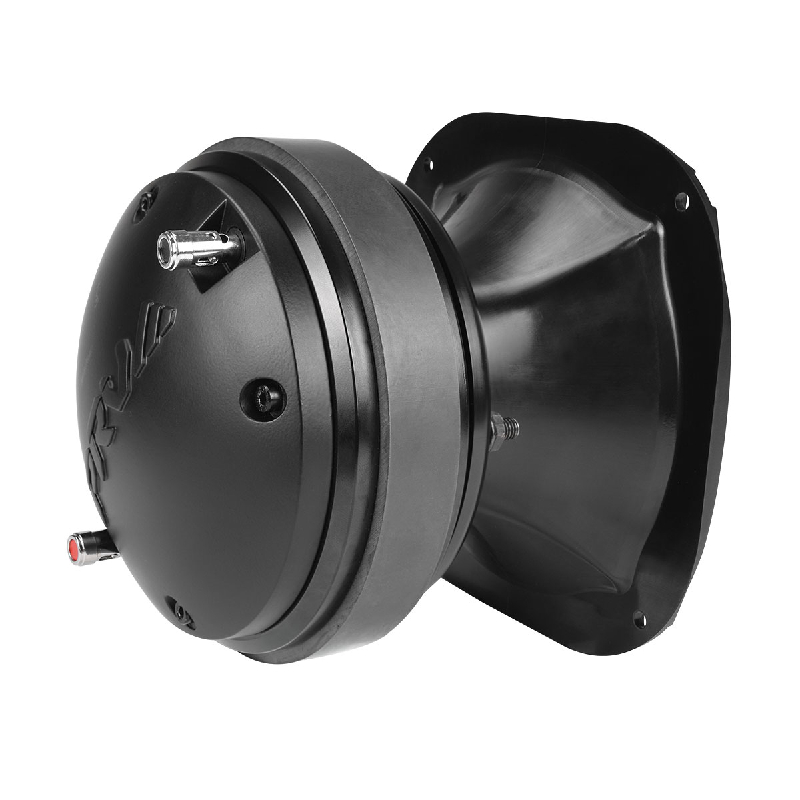

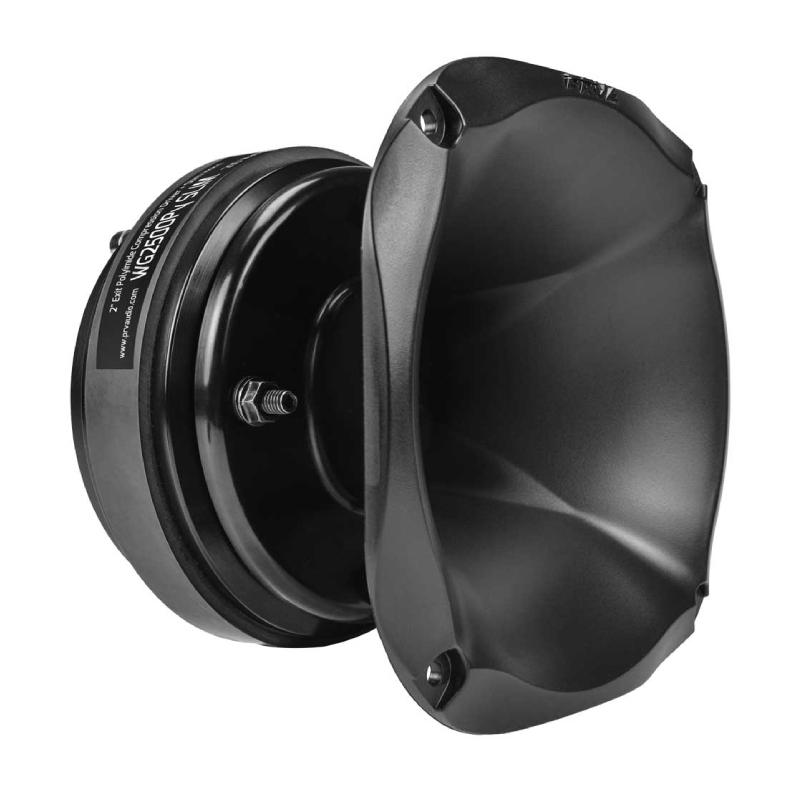

WG2500Py SLIM
Additional product image
Additional product image
Additional product image
Product Highlights
  • WG Series
  • 2"
  • 400W Peak Power Handling
  • 8 Ohm
  • Polyimide Compression Horn Driver
  Free 1-Year Warranty Included!
60 DAYS Returns Accepted.
FREE Lifetime Tech Support.
FREE Shipping (No Minimum).
60 DAYS Price change protection.
0 Review

$99.91

Reg. Price $119.89  Save $19.98
Available to Order
Add Extended Warranty
  Free 1-Year Warranty Included!
Add to Cart
 Alert me on price change

No Credit needed for acima logo. Learn More

We Price Match! Call Us! 310-526-8635
PRV Audio Authorized Dealer

Huge Saving on Other items:

Huge Saving on Other items:

Rockford Fosgate Banner

PRV Audio WG2500Py SLIM Series 2" 200W RMS (400W Peak Power Handling) 8 Ohm, Polyimide Compression Horn Driver

We are a PRV Audio authorized dealer so you get up-to-date, fully warrantied products. Shipping is free to the lower 48 states on everything you order!

What's Inside?
  • • 2" WG Series Polyimide Compression Horn Driver
  • • Owner's Manual





Ultra-Compact 2″ Polyimide Horn System

The WG2500Py SLIM combines the D2500Py compression driver with the shallow WGP14-50X waveguide to deliver powerful, space-efficient mid and high-frequency reproduction in tight installs. A large 2.5″ polyimide diaphragm coil provides high durability, excellent power handling, and a smooth, natural tone with 107 dB sensitivity. Covering a wide and usable 800–17,000 Hz bandwidth, this combo is ready for PRO, car audio, and SPL builds that demand compact size without sacrificing clarity or output.

Compact High-Output Shallow-Mount Horn System

The driver combo is purpose-built for tight door and stuntwall installations, delivering 200W RMS program-rated performance with recommended DSP high-pass filtering. Its small-diameter motor allows true front-mount installation without removing the driver from the horn. This design ensures powerful, precise, and reliable output, making it ideal for PRO, car, and SPL applications that demand extreme clarity and compact form factor.

Unmatched DSP-Ready Performance

Engineered for high-power operation, this driver excels with 900 Hz (12 dB/oct) or 800 Hz (18 dB/oct) high-pass filter settings, while its advanced Polyimide diaphragm delivers wider bandwidth, superior impact resistance, and crystal-clear sound that outperforms titanium across the full frequency range.

SPECIFICATIONS

  • Diameter : 2 Inch
  • RMS Power Range : 200 Watts
  • Peak Power Handling : 400 Watts

FEATURES

Features:

  • Compact 2″ Polyimide Horn Combo: WG2500Py SLIM pairs the D2500Py compression driver with a WGP14-50X shallow horn for ultra-compact high output vocal and HF reproduction.

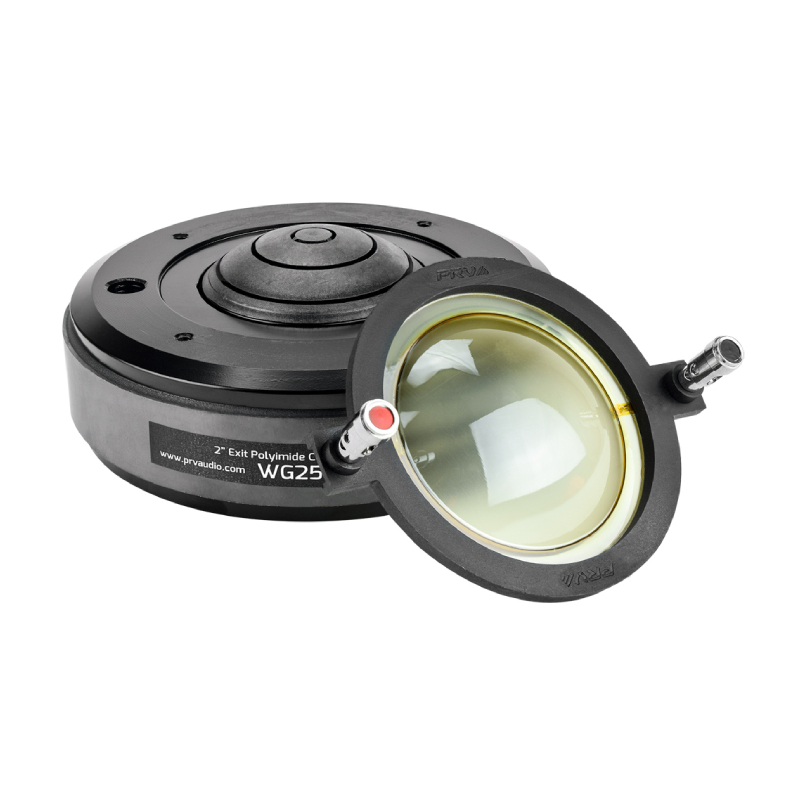

  • 2.5″ Polyimide Diaphragm Coil: Large 2.5″ voice coil with polyimide diaphragm delivers high power handling, durability, and smooth natural tone with 107 dB sensitivity.
  • Wide Usable Response: Capable of crystal-clear mids and highs across a wide 800–17,000 Hz bandwidth for PRO, car, and SPL applications.
  • High Power Capability: Handles 200 Watts Continuous Program Power (RMS) when used with recommended high-pass filtering via PRV DSP.
  • Slim Shallow Mount Design: Compact assembly is ideal for tight spaces such as custom car audio door panels without detaching the driver from the horn.
  • Front-Mount Installation: Small diameter motor enables easy front mounting directly on the horn — no rear access required.
  • Optimized for DSP Use: Tuned for safe high-power operation using 900 Hz (12 dB/oct) or 800 Hz (18 dB/oct) HPF crossover settings.
  • Polyimide Performance Advantage: Polyimide diaphragm offers wider bandwidth and impact resistance, outperforming titanium at both low and high frequencies.



Specifications:

  • Exit Throat Diameter: 2” (50 mm)
  • Nominal Impedance: 8 Ohm
  • Nominal Power Handling: 100 W
  • Continuous Program Power (RMS): 200 W
  • Max Peak Power: 400 W
  • Sensitivity (2.83V @ 1m): 107 dB
  • Recommended High-Pass Crossover: 900 Hz (12 dB per octave) for full power handling
  • Frequency Response (-10 dB): 800 – 17,000 Hz
  • Voice Coil Diameter: 2.5” (63.5 mm)
  • Voice Coil Wire Material: CCAW
  • Voice Coil Former Material: Kapton
  • Diaphragm Material: Polyimide
  • Flux Density: 1.87 T
  • Magnet Material: Ferrite
  • Overall Depth: 5.77” (146.5 mm)

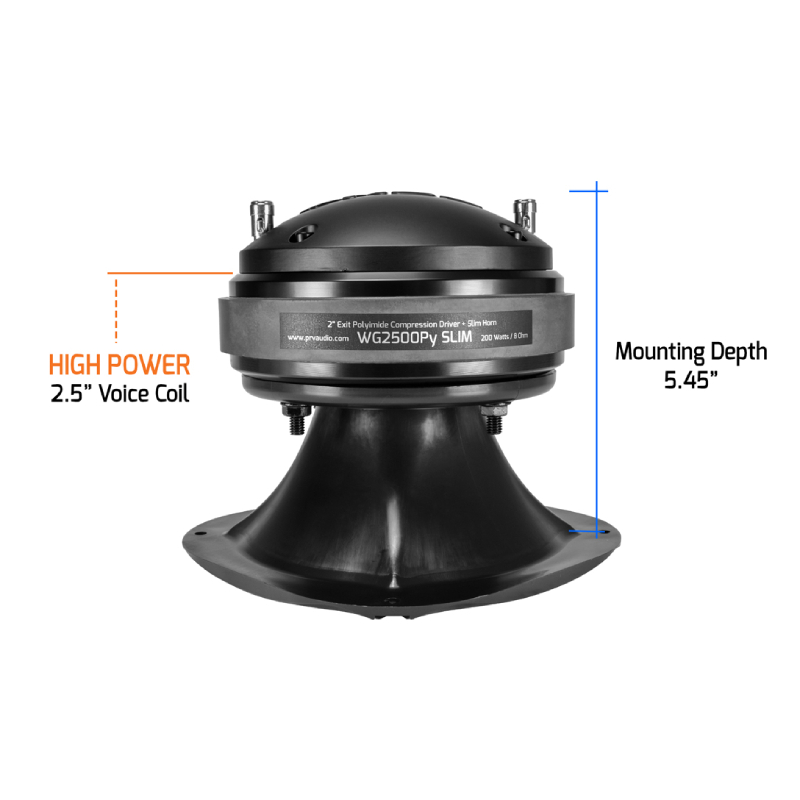

  • Mounting Depth: 5.45” (138.5 mm)
  • Overall Width: 6.14” (156 mm)
  • Overall Height: 6.14” (156 mm)
  • Baffle Cutout: 5.75” (146 mm)
  • Net Weight: 7.72 lbs (3.50 kg)
  • Shipping Weight: 8.38 lbs (3.80 kg)
  • Carton Dimensions (W × L × H): 6.50” × 6.70” × 7.10” (165 × 170 × 180 mm)
  • UPC: 810075522808
  • Weight: 1
  • Authorized Internet Dealer
Warranty: 0 Months Warranty.
This item is accompanied by a manufacturer's warranty. If it is found to be defective, it may be returned to OnlineCarstereo.com for replacement within 0 Months from the original date of purchase with proper return authorization.

Do you own this product?

Write a review!

SPECIFICATIONS

  • Diameter : 2 Inch
  • RMS Power Range : 200 Watts
  • Peak Power Handling : 400 Watts

FEATURES

Features:

  • Compact 2″ Polyimide Horn Combo: WG2500Py SLIM pairs the D2500Py compression driver with a WGP14-50X shallow horn for ultra-compact high output vocal and HF reproduction.
  • 2.5″ Polyimide Diaphragm Coil: Large 2.5″ voice coil with polyimide diaphragm delivers high power handling, durability, and smooth natural tone with 107 dB sensitivity.
  • Wide Usable Response: Capable of crystal-clear mids and highs across a wide 800–17,000 Hz bandwidth for PRO, car, and SPL applications.
  • High Power Capability: Handles 200 Watts Continuous Program Power (RMS) when used with recommended high-pass filtering via PRV DSP.
  • Slim Shallow Mount Design: Compact assembly is ideal for tight spaces such as custom car audio door panels without detaching the driver from the horn.
  • Front-Mount Installation: Small diameter motor enables easy front mounting directly on the horn — no rear access required.
  • Optimized for DSP Use: Tuned for safe high-power operation using 900 Hz (12 dB/oct) or 800 Hz (18 dB/oct) HPF crossover settings.
  • Polyimide Performance Advantage: Polyimide diaphragm offers wider bandwidth and impact resistance, outperforming titanium at both low and high frequencies.



Specifications:

  • Exit Throat Diameter: 2” (50 mm)
  • Nominal Impedance: 8 Ohm
  • Nominal Power Handling: 100 W
  • Continuous Program Power (RMS): 200 W
  • Max Peak Power: 400 W
  • Sensitivity (2.83V @ 1m): 107 dB
  • Recommended High-Pass Crossover: 900 Hz (12 dB per octave) for full power handling
  • Frequency Response (-10 dB): 800 – 17,000 Hz
  • Voice Coil Diameter: 2.5” (63.5 mm)
  • Voice Coil Wire Material: CCAW
  • Voice Coil Former Material: Kapton
  • Diaphragm Material: Polyimide
  • Flux Density: 1.87 T
  • Magnet Material: Ferrite
  • Overall Depth: 5.77” (146.5 mm)
  • Mounting Depth: 5.45” (138.5 mm)
  • Overall Width: 6.14” (156 mm)
  • Overall Height: 6.14” (156 mm)
  • Baffle Cutout: 5.75” (146 mm)
  • Net Weight: 7.72 lbs (3.50 kg)
  • Shipping Weight: 8.38 lbs (3.80 kg)
  • Carton Dimensions (W × L × H): 6.50” × 6.70” × 7.10” (165 × 170 × 180 mm)
  • UPC: 810075522808
  • Weight: 1
  • Authorized Internet Dealer
Warranty: 0 Months Warranty.
This item is accompanied by a manufacturer's warranty. If it is found to be defective, it may be returned to OnlineCarstereo.com for replacement within 0 Months from the original date of purchase with proper return authorization.
