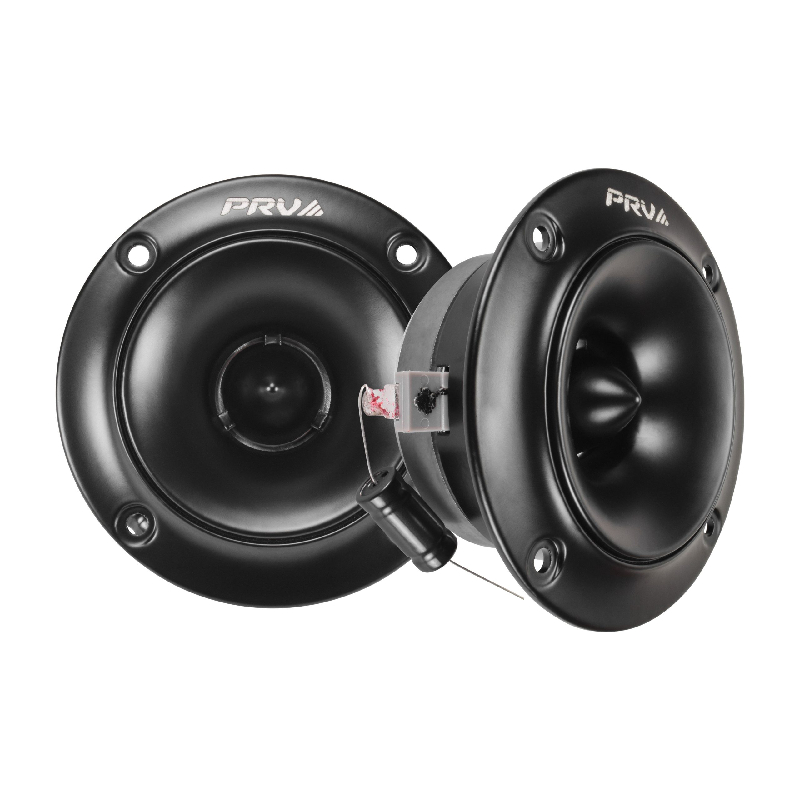

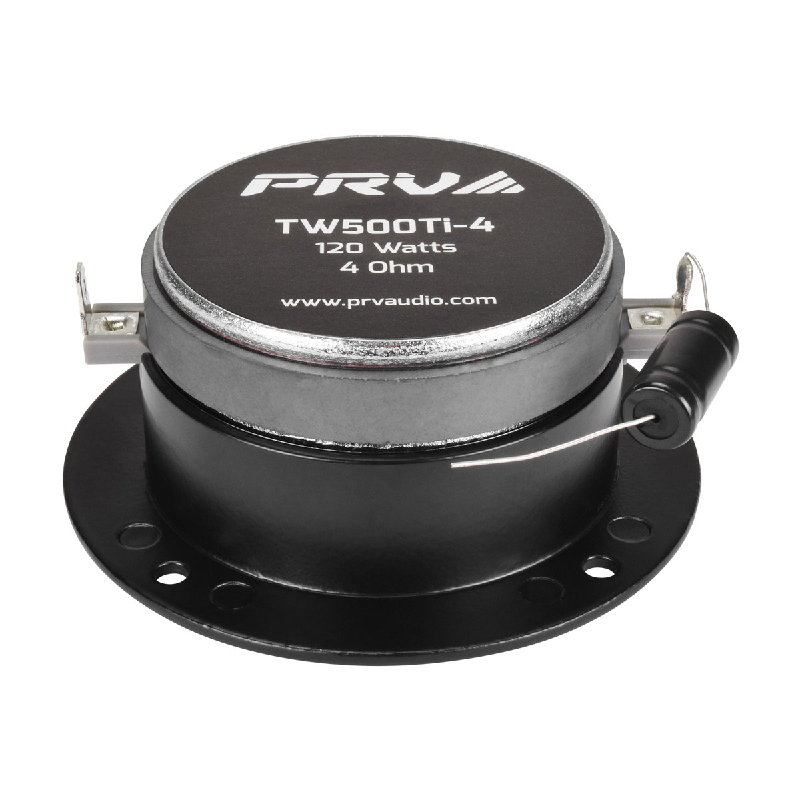

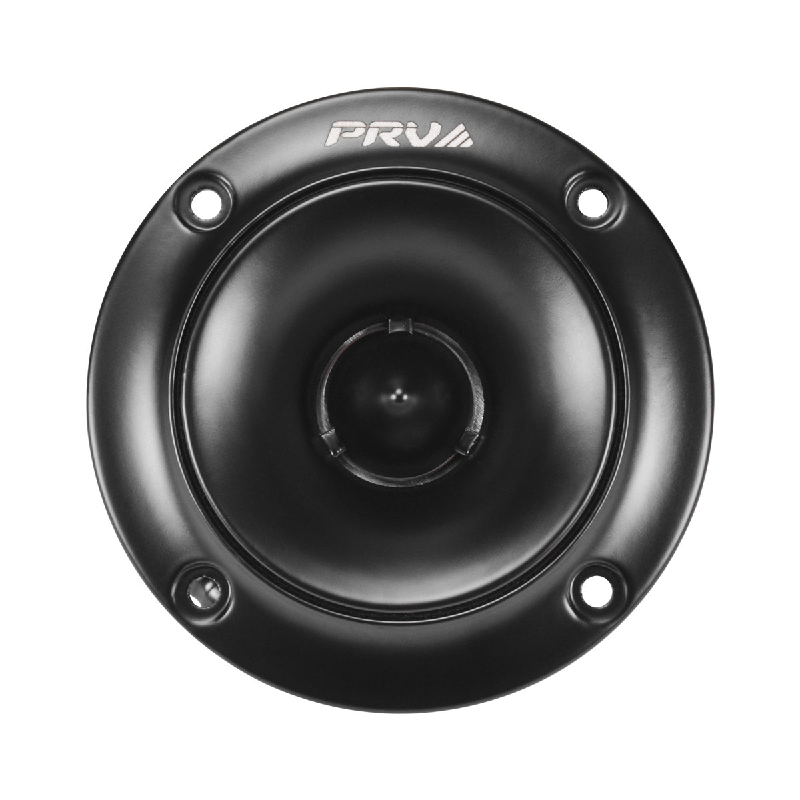

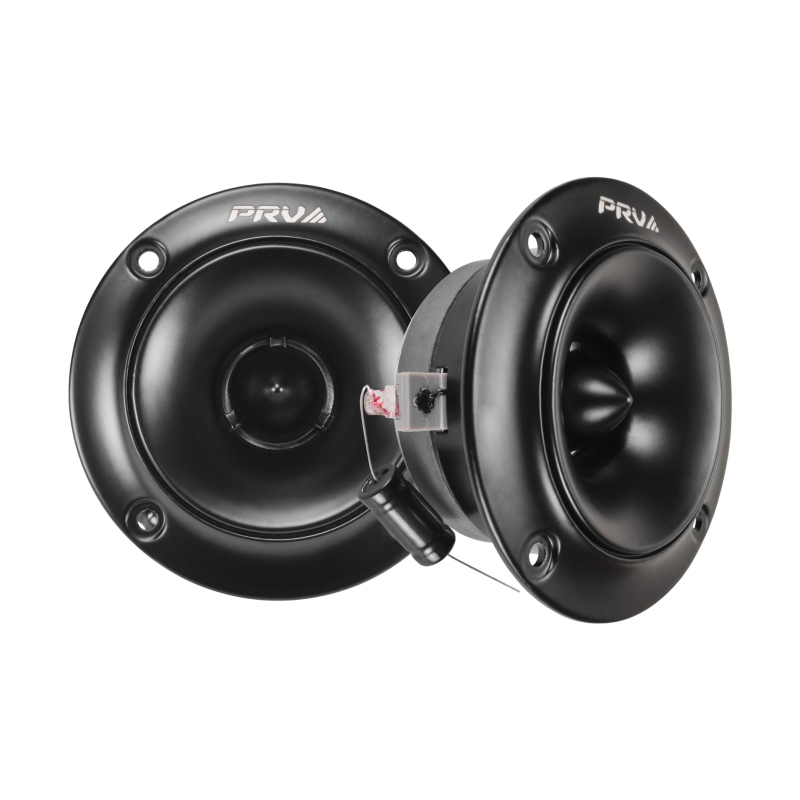

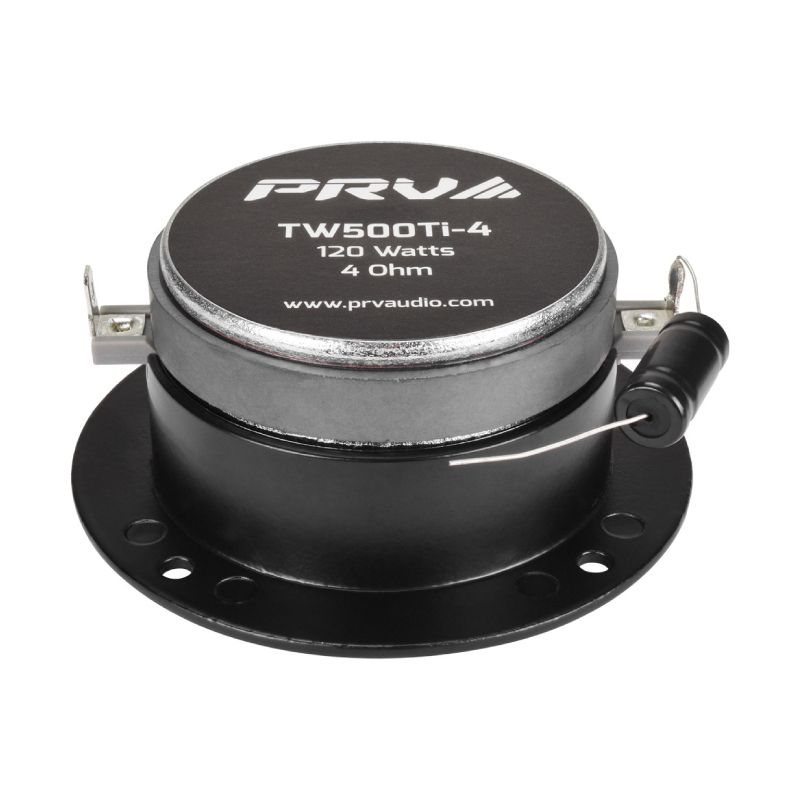

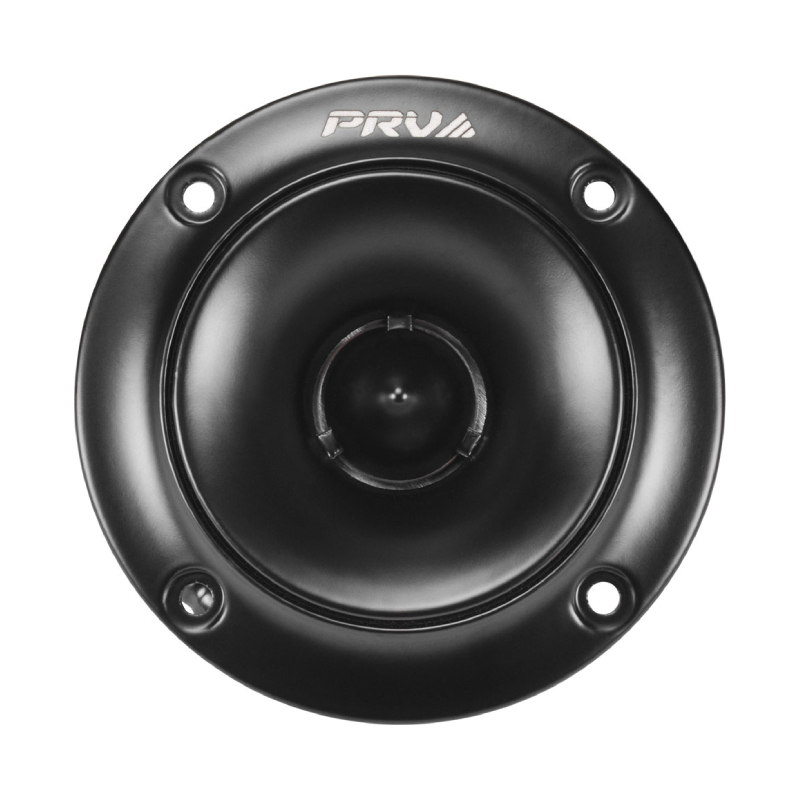

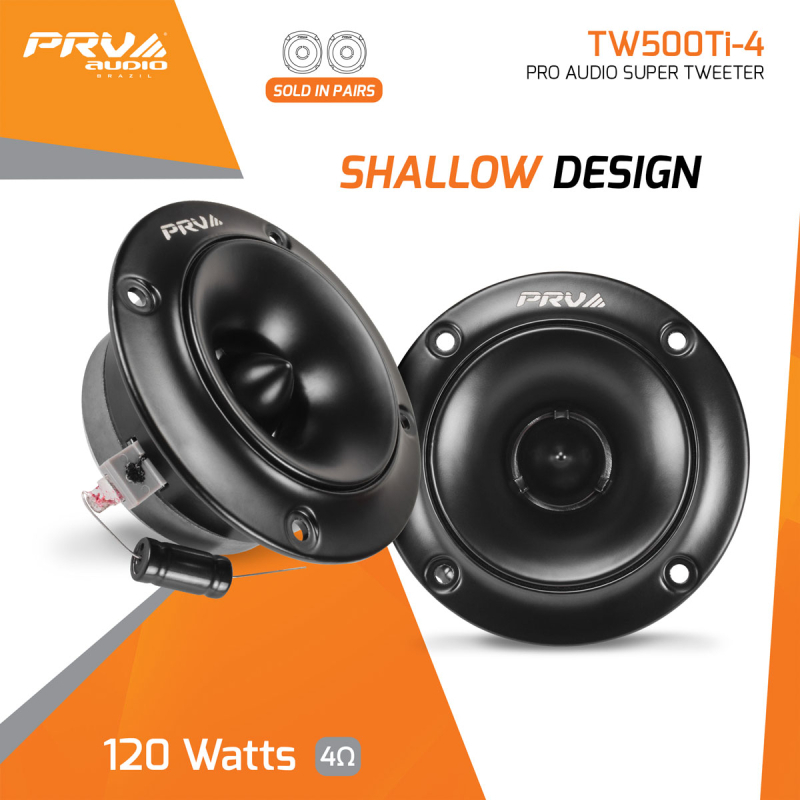

PRV Audio TW500Ti-4 Series 3.80" 120W RMS (240W Peak Power Handling) 4 Ohm, Titanium Super Car Tweeters (Pair)
We are a PRV Audio authorized dealer so you get up-to-date, fully warrantied products. Shipping is free to the lower 48 states on everything you order!
Ultra-Crisp Titanium Highs That Cut Through Anything
The PRV Audio TW500Ti-4 titanium super tweeters are built for serious car audio fans who want their highs loud, sharp, and crystal clear. The rigid titanium diaphragm brings serious precision to high-frequency detail, making vocals, snares, and cymbals sound incredibly defined even in loud environments. If your system needs that extra sparkle and bite on top, this is the kind of upgrade that makes everything stand out instantly.
High-Output Power With Effortless Efficiency
These tweeters are powered by a high-efficiency bullet motor design that pushes strong output without needing excessive power. With a massive 104 dB sensitivity, they get loud fast while staying clean and controlled, making them perfect for high-output systems or simple upgrades that still demand serious performance. The wide 4,500 Hz to 20,000 Hz range keeps the top end smooth and extended so your sound stays detailed instead of thin or harsh.
Wide Sound Coverage Built for Real Install Flexibility
The 3.75-inch rounded faceplate is designed to spread sound evenly, giving you a wider soundstage and better off-axis response so the highs don’t just stay in one spot. Inside, a built-in protective capacitor helps block damaging low frequencies, keeping the tweeter safe and stable under pressure. With a durable 1.0-inch copper-clad voice coil on a Kapton former and up to 120W RMS handling, it’s built to stay reliable even when your system is pushed hard and loud.
Frequently Asked Questions (FAQ)
- • Why does my TW500Ti-4 sound too aggressive at high volume?
Many users notice harsh highs when the tweeter level is higher than the midrange speakers. Adjusting the amplifier gain, reducing treble boost, and tuning the crossover properly can create a smoother sound.
- • Can I install the TW500Ti-4 without a crossover?
No. Running the tweeter without proper frequency protection can send damaging low frequencies to the diaphragm. A suitable high pass crossover helps protect the driver and improves sound performance.
- • Why is my TW500Ti-4 quieter than expected compared to my other PRV speakers?
Low output can be caused by incorrect wiring, reversed polarity, poor amplifier settings, or an unbalanced system setup. Checking connections and tuning the system can help restore proper volume.
- • Why does my TW500Ti-4 produce distortion when playing loud music?
Distortion is commonly caused by amplifier clipping, excessive equalizer adjustments, or pushing the tweeter beyond its recommended limits. Proper gain adjustment helps maintain clear and powerful highs.
- • Is the TW500Ti-4 good for high power car audio systems?
Yes. The TW500Ti-4 is designed for high output applications where users need strong treble response and detailed sound projection. Proper crossover settings are important for reliable performance.
- • Why does my tweeter get hot after extended use?
Heat buildup can happen when the tweeter receives too much power, low frequencies, or a clipped amplifier signal. Ensuring correct crossover protection and amplifier tuning can reduce overheating risks.
- • Can the TW500Ti-4 be paired with PRV midrange speakers?
Yes. Many users pair this tweeter with PRV midrange speakers to improve vocal presence, add more high frequency detail, and create a more complete audio system.
- • Why does my TW500Ti-4 sound different after installing a new amplifier?
Different amplifiers can change the output level and frequency response of the system. Retuning the gain, crossover, and equalizer settings after an amplifier upgrade can help achieve the desired sound.
- • How do I fix a TW500Ti-4 that sounds muffled or lacks clarity?
A muffled sound can result from incorrect crossover settings, poor speaker placement, or an unbalanced system. Adjusting the crossover range and positioning the tweeter correctly can improve clarity.
- • Why did my TW500Ti-4 lose output after months of use?
Reduced output may come from a damaged diaphragm, wiring problems, or continuous operation with improper settings. Inspecting the installation and using the correct replacement components can help restore performance.
- Diameter : 3.80 Inch
- RMS Power Range : 120 Watts
- Peak Power Handling : 240 Watts
Features:
- Titanium-Edge Sonic Precision: Built with a rigid titanium diaphragm to deliver ultra-accurate high-frequency reproduction, ensuring sharp detail, crisp attack, and enhanced clarity in demanding car audio systems.
- High-Efficiency Bullet Motor Design: Equipped with a powerful magnetic motor structure that maximizes output while maintaining excellent efficiency, allowing strong performance even in compact or high-output installations.
- Wide Dispersion Soundstage Control: Engineered with a rounded 3.75” faceplate to promote broad sound coverage and balanced off-axis response, improving imaging and overall listening experience.
- High-Sensitivity Performance Output: Delivers exceptional 104 dB sensitivity for loud, clear highs with minimal power input, making it ideal for high-efficiency system matching.
- Built-In Protective Crossover Integration: Includes an internal capacitor that helps attenuate low-frequency signals, ensuring cleaner operation and protecting the tweeter from damaging frequencies.
- Extended High-Frequency Response Range: Covers a wide bandwidth from 4,500 Hz up to 20,000 Hz, providing smooth, detailed treble extension for professional-grade sound reproduction.
- Durable Copper-Clad Voice Coil Construction: Features a 1.0” CCAW voice coil with Kapton former for improved heat resistance, stability, and consistent performance under high-output conditions.
- High Power Handling Capability: Supports up to 120W RMS and 240W peak power, allowing reliable performance in powerful systems when properly crossed over and tuned.
Specifications:
- Nominal Impedance: 4 Ohm
- Nominal Power Handling: 60 W
- Continuous Program Power (RMS): 120 W
- Max Peak Power: 240 W
- Sensitivity (2.00V @ 1m): 104 dB
- Recommended High-Pass Crossover: 6,000 Hz (12 dB per octave) for full power handling
- Frequency Response (-10 dB): 4,500 – 20,000 Hz
- Voice Coil Diameter: 1.0” (25 mm)
- Voice Coil Wire Material: CCAW
- Voice Coil Former Material: Kapton
- Diaphragm Material: Titanium
- Flux Density: 1.24 T
- Magnet Material: Ferrite

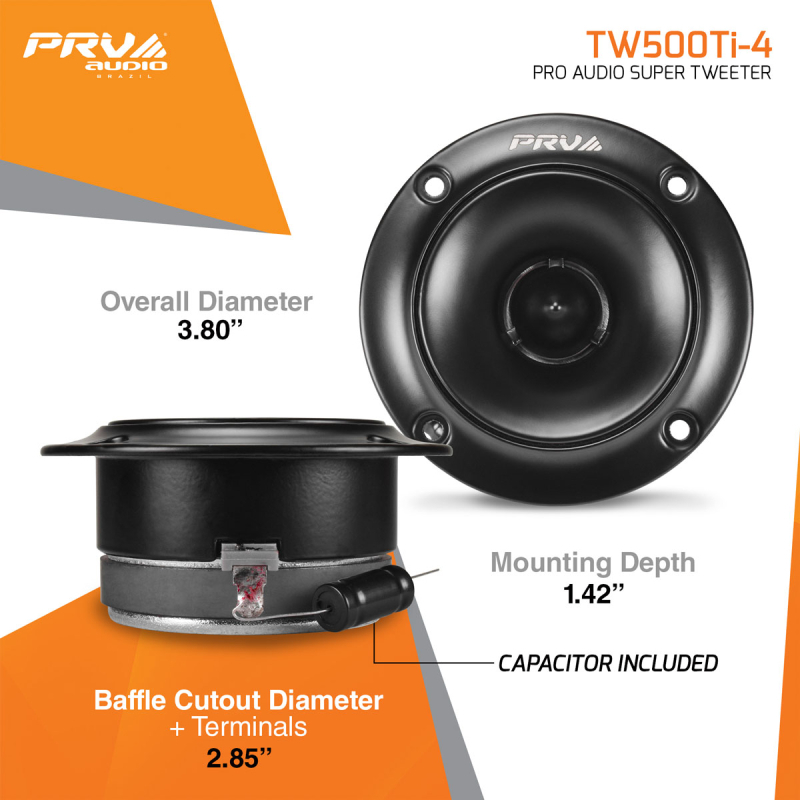

- Overall Depth: 1.73” (44 mm)
- Mounting Depth: 1.42” (36 mm)
- Overall Diameter: 3.80” (96.5 mm)
- Cutout Diameter: 2.85” (72.5 mm)
- Carton Dimensions (W × L × H): 8.86” × 5.53” × 2.16” (225 × 115 × 55 mm)
- UPC: 810075523553
- Weight: 2
