PRV Audio TW700Ti WHITE Series 4" 240W RMS (480W Peak Power Handling) 8 Ohm, Titanium Super Car Tweeter (Sold as Single)
We are a PRV Audio authorized dealer so you get up-to-date, fully warrantied products. Shipping is free to the lower 48 states on everything you order!
Pure White Titanium Clarity That Cuts Through Everything
The PRV Audio TW700Ti WHITE is built for car audio setups that demand clean, precise, and highly detailed high-frequency performance. Its titanium diaphragm and precision motor system work together to deliver sharp treble that stays controlled even when the system is pushed hard. Whether you’re running daily loud music or a full competition-style setup, these tweeters keep vocals, cymbals, and effects crisp and easy to hear over heavy bass.
High-SPL Efficiency Built for Serious Output Systems
With a powerful 107 dB sensitivity rating, this tweeter delivers loud, clear highs with very little power needed, making it extremely efficient in any build. It uses a 1.5-inch high-temperature voice coil paired with a reinforced ferrite motor, giving it the strength to handle up to 240W RMS and 480W peak power. The wide 3,500 Hz to 20,000 Hz response keeps your top-end smooth and extended so your system never sounds thin or strained.
Built Tough for Heat, Control, and Flexible Installations
Inside, a 1.5-inch CCAW voice coil with a Kapton former keeps heat under control, ensuring stable performance during long, loud sessions. A built-in capacitor protects the tweeter by filtering out damaging low frequencies, keeping the signal clean and safe. The 4-inch square aluminum horn design improves sound dispersion and makes installation flexible, especially for tight or multi-tweeter layouts. With its flat-edge housing, it’s easy to integrate into custom builds while maintaining consistent high-output clarity.
Frequently Asked Questions (FAQ)
- • Why does my TW700Ti WHITE sound too sharp after installation?
Many users experience brighter highs after adding a high efficiency tweeter to their system. Adjusting the crossover settings, lowering the treble output, and balancing the tweeter with the midrange speakers can create a smoother sound.
- • Can I connect the TW700Ti WHITE directly to my amplifier?
It is not recommended to run the tweeter without proper frequency protection. A suitable crossover helps block harmful low frequencies and prevents possible diaphragm damage during high volume playback.
- • Why is my TW700Ti WHITE not as loud as other tweeters in my setup?
Low output can be caused by incorrect wiring, weak amplifier settings, reversed polarity, or poor system tuning. Checking the connections and adjusting the amplifier gain can help improve performance.
- • Why does my TW700Ti WHITE create distortion when playing bass-heavy music?
Tweeters are not designed to reproduce low frequencies. If the crossover is set too low, the driver may receive unwanted signals that cause distortion. Proper crossover adjustment helps maintain clean high frequency output.
- • Is the TW700Ti WHITE suitable for custom car audio builds?
Yes. Many users choose this tweeter for custom builds because it adds strong vocal detail, clear highs, and powerful sound projection when matched with the correct speakers and amplifier.
- • Why does my TW700Ti WHITE sound louder on one side than the other?
Uneven output is often related to wiring mistakes, different amplifier channel levels, speaker placement, or incorrect polarity. Checking the installation can help restore balanced sound.
- • Can I pair the TW700Ti WHITE with PRV midrange speakers?
Yes. Pairing it with PRV midrange speakers allows users to create a more complete sound system with stronger vocals, improved detail, and better frequency separation.
- • Why does my TW700Ti WHITE become uncomfortable to listen to at high volume?
A harsh listening experience is usually caused by excessive treble boost, incorrect equalizer settings, or improper tuning. Fine-tuning the system can help achieve powerful sound without fatigue.
- • How do I prevent my TW700Ti WHITE from failing during daily use?
Using the correct crossover settings, avoiding amplifier clipping, and matching the power output properly are important steps to protect the tweeter and maintain long term performance.
- • Why does my TW700Ti WHITE sound different after upgrading my amplifier?
A new amplifier can change the output level, power delivery, and overall system balance. Retuning the gain, crossover, and EQ settings after an upgrade helps the tweeter perform at its best.
- Diameter : 4 Inch
- RMS Power Range : 240 Watts
- Peak Power Handling : 480 Watts
Features:

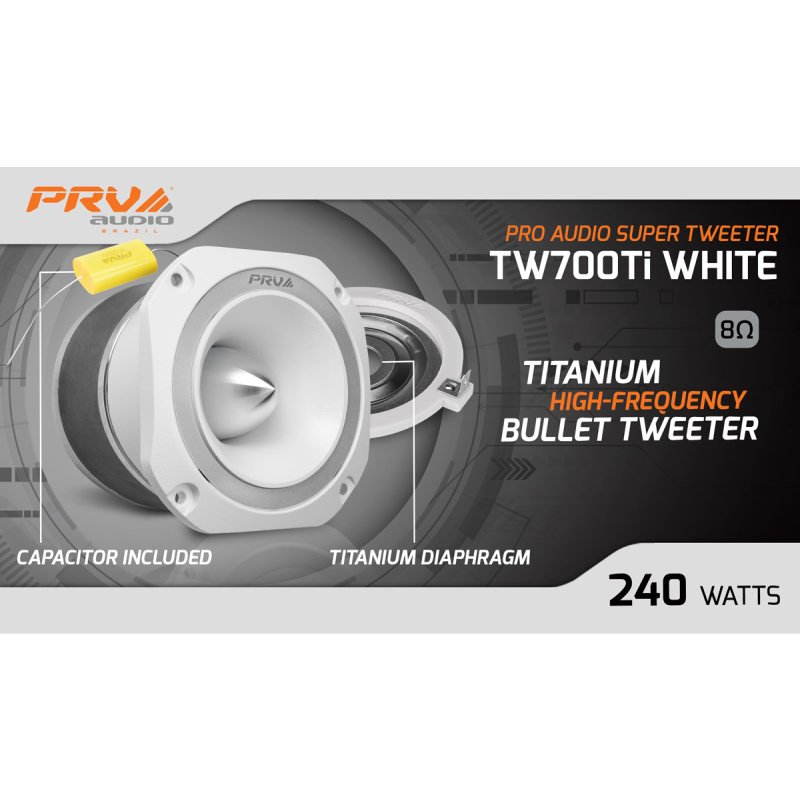

- Clean High-Frequency Projection Architecture: Designed with a titanium diaphragm and precision-engineered motor system to deliver crisp, accurate, and highly detailed treble performance for demanding car audio setups.
- High-Efficiency SPL Output Design: Delivers 107 dB sensitivity at 1W/1m, producing powerful, clear high-frequency output with minimal amplifier power requirements for efficient system integration.
- Heavy-Duty Power Handling Capability: Built with a 1.5” high-temperature voice coil and reinforced ferrite motor, supporting up to 240W RMS and 480W peak power for high-output professional applications.
- Extended Wideband Frequency Response: Covers a 3,500 Hz to 20,000 Hz range, ensuring smooth high-end extension and detailed sonic reproduction across complex audio systems.

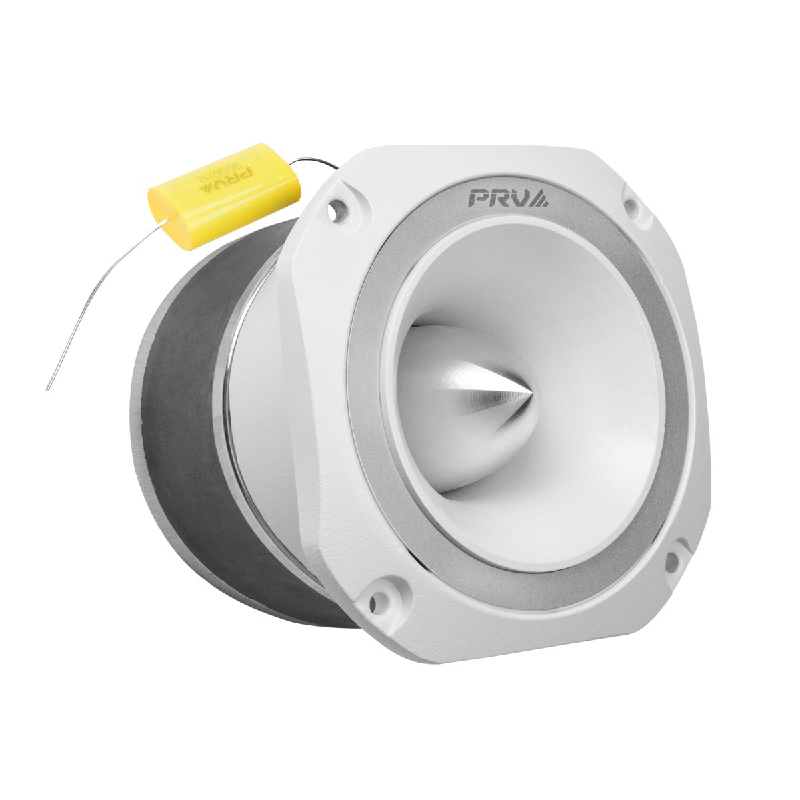

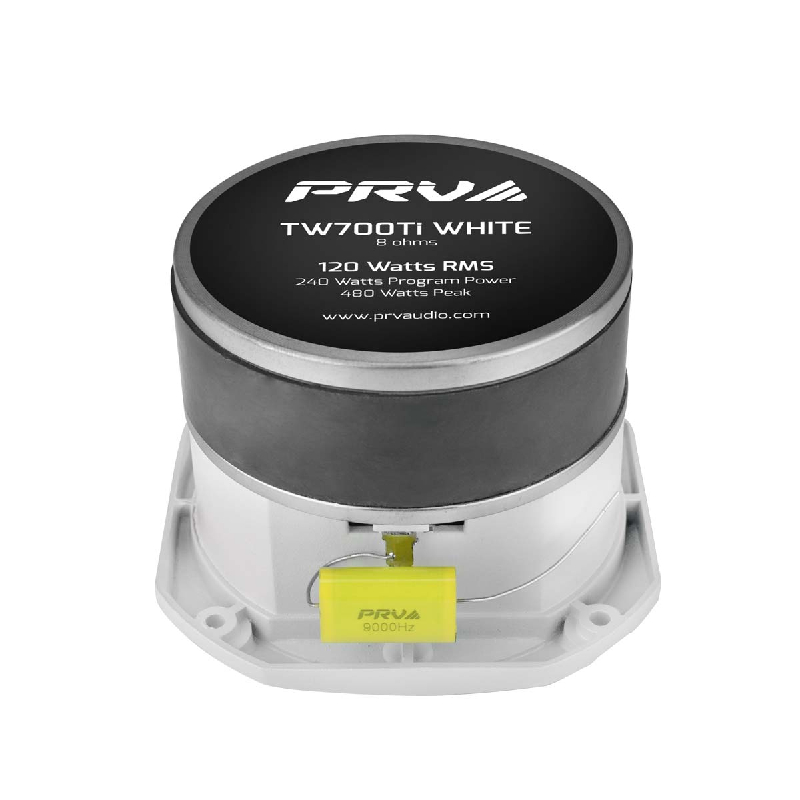

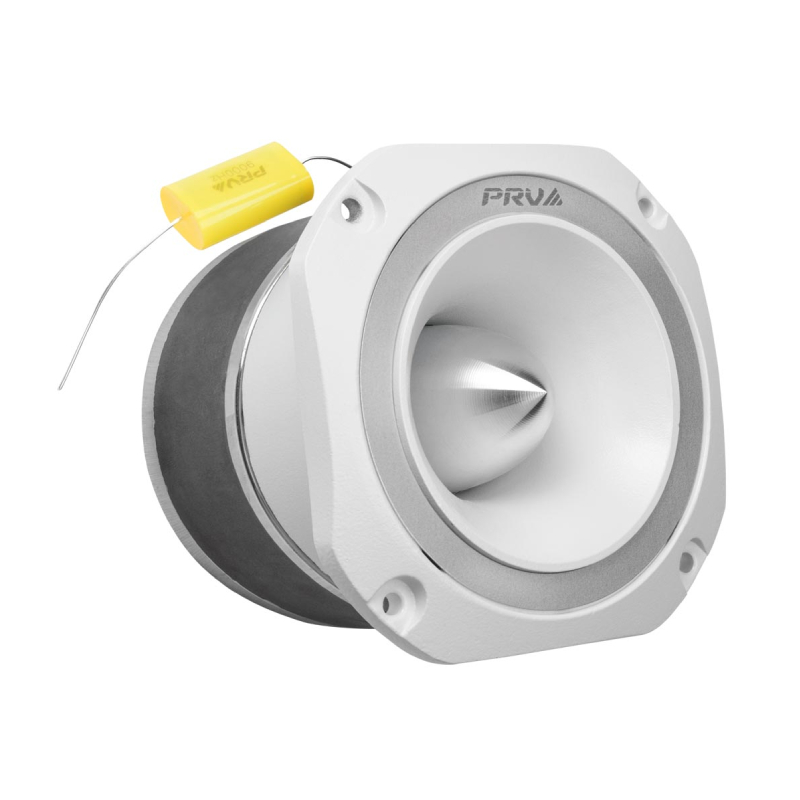

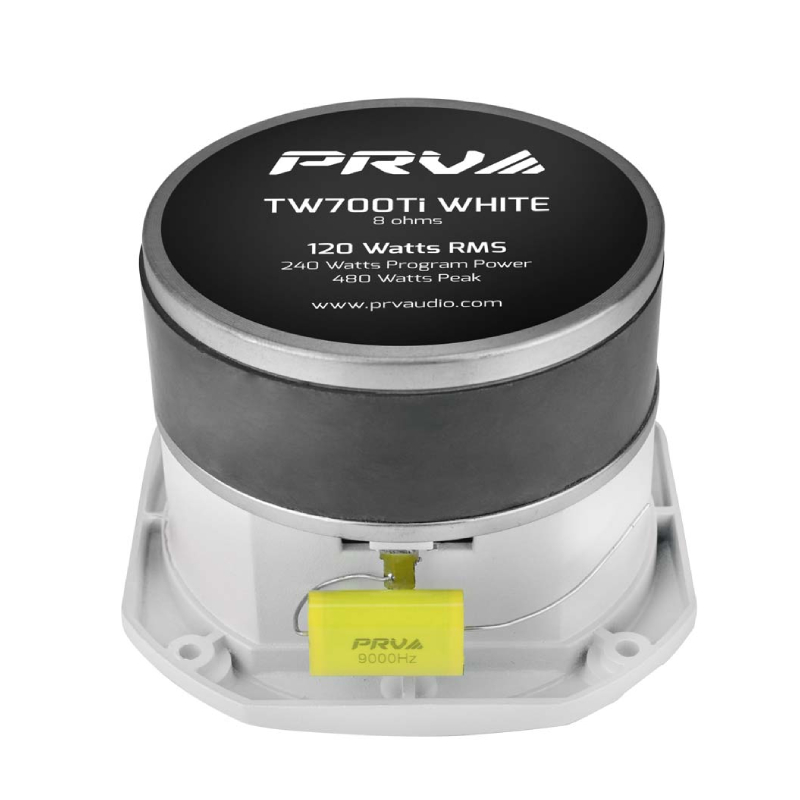

- Integrated Protective Crossover Circuit: Features a built-in capacitor that reduces low-frequency stress, helping maintain clarity and protecting the tweeter during high-power operation.

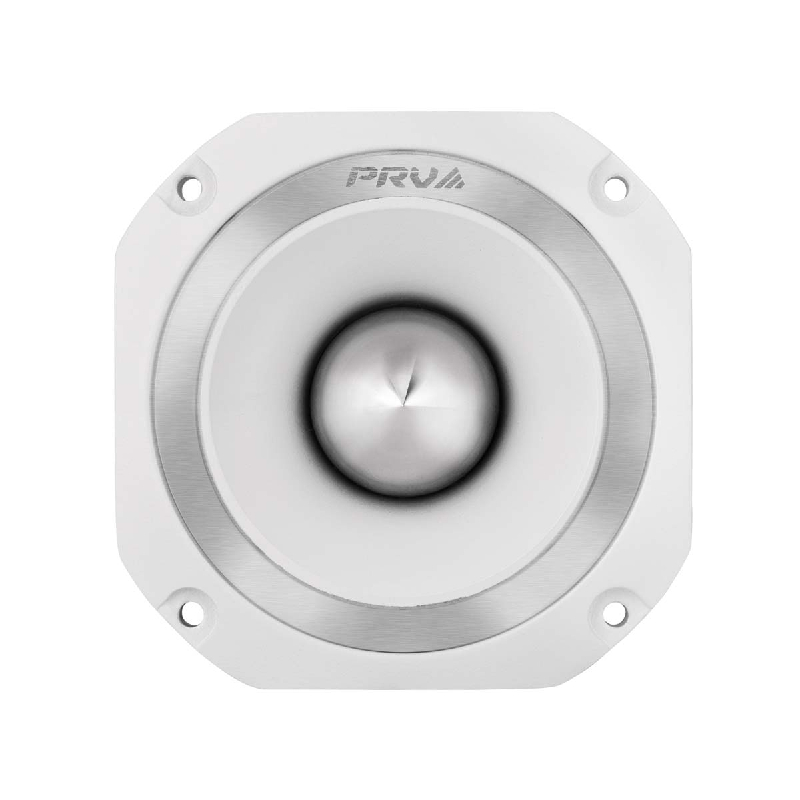

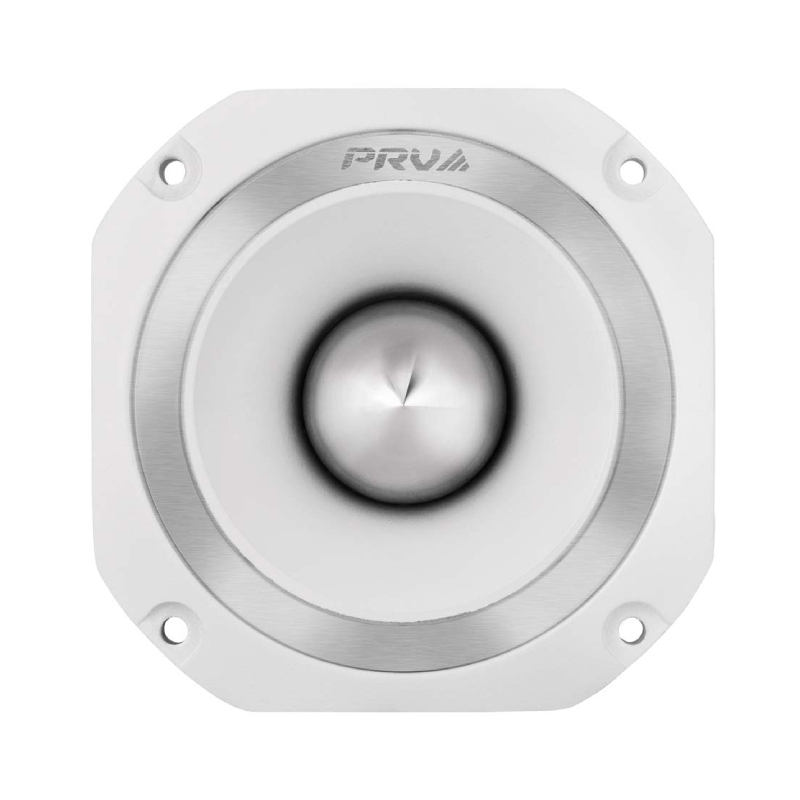

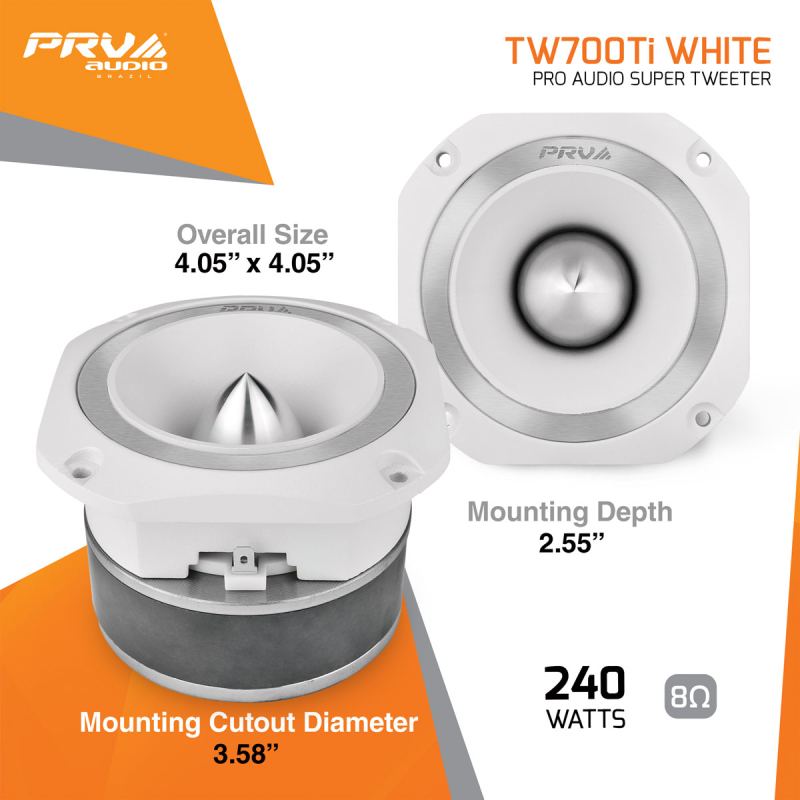

- Precision Square Aluminum Horn Design: Utilizes a 4” square aluminum faceplate to enhance dispersion, improve installation flexibility, and support consistent sound coverage in multi-speaker layouts.
- Thermal-Stable Voice Coil Construction: Employs a 1.5” CCAW voice coil with Kapton former for improved heat resistance, durability, and consistent performance under sustained output levels.

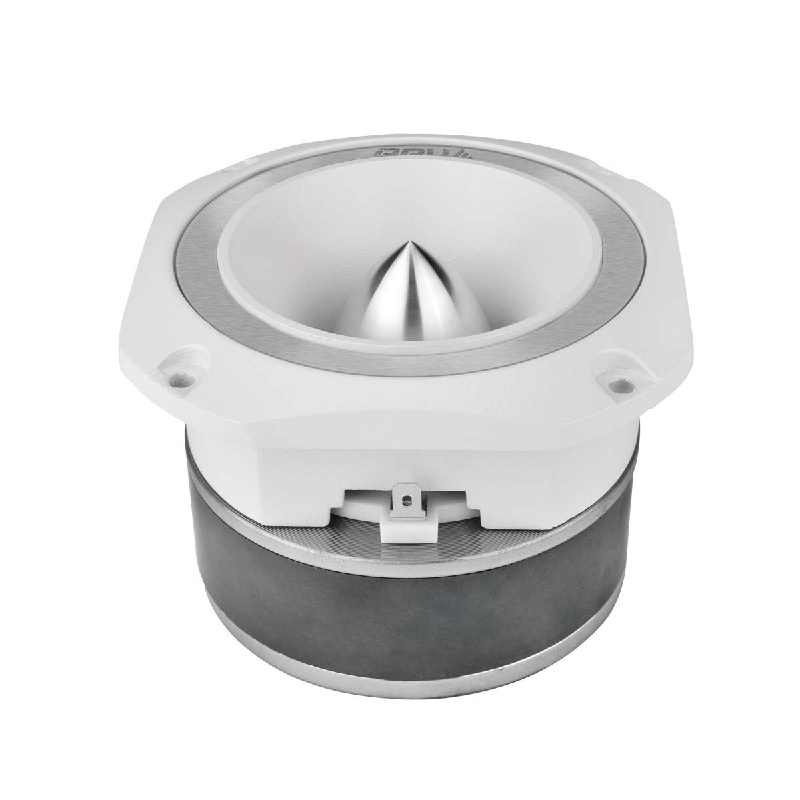

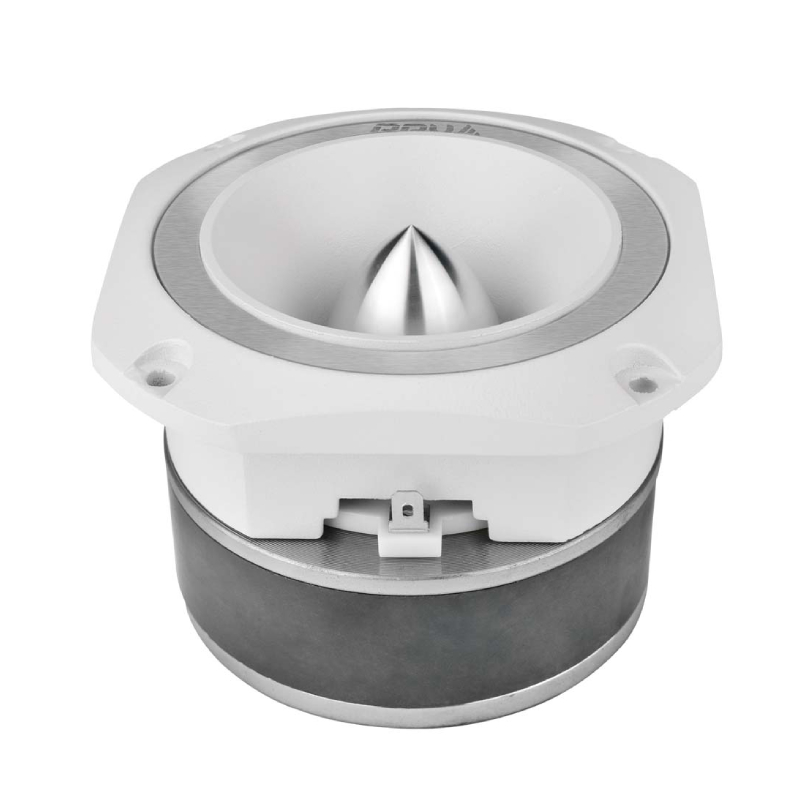

- Versatile Installation and System Matching: Flat-edge housing design enables seamless side-by-side mounting, making it ideal for custom builds and high-SPL multi-tweeter configurations.
Specifications:
- Nominal Impedance: 8 Ohm
- Nominal Power Handling: 120 W
- Continuous Program Power (RMS): 240 W
- Max Peak Power: 480 W
- Sensitivity (2.83V @ 1m): 107 dB
- Recommended High-Pass Crossover: 5,000 Hz (12 dB per octave) for full power handling
- Frequency Response (-10 dB): 3,500 – 20,000 Hz
- Voice Coil Diameter: 1.5” (38 mm)
- Voice Coil Wire: CCAW
- Voice Coil Former Material: Kapton
- Diaphragm Material: Titanium
- Flux Density: 1.60 T
- Magnet Material: Ferrite
- Nominal Impedance: 8 Ohm
- Nominal Power Handling: 120 W
- Continuous Program Power (RMS): 240 W
- Max Peak Power: 480 W
- Sensitivity (2.83V @ 1m): 107 dB
- Recommended High-Pass Crossover: 5,000 Hz (12 dB per octave) for full power handling
- Frequency Response (-10 dB): 3,500 – 20,000 Hz
- Voice Coil Diameter: 1.5” (38 mm)
- Voice Coil Wire: CCAW
- Voice Coil Former Material: Kapton
- Diaphragm Material: Titanium
- Flux Density: 1.60 T
- Magnet Material: Ferrite
- UPC: 810075520736
- Weight: 2
- Authorized Internet Dealer
Warranty: 1 Year Warranty.
This item is accompanied by a manufacturer's warranty. If it is found to be defective, it may be returned to OnlineCarstereo.com for replacement within 1 Year from the original date of purchase with proper return authorization.
