PRV Audio WG08-25 WG Series 1" Exit Horns Screw-On Mini Waveguides (Sold as Single)
We are a PRV Audio authorized dealer so you get up-to-date, fully warrantied products. Shipping is free to the lower 48 states on everything you order!
Small Frame Waveguide With Big Sound Control
The PRV Audio WG08-25 Exit Horns Screw-On Mini Waveguides are designed for car audio builders who need precision sound in tight spaces. With a mini exponential horn design and only 1.72 inches of mounting depth, they fit cleanly into compact setups without sacrificing performance. This makes them perfect for custom dashboards, A-pillars, or tight pro audio style builds where every inch matters.
Focused Coverage That Keeps Your Sound Tight
These waveguides are built to deliver controlled 90° by 90° dispersion, giving you smooth and even coverage instead of scattered or uneven projection. They also support low frequency acoustic loading down to around 1600 Hz, helping your system integrate better with your crossover points. The result is cleaner mids and highs that stay consistent whether you are sitting right in front of the system or off to the side.
Built Tough for Real Install Life
Made from durable non resonant ABS construction, these waveguides are designed to reduce vibration and keep your sound clean even at higher output levels. The universal 1-3/8 inch screw-on compatibility works with standard 1 inch exit compression drivers, making system matching simple. With a compact 3.31 inch footprint, weather resistant build, and included mounting hardware, they are ready for automotive, marine, or outdoor installs without extra hassle.
Frequently Asked Questions (FAQ)
- • Why does my PRV Audio WG08-25 not fit my speaker correctly?
The waveguide is designed for specific compatible drivers and horn combinations. Always verify the mounting pattern and dimensions before installation.
- • Can I use the WG08-25 with drivers from other brands?
It may fit some drivers with matching bolt patterns, but compatibility should always be confirmed to ensure proper performance and secure mounting.
- • Why do I hear air leaks after installing the WG08-25?
Air leaks are usually caused by loose mounting screws, an uneven mounting surface, or a missing gasket between the driver and the waveguide.
- • Is the WG08-25 suitable for outdoor speaker systems?
Yes, many users install it in outdoor PA and custom audio systems, but it should be protected from prolonged exposure to harsh weather conditions.
- • Why does my horn sound harsh at high volume?
Harsh sound is often caused by an improperly tuned crossover, excessive amplifier gain, or a compression driver operating outside its recommended frequency range.
- • Can I rotate the WG08-25 during installation?
Yes, many installers rotate the waveguide to better match the speaker cabinet layout, provided the mounting holes align correctly.
- • What is the most common installation mistake with the WG08-25?
One common mistake is overtightening the mounting screws, which can stress the waveguide or create an uneven seal between the driver and horn.
- • Why is my sound coverage uneven after installing the WG08-25?
Uneven coverage can result from incorrect horn positioning, poor aiming, or placing the speaker too high or too low for the listening area.
- • Can the WG08-25 be used in custom speaker cabinets?
Yes, it is commonly used in custom PA speakers, DJ systems, and high efficiency audio cabinets where controlled sound dispersion is important.
- • How can I get the best performance from the WG08-25?
Use a compatible compression driver, create a proper airtight seal during installation, set the correct crossover frequency, and aim the waveguide toward the listening area for smooth and consistent sound coverage.
Features:
- Mini Exponential Horn Design: Engineered for tight installations with only 1.72" mounting depth, ideal for compact car audio builds and custom speaker layouts.
- Universal 1-3/8" Screw-On Compatibility: Supports standard 1" exit compression drivers, making it fully compatible with a wide range of PRV Audio driver systems.
- Controlled 90° x 90° Dispersion Pattern: Provides balanced sound coverage for short-throw applications with consistent off-axis performance.
- Durable Non-Resonant ABS Construction: Built from reinforced plastic to minimize unwanted vibration and maintain clean acoustic response in demanding environments.
- Low Frequency Acoustic Loading Capability: Maintains effective performance down to approximately 1600 Hz for optimized crossover integration.

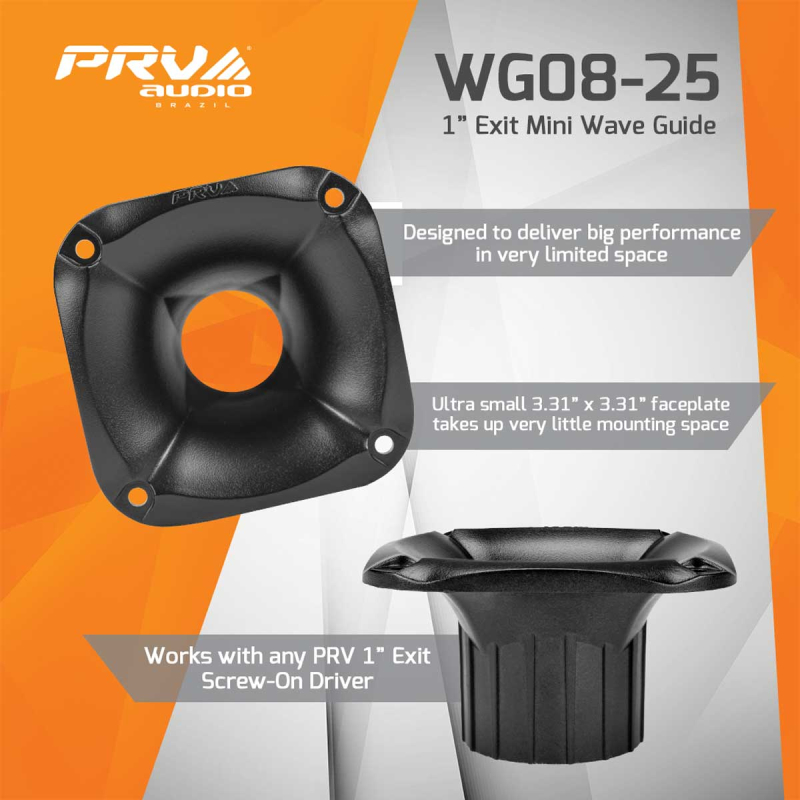

- Ultra Compact Mounting Footprint: 3.31" x 3.31" faceplate allows flexible placement between speaker arrays in space-restricted installations.
- Automotive and Outdoor Ready Build: Resistant to environmental stress, making it suitable for mobile audio, marine, and outdoor speaker systems.

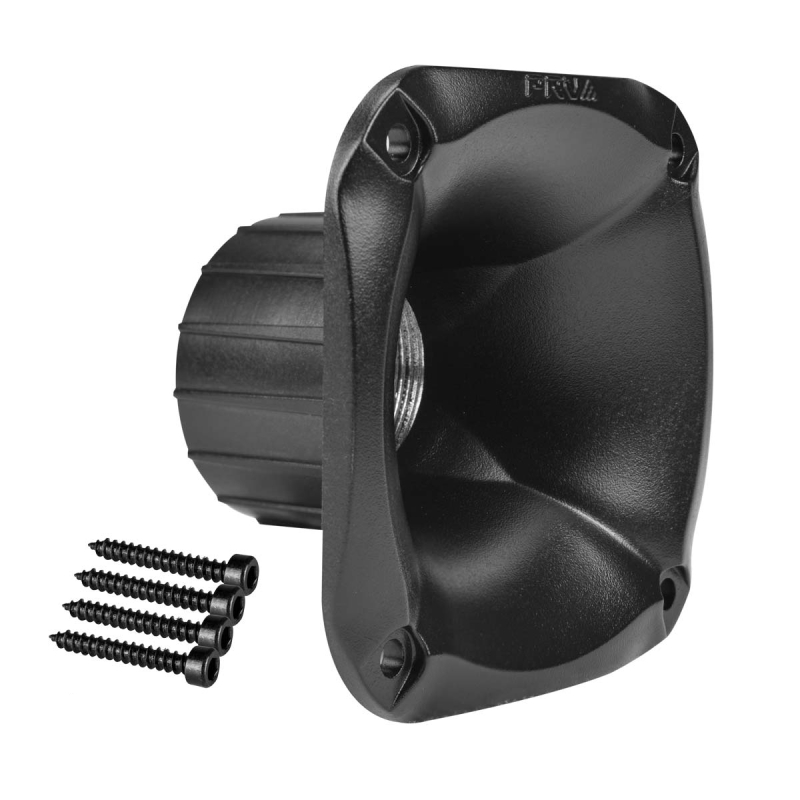

- Installation Ready Hardware Included: Comes with mounting screws for fast and secure integration into custom audio setups.
Specifications:
- Throat Diameter: 1 Inch 25.4 Millimeters
- Mounting Type: Screw on
- Thread Dimensions: 1 and 3 by 8 Inch
- Nominal Coverage Horizontal: 90 Degrees
- Nominal Coverage Vertical: 90 Degrees
- Flare Type: Exponential
- Material: Plastic ABS
- Finish or Coating: Black

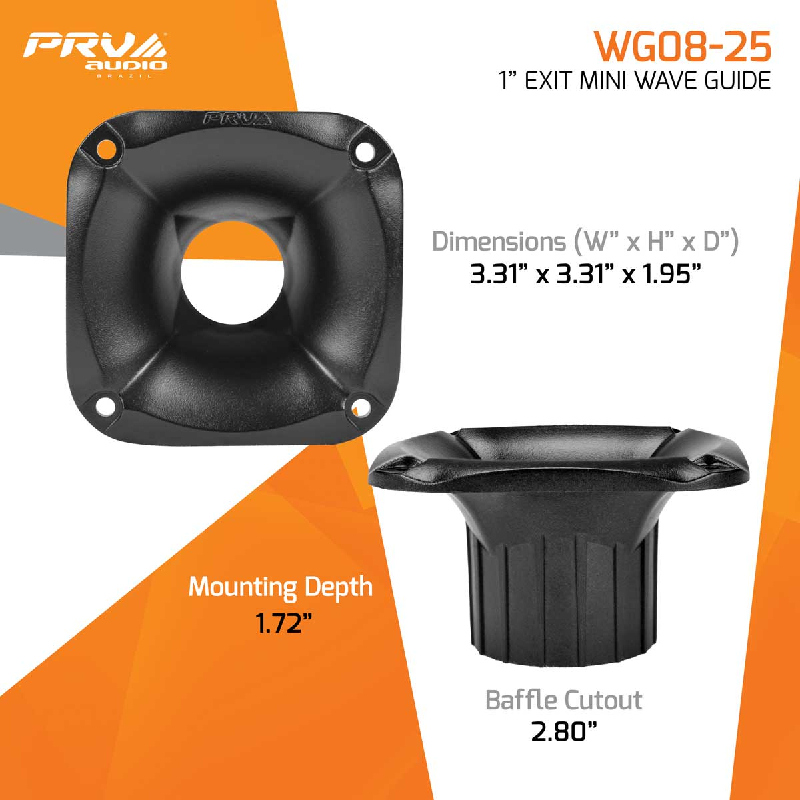

- Dimensions Height: 3.31 Inches 84 Millimeters
- Dimensions Width: 3.31 Inches 84 Millimeters
- Dimensions Depth: 1.95 Inches 49.5 Millimeters
- Mount Depth: 1.72 Inches 43.5 Millimeters
- Baffle Cutout Width: 2.80 Inches 71 Millimeters
- Baffle Cutout Height: 3.31 Inches 84 Millimeters
- Net Weight: 0.13 Pounds
- UPC: 810075522433
- Weight: 0.13
- Authorized Internet Dealer
Warranty: 1 Year Warranty.
This item is accompanied by a manufacturer's warranty. If it is found to be defective, it may be returned to OnlineCarstereo.com for replacement within 1 Year from the original date of purchase with proper return authorization.
