PRV Audio WGP10-25 WGP Series 1" Exit Horns Screw-On Slim Waveguides (Sold as Single)
We are a PRV Audio authorized dealer so you get up-to-date, fully warrantied products. Shipping is free to the lower 48 states on everything you order!
Ultra Slim Fit Built for Tight Audio Spaces
The PRV Audio WGP10-25 SLIM Exit Horns Screw-On Slim Waveguides are made for car audio enthusiasts who need serious performance in seriously limited space. With an ultra slim 1.75 inch depth profile and compact 4.15 inch faceplate, they slide into tight builds where traditional horns simply will not fit. This makes them perfect for clean custom installs where space efficiency is just as important as sound quality.
Focused Sound Control With Clean Driver Integration
These slim waveguides deliver a controlled 75° by 75° dispersion pattern, giving you tight, accurate sound projection for short throw applications. The result is sharper imaging and better directionality in your front stage setup. With universal 1-3/8 inch screw-on compatibility, they work seamlessly with standard 1 inch exit compression drivers, making system pairing straightforward and flexible.
Clean Output, Easy Install, Built to Last
Engineered for real world installs, these waveguides support low crossover use down to 1400 Hz for smoother blending with midrange components. The non resonant ABS construction keeps vibration under control so your highs stay clean even at higher volume levels. With installation ready hardware included, flexible driver support, and a design built for automotive durability, they are ready for custom doors, compact pods, and performance focused audio systems that demand both precision and simplicity.
Frequently Asked Questions (FAQ)
- • Why does my PRV Audio WGP10-25 SLIM sound too bright after installation?
This is usually caused by an incorrect crossover point or excessive high frequency EQ. The WGP10-25 SLIM is designed to work with a recommended minimum crossover frequency of 1,400 Hz, so lowering the crossover too much or boosting treble can make the sound harsh.
- • Will the WGP10-25 SLIM fit in tight custom door panels or speaker pods?
Yes. Many installers choose this model because of its shallow mounting depth. If space is extremely limited, double check the compression driver's rear clearance before final assembly.
- • Why doesn't my compression driver thread onto the waveguide smoothly?
Most installation issues happen because the driver uses a different mounting standard. The WGP10-25 SLIM is built for standard 1-3/8 inch 18 TPI screw on compression drivers, so incompatible drivers will not thread correctly.
- • Can I mount the WGP10-25 SLIM outdoors or on powersports vehicles?
Yes. Its reinforced ABS plastic construction resists moisture and vibration better than many basic plastic horns, making it suitable for automotive and outdoor applications.
- • Why is the sound not covering the entire listening area?
The waveguide uses a 75° x 75° dispersion pattern, which works best for short throw applications. If listeners are positioned far off axis, repositioning the horn may improve coverage.
- • Can I use the WGP10-25 SLIM with any 1 inch compression driver?
It is compatible with most standard 1 inch exit screw on compression drivers that use the correct thread pattern. Always verify both the throat size and mounting thread before purchasing.
- • Why do I hear distortion when I increase the volume?
Distortion is commonly caused by the compression driver being driven below its safe crossover frequency or by amplifier clipping rather than the waveguide itself. Proper crossover settings help prevent this issue.
- • Is the WGP10-25 SLIM smaller than the standard WG11-25?
Yes. Users often choose the SLIM version because it has a more compact faceplate and shallower profile, making installation easier where every inch of space matters.
- • Do I need to enlarge my speaker opening to install the WGP10-25 SLIM?
Not always. The recommended baffle cutout is approximately 3.5 to 3.75 inches. Measuring your existing opening before installation can help avoid unnecessary modifications.
- • Why does my horn produce vibrations or rattling at high volume?
Real users often find that loose mounting screws or an unsupported mounting surface are the cause. Tightening the hardware and reinforcing the mounting panel usually eliminates unwanted vibrations.
Features:
- Ultra Slim Shallow Mount Design: 1.75" depth profile enables installation in extremely tight spaces without compromising acoustic output.
- Compact 4.15" Faceplate Architecture: Reduced footprint allows flexible placement between speaker arrays in custom car audio builds.
- Universal 1-3/8" Screw-On Compatibility: Works with all standard 1" exit compression drivers for broad system integration.
- Controlled 75° x 75° Dispersion Pattern: Delivers focused short-throw sound coverage with improved directivity and imaging accuracy.
- Low Crossover Capability Down to 1400 Hz: Supports efficient acoustic loading for smoother integration with midrange systems.
- Non-Resonant ABS Construction: Reinforced housing minimizes vibration and maintains clean, stable high-frequency response.
- Flexible Front Mount Driver Support: Optimized cutout range allows compatibility with popular compression drivers for easier installation.

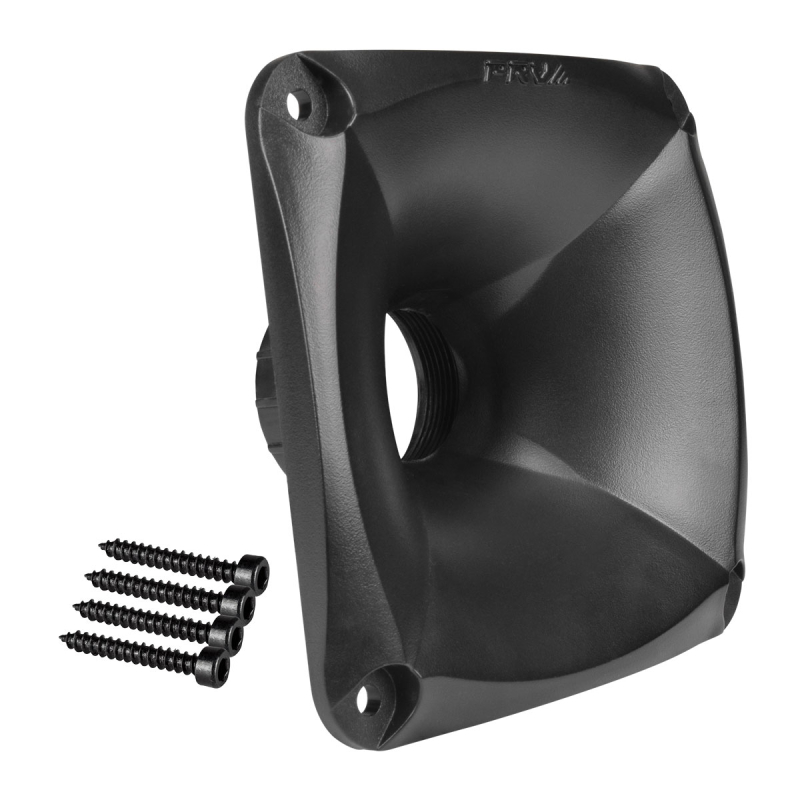

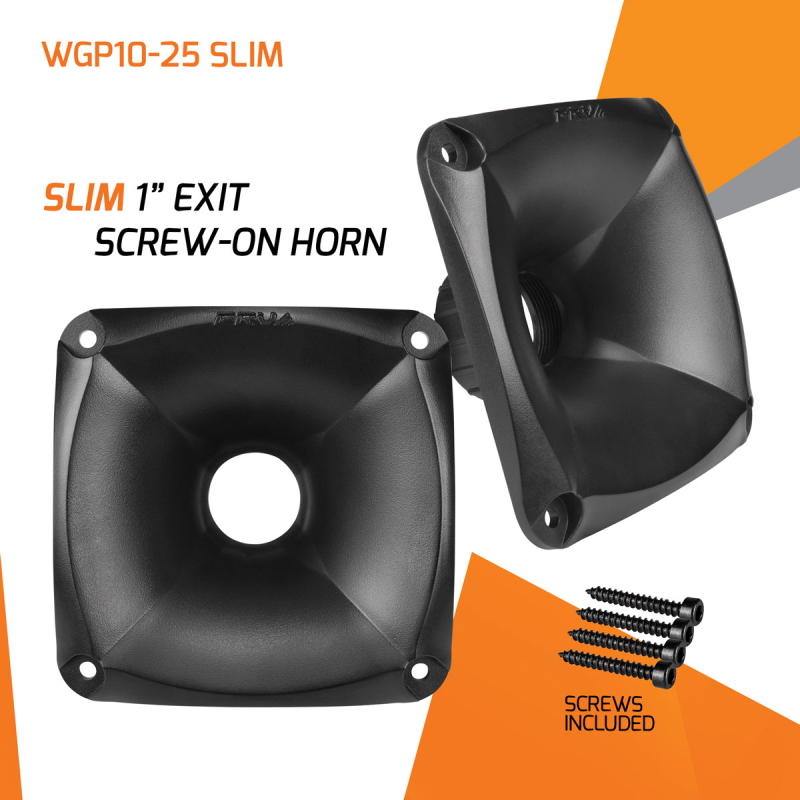

- Installation Ready Hardware Included: Supplied with mounting screws for fast and secure integration in custom audio systems.
Specifications:
- Throat Diameter: 1 Inch 25.4 Millimeters
- Mounting Type: Screw on
- Thread Dimensions: 1 and 3 by 8 Inch
- Nominal Coverage Horizontal: 75 Degrees
- Nominal Coverage Vertical: 75 Degrees
- Flare Type: Exponential
- Material: Plastic ABS
- Finish or Coating: Black

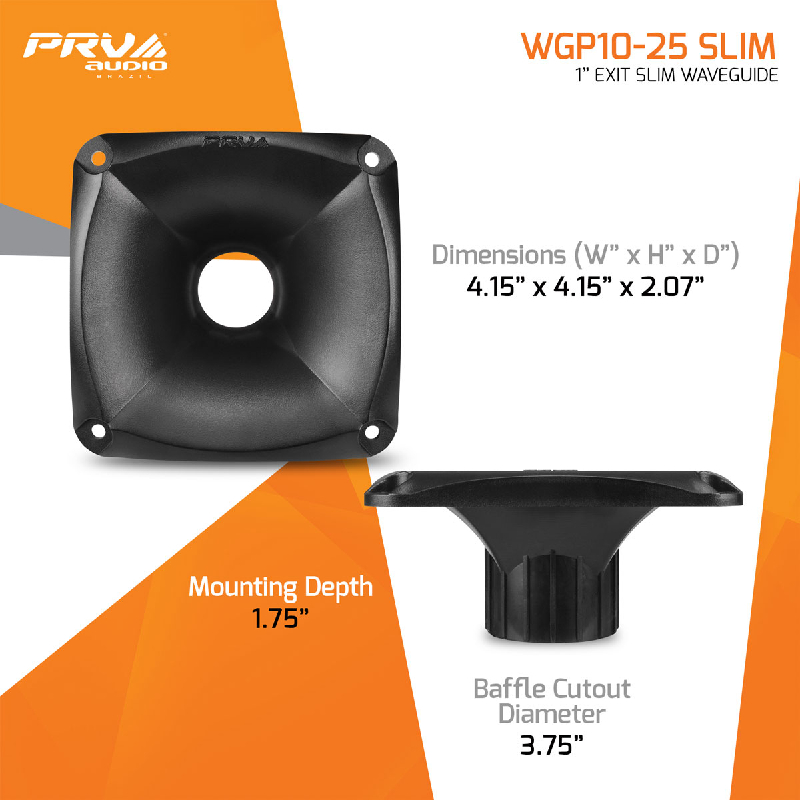

- Dimensions Height: 4.15 Inches 105.5 Millimeters
- Dimensions Width: 4.15 Inches 105.5 Millimeters
- Dimensions Depth: 2.07 Inches 52.5 Millimeters
- Mount Depth: 1.75 Inches 44.5 Millimeters
- Baffle Cutout Diameter: 3.75 Inches 95.5 Millimeters
- Net Weight: 0.15 Pounds
- UPC: 810075527445
- Weight: 0.15
