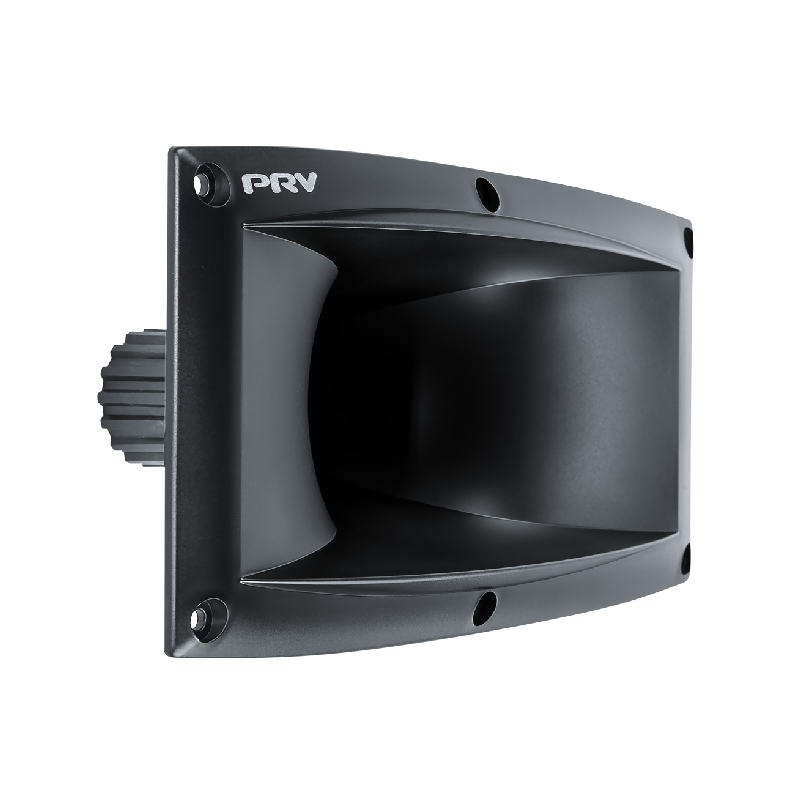

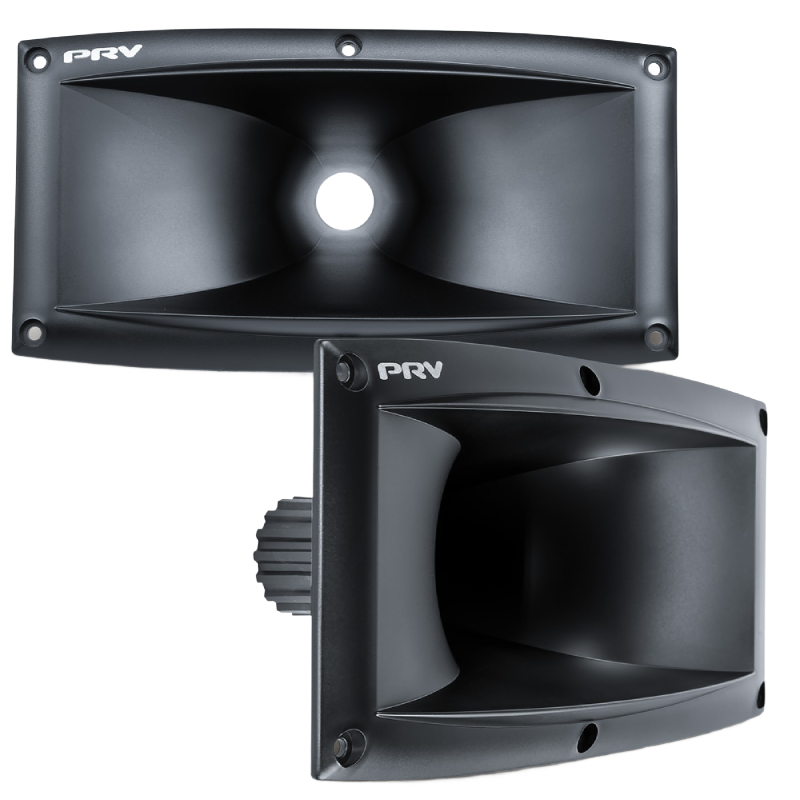

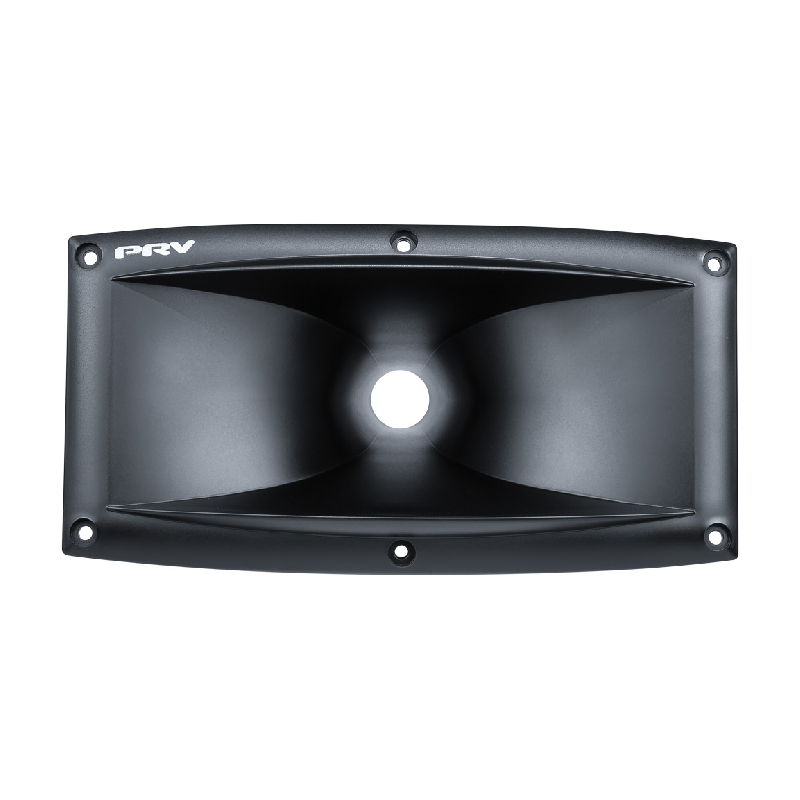

PRV Audio WG23-25 WG Series 1" Exit Horns Screw-on Throat Waveguides (Sold as Single)
We are a PRV Audio authorized dealer so you get up-to-date, fully warrantied products. Shipping is free to the lower 48 states on everything you order!
Wide Coverage Sound That Fills the Space
The PRV Audio WG23-25 1" Exit Horns Screw-on Throat Waveguides are built for car audio enthusiasts who want big, open sound coverage without losing control. With an ultra wide 100° x 40° dispersion pattern, they spread sound broadly across the cabin while keeping vertical focus tight for better imaging. This gives your system a more natural, balanced stage that feels full without sounding scattered.
Serious Efficiency With Clean High Frequency Detail
These waveguides use an exponential flare acoustic design that helps push high frequencies forward with more efficiency and clarity, especially when you turn the system up. They are made for 1 inch exit compression drivers, giving you wide compatibility across professional and car audio setups. The screw-on 1-3/8 inch 18 TPI mount keeps everything locked in securely, so your driver stays stable even under heavy use and vibration.
Built Tough for Custom Installs That Last
Constructed from durable non resonant ABS, these waveguides are designed to stay solid and vibration free even in demanding mobile environments. The large format geometry improves sound spread and off-axis response, while the optimized baffle layout makes installation into door panels and multi speaker arrays much easier. With a lightweight yet strong build, they are simple to mount but tough enough for long term daily driving and high output systems.
Frequently Asked Questions (FAQ)
- • Why is my PRV Audio WG23-25 not producing any sound?
The waveguide itself does not generate sound. It must be paired with a compatible 1 inch screw on compression driver that is properly connected to your amplifier and crossover.
- • Can I install the WG23-25 in a custom speaker box?
Yes. Many users install it in custom enclosures for car audio and PA systems. Be sure to verify the cutout dimensions and available mounting space before cutting your enclosure.
- • Why does my compression driver not thread onto the WG23-25?
This usually happens when the driver uses a different thread standard. The WG23-25 is designed for standard 1-3/8 inch 18 TPI screw on compression drivers.
- • Why does the sound seem too directional?
Waveguides are engineered to control sound dispersion. Adjusting the mounting angle toward the listening area can significantly improve overall coverage and listening quality.
- • Can the WG23-25 handle high power audio systems?
Yes. The waveguide is designed to work with high output compression drivers commonly used in professional audio and competition car audio systems. The compression driver determines the actual power handling.
- • Is the WG23-25 suitable for outdoor speaker projects?
Yes. Its durable ABS construction makes it a popular option for outdoor speaker cabinets, powersports vehicles, and other applications where long lasting performance is important.
- • Why do I hear distortion when I increase the volume?
Distortion is often caused by amplifier clipping, incorrect crossover settings, or pushing the compression driver below its recommended operating frequency rather than an issue with the waveguide.
- • Can I paint the WG23-25 to match my audio system?
Many DIY installers paint the waveguide to match custom interiors or speaker enclosures. Using paint designed for plastic surfaces helps achieve the best finish and durability.
- • Why does my horn vibrate during heavy bass?
Strong bass vibrations can loosen mounting hardware over time. Tightening the mounting screws and reinforcing the installation surface can help eliminate unwanted noise.
- • Is the WG23-25 a good upgrade from a factory horn?
Yes. Many users upgrade to the WG23-25 for improved sound projection, better efficiency, and compatibility with high performance compression drivers in custom audio systems.
Features:
- 1" Exit Throat Compatibility: Designed for standard 1" compression drivers to ensure broad system integration across professional and car audio setups.
- Screw-On 1-3/8"-18 TPI Mount: Secure universal threading allows stable installation with compatible screw-on compression drivers.
- Ultra Wide 100° x 40° Dispersion Pattern: Delivers expansive horizontal coverage with controlled vertical focus for balanced sound staging.
- Exponential Flare Acoustic Design: Enhances high-frequency projection efficiency while maintaining clarity and detail at higher output levels.
- Durable ABS Non-Resonant Construction: Built to reduce unwanted vibrations and maintain consistent tonal accuracy under demanding conditions.
- Large-Format Waveguide Geometry: Extended physical dimensions support improved sound spread and smoother off-axis response.
- Optimized Baffle Integration Layout: Designed cutout dimensions simplify mounting in custom door panels and multi-speaker arrays.
- Lightweight High-Strength Build: Low-mass construction supports easy installation while maintaining long-term durability in mobile environments.
Specifications:
- Throat Diameter: 1 Inch 25.4 Millimeters
- Mounting Type: Screw on
- Thread Dimensions: 1 and 3 by 8 Inch
- Nominal Coverage Horizontal: 100 Degrees
- Nominal Coverage Vertical: 40 Degrees
- Flare Type: Exponential
- Material: Plastic ABS
- Finish or Coating: Black
- Dimensions Height: 10.0 Inches 254 Millimeters
- Dimensions Width: 5.30 Inches 134 Millimeters
- Dimensions Depth: 5.67 Inches 144 Millimeters
- Mount Depth: 4.84 Inches 123 Millimeters
- Baffle Cutout Width: 7.50 Inches 190 Millimeters
- Baffle Cutout Height: 3.50 Inches 89 Millimeters
- Net Weight: 0.37 Pounds
- UPC: 810075524826
- Weight: 0.37
- Authorized Internet Dealer
Warranty: 1 Year Warranty.
