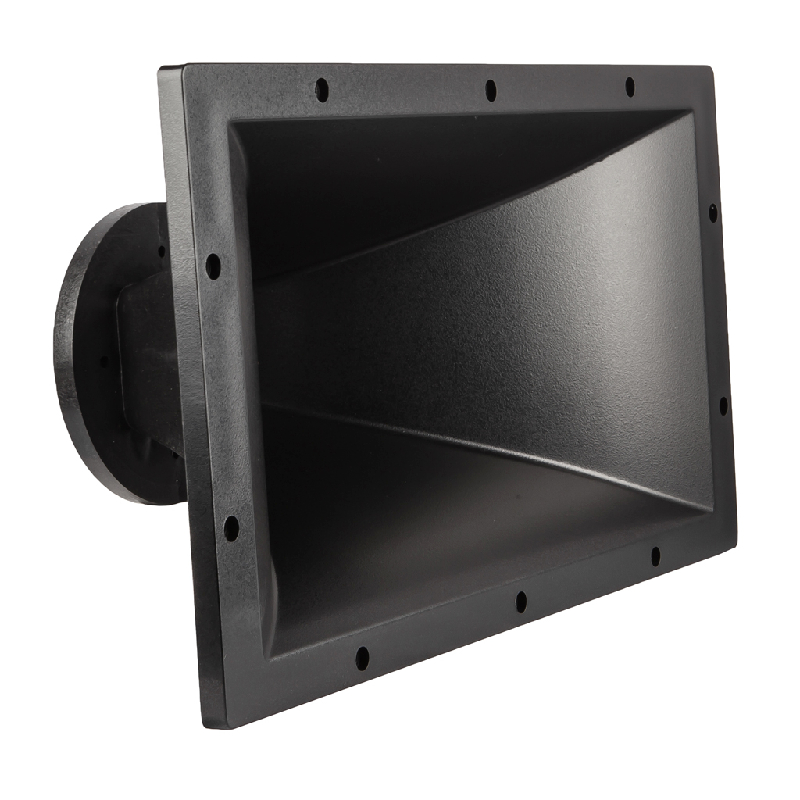

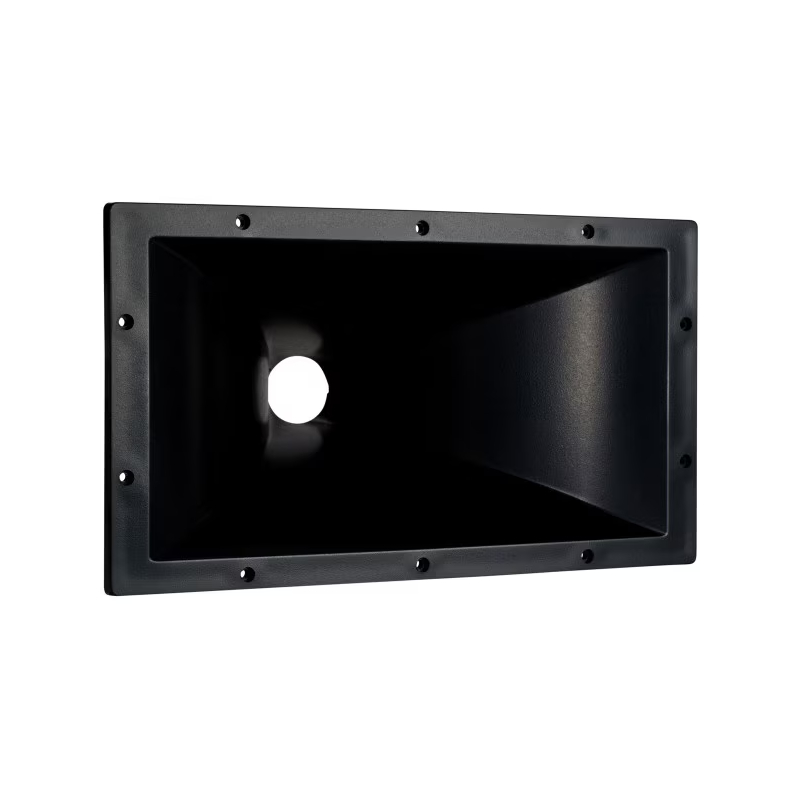

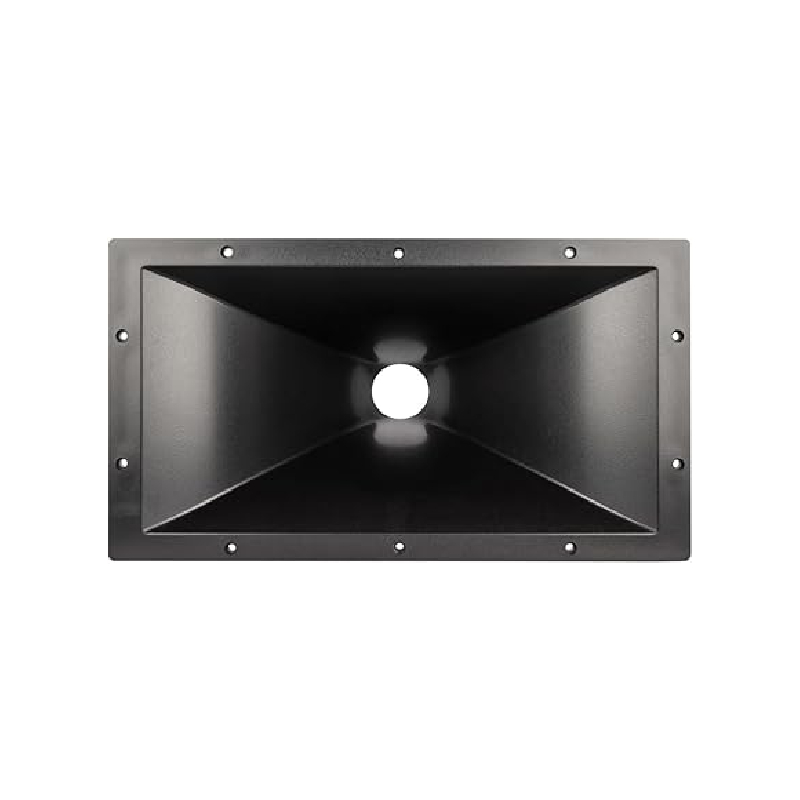

PRV Audio WG45-50 WG Series 2" Exit Long Horns Bolt-On Waveguides
We are a PRV Audio authorized dealer so you get up-to-date, fully warrantied products. Shipping is free to the lower 48 states on everything you order!
Massive Horn Power Built for Extreme Output
The PRV Audio WG45-50 2" Exit Long Horns is made for serious car audio enthusiasts who want to push their system to the next level. With a 2 inch exit high capacity throat design, it supports large compression drivers that deliver stronger output and more commanding high frequency presence. This is the kind of horn built for systems that are meant to be heard from a distance and felt up close.
Wide Coverage With Long Throw Performance
Designed with a 90° by 40° dispersion pattern, this horn spreads sound wide across the cabin while keeping vertical control tight for better focus and clarity. The extended long horn geometry boosts projection efficiency, making it ideal for long throw applications where power and reach matter. Combined with an exponential flare design, it helps maintain smooth response and consistent tonal balance even when the volume is pushed hard.
Heavy Duty Build for Competition Level Systems
Built from heavy duty non resonant ABS, this horn is designed to handle high SPL conditions without adding unwanted vibration or distortion. The bolt on mounting system provides a secure multi point installation that fits a range of compression drivers, making it perfect for custom builds and professional setups. With large baffle compatibility and a structure made for extreme environments, it is ready for competition systems, show cars, and high performance audio builds that demand strength and reliability.
Frequently Asked Questions (FAQ)
- • Why isn't my PRV Audio WG45-50 producing any sound?
The WG45-50 is a waveguide and does not create sound on its own. It must be paired with a compatible compression driver that is properly connected to your audio system.
- • Can I use the WG45-50 with any 2 inch compression driver?
It is designed for compatible 2 inch exit compression drivers with the correct mounting interface. Always verify the driver specifications before installation to ensure a proper fit.
- • Why does my compression driver feel loose after mounting?
A loose connection is often caused by improper installation or hardware that is not fully tightened. Double check all mounting points before operating the system at high volume.
- • Is the WG45-50 a good option for long throw sound applications?
Yes. Many users select the WG45-50 because its controlled coverage pattern helps project sound more effectively over longer distances in larger listening areas.
- • Why do I hear distortion when I increase the volume?
The distortion is usually caused by amplifier clipping, incorrect crossover settings, or exceeding the limits of the compression driver rather than the waveguide itself.
- • Can I install the WG45-50 in a custom PA speaker cabinet?
Yes. The WG45-50 is commonly used in custom loudspeaker enclosures for professional audio, mobile DJ systems, and high output speaker projects.
- • Why does the sound seem uneven across the audience?
Improper aiming or placement of the waveguide can create uneven sound coverage. Adjusting its position toward the listening area usually improves consistency.
- • Is the WG45-50 suitable for outdoor events?
Yes. It is frequently used in outdoor sound systems when paired with weather appropriate speaker components and housed in a properly protected enclosure.
- • Why do I hear vibrations coming from the speaker cabinet?
Cabinet vibrations are typically caused by loose hardware or insufficient internal bracing. Reinforcing the enclosure and tightening all fasteners can reduce unwanted noise.
- • Can I upgrade from my existing waveguide to the WG45-50 without replacing my entire system?
In many cases, yes. As long as your compression driver, enclosure dimensions, and mounting configuration are compatible, upgrading to the WG45-50 can be a straightforward improvement.
Features:
- 2" Exit High-Capacity Throat Design: Supports large compression drivers for increased output capability and improved high-frequency authority.
- Bolt-On Mounting System: Secure multi-point installation with adjustable bolt circle compatibility for professional-grade integration.
- Wide 90° x 40° Coverage Pattern: Delivers broad horizontal dispersion with controlled vertical directivity for optimized front-stage performance.
- Extended Long Horn Geometry: Large physical profile enhances sound projection and efficiency for long-throw applications.
- Exponential Flare Acoustic Design: Improves wave propagation for smoother response and consistent tonal balance across listening areas.
- Heavy-Duty ABS Non-Resonant Construction: Reduces unwanted vibration while maintaining structural durability in demanding environments.
- Large Baffle Cutout Compatibility: Designed for integration into high-output enclosures and custom fabricated audio panels.
- High-Strength Professional Build Quality: Built to handle high SPL applications in car audio competitions and extreme performance systems.
Specifications:
- Throat Diameter: 2 Inches 50.8 Millimeters
- Mounting Type: Bolt on
- Hole Dimensions: 0.24 by 0.31 Inches 6 by 8 Millimeters
- Bolt Circle: 3.62 to 4.25 Inches 92 to 108 Millimeters
- Nominal Coverage Horizontal: 90 Degrees
- Nominal Coverage Vertical: 40 Degrees
- Flare Type: Exponential
- Material: Plastic ABS
- Finish or Coating: Black
- Dimensions Height: 9.84 Inches 250 Millimeters
- Dimensions Width: 17.71 Inches 450 Millimeters
- Dimensions Depth: 7.95 Inches 202 Millimeters
- Mount Depth: 7.48 Inches 190 Millimeters
- Baffle Cutout Width: 15.75 Inches 400 Millimeters
- Baffle Cutout Height: 8.46 Inches 215 Millimeters
- Net Weight: 3.63 Pounds
- UPC: 799928734561
- Weight: 3.63
- Authorized Internet Dealer
Warranty: 1 Year Warranty.
This item is accompanied by a manufacturer's warranty. If it is found to be defective, it may be returned to OnlineCarstereo.com for replacement within 1 Year from the original date of purchase with proper return authorization.
