PRV Audio WGP14-50X WGP Series 2" Exit Short Horns Bolt-On Red Matte Waveguides (Sold as Single)
We are a PRV Audio authorized dealer so you get up-to-date, fully warrantied products. Shipping is free to the lower 48 states on everything you order!
What's Inside?
- • WGP Series 2" Exit Short Horns Bolt-On Red Matte Waveguides
- • Owner's Manual
Red Matte Presence Built for Serious Sound
The PRV Audio WGP14-50X Red Matte 2" Exit Short Horns Bolt-On Red Matte is designed for car audio enthusiasts who want clean performance with a bold, aggressive look. The red matte finish gives your build a stealthy yet striking appearance that stands out without being overly glossy. It is made for systems that need both visual identity and serious acoustic output in one compact package.
Tight Control With Clean Front Stage Imaging
At the core of this horn is a patented octagonal architecture that improves dispersion control and acoustic efficiency while keeping the design compact and powerful. The controlled 60° by 60° dispersion pattern delivers balanced coverage that locks in your front stage with clear imaging and consistent sound across the cabin. A hybrid flare acoustic design helps smooth wave propagation, giving you cleaner response and better clarity at higher output levels.
Built Strong for Custom Installs and Daily Power
This horn supports 2 inch exit PRV Audio compression drivers using a secure 4 bolt bolt-on system for reliable professional installation. With an ultra compact 3.86 inch mounting depth and 6.16 by 6.16 inch form factor, it fits easily into tight door and trunk builds without limiting performance. The reinforced non resonant ABS construction keeps vibration low, while the lightweight 0.46 lb design makes installation easier while still handling demanding automotive and high output audio environments.
Frequently Asked Questions (FAQ)
- • Why does my PRV Audio WGP14-50X Red Matte sound quieter than expected?
The waveguide only directs sound and does not increase power. Lower output is often caused by an underpowered amplifier, incorrect crossover settings, or a mismatched compression driver.
- • Can I use the WGP14-50X Red Matte with an older PRV compression driver?
Yes. As long as the compression driver has the correct throat size and mounting specifications, it should be compatible with the waveguide.
- • Why won't my compression driver thread on properly?
This is usually caused by incompatible threads or cross threading during installation. Always start by hand and verify the mounting standard before tightening.
- • Does the red matte finish fade after being exposed to sunlight?
The finish is made for durability, but prolonged exposure to direct sunlight over several years may gradually affect its appearance. Parking in covered areas can help preserve the finish.
- • Why do my highs sound too sharp after upgrading to this waveguide?
A new waveguide can change the way high frequencies are projected. Adjusting the crossover point and equalizer settings can produce a smoother sound.
- • Is the WGP14-50X Red Matte suitable for daily driven vehicles?
Yes. Many users choose the matte finish because it provides a custom appearance while hiding fingerprints and light dust better than glossy finishes.
- • Why does my speaker panel vibrate when the music gets loud?
High output systems can transfer vibration to surrounding panels. Tightening the mounting hardware and adding sound damping material can reduce unwanted noise.
- • Can I install the WGP14-50X Red Matte in a custom motorcycle audio system?
Yes. It is commonly used in motorcycles and other custom powersports builds where there is enough mounting space for the waveguide and compression driver.
- • Why doesn't the waveguide sit flat against my enclosure?
An uneven mounting surface or an incorrectly sized cutout is the most common reason. Measuring and preparing the mounting area before installation helps ensure a proper fit.
- • Is there any performance difference between the Red Matte and other WGP14-50X finishes?
No. The finish is the primary difference. When paired with the same compatible compression driver, all WGP14-50X color options deliver the same acoustic performance.
Features:
- Patented Octagonal Horn Architecture: Advanced geometry improves dispersion control and acoustic efficiency while maintaining a compact high-output design.

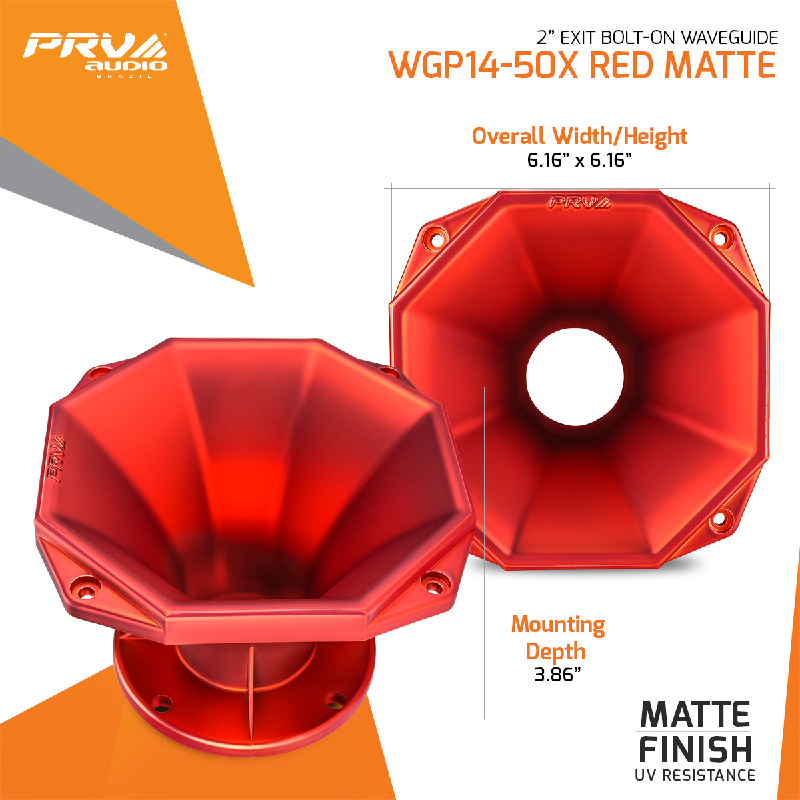

- Ultra Compact 3.86" Mounting Depth Design: Space-efficient construction enables installation in tight custom door and trunk configurations.
- Controlled 60° x 60° Dispersion Pattern: Delivers balanced sound coverage for accurate imaging and consistent front-stage performance.
- Hybrid Flare Acoustic Design: Enhances wave propagation efficiency for smoother frequency response and improved clarity.
- Non-Resonant ABS Reinforced Construction: Reduces vibration and distortion for clean, precise, and stable high-frequency output.
- Compact 6.16" x 6.16" Form Factor: Balanced sizing allows flexible placement in professional car audio builds.
- Lightweight 0.46 lb Build: Easy to install while maintaining durability for demanding mobile and automotive environments.
- 2" Exit Bolt-On Driver Compatibility: Designed for secure integration with standard PRV Audio 2" compression drivers using a 4-bolt mounting system.
Specifications:
- Throat Diameter: 2” (50.8 mm)
- Mounting Type: Bolt-on
- Hole Dimensions: 0.31” (8 mm)
- Bolt Circle: 4” (102 mm)
- Nominal Coverage Horizontal: 60°
- Nominal Coverage Vertical: 60°
- Flare Type: Hybrid
- Material: Plastic (ABS)
- Finish / Coating: Several Colors
- Height: 6.16” (156.5 mm)
- Width: 6.16” (156.5 mm)
- Depth: 4.37” (111 mm)
- Mounting Depth: 3.86” (98 mm)
- Baffle Cutout Diameter Circle: 5.75” (146 mm)
- Net Weight: 0.46 lbs
- UPC: 810075521726
- Weight: 0.46
