PRV Audio WGP14-50X WGP Series 2" Exit Slim Horns Bolt-On Waveguides (Sold as Single)
We are a PRV Audio authorized dealer so you get up-to-date, fully warrantied products. Shipping is free to the lower 48 states on everything you order!
Slim Power Meets Pro-Level Precision
If you’re building a serious car audio setup and need a horn that just fits right in without overcomplicating things, the PRV Audio WGP14-50X SLIM 2” Exit Horn is exactly that kind of upgrade. It’s built for standard 2” (50.8 mm) compression drivers, so you get smooth, reliable acoustic coupling and clean high-frequency delivery that really wakes up your system. No struggle, no guesswork, just solid performance that slots into pro and enthusiast builds with ease.
Built to Fit Where Others Can’t

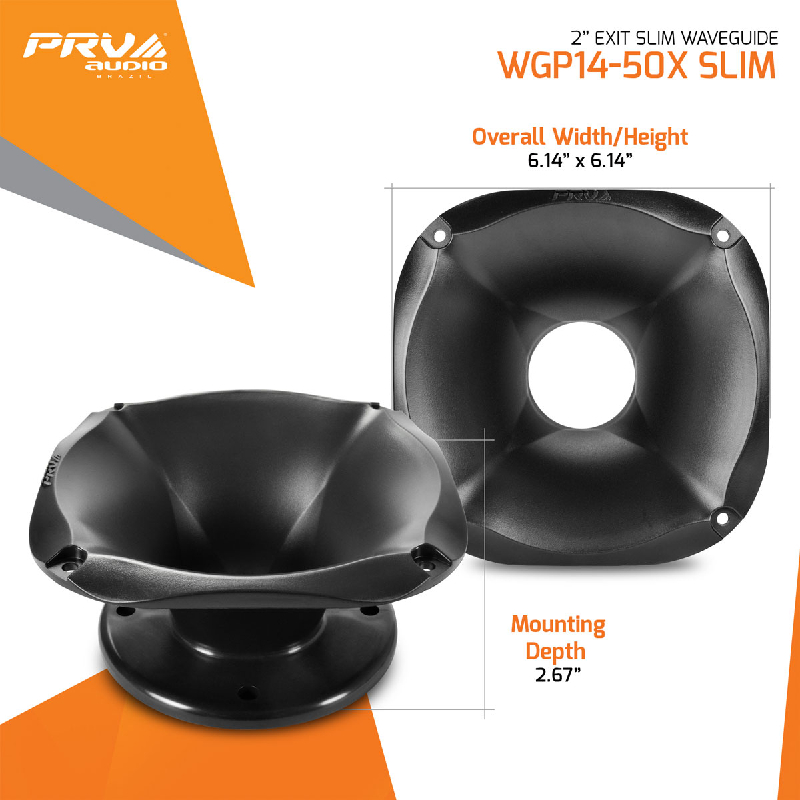

Space is always a challenge in custom installs, and this horn was designed with that reality in mind. With its ultra-slim 2.67” mounting depth and compact 6.14” square footprint, it’s made for tight spots like A-pillars, shallow door panels, and compact enclosures. The 4-bolt 4” pattern with 8 mm holes keeps everything locked down tight, while the 5.59” cutout requirement makes fabrication clean and precise so your install looks as good as it sounds.
Focused Sound, Rugged Build, Zero Compromise
When it comes to performance, this horn delivers controlled 60° x 60° dispersion so your highs stay focused and balanced whether you’re parked or cruising. The reinforced ABS hybrid flare design helps reduce unwanted resonance, keeping your sound clear even when you push the volume hard. At just 0.42 lb, it stays lightweight without losing rigidity, making it a smart pick for builds that demand both durability and high-output clarity without wasting space or power.
Frequently Asked Questions (FAQ)
- • Why did I choose the WGP14-50X SLIM but it still won't fit my installation?
The slim design reduces mounting depth, but some factory panels and custom enclosures still have limited clearance. Measuring the available space before installation is highly recommended.
- • Can I install the WGP14-50X SLIM with any compression driver?
It works with compatible compression drivers that match the required throat size and mounting specifications. Always verify compatibility before purchasing or installing.
- • Why do my highs sound much louder than my midrange speakers?
This usually happens when the horn level is not properly balanced with the rest of the system. Adjusting the crossover, amplifier gain, and equalizer settings can improve overall sound balance.
- • Why is my compression driver getting loose after several days of use?
High output audio systems create constant vibration that can gradually loosen threaded connections. Periodic inspection and tightening will help keep everything secure.
- • Is the WGP14-50X SLIM designed for tight installation spaces?
Yes. The slim profile is specifically designed for applications where mounting depth is limited, making it a popular choice for custom doors, speaker pods, and motorcycles.
- • Why do I hear rattling near the waveguide at high volume?
The most common causes are loose mounting screws, vibrating trim panels, or an improperly secured enclosure rather than the waveguide itself.
- • Can I use the WGP14-50X SLIM in powersports or marine audio systems?
Yes. Many installers use it in motorcycles, UTVs, boats, and other recreational vehicles when paired with compatible compression drivers and properly protected components.
- • Why does the sound seem focused in one area instead of filling the vehicle?
The waveguide is designed for controlled sound dispersion. Proper aiming toward the listening position will provide more even sound coverage.
- • Do I need to retune my audio system after installing the WGP14-50X SLIM?
Yes. Replacing a waveguide can change the way high frequencies are projected. Updating your DSP, equalizer, and crossover settings will help maximize performance.
- • Is the WGP14-50X SLIM only different because it has a shallower design?
The reduced mounting depth is its biggest advantage, making installation easier in compact spaces while maintaining the efficient sound projection expected from the WGP14-50X SLIM series.
Features:
- 2" Throat Diameter Standard Interface: Designed for seamless compatibility with industry-standard 2" (50.8 mm) exit compression drivers, ensuring reliable acoustic coupling and efficient high-frequency transfer.
- Ultra-Slim 2.67" Mounting Depth Profile: Optimized for space-restricted installations, allowing integration into shallow door builds, A-pillars, and compact enclosures without compromising output performance.
- Controlled 60° x 60° Dispersion Coverage: Provides consistent horizontal and vertical sound projection for accurate imaging and focused listening in short-throw and mid-throw applications.
- Durable ABS Hybrid Flare Construction: Built using reinforced ABS plastic with a hybrid flare design that reduces resonance and improves tonal clarity under high output conditions.
- Standard 4-Bolt Mounting System: Features a 4" (102 mm) bolt circle and 8 mm mounting holes for secure, vibration-resistant installation across compatible compression drivers.
- Compact Square Frame Design: 6.14" x 6.14" footprint allows efficient stacking and flexible layout configurations in custom car audio fabrication projects.
- Lightweight High-Strength Build: Weighing only 0.42 lb (0.19 kg), it reduces structural load while maintaining rigidity for stable acoustic performance in mobile environments.
- Optimized Baffle Integration Fitment: 5.59" circular cutout requirement ensures clean and precise installation into fabricated panels and enclosures.
Specifications:
- Product Name: PRV Audio WGP14-50X SLIM – 2″ Bolt-on Exponential Horn
- Compact Profile: Slim mounting depth of 2.67″ allows easy installation in tight spaces
- Throat & Mounting: 2″ throat with standard 4-bolt mount compatible with most 2″ compression drivers
- Faceplate Size: 6.14″ x 6.14″ for minimal space usage
- Stacking Friendly: Squared outside edges allow easy side or up stacking of multiple drivers
- Construction: Non-resonant reinforced ABS plastic for outdoor or automotive use
- Coverage & Frequency: 60° x 60° dispersion pattern ideal for short throw applications
- Acoustic Loading: Maintained down to 1,400 Hz
- Performance: Unique pattern dispersion minimizes reflections for more consistent sound
- Crossover: Recommended minimum crossover frequency of 1,400 Hz

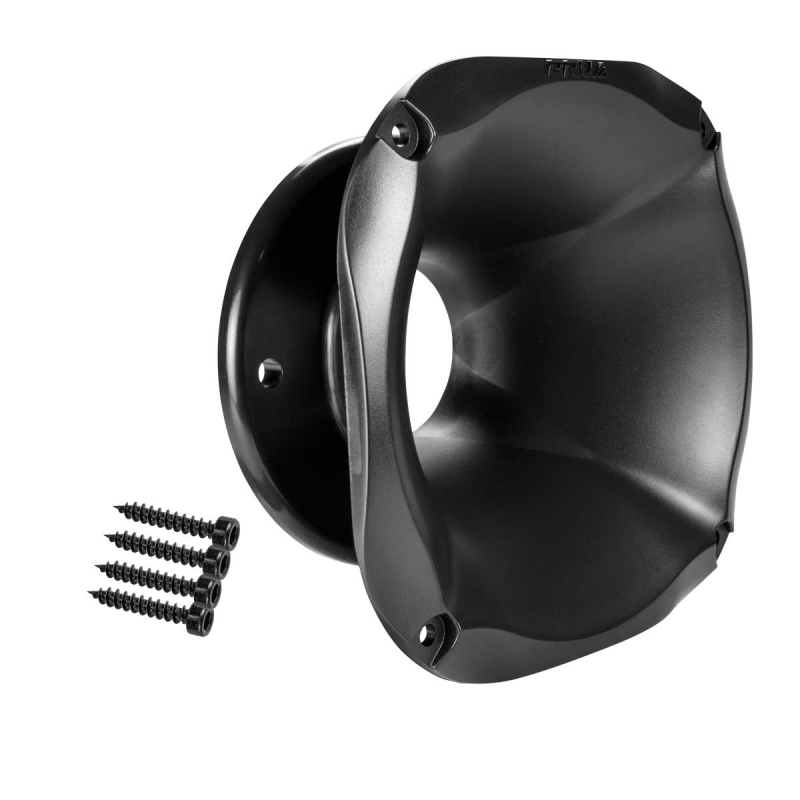

- Accessories: Includes 4 screws for installation
- UPC: 810075522730
- Weight: 0.42
- Authorized Internet Dealer
Warranty: 1 Year Warranty.
This item is accompanied by a manufacturer's warranty. If it is found to be defective, it may be returned to OnlineCarstereo.com for replacement within 1 Year from the original date of purchase with proper return authorization.
