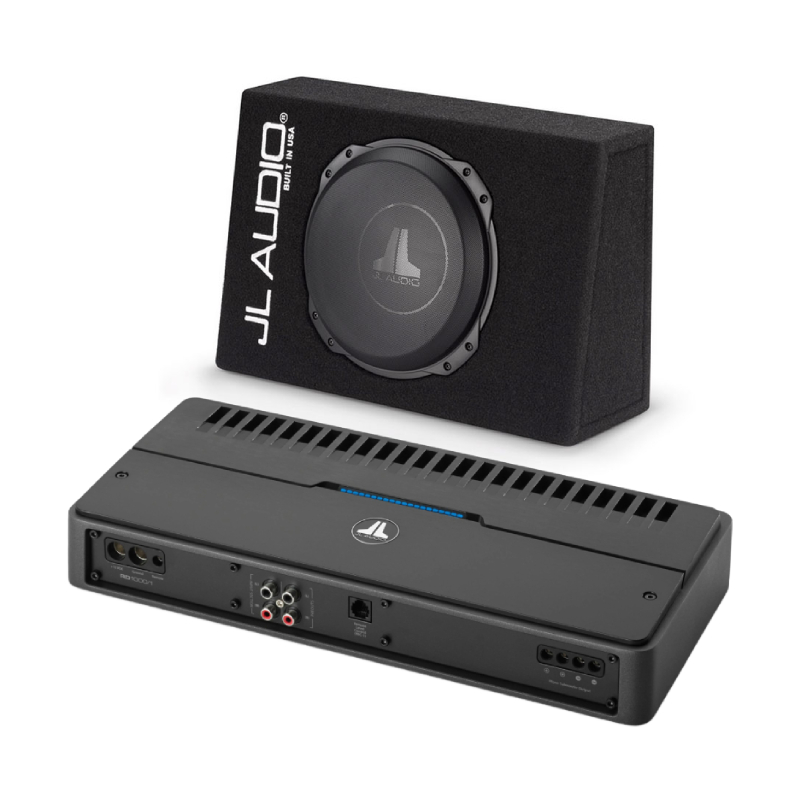

JL Audio  RD1000/1-Bundle1 New

RD1000/1 RD Series 1000W RMS x 1 at 2 Ohm, Class-D Mono Subwoofer Car Amplifier with NexD™ Switching Technology

Features:

• Big Power, Small Footprint: RD Series amplifiers deliver massive audio performance from a compact chassis, using NexD™ switching technology to run cooler and fit in tight spaces
• Premium Styling: Black powder-coat finish with brushed aluminum control cover for a sleek, professional look
• Mono Class-D Subwoofer Amp: RD1000/1 is a mono Class-D amplifier designed specifically for subwoofers, stable down to 2Ω
• High RMS Output: Produces 600W RMS @ 4Ω, 800W RMS @ 3Ω, and 1000W RMS @ 2Ω at 14.4V (adjusted slightly lower at 12.5V)
• Differential-Balanced Inputs: Minimizes noise and alternator whine, allowing direct connection to most OEM source units
• Speaker-Level Ready: Compatible with speaker-level outputs using a speaker wire to RCA adapter (sold separately)
• Intelligent Protection System: Bi-color LED indicates power-up, normal operation, thermal protection, over-current events, and voltage shutdown
• Temporary Red LED: Lights for 3 seconds during power-up, muting audio to protect the system
• Constant Blue LED: Indicates normal amplifier operation
• Constant Red LED: Indicates thermal overload; amplifier mutes until safe temperature is restored
• Momentary Red LED: Flashes for ½ second during over-current conditions caused by low impedance or wiring shorts
• Automatic Restart: LEDs off only when battery or remote voltage drops below 10V; amplifier resumes normal operation above 11V
• Efficient Cooling System: Aluminum shell dissipates heat effectively; avoid enclosing in small, poorly ventilated spaces
• Secure Control Panel Cover: Brushed aluminum cover protects settings and maintains a clean aesthetic
• Onboard LED Clipping Indicator: Quickly and accurately sets input sensitivity without special tools
• Flexible Input & Active Crossover: 12dB/octave Butterworth low-pass filter with adjustable cutoff between 50–500Hz (marked at 60, 80, 120, 200Hz)
• Multiple Turn-On Options: Choose +12V Remote, DC Offset-Sensing, or Signal-Sensing methods for flexible system integration
• Remote Output Capability: DC Offset and Signal-Sensing methods allow the Remote terminal to trigger other amps or accessories
• Wide Input Voltage Range: Accepts 200mV–8V signals, selectable between Low (200mV–2V) and High (800mV–8V) ranges
• Heavy-Duty Power Terminals: Set-screw clamp connections accept up to 4 AWG power wire for reliable current delivery
• External Fuse Required: Use an 80-amp AFS, AGU, or MAXI fuse on the power wire for safe operation
• Parallel Subwoofer Output Terminals: Four set-screw speaker terminals support easy connection of multiple subwoofers (16–8 AWG)
• Buffered Preamp Outputs: Pass-through RCA outputs allow seamless addition of other amplifiers without affecting crossover or input signals
• Remote Bass Control Ready: RJ-14 connector supports optional RBC-1 wired remote for front-seat subwoofer volume adjustment

Specifications:

• RMS Power Output (Watts x Channels): 600 x 1
• Peak Power Output (Watts x Channels): N/A
• Power at 2 Ohms (Watts x Channels): 1000 x 1
• Power at 1 Ohm (Watts x Channels): ---
• Bridged Power (Watts x Channels): N/A
• Minimum Impedance Bridged: N/A
• Minimum Impedance Unbridged: 2
• Best Frequency Response: 7–500 Hz
• THD at Rated RMS Power: 1%
• Signal to Noise Ratio: 80 dB
• Input Voltage: 14.4v
• Amplifier Class: D
• Built-in DSP: No
• Remote Control: Optional
• Low-Pass Crossover Frequency: 50–500 Hz
• Low-Pass Slope (dB/octave): 12 dB/octave
• High-Pass Crossover Frequency: N/A
• High-Pass Slope (dB/octave): N/A
• Bass Boost: 0–12 dB
• Bass Boost Frequency: 45 Hz
• Fan Cooled: No
• Fuse Rating: 80
• Speaker Level Inputs: Yes
• Preamp Outputs: 2
• Width: 14-5/8 inches
• Height: 2-3/16 inches
• Depth: 7 inches

CS112TG-TW3 TW3 12" 800W Peak Power Handling Subwoofer Sealed PowerWedge Truck-style Enclosure

Features:

• High-Impact Sealed Bass System: Precision-tuned sealed enclosure loaded with one 12" TW3 subwoofer for deep, tight, and accurate low-frequency performance.
• Rigid MDF Enclosure: Constructed from solid 5/8" medium-density fiberboard and finished in durable black carpet to minimize resonance and enhance durability.
• Steel-Mesh Subwoofer Protection: Heavy-duty steel-mesh grille safeguards the subwoofer while maintaining a clean, aggressive appearance.
• Optimized 2 Ohm Load: 2 Ohm total impedance ensures efficient power transfer and strong amplifier output.
• Reliable Power Handling: Handles 125–400 watts RMS, delivering powerful bass with low distortion.
• Extended Low-Frequency Response: Wide 22–200 Hz frequency range produces deep bass impact with smooth, controlled response.
• Efficient Output Design: 82 dB sensitivity provides solid volume levels even with moderate amplifier power.
• Slim, Space-Saving Profile: Compact dimensions of 21-1/4" W x 14-5/8" H x 4-1/2" D1 x 7" D2 (without grille) allow easy installation in tight spaces.

Specifications:

• Woofer Size (inches): 12
• Speakers Per Box: 1
• Woofer Material: Mica-filled Poly
• Enclosure Type: Sealed
• Color: Black
• Pieces in System: 1
• Width (inches): 21-1/4
• Height (inches): 14-5/8
• Depth (inches): 7-3/4
• Connector Type: 5-way post
• Frequency Response: 22-200 Hz
• Power Range (Watts RMS): 400
• Maximum Wattage: 800
• Sensitivity: 82 dB

• UPC:
• Weight: 40
