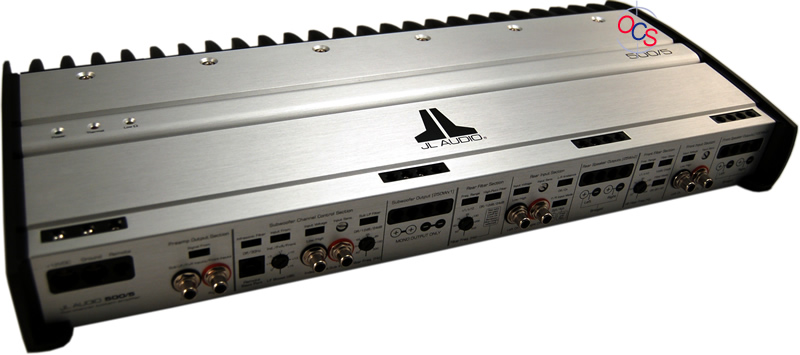

JL Audio  500/5

Class D & Class A/B Five-Channel System Amplifier

Item #11727

  Free 2-Years Warranty Included!
60 DAYS Returns Accepted.
FREE Lifetime Tech Support.
FREE Shipping (No Minimum).
60 DAYS Price change protection.
Sorry, this product is no longer available.
Checkout other products listed below

Huge Saving on Other items:



Huge Saving on Other items:



SPECIFICATIONS



FEATURES


  • Front Channels: 100 W RMS x 2 @ 1.5 ohm-4 ohm (11V-14.5V)
  • Rear Channels: 25 W RMS x 2 @ 1.5 ohm-4 ohm(11V-14.5V)
  • Subwoofer Channel: 250 W RMS @ 1.5 ohm-4 ohm (11V-14.5V)
  • THD at Rated Power: <0.03% @ 4 ohm (F&R), <0.05% @ 4 ohm (Sub)
  • S/N Ratio (F&R): >108.5 dB below rated power S/N Ratio (Sub): >95 dB below rated power
  • Frequency Response (front and rear): 5 Hz-30 KHz (+0, -1dB)
  • Frequency Response (sub channel): 5 Hz-500 Hz (+0, -1dB)
  • Damping Factor (front and rear): >200 @ 4 ohm/50 Hz
  • Damping Factor (sub channel): >500 @ 4 ohm/50 Hz
  • Input Range: switchable from 200mV-2V RMS to 800mV-8V RMS
  • Differential-Balanced Input Topology: (3 pairs of inputs)
  • Front Crossover: fully-variable (50 Hz-5 KHz), selectable- slope BP or HP (12 or 24 dB per octave)
  • Rear Crossover: fully-variable (50 Hz-5 KHz), selectable- slope HP (12 or 24 dB per octave)
  • Sub Crossover: fully-variable (40-200 Hz), selectable-slope LP (12 or 24 dB per octave)
  • Preamp Output: 2-channel (full-range or LP)
  • Bass EQ: Variable boost up to 15db
  • Infrasonic Filter: defeatable 24dB/octave at 30 Hz
  • Left minus Right Ambience Circuit: ambient effect for rear channels
  • Front and rear speaker output connections: accept up to 8ga. wire
  • Dual mono subwoofer output connections: accept up to 8ga. wire
  • +12V and Ground connections: accept up to 4ga. Wire
  • Dimensions: 19.7"L x 9.25"W x 2.36"H
  • UPC:
  • Weight: 0
  • Authorized Internet Dealer
Warranty: 2 Year(s) Warranty.
This item is accompanied by a manufacturer's warranty. If it is found to be defective, it may be returned to OnlineCarstereo.com for repair within 1 year from the original date of purchase with proper return authorization.

Do you own this product?

Write a review!
  • Awesome sound quality. This one amp powers the entire system. I have the JL Audio XR 3 way's in the front and I thought that 100 watts per channel would be a little weak for them, but it sounds awesome. I also have the XR 6.5 point series in the back and the 25 watts that goes to the rear still sound great for fill ins. I did slave the 550 5 with a 250 1 powering 2 10in pro wedges. I am glad that I went with all JL Audio. Even though I paid more.

    Kris
    1/7/2004

  • Awesome All-In-One Amp. Powering my Infinity Perfect 6.1's "Component" all around the car and two JL-Audio 10w3v2 Sub Woofers in a Integra. Tried many other multi-channel Amps and nothing compares to this amp.

    JoeyValentino
    1/17/2004

  • Great Amp! Sub and entire system hits SO NICE!!!

    Bobby
    3/22/2004

  • Great sounding amp i have it powering my xr 3 ways and my xr 6.5's and my 13w7 even though my subs not gettin all the juice can handle it still hits harder then anyone in my school thanks jl for this amazing amp

    Nathan
    8/28/2004

  • JL is the best. This amp will run the whole stereo.

    Steve
    4/14/2005

  • Cannot believe the power of this amp, running XR650's in the front, VR650's back and a 12W3. This set-up is far cleaner than my old system. Highly recommend this amp.

    Brian
    12/26/2007

  • Installed this amp on a boat and was very impressed. the four channel section runs 4 pioneer 6.5 marine speakers and the 5th sub channel runs a pair of Boston 10s in custom fiberglass encloser. Even off a low end head unit it was so amazing loud and clear out on the open water. Kinda Pricey amp but well worth it.

    Steven
    6/29/2008

  • I just got this amp for a really good price so I couldn't say no, especially because it has the capability to run a whole system. but the subwoofer channel is not strong enough to push my 13w6 like my mono amp. I didn't hear a difference between this amp and my replaced audiobahn A1004dp. The reason i bought it was because this amp claims to be reliable and power efficient.

    Allen
    10/13/2008

  • this is by far the best amp i had saves space and power is unreal got to get 1 for my work truck lol

    glenn
    11/23/2008

  • I have had this amp for some time now, Next to the old Orion "Red series" HCCA amps, you can't touch it. If you want a amp to do it all, this is the one for you. I am running my system off this amp, Pioneer Premier components and two JL 10w1v2 subs! great sound!!! This is one of the cleanest sounding systems I have put together!

    Barry Reed
    12/1/2009
