Rockford Fosgate P3D4-12 Punch P3 Series 12" 1200W Peak Power Handling at 4 Ohms, Dual Voice Coil Component Car Subwoofer
We are a Rockford Fosgate authorized dealer so you get up-to-date, fully warrantied products. Shipping is free to the lower 48 states on everything you order!
What's Inside?
- • (1) 12" Dual 4-ohm voice coil subwoofer
- • (1) Trim ring
- • (12) 1-1/8" Allen head screws
- • (1) 4mm Allen head bit
- • Installation/Operation manual (English/ French/ Spanish/ German)
- • Owner's Manual
Why Choose Rockford Fosgate P3D4-12 Component Car Subwoofer?
Rockford Fosgate Punch P3 Series Subwoofer
Powerful, reliable subwoofer designed for deep bass response. It features a 4-Ohms dual voice coil, an anodized aluminum cone, and a stamp-cast basket with integrated spider venting. The subwoofer also features an exclusive Spider Plateau Venting system, which helps to cool the voice coil and reduce distortion. The P3D4-12 offers a peak power rating of 1200 watts and a RMS power rating of 600 watts. With its high-performance design and advanced technology, the Rockford Fosgate P3D4-12 Punch P3 Series 12" Subwoofer is an excellent choice for anyone looking to upgrade their car audio system.
Standout Performance
Rockford Fosgate showcases their fanatical commitment to sonic excellence in the Punch Series of speakers, amps, and subs. If you like to listen to potent, powerful music — and feel it too — Punch components will give you impressive sound that'll stand out in a crowd.
Designed For Deeper & Louder Bass
Rockford Fosgate designed the P3D4-12 12" subwoofer to stay strong even when the bass gets hot. This Punch P3 sub features a rigid anodized aluminum cone that holds its shape through heavy play, while staying light and responsive. Rockford Fosgate uses a new technique to attach the oversized rubber surround to the cone that increases available cone area up to 25%, so this sub can push more air for even bigger bass.
Frequently Asked Questions (FAQ)
- • Why isn't my subwoofer producing any bass?
Check the amplifier settings, speaker wiring, and enclosure connections. Incorrect polarity, a loose wire, or an improperly configured amplifier can significantly reduce bass output.
- • What size enclosure works best for this subwoofer?
The subwoofer performs best in an enclosure built to the manufacturer's recommended sealed or ported specifications. Using the correct box size greatly improves bass accuracy and efficiency.
- • Can I wire the dual voice coils for different impedance loads?
Yes. The dual voice coil design allows multiple wiring configurations, but always match the final impedance to your amplifier's supported operating range.
- • Why does my amplifier keep going into protect mode?
Protection mode may indicate an incorrect impedance load, damaged speaker wiring, or overheating. Verify the wiring configuration and ensure the amplifier has proper ventilation.
- • Why do I hear a rattling noise when the bass hits?
Rattling can come from loose enclosure hardware, mounting screws, or nearby vehicle panels. Inspect the enclosure and tighten all mounting points before assuming the subwoofer is damaged.
- • Does the subwoofer require a break-in period?
Yes. Playing music at moderate volume for several hours allows the suspension to loosen naturally, helping the subwoofer achieve smoother response and optimal performance.
- • Can I use this subwoofer with a factory head unit?
Yes, but you'll typically need an external amplifier and, in some vehicles, a line output converter to provide sufficient power and signal quality.
- • Why does the bass sound weak even with a powerful amplifier?
Weak bass is often caused by an improperly sized enclosure, incorrect phase, poor amplifier tuning, or air leaks. Reviewing the installation usually resolves the problem.
- • How much amplifier power should I use with this subwoofer?
Choose an amplifier whose RMS output closely matches the subwoofer's RMS power rating. Proper power matching delivers stronger performance while reducing the risk of damage from clipping.
- Diameter : 12 Inch
- Sensitivity : 85 dB
- Impedance : 4 Ohm
- Frequency Response : 27-250 Hz
- Peak Power Handling : 1200 Watts
- Shallow Mount : No Inch
- Number of Voice Coils : Dual
- Suggested Sealed Box Volume : 1.02 Cubic ft.
- Suggested Ported Box Volume : 1.79 Cubic ft.
- RMS Power Handling : 600 Watts
Features:
- Anodized aluminum cone and dustcap
- Custom 10-AWG nickel plated push terminals

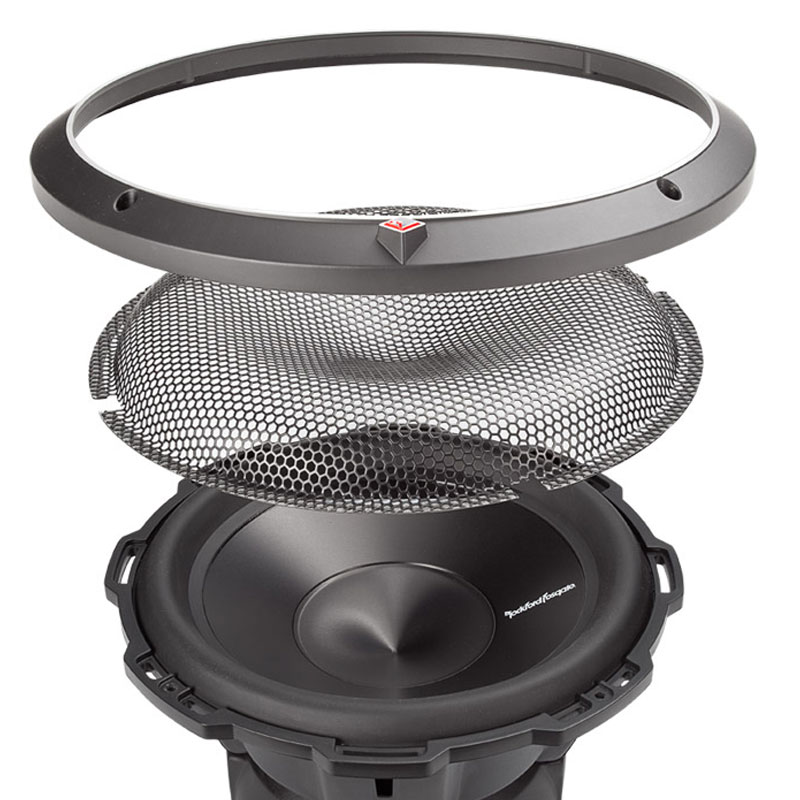

- Diamond cut cast aluminum trim ring with optional grille
- Extended pole piece and bumped vented backplate
- High-temp voice coil with spun-laced Nomex® re-inforcement collar
- Protective PVC textured magnet cover
- Soft touch rubber over-mold for greater grip
- StampCast basket with integrated spider venting
- CEA-2031 compliant
Specifications:
- Voice Coil Diameter: 2.5"
- Speaker Connector: Dual 10 AWG compression
- Fs (Hz): 27.7
- Qts: 0.49
- Vas (Liters): 57.7
- SPL (dB @ 1w/1m): 85.2
- Xmax (mm): 13.9
- Woofer Displacement: 0.094 cu.ft.
- Cutout Diameter: 11.25"
- Mounting Depth: 6.66"
- Vas (Liters): 57.7
- Re (Ohms): 6.40
- Woofer Displacement: 0.106 cu. ft. (3.0 Liters)
- Sd (cm2): 570
- Subwoofer Type: Standard
- Voice Coil Type: Dual Voice Coil
- Sealed Box Volume (Vb): 1.02 cu. ft. (28.8 Liters)
- Vented Box Volume (Vb): 1.79 cu. ft. (50.6 Liters)
- UPC: 780687332761
- Weight: 21
- Authorized Internet Dealer
Warranty: 2 Year(s) Warranty.
This item is accompanied by a manufacturer's warranty. If it is found to be defective, it may be returned to OnlineCarstereo.com for replacement within 2 Year(s) from the original date of purchase with proper return authorization.
