What's Included:
- 6 Stainless-steel philips-head screws
- Owner's Manual
- White polymer grille
- 10" Marine subwoofer
- 6 Stainless-steel flat-washers
Product Highlights:
- gold-plated, marine-grade brass binding posts
- designed for free-air applications
- top-mount depth: 5-15/16"
- 10" 4-ohm marine subwoofer
- injection-molded mica-filled polypropylene woofer with synthetic rubber surround
- Centrex polymer basket and grille, with stainless steel back plate
- marine-grade synthetic fiber spider
- power range: 50-150 watts RMS (300 watts peak power)
- sensitivity: 86.7 dB
- Diameter : 10 Inch
- Sensitivity : 87 dB
- Impedance : 4 Ohm
- RMS Power Range : 250 Watts
- Peak Power Handling : 500 Watts
- Color : White

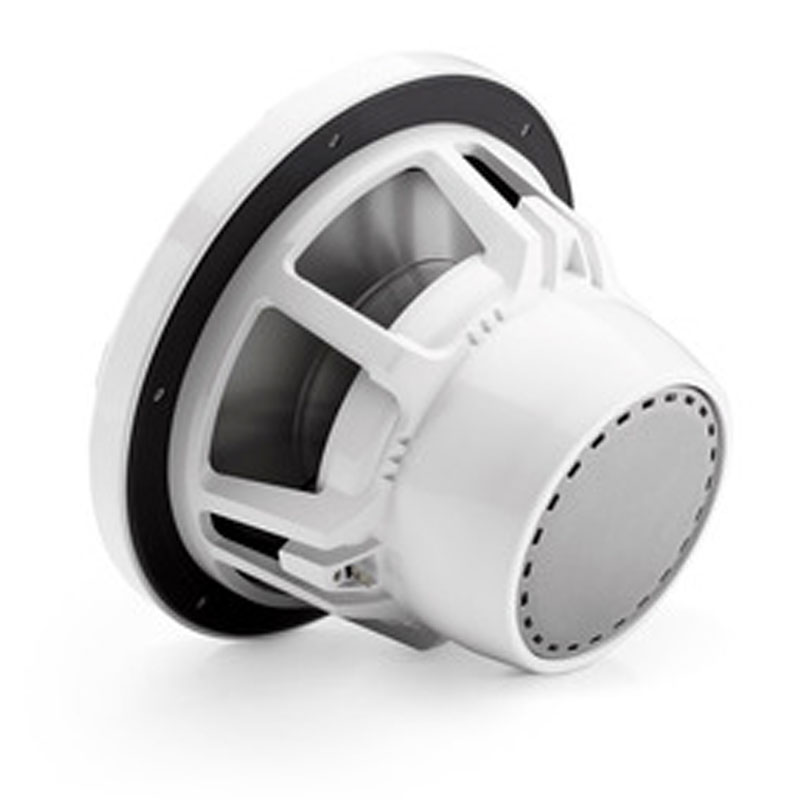

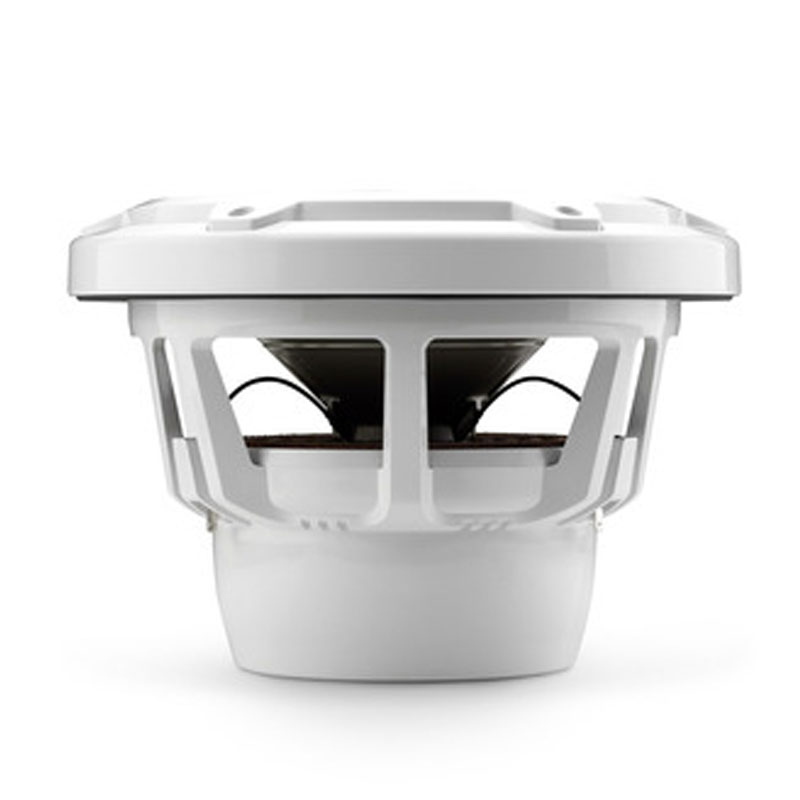

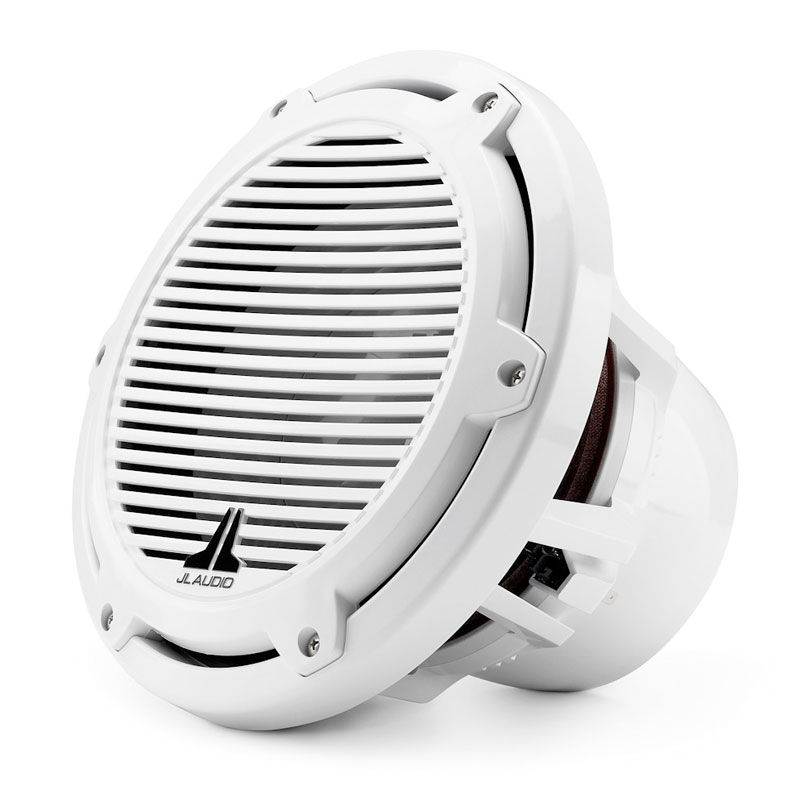

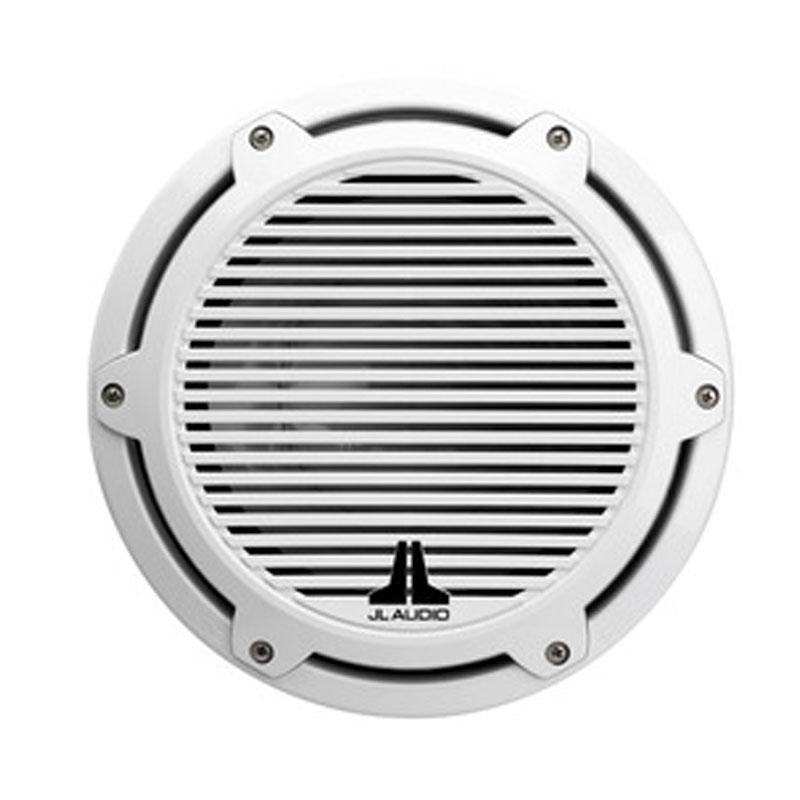

M-Series 10-inch Marine Subwoofer Driver for Infinite-Baffle Use (250 W, 4 Ω) - White Classic Grille
With appropriate system setup, the addition of a subwoofer allows your smaller main speakers to be free of the burden of reproducing low frequencies. This allows your whole system to play louder and to sound cleaner at all listening levels.
Purpose-engineered and built for real marine duty, the M-Series infinite-baffle woofers are designed to operate without a dedicated enclosure. Long excursion capability and rugged suspension systems help produce deep, powerful bass response that will transform your boat's audio system.
The M10IB5 is best used with amplifier power in the 75W - 250W range and is optimized to operate with a large volume of air behind it (at least 2 cu. ft. / 56.6 l). If you need a subwoofer driver that operates in a small sealed enclosure, select our M10W5, instead.
Like all JL Audio marine speakers, this driver is built to withstand a real saltwater marine environment and deliver years of listening enjoyment.
Features:
- 10" M-Series Infinite Baffle Marine Subwoofer
- Power Handling:
- RMS: 250 watts
- Impedance: 4 ohm
- Matching Amplifiers:
- JL Audio M200/2 - Class D Marine 2-Channel Amplifier
- JL Audio M600/6 - Class D Marine 6-Channel Amplifier
- Recommended power range: 75 - 250 watts RMS
- Injection-Molded mica-filled polypropylene cone bodies
- Synthetic rubber surround specifically formulated with UV inhibitors
- Marine grade progressive roll synthetic fiber spider
- Plated marine-grade brass connection terminals
- Proprietary Dynamic Motor Analysis (DMA) technology
- Long linear excursion for enhanced output and reduced distortion
- Specifically engineered Centrex polymer baskets are corrosion & UV-resistant
- Stainless steel mounting hardware included
- Efficiency: 86.7 dB
- Xmax: 13 mm
- Mounting Depth: 5.93"
- Cutout Diameter: 8.875"
- Minimum Enclosure Volume: 2 cu. ft. / 56.6 l (or larger)
- Infinite Baffle Use: Yes
- UPC: 699440917803
- Weight: 15
- Authorized Internet Dealer
Warranty: 2 Year(s) Warranty.
This item is accompanied by a manufacturer's warranty. If it is found to be defective, it may be returned to OnlineCarstereo.com for repair within 1 year from the original date of purchase with proper return authorization.
