What's Included:
- Product Information Inside Box
- Peak: 80 watts x 4 channels
- White button lighting
- RMS: 17 watts x 4 channels
- MP3 ID3 Tag Display (Title/Artist/Album)
- Power Output:
- 7" Touchscreen TFT/LCD monitor
- Owner's Manual
- Model sold as PLTS73FX or PLTS73FXD [same unit]
- Pyle PLTS73FX In-Dash Multimedia Receiver
- Wireless remote control included
- CD Text Display
Product Highlights:
- Rear video output
- iPod/iPhone Ready: Standard iPod-to-USB Cable required and sold separately
- Rear auxiliary input: RCA Audio/Video Input
- Playback of Region 1 DVD discs
- BBE MP Digital Sound processing to enhance your MP3/WMA playback
- 3.5mm Front-panel auxiliary input
- Rear auxiliary output: RCA Audio/Video Output
- Playback of CD, CD-R, CD-RW, DVD, MP3, VCD, and WMA
- AM/FM tuner with 18FM/12AM presets
- 3-band parametric equalizer with 5 selectable tone curves (4 Preset, 1 User)
- 3 Sets of 2V preamp outputs (front, rear, mono-subwoofer)
- Front-panel USB input
- Maximum Power : 80x4 Watts
- CD-R/CD-RW Compatible : Yes
- Remote Control : Yes
- Detachable Face : No
- Built-in EQ : Yes
- DIN : 1
- Display Size : 7 Inch
- Audio/Video Inputs : 1
- Bluetooth : No
- Aux Input : Yes
- MP3 Playback : Yes
- WMA Playback : Yes
- Front USB Input : 1
- Rear USB Input : No
- Audio/Video Outputs : 1
- Color : Black
- SD Card Slot : Yes
Pyle offers home theatre quality for your car! Introduce a whole new level of entertainment to your ride with this in-dash 7" LCD high definition wide-screen audio and video enhancement system. The PLTS73FX can do it all.

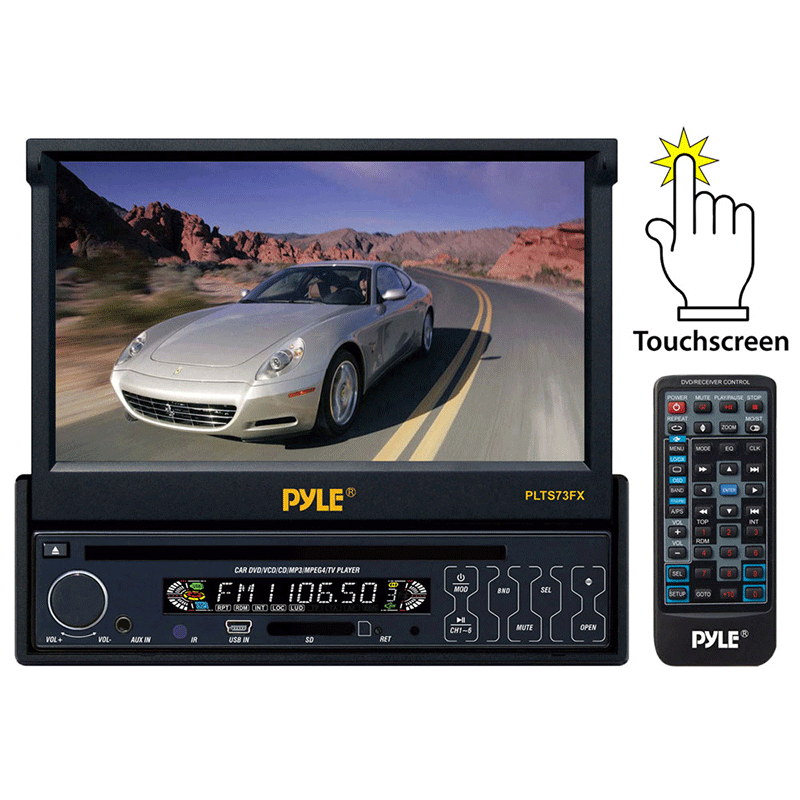

The beautiful and motorized flip-out 7" screen comes in at 1440 x 234 pixel resolution at 400 nits brightness and is like having a home theatre experience in your car. The screen telescopes up and out and easily folds away automatically and is concealed when you turn your car off. The LCD digital display will allow you to customize your audio and video experience however you like and watching DVDs in your car has never been this fun. Enjoy the display TV formats in 4:3 (pan & scan or letterbox style) or enjoy the 16:9 wide TV format. Your entertainment experience doesn't end with DVDs, you can also enjoy VCD, CD, and MP3 disc formats with the PLTS73FX.
The crisp 7" screen will allow you to connect a rear view camera that will make sure you stay safe and steer clear of any obstacles. The mirror image of the camera is automatically displayed on the monitor when you change the gear to the reverse position. You can also take advantage of the Aux-In jack located on the face of the headunit. Connect equipment like DVD players, computers, MP3 players and more! Use the RCA video input on the back of the unit if you want to connect additional video equipment. Both the Aux-in and RCA input allow you to replay the sound of all equipment via the loudspeakers connected to the unit.
| Specifications |
| Navigation |
No |
| Display Adjustment |
Contrast, Hue, Saturation, Sharpness |
| Monitor Angle Adjustment |
Backward, Forward, Slide In/Out |
| Rear View Camera Input |
Yes (Universal) |
| Receiver Size |
Single DIN |
| HD Radio |
No |
| Audio/Video Outputs |
1 Set of Audio/Video RCA Outputs |
| Compatible Smartphones |
iPhone (iOS) |
| Preamp RCA Outputs |
3 Pairs (Front, Rear, and Mono-Subwoofer) |
| Display Color |
Full Color |
| MP3 Playback |
Yes |
| Built-In Equalizer |
3-Band Parametric Equalizer |
| iPod Video Connection |
No |
| Android Video Connection |
No |
| iPhone/iPod Features |
iPhone 5 Compatible |
| Dedicated Subwoofer Preamp RCA Output |
Yes |
| Steering Wheel Control Compatible |
No |
| Peak Power Output |
80 watts x 4 channels |
| AM Presets |
12 |
| Bluetooth Connectivity |
No |
| DVD / Video Playback |
Yes |
| CD Changer Controls |
No |
| Memory Card Reader |
MMC |
| FM Presets |
18 |
| Remote Control |
Yes |
| CD-R/RW Playback |
Yes |
| AM/FM Tuner |
Yes |
| Touchscreen |
Yes |
| RMS Power Output |
17 watts x 4 channels |
| Motorized Faceplate |
Yes |
| Display Type |
TFT-LCD Monitor |
| Button Color |
White button color |
| CD Signal-to-Noise |
90 dB |
| CEA-2006 Compliant |
No |
| WMA Playback |
Yes |
| DVD Region Number |
1 |
| Screen Size |
7" |
| Satellite Radio |
No |
| iPod Audio Integration |
Yes (Built-In/Included) |
| Android Audio Integration |
No |
- UPC: 068888995733
- Weight: 6.37
- Authorized Internet Dealer
Warranty: 1 Year Manufacturer warranty.
This item is accompanied by a manufacturer's warranty. If it is found to be defective, it may be returned to OnlineCarstereo.com for replacement within 1 year from the original date of purchase with proper return authorization.
