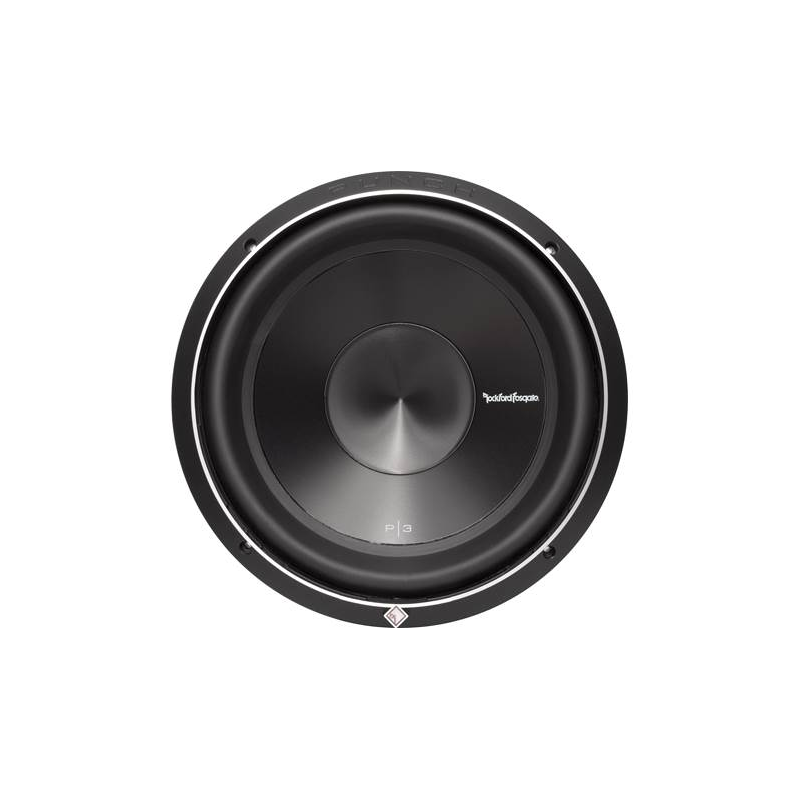

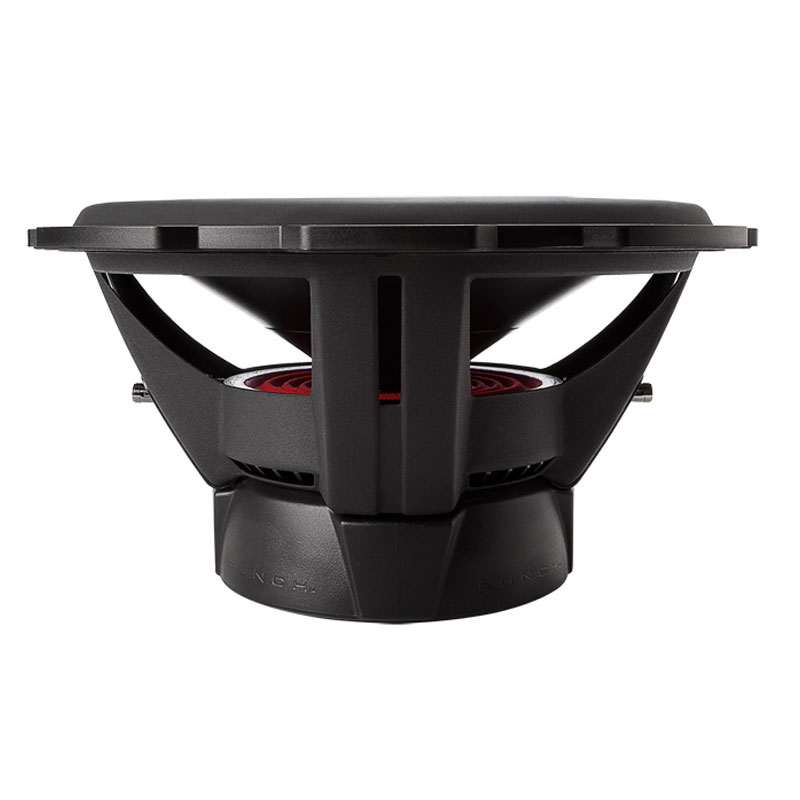

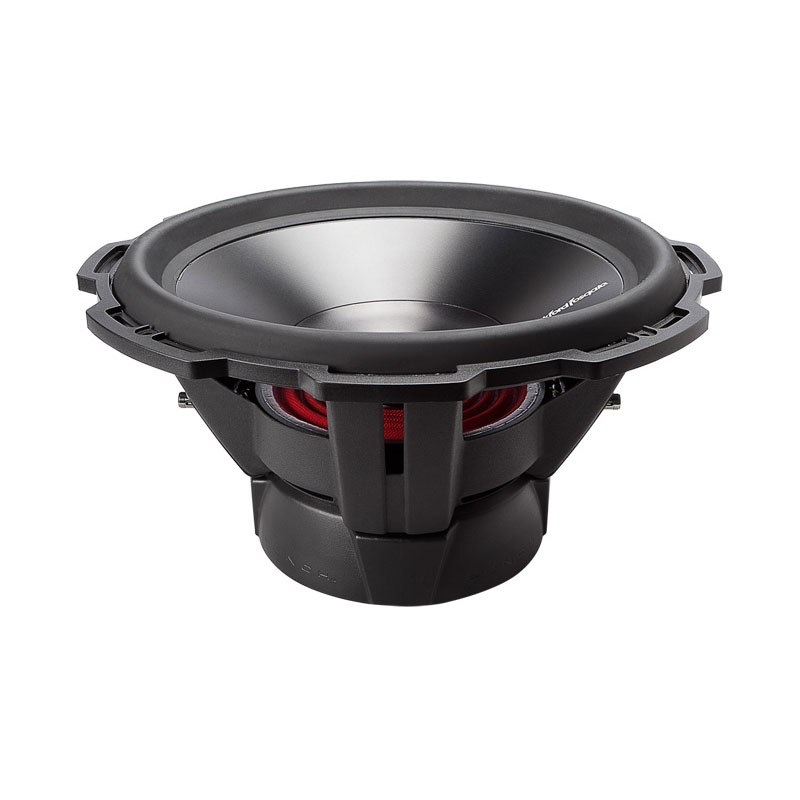

Rockford Fosgate P3D2-15 Punch P3 Series 15" 600W RMS (1200W Peak Power Handling) Dual 2 Ohms Voice Coil Car Subwoofer
We are a Rockford Fosgate authorized dealer so you get up-to-date, fully warrantied products. Shipping is free to the lower 48 states on everything you order!
What's Inside?
- • (1) 15" Dual 2-ohm voice coil subwoofer
- • (1) Trim ring
- • (12) 1-1/8" Allen head screws
- • (1) 4mm Allen head bit
- • Installation/Operation manual (English/ French/ Spanish/ German)
- • User's Manual
Powerful and Durable Subwoofers
The Rockford Fosgate P3D2-15 is a 15-inch subwoofer with impressive bass performance in-car audio systems. It is part of the Punch P3 series by Rockford Fosgate, renowned for its powerful and durable subwoofers. Featuring dual 2-ohm voice coils, the P3D2-15 allows for versatile wiring options, enabling you to match the subwoofer's impedance to your amplifier's requirements.
Excellent Durability and Low Distortion
This flexibility ensures optimal power handling and maximum output from the subwoofer. The P3D2-15 is constructed with a rigid anodized aluminum cone that provides excellent durability and low distortion. Its FlexFit basket design facilitates easy installation and ensures stability and alignment. Equipped with a VAST (Vertical Attach Surround Technique) rubber surround, the P3D2-15 maximizes cone area and excursion, resulting in deep and impactful bass reproduction.
Dual Linear Spider Design
Its dual linear spider design and stitched tinsel leads enhance cone control and long-term reliability. The Rockford Fosgate P3D2-15 delivers powerful and accurate bass response for car audio enthusiasts with its high-quality construction and advanced technologies. Whether you're looking to upgrade or build a new system, this subwoofer is a reliable choice to elevate your in-car audio experience to the next level.
- Diameter : 15 Inch
- Sensitivity : 85 dB
- Impedance : 2 Ohm
- Frequency Response : 23-250 Hz
- Peak Power Handling : 1200 Watts
- Top Mount Depth : 7-11/16 Inches
- Number of Voice Coils : Dual
- Suggested Sealed Box Volume : 1.58 Cubic ft.
- Suggested Ported Box Volume : 2.66 Cubic ft.
- RMS Power Handling : 600 Watts
Features
- Overview: The Rockford Fosgate Punch P3D2-15 is a 15-inch subwoofer with dual 2Ω voice coils. The sub features a hybrid StampCast basket, quick-release compression terminals, anodized aluminum cone, and Santoprene surround. An anodized aluminum voice coil former and spider venting help keep the subwoofer cool.
- Dual 2Ω Voice Coils: The dual 2Ω voice coils offer wiring flexibility; when wired in parallel the woofer presents a 1Ω load, when wired in series the woofer presents a 4Ω load.

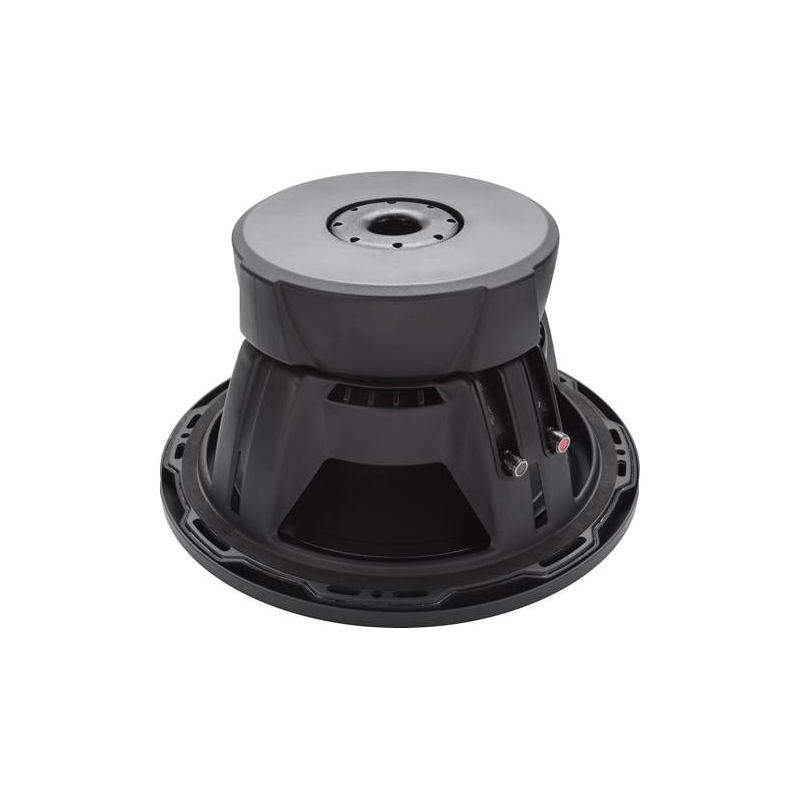

- Compression Terminals: The P3D2-15 features spring post terminals which accommodate speaker wire up to 10 gauge.
- CEA-2031 Compliant: Power handling on the P3D2-15 subwoofer conforms to CEA-2031 industry standards. This means the subwoofer has the capacity to handle power under continuous demand, not instantaneous power handling, that over time, can damage voice coils.

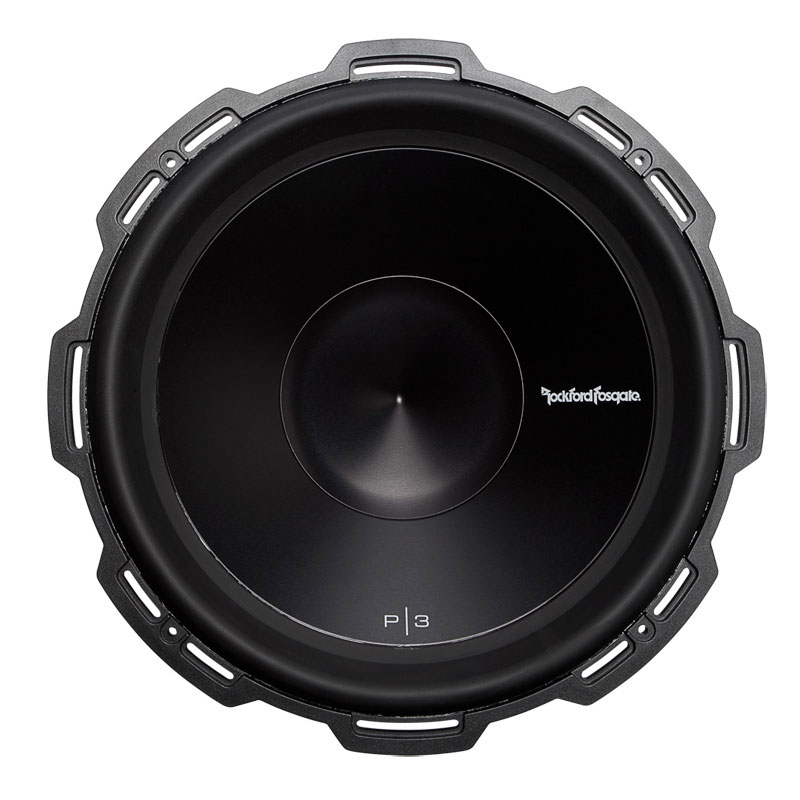

- FlexFit Basket: The Flex Fit frame utilizes slots (where possible) instead of single screw sized holes; allowing slight adjustment of the speaker when mounted.

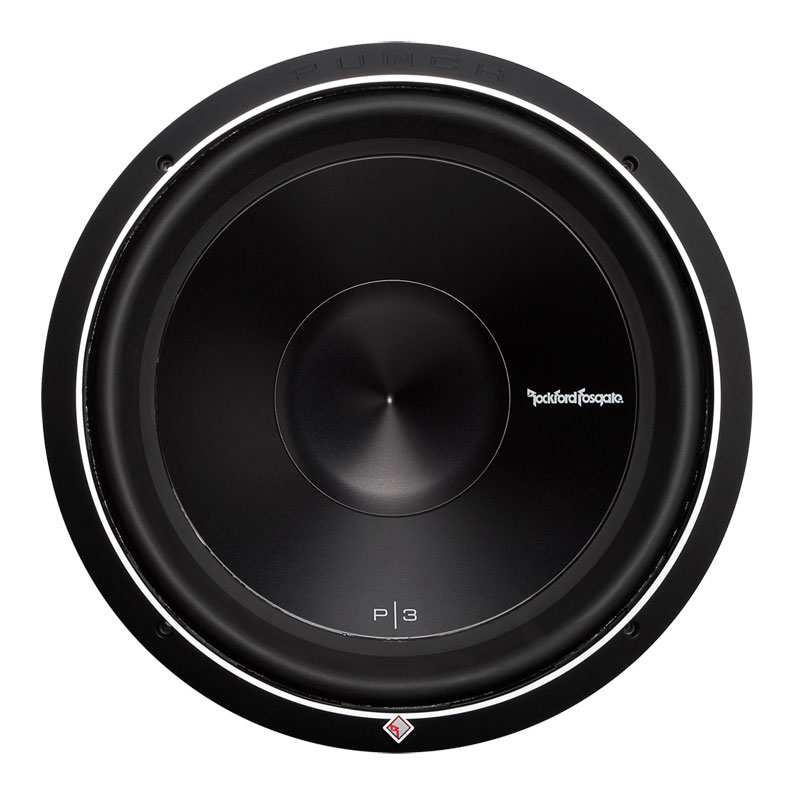

- Trim Ring: To improve the cosmetic look, a decorative trim ring is included that mounts over the flange of the woofer. When using the cast aluminum trim ring the woofer is first mounted with four screws, then the ring is placed on top of the woofer, aligning the final four holes of the woofer with ring. The other four screws are used for these holes to mount the ring and woofer to the enclosure. Without the trim ring the mounting height of the woofer is just under an inch, with the trim ring it's approximately 1-1/16 inches. The diameter of the trim ring is approximately 16-3/8 inches.
- Sealed Box: Rockford recommends a sealed enclosure with an optimum internal volume of 1.58 cubic feet (from 1.5 to 3.0 cubic feet is acceptable). Sealed enclosures provide the most control over a woofer, will handle a lot of power, and provide accurate sonic reproduction, making them suitable to all types of music.
- Ported Box: Rockford recommends a ported enclosure with an internal volume of 2.66 cubic feet using one 4" diameter x 10" long port; this yields a tuning frequency of 32 Hz. Ported (or vented) enclosures typically provide better overall efficiency than sealed so they are suitable for use with smaller amplifiers, giving you more bass output from less power. However, this efficiency comes at the expense of very low frequency output (below 30 Hz).
Specifications:
- Power Handling (Watts RMS)
- 600 Watts RMS
- 1200 Watts Peak
- Magnet Weight: 96 oz. (2.73 kg.)
- Nominal Impedance: Dual 2-Ohms
- Mounting Depth: 7.58 in. (192.5 mm)
- Voice Coil Diameter: 2.5" (65.5 mm)
- Cutout Diameter: 13.94 in. (353 mm)
- Woofer Displacement: 0.148 cu. ft. (4.2 Liters)
- Qts: 0.54
- Vas (Liters): 155.8
- Size: 15"
- Shipping Weigt: 23.3 Lbs. (10.56 kg)
- Speaker Connector: Dual 10 AWG compression
- Fs (Hz): 21.7
- Qes: 0.58
- Le (mH): 4.06
- Qms: 7.20
- SPL (dB @ 1w/1m): 86
- CEA-2031 Compliant: CEA-2031 Guidelines
- Xmax (mm): 15.2
- Re (Ohms): 3.20
- Sd (cm2): 894
- Subwoofer Type: Standard
- Voice Coil Type: Dual Voice Coil
- Vented Box Volume (Vb): 2.66 cu. ft. (75.3 Liters)
- Sealed Box Volume (Vb): 1.58 cu. ft. (44.7 Liters)
- UPC: 780687332778
- Weight: 23
- Authorized Internet Dealer
Warranty: 1 Year Manufacturer warranty.
This item is accompanied by a manufacturer's warranty. If it is found to be defective, it may be returned to OnlineCarstereo.com for replacement within 1 year from the original date of purchase with proper return authorization.
Do you own this product?
Write a review!
-
Rockford Fosgate P3D2-15 has more boom for the buck. RF are the classic of the subwoofers. I love the RF P3-15. I have four of them. In a PRO BASS BOX (2-boxes).
-
This sub really do perform well for to be 1200 watts i have two on a 2100 hifonics brz brutus and these p3 15 shake the hell out of my navigator
-
I'm putting six of the p3d2 on and 5000.1ohm stable amp in a 95 Buick roadmaster
-
Sub is worth the money. I know people with 4 12s and still not hittin harder.
