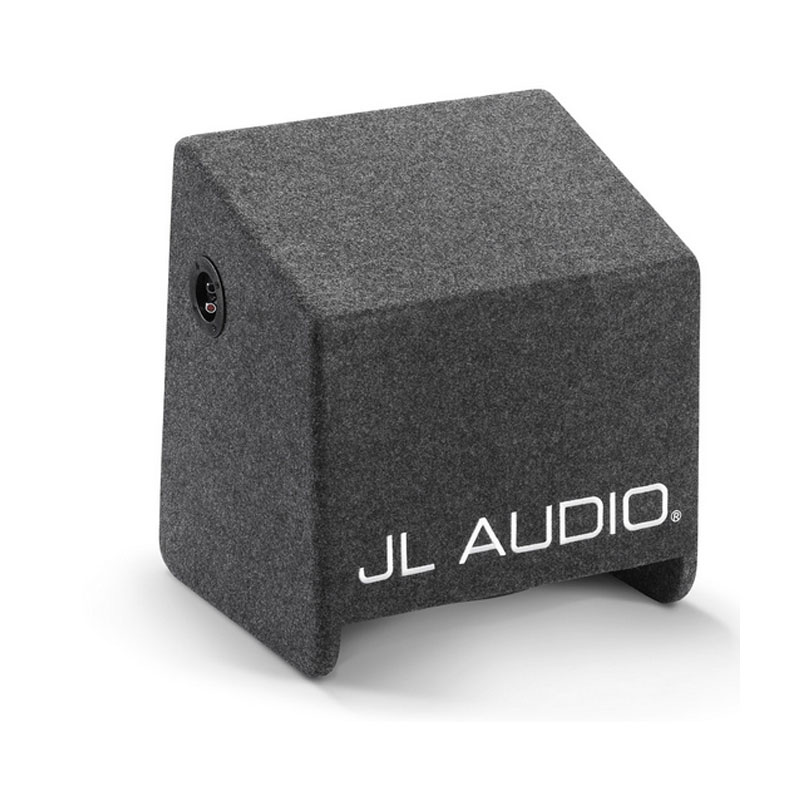

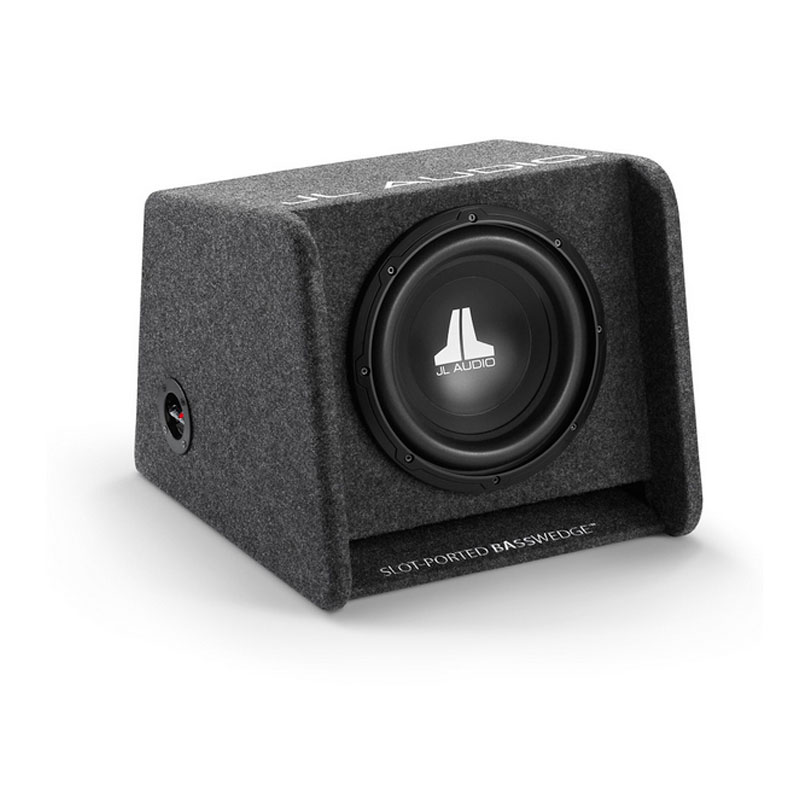

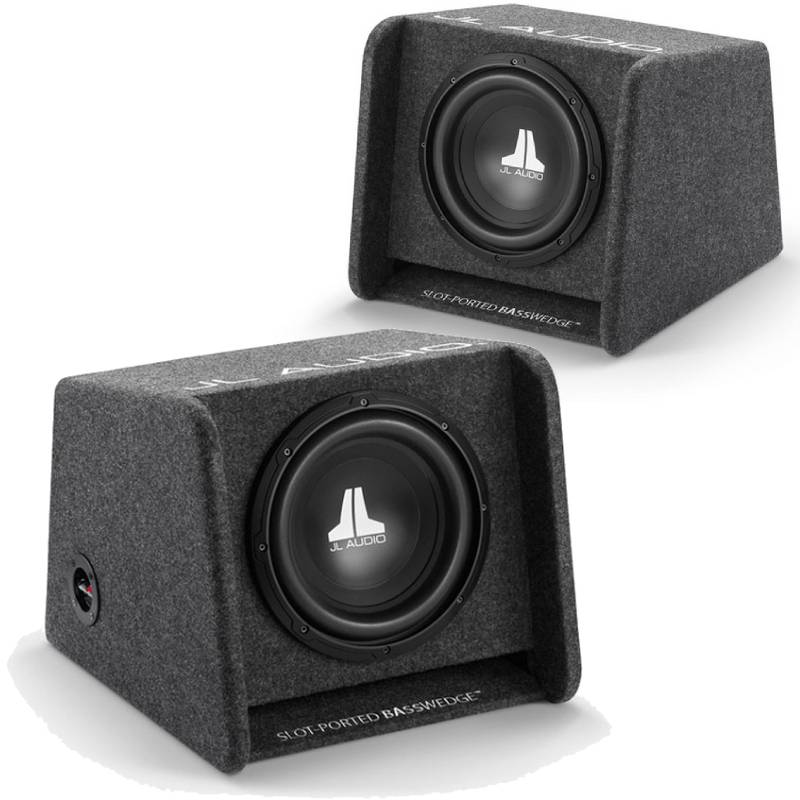

This powerful slot-ported BassWedge™ subwoofer system delivers awesome output at an unsurpassed value.
The slot-port runs along the bottom of the enclosure and fires on the same plane as the woofer to produce excellent extension and response smoothness. The port mouth is flared to minimize air-flow noises.
The ultra-versatile BassWedge™ shape has extended sides so that it can be placed with the woofer firing out or straight down, off the floor of the vehicle. The shape works equally well in forward or rear-firing installations. This gives you plenty of options for tweaking the loading of the enclosure into your vehicle.
This subwoofer system is shipped wired, loaded and ready to connect via a push-button terminal.
Finish: Dark gray, high-grade automotive carpet with "JL AUDIO" embroidery on the top edge and "Slot-Ported BassWedge™" embroidered on the port mouth.
Recommended amplifier power: 75 - 300W
Nominal Impedance: 4Ω
Diameter : 10 Inch
Low Frequency response : 25 Hz
High Frequency Response : 250 Hz
Sensitivity : 85 dB
Impedance : 4 Ohm
Frequency Response : 25-250 Hz
RMS Power Range : 75-300 Watts
Peak Power Handling : 600 Watts
Number Of Subwoofers : 1
Enclosure Type : Ported
Color : Dark Gray
Amplified : No
10" W0v3 Series Subwoofer
Power Handling: 300 watts RMS
Recommended Power Range: 75 - 300 watts
Impedance: Single 4-Ohm
10" Slot Ported MDF Subwoofer Enclosure
Loaded with single 10W0v3 10" subwoofer
Designed for forward, rear or down-firing installation
Top-quality MDF construction
Durable dark gray carpet finish
Five-Way binding post connectors
Embroidered JL Audio logo
Embroidered "Slot-Ported BassWedge" logo on port mouth
Mineral-filled, polypropylene cone woofer for excellent durability
Large roll surround for generous amounts of excursion
Elevated frame cooling brings air directly to the voice coil
Designed for compact sealed enclosures or medium-sized ported enclosures
Large excursion for louder bass and less distortion
DMA Optimized motor system reduces distortion and tight, clean bass
Lead wire woven into spider for added strength
Metallic silver frame finish
2.0" High temperature voice coil
Mounting depth: 4.90 "
Cutout dimensions: 9.0625 "
Free Air Resonance (Fs): 32.09 Hz
Sensitivity: 84.07 dB
Xmax: 11.4 mm
Reference Efficiency (no): 0.1500%
Frequency response: ~26 ~ 250 Hz
