Metal–Oxide–Semiconductor Field-Effect Transistor is a transistor used for amplifying or switching electronic signals. We use it in computers, telephones, game consoles, cars, electrical appliances, and in this case, our amplifiers. They are found in systems where information is processed or stored. A MOSFET is basically an electrical switch that allows the flow of electrical current. An electrical switch has two possible states, On or Off. The MOSFET performs its most important role in our D Class amplifiers by allowing or preventing the flow of power and creating an efficient amplifier. And of course, Monoblock means that there is only one channel being offered. Monoblock and class D amplifiers are typically more efficient than multi channel or class A/B amplifiers because they draw less current from the battery.
Low And High Level Inputs

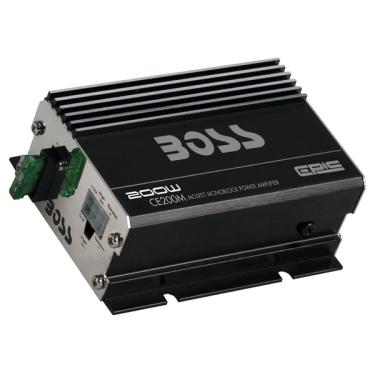

You can get a signal into the CE200M two different ways - Low level and High level input. A low level input is measured in voltages. It comes in the form of RCA outputs from the back of your receiver and goes to the RCA inputs on your amplifier. A high level input is measure in wattages. It comes in the form one positive and one negative wire from the back of your receiver to and goes to the input terminal of your amplifier in the same wire form. Low-level (RCA) input wiring is preferred for best audio performance. Always use a high-quality RCA cable for best audio performance. Note: Do not connect both the high level and low level inputs from your receiver to your amplifier at the same time.
Variable Low-Pass Crossover
Subwoofers reproduce sound based on a number of different low-range frequencies. This process is called the crossover effect and occurs because the vast majority of audio systems cannot cover the entire spectrum sufficiently to minimize sound distortion and maintain an appropriate frequency ratio. In the case of our CE200M amplifier, a variable crossover is offered so that you, the listener, can have the ability to set the frequency at which the crossover occurs, thereby setting specific sound specifications for the bass frequency reproduction.
With a Full Range amplifier you not only have the option to run your speakers, but also your subwoofers. By just a flip of a switch from Low to Full, the CE200M will change from offering the “Low” that you need for a subwoofer application to a complete range of frequencies to be able to listen to your 2, 3, 4, or 5 way speakers.
Maximum Power : 200 Watts
Number of Channels : 1
Frequency Response : 20-20000 Hz
Built In Crossovers : Yes
RMS Power Output : 150x1 Watts
Amplifier Class : A/B
Fuse Rating : 5x1 A
100W RMS x 1 @ 4 Ohms
200W Max Power
Soft Turn-On Circuit
Power & Protection LEDs
Thermal Overload & Speaker's Short Protection
Frequency Response: 40 to 130 Hz
Total Harmonic Distortion (THD) @ RMS Output: 0.01%
Signal-to-Noise Ratio (SNR): 102 dB
Variable Low Pass Crossover: 40 to 130 Hz
Minimum Speaker Impedance: 2 Ohms
Minimum Speaker Impedance in Bridged Mode: 4 Ohms
Dimensions: 1.625" x 4" x 3.125"
Authorized Internet Dealer
Warranty: 1 Year Manufacturer warranty.
