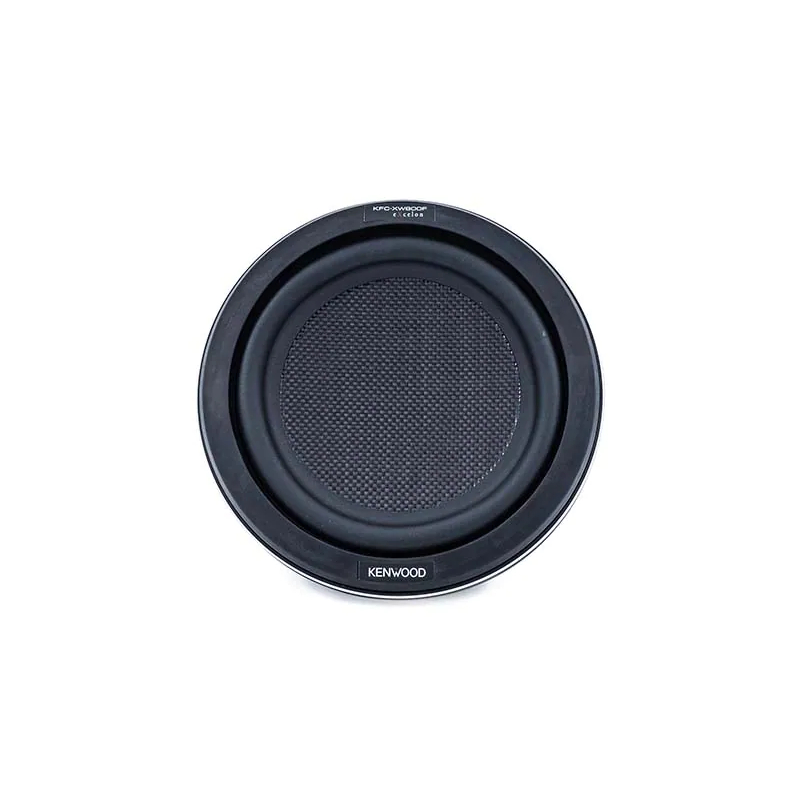

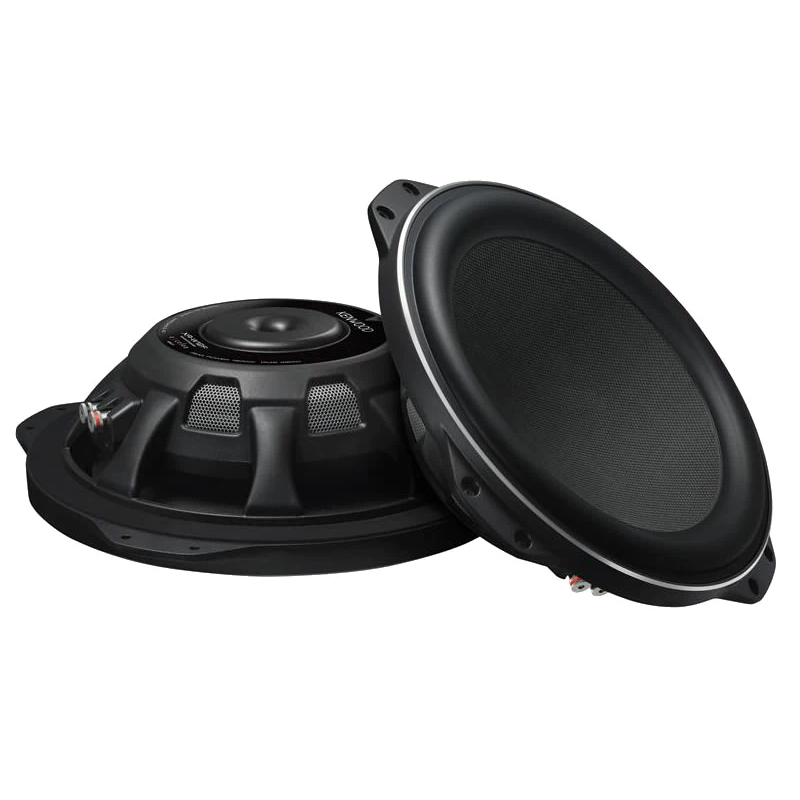

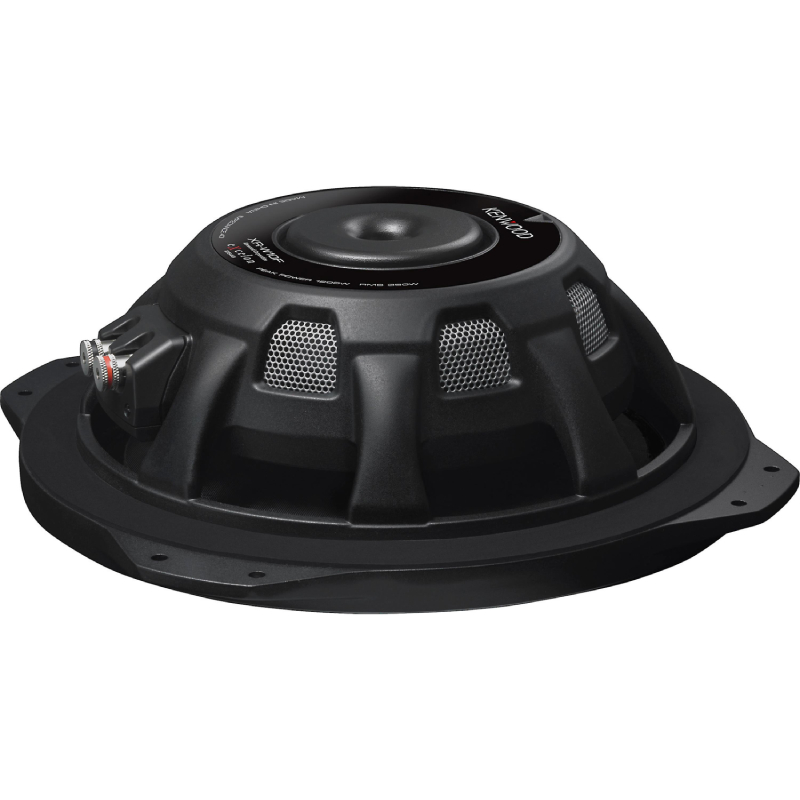

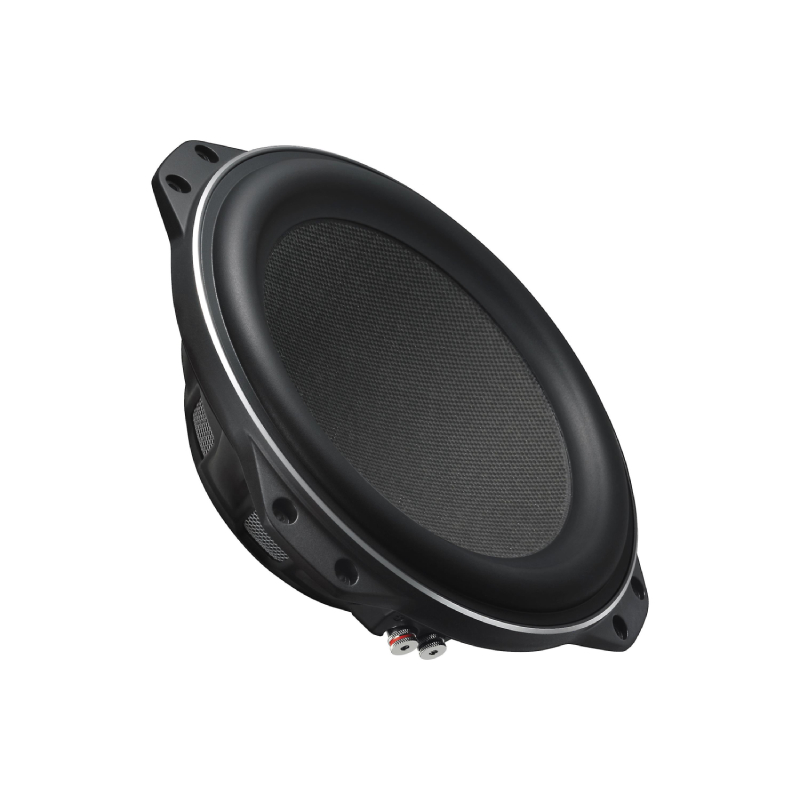

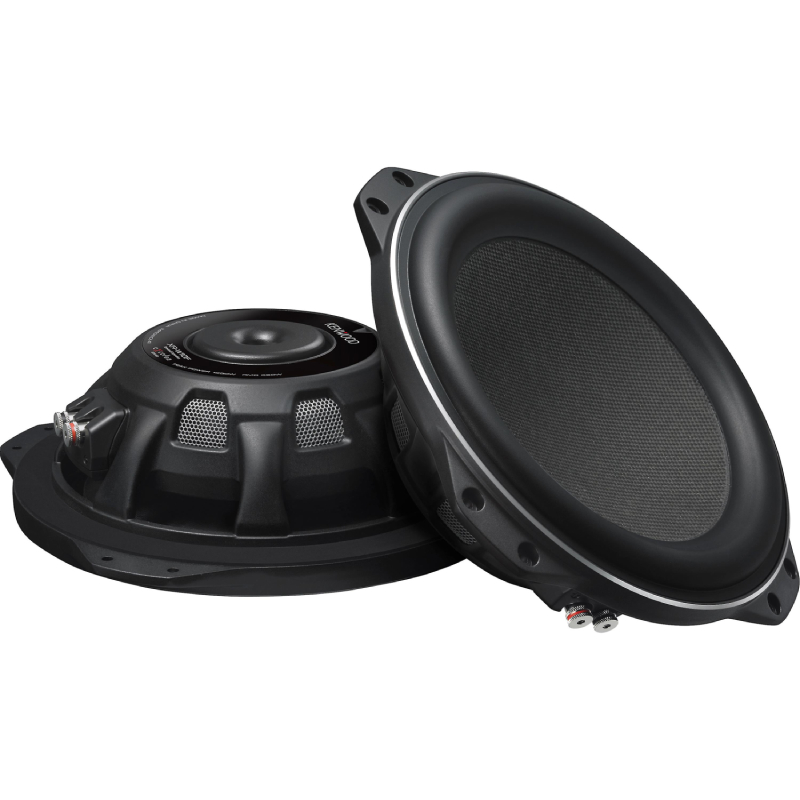

Kenwood eXcelon Series 10" Shallow Mount Car Audio Subwoofer
We are a Kenwood authorized dealer so you get up-to-date, fully warrantied products. Shipping is free to the lower 48 states on everything you order!
•(1) 10" SVC Woofer
• 10" SVC Woofer
• (8) 1-1/8" Self-tapping screws
• Cardboard template
• Owner's Manual
Delivering High-quality and Powerful Bass
The Kenwood XR-W10F is a 10-inch shallow-mount subwoofer designed for installation in tight spaces while still delivering high-quality and powerful bass. It features a carbon glass fiber cone woofer and a rubber surround, which provides a deep frequency response range and excellent low-frequency performance.

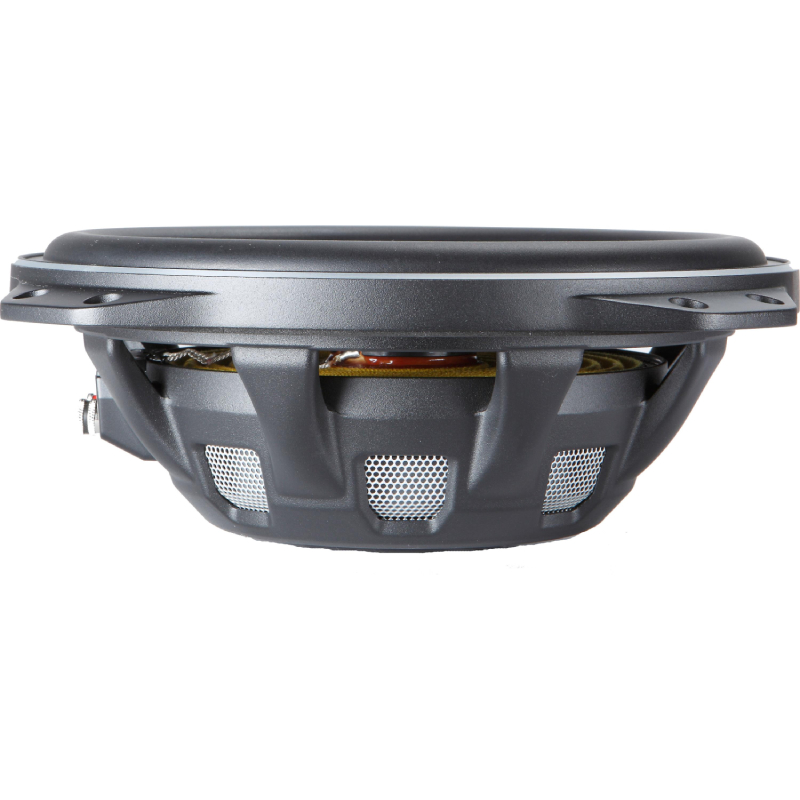

Unique Vented Frame Structure
The XR-W10F also includes a unique vented frame structure, which improves the airflow and cooling of the subwoofer driver, enhancing its power handling and durability. It has a power handling capacity of 350 watts RMS and a sensitivity rating of 83.5 dB, making it capable of producing clear and dynamic bass even at high volume levels.
The subwoofer also features a slim design that makes it easy to install in small spaces, such as behind or under seats, without sacrificing sound quality or performance. It is compatible with many car audio systems and amplifiers, making it a versatile and reliable choice for any car audio enthusiast.
Overall, the Kenwood XR-W10F is a great choice for anyone considering upgrading their car audio system with a high-quality, compact subwoofer that delivers powerful and accurate bass performance. Its slim design and advanced features make it an ideal option for anyone looking to save space while still achieving a great sound experience.
Diameter : 10 Inch
Sensitivity : 83.5 dB
Impedance : 4 Ohm
Frequency Response : 41-200 Hz
Peak Power Handling : 1200 Watts
Top Mount Depth : 3-3/16 Inches
Shallow Mount : Yes
Number of Voice Coils : Single
Suggested Sealed Box Volume : 0.6 Cubic ft.
Mounting Depth : 3-1/8 Inches
RMS Power Handling : 350 Watts
Flat Subwoofer: The Kenwood Excelon flat subwoofer design is approximately 40% slimmer (less deep) than a standard subwoofer. This makes it ideal for installation in tight spaces, such as behind or under the seat of a pickup truck.
Carbon-Glass Fiber Cone: The carbon-glass fiber cone uses a honeycomb design which is simultaneously efficient and durable.
Rubber Surround: The woofer features a smooth linear rubber surround for added durability and increased excursion resulting in exceptional deep bass response.
Heat Transfer System: The XR-W10F features a dual ventilation system designed specifically for its slim-design.
Aluminum-Cast Basket: The woofer is housed in a die-cast aluminum basket for increased rigidity and long-lasting reliability.
Spring Terminals: The spring post terminals on one side of the woofer connect to your amplifier's wiring. The posts will accept pin connectors, single or dual banana plugs, or bare wire up to 10 gauge.
Enclosure: Kenwood recommends a sealed box with an internal volume of 0.6 ft³.
1200W Max Power
Impedance: Single 4 Ohm
Carbon-glass fiber composite honeycomb cone
Butyl Rubber Surround
Cast aluminum basket
Frequency response: 41-200 Hz
Sensitivity: 83.5 dB
Mounting depth: 3-1/8"
Cutout dimensions: 9-1/4"
Authorized Internet Dealer
Warranty: 1 Year Manufacturer warranty.
This item is accompanied by a manufacturer's warranty. If it is found to be defective, it may be returned to OnlineCarstereo.com for replacement within 1 year from the original date of purchase with proper return authorization.
Ive had this sub for quite some time now. Its been in 4 different trucks in the last 3 or 4 years that ive owned it. It has a rich clean sound but it doesn't hit very hard. For the money I could've gotten an RF shallow mount sub. It doesn't sound like I thought it would but its very dependable when you want some bass in a truck
