Small, Powerful Design
The S-Series amplifiers contain technology that was previously only available in Alpine's premium line up of amplifiers, the R- and X-Series models. The S-Series models are based on Alpine’s intelligent amplifier platform that ensures superior sound reproduction and precision imaging. With an improved heat sink, and protection circuit design that eliminates thermal shut-down, your music will keep playing no matter where your drive takes you.

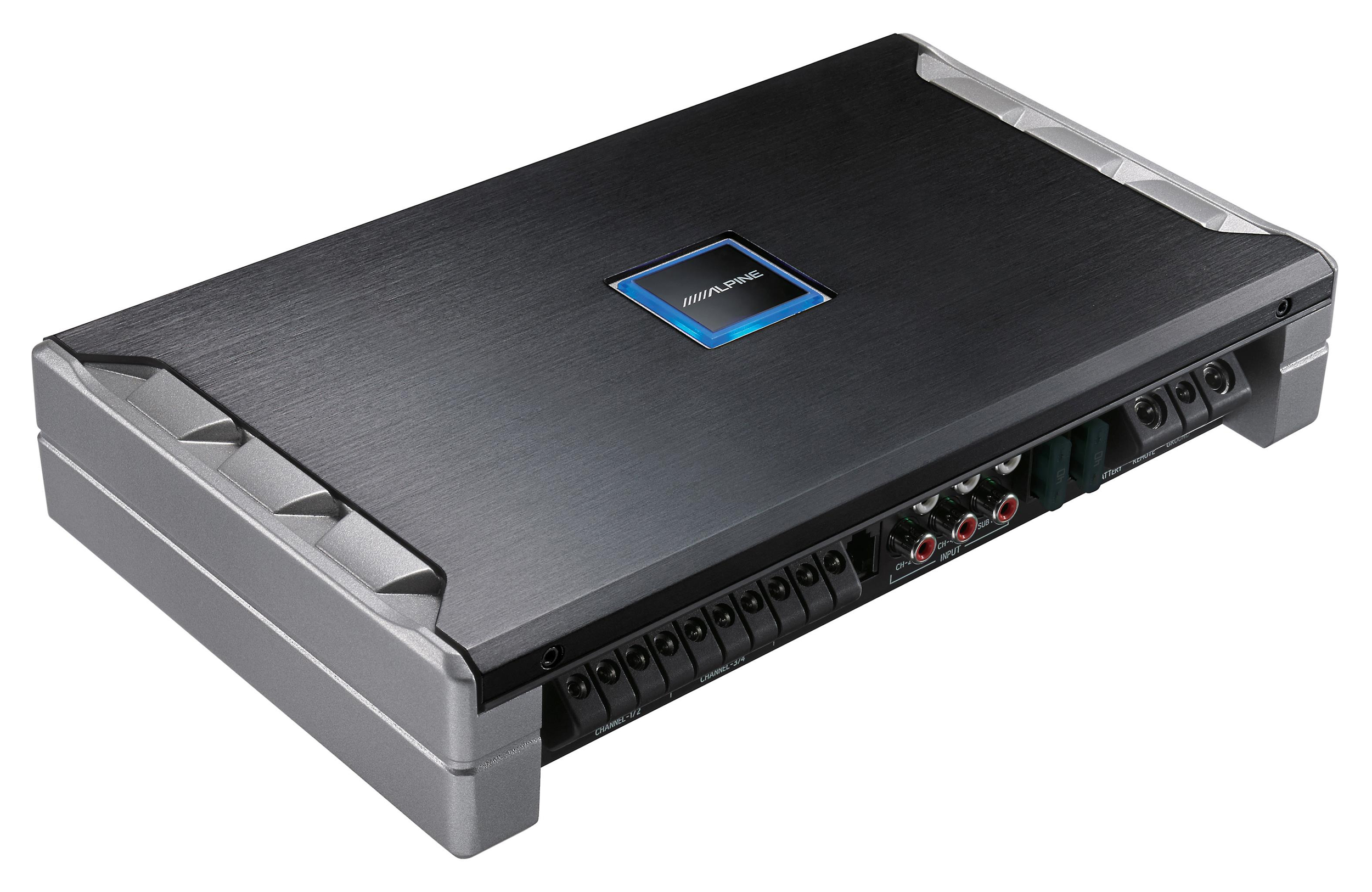

Unequaled Reliability
Excessive heat is the enemy of amplifiers and under extreme conditions will result in most amps shutting down completely. PDR-Power amps use a special Multi-Stage Power Management circuit that continuously monitors critical component temperatures throughout the amplifier and decreases power output if anything gets too hot. If you are playing music under heavy loads for long periods, the circuit automatically reduces power output slightly at first, and then further in a second stage if necessary. This two-stage approach provides seamless, interruption free listening experience for non-stop music playback.
- Number of Channels : 5
- Frequency Response : 50-400 Hz
- Channel Separation : Yes
- RMS Power Range : 350 Watts
- Amplifier Class : D
- Fuse Rating : 80 A
Features and Specification
SPECIFICATIONS
CEA-2006 Power Ratings
- CEA-2006 Power Rating: 75W RMS x 4 + 250W RMS x 1 (4-ohm, 14.4V at <1% THD+N)
RMS Power Ratings
- Per channel into 4 Ohms: 75W RMS x 4 + 250W RMS x 1 (14.4V at <1% THD+N)
- Per channel into 2 Ohms: 100W RMS x 4 + 350W RMS x 1 (14.4V at <1% THD+N)
- Bridged 4 Ohms: 200W RMS x 2 (CH-1/2/3/4, 14.4V at <1% THD+N)
Sound Tuning
- Crossover Frequency (CH1/2/3/4, HPF): 50 Hz - 400 Hz, -12 dB/oct.
- Crossover Frequency (Subwoofer, LPF): 50 Hz - 400 Hz, -24 dB/oct.
- Subsonic Filter (Subwoofer): 8 Hz -40 Hz, -24dB/oct. (Variable)
- BASS EQ (Subwoofer): 0 to +12 dB, fc=50Hz (Variable)
Dimensions
- Foot Print (WxHxD) mm: 270 x 50.8 x 165 mm
- Foot Print (WxHxD) in: 10-3/4'' x 2'' x 6-1/2''
General
- Power Requirements: 14.4 V.DC (11-16V allowable)
- Input Impedance: >10k ohms
- Frequency Response (+0, -3dB: 1W into 4 Ohms) for CH-1/2/3/4: 8 Hz - 45k Hz
- Frequency Response (+0, -3dB: 1W into 4 Ohms) for Subwoofer: 8 Hz - 400 Hz
- THD+N (10W into 4 Ohms) for CH-1/2/3/4: 0.02 %
- THD+N (10W into 4 Ohms) for Subwoofer: 0.02 %
- Damping Factor for CH-1/2/3/4: >500
- Damping Factor for Subwoofer: >1000
- Signal to Noise (Rated Power into 4 Ohms) for CH-1/2/3/4: 105 dB
- Signal to Noise (Rated Power into 4 Ohms) for Subwoofer: 110 dB
- Weight: 2.76 kg/6lb 1.4oz
- Input Sensitivity (RCA Input,CH-1/2/3/4): 0.2 - 4.0 V
- Input Sensitivity (RCA Input, Subwoofer): 0.1 - 4.0 V
FEATURES
Install
- Terminal Layout: One-Sided
- Screw Mount / Wire Cover: Integrated Wire and Mounting Screw Terminals
- Control Panel Layout: Top
General
- Amplifier Type: Class-D (Digital)
- Channel Design: 4-channel + Subwoofer
- Power Supply Design: DC-DC Power Supply
- Final Outputs: Direct FET®
- Crossover: Variable Low Pass & Hiigh Pass Filter
- Gain Control: Continuously Adjustable Gain Control
- Subsonic Filter: Variable Subsonic Filter (Subwoofer)
- Bass EQ: Bass EQ Function (Subwoofer)
- Bass Control: Remote Bass Control (RUX-KNOB) Ready
- Low-impedance Possibility: Low-impedance Possibility
- Protection: Over-Current, Over-Voltage and Thermal Protection
- Board Circuitry: S.T.A.R. Circuit
- Board Design: 6-layer Glass Epoxy PC Board
- Power Indicator: Top Mounted LED Power/Status Indicator (Power: Blue, Status: Blue/Red)
- Thermal Control: Thermal management control
- Power Supply: PowerTrench® MOSFET
- UPC: 793276012999
- Weight: 7.2
- Authorized Internet Dealer
Warranty: 1 Year Manufacturer warranty.
This item is accompanied by a manufacturer's warranty. If it is found to be defective, it may be returned to OnlineCarstereo.com for repair within 1 year from the original date of purchase with proper return authorization.
