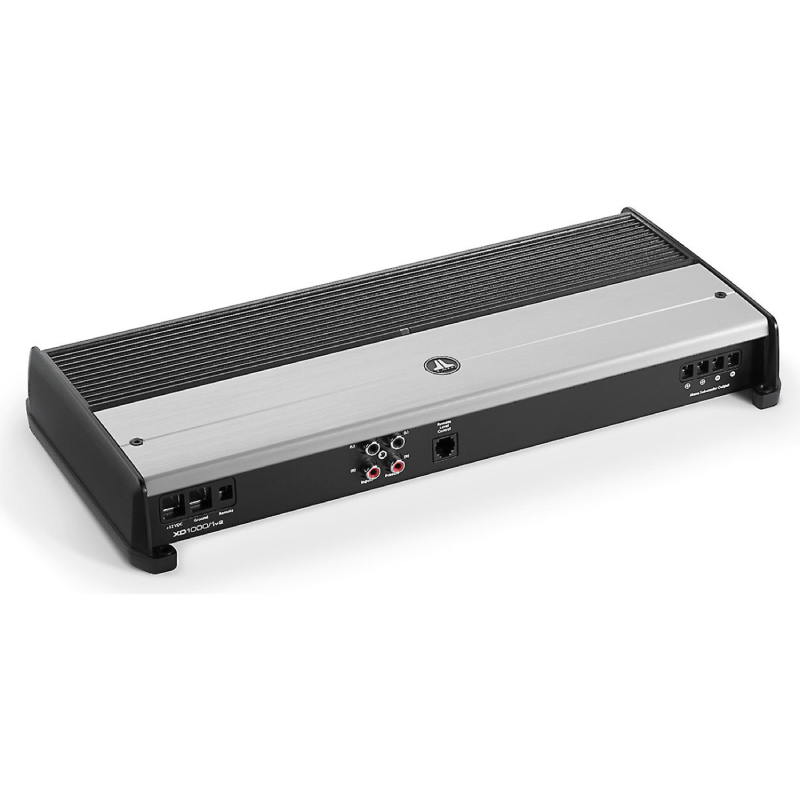

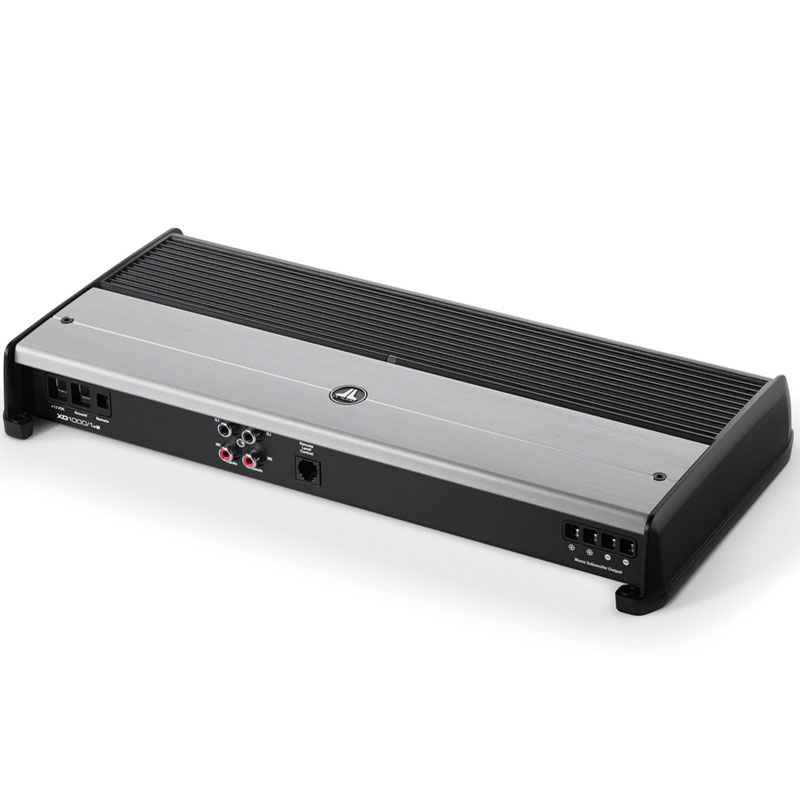

This potent monoblock subwoofer amplifier employs our high-speed NexD™ switching design to achieve unprecedented efficiency and amazing power output in a very compact chassis. The XD1000/1v2 is capable of delivering 1000 W of continuous power into a 2 ohm load (14.4V, 1% THD), making it a great choice to drive higher power subwoofer systems.
Designed specifically for subwoofer applications, the XD1000/1 includes a variable slope low-pass filter with continuously variable cutoff frequency selection from 50-500 Hz and a defeatable infrasonic filter (30 Hz, 24 dB/oct.).
The XD1000/1v2 also features the v2 Spec feature set, which consists of automatic turn-on capability (via signal sensing or DC-offset sensing), and a dual-range differential-balanced input section able to handle a wide range of input voltage levels. With the addition of an HD-RLC remote level control (sold separately), the amplifier's level can be directly controlled from the driver's seat.

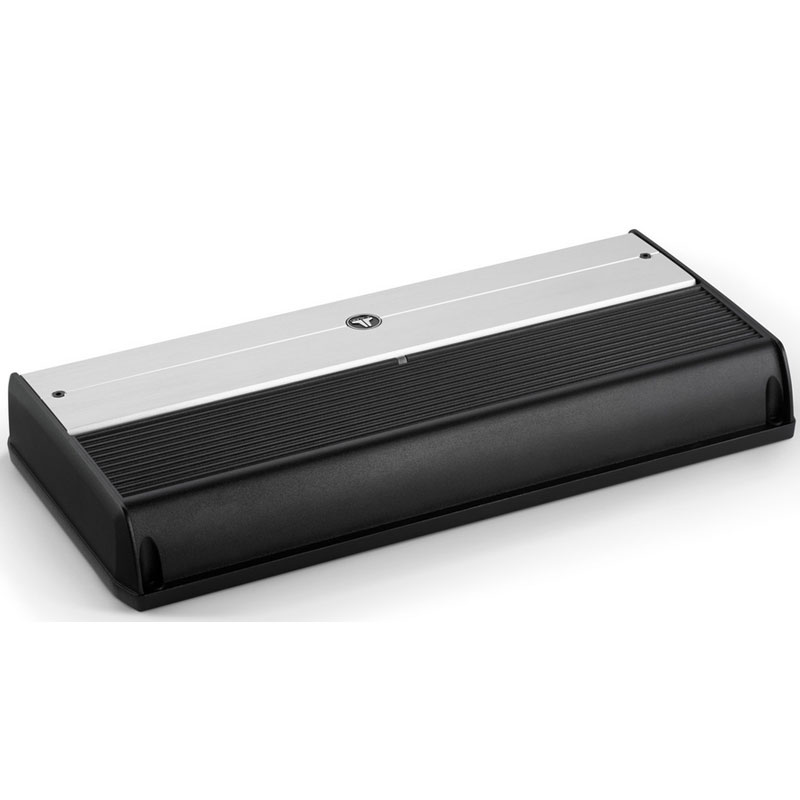

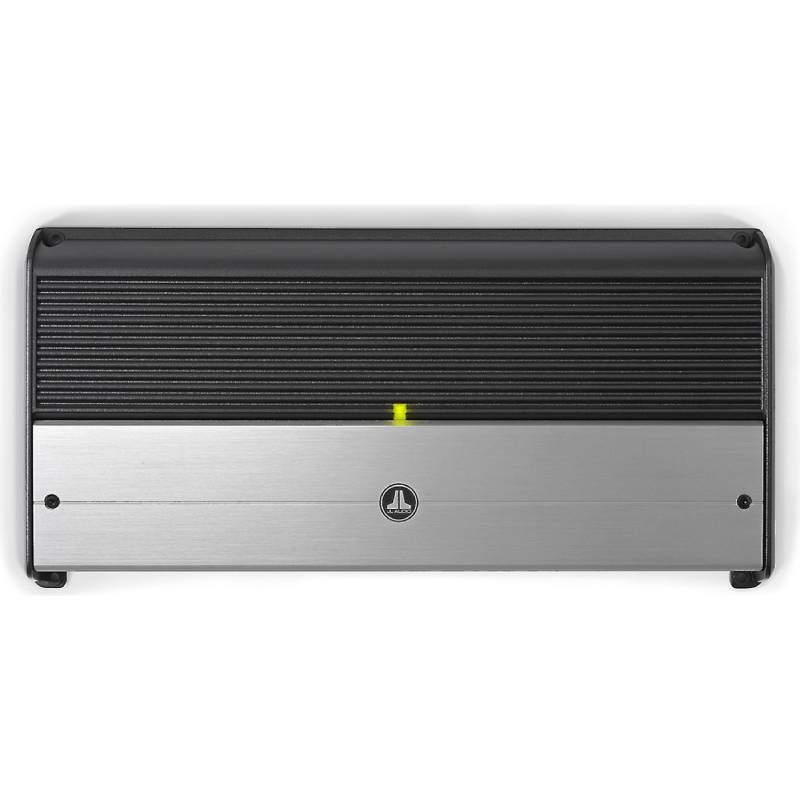

This amplifier features a black powder-coat finish and a gasketed, brushed aluminum cover for the controls.
- XDv2 Series Class D Monoblock Amplifier
- RMS Power Rating @14.4V:
- 4 ohms: 600 watts x 1 chan.
- 3 ohms: 800 watts x 1 chan.
- 2 ohms: 1000 watts x 1 chan.
- 1 ohm: N/A
- RMS Power Rating @12.5V:
- 4 ohms: 500 watts x 1 chan.
- 3 ohms: 650 watts x 1 chan.
- 2 ohms: 800 watts x 1 chan.
- 1 ohm: N/A
- Input sensitivity:
- Low level: 800mV - 8V
- High level: 200mV - 2V
- Frequency Response: 7 - 500 Hz
- Total Harmonic Distortion (THD): <1%
- Signal to Noise Ratio: >83 dB
- Damping Factor @ 4 ohms: >1000 / 50 Hz
- Selectable Infrasonic Filter: Off / 30 Hz
- Selectable Low-Pass Filter Slope: 12 dB or 24 dB
- Variable low-pass filter: 50 - 500 Hz, 12 or 24 dB/octave
- Fuse Rating: 80A x 1 inline (not supplied)
- 4 gauge power and ground wiring is recommended for installation. Contact us for information regarding a discount on select amplifier kits from our website when purchased together with this amplifier.
- Weight: 8.50 lb
- Dimensions: 7.09"W x 14.73"L x 2.05"H
- NexD™ High Speed Switching Class D Technology
- Wired HD-RLC remote level control available, sold separately
- LED power (green), over-current (yellow) and protect (red) indicators
- Advanced Rollback Protection

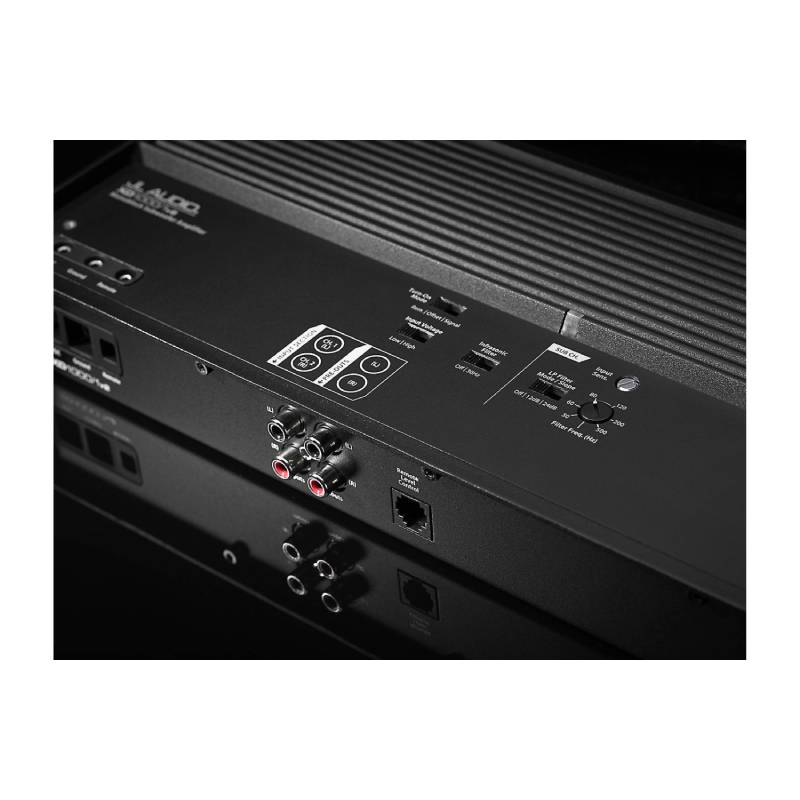

- Dual-Range Differential Balanced Input Section
- Buffered pass-through preamp RCA outputs

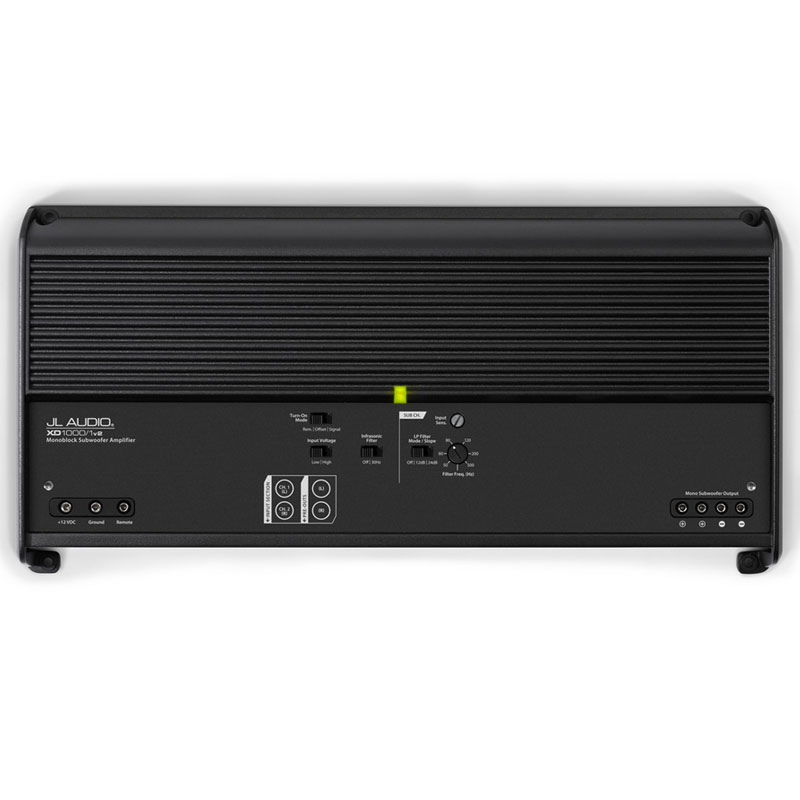

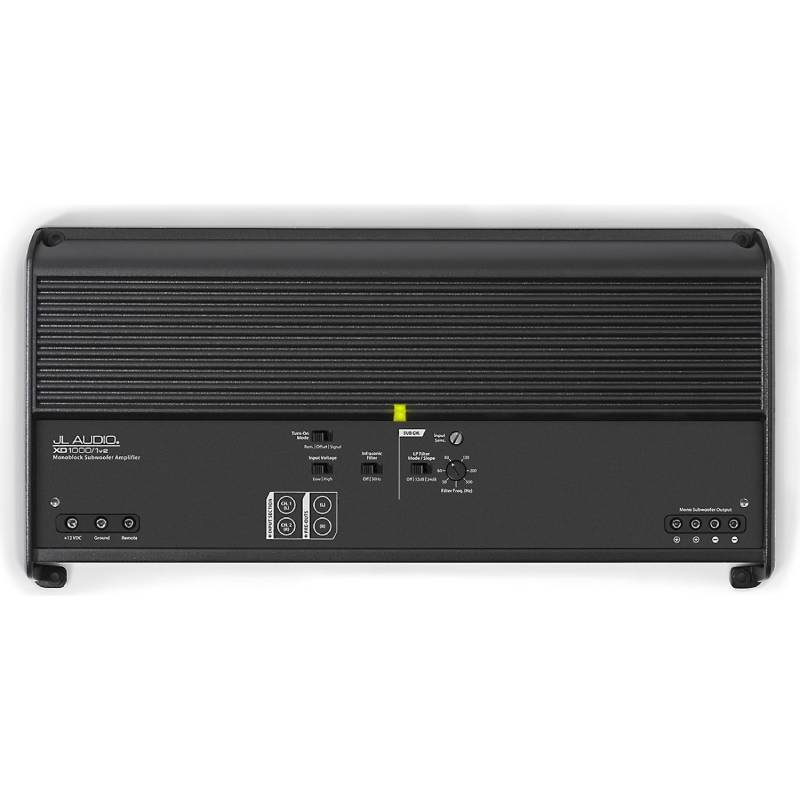

- Selectable turn-on modes: REM / Offset / Signal
- +12 V Remote Turn-On: Traditional remote lead wire, from headunit
- DC Offset-Sensing: On/Off by detecting a very small DC signal (high-level signal only)
- Signal-Sensing: On/Off by detecting a full-range audio signal at left-channel input (high-level signal only)
- Speaker level inputs via RCA, JL Audio XD-CLRAIC2-SW required
- Dual speaker terminals simplify the hookup of multiple speakers
- Heavy duty aluminum alloy heat-sink for extreme heat dissipation
- 3-way protection circuitry (thermal, overload, and speaker short protection)
- Detented, Calibrated Filter Freq. Potentiometer
- 12 dB/octave Butterworth or 24 dB/octave Linkwitz-Riley Crossover
- mono subwoofer amplifer
- 600 watts RMS x 1 at 4 ohms (1000 watts RMS x 1 at 2 ohms)
- variable low-pass filter (50-500 Hz, 12 or 24dB/octave)
- switchable subsonic filter (30 Hz, 24 dB/oct)
- optional wired remote for level control
- Class D amplifier design with NextD™ switching amp technology
- differential-balanced inputs eliminate noise coming from your vehicle's electrical system
- Advanced Rollback Protection System prevents thermal shut-down
- speaker- and preamp-level inputs (speaker-level input requires an optional adapter)
- preamp outputs
- auto turn-on via DC offset or signal sensing
- 4-gauge power and ground leads and a 80-amp fuse recommended — wiring and hardware not included with amplifier
- no onboard fuses — when installing multiple amps in a system, an additional 80-amp in-line fuse between the distribution block and the amplifier is recommended
- 14-3/4"W x 2"H x 7-1/8"D
- UPC: 699440982573
- Weight: 9
- Sku: 98257
