- Maximum Power : 1000 Watts
- Number of Channels : 1
- Built In Crossovers : Yes
- RMS Power Output : 300x1 Watts
- Amplifier Class : D
- Fuse Rating : 25 A
Features:
- Monoblock Bomber Series Class D Amplifier
- UCHD aluminum alloy chassis
- Full Range Class D IR Chipset
- Direct FET Power Mosfet Output Stage
- SMD Technology on 4 layer Glass PC Board
- ICAD circuit provides superior overload protection
- Frequency response 10Hz – 35kHz
- Variable 12dB crossover

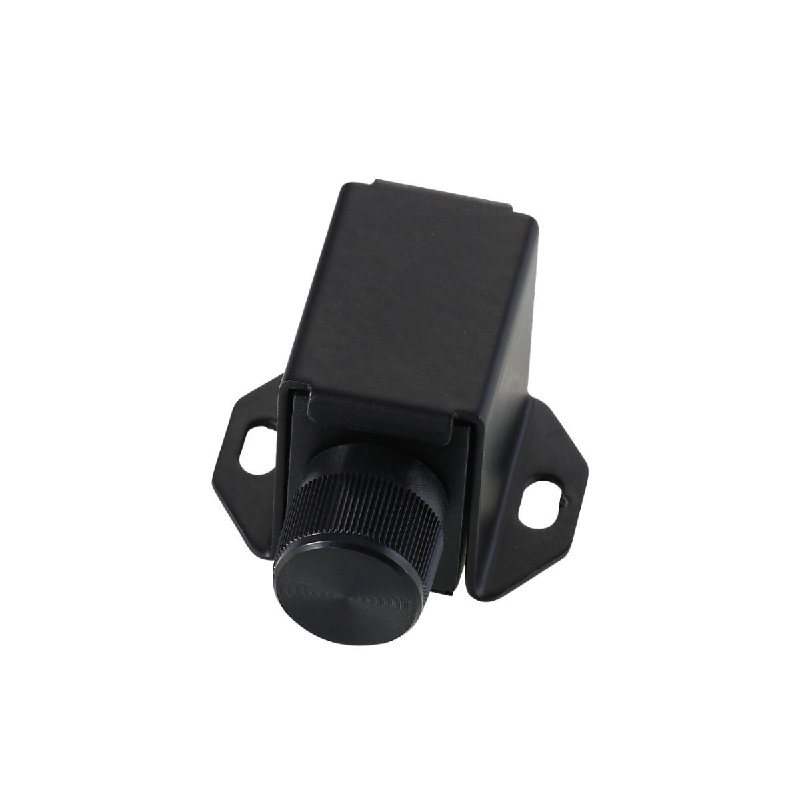

- Remote Bass Level control

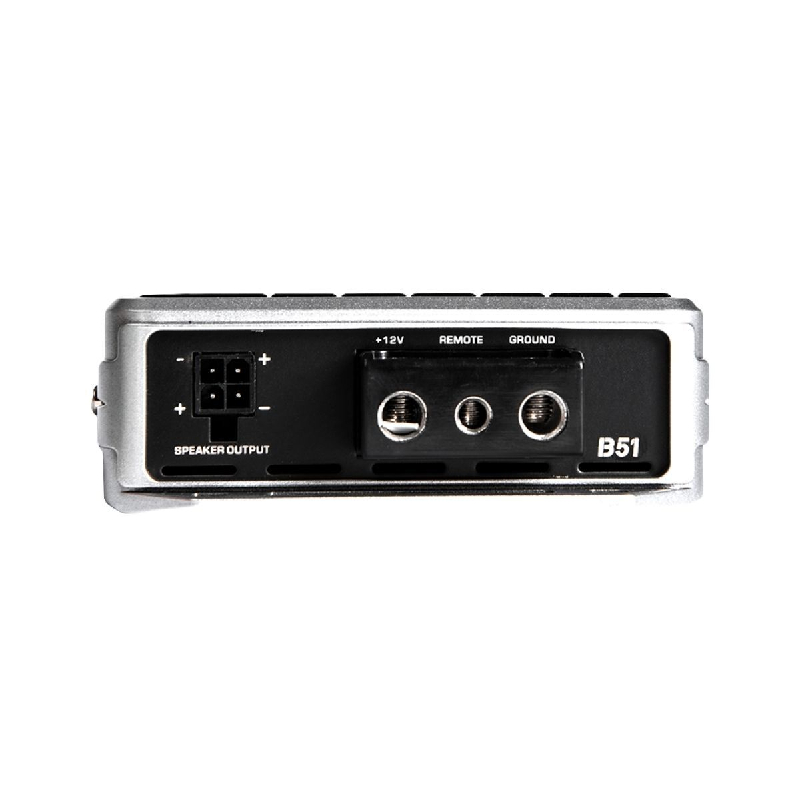

- Premium 4 gauge power connections
- Ultra Compact High Density Aluminum Alloy Chassis
- 3-way protection circuitry (thermal, overload, and speaker short protection)
- Selectable turn-On modes: REM / DC
- Mono channel
Specifications:
- 500W X 1 @ 1Ω RMS
- 300W X 1 @ 2Ω RMS
- 175W X 1 @ 4Ω RMS Power
- 1000W Max Power
- Types: Class D
- Power Supply: Full PWM
- Power Supply (Threshold): 10.0VDC-17.0VDC
- Idle Current: (0.7A)
- Distortion - THD ([email protected]Ω): 0.5%
- Distortion - S/N Ratio (A weight @ 1W): -85dBA
- Distortion - S/N Ratio (A weight @ FP): -101.1dBA
- Input Sensitivity - Hi/Low Input Level: 200mV-10.0V
- Input Impedance - Low Input Level: 20 kΩ
- Input Impedance - AUX Input Level: 20 kΩ
- Output Impedance: 0.011 Ω
- Damping Factor ([email protected]Ω): >250
- Bandwidth (-3dB): 10Hz-350Hz
- Crossover (-12 dB/ Oct) Variable High-Pass: N/A
- Crossover (-12 dB/ Oct) Variable Low-Pass: 40Hz-400Hz
- Crossover (-12 dB/ Oct) Variable Sub-Sonic: 10-55Hz
- FUSE Ratings - ATC: 25A
- Dimension - Length x Width x Height - Inches(mm): 7.7x4.0x1.4 (195.6 x 102 x 36)
- UPC: 0847169024269
- Weight: 10
