- Diameter : 12 Inch
- Maximum Power : 1300 Watts
- Sensitivity : 85.6 dB
- Impedance : 4 Ohm
- Peak Power Handling : 1300 Watts
- Number of Voice Coils : Dual
- Suggested Sealed Box Volume : 1.25 Cubic ft.
- Suggested Ported Box Volume : 1.5 Cubic ft.
- Mounting Depth : 5.67 Inches
- RMS Power Handling : 450 Watts
What's Inside?

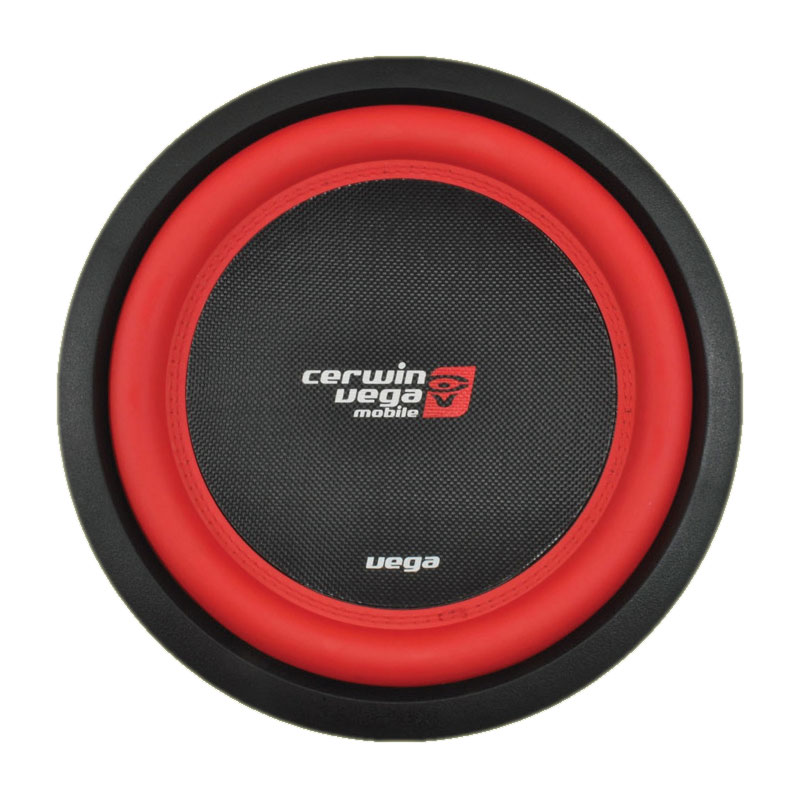

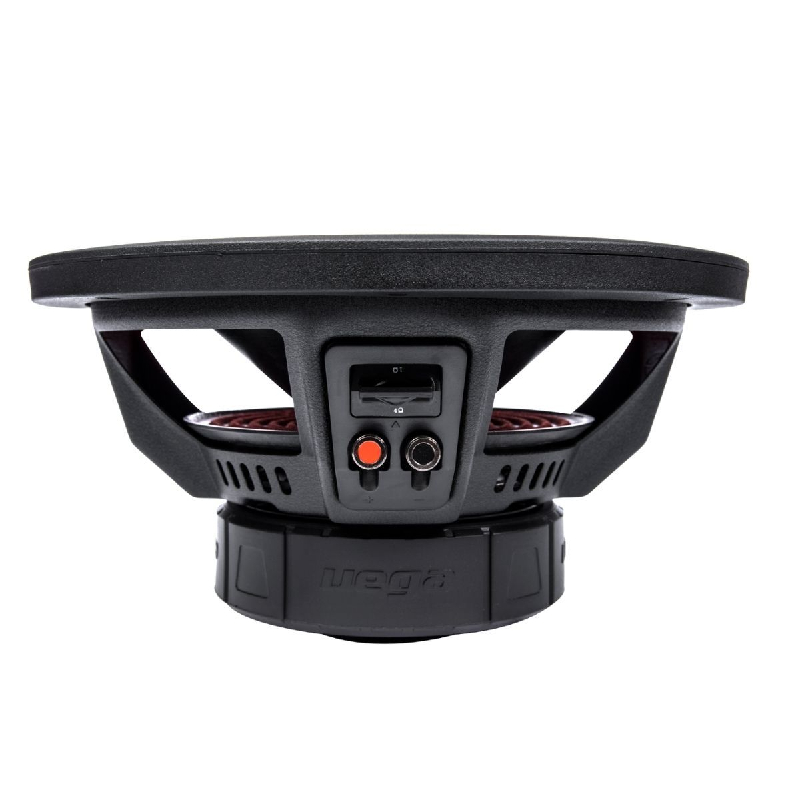

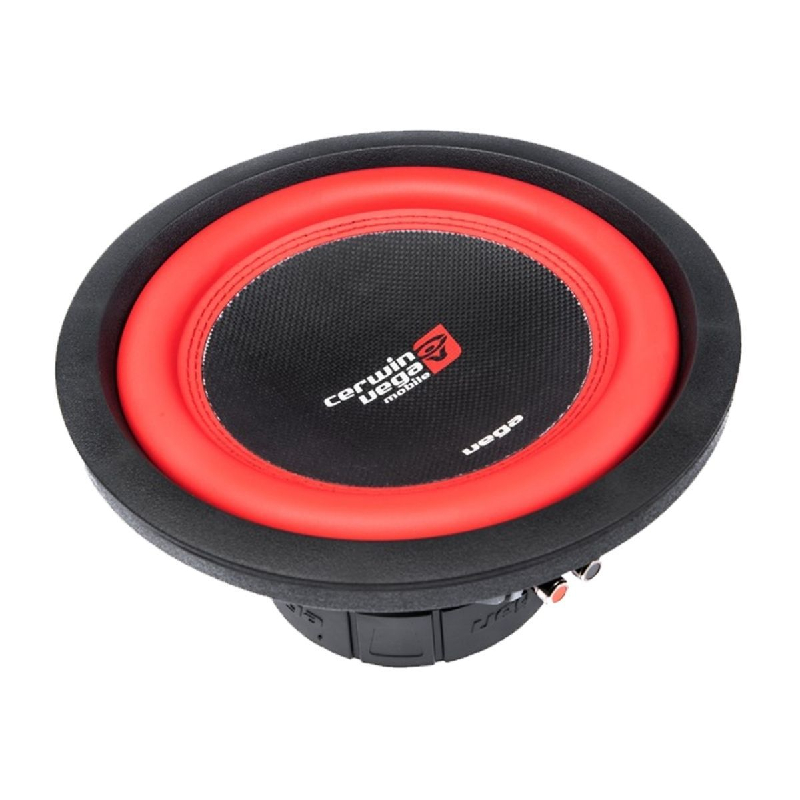

- 1 12" Vega Series Car Subwoofer
Features:
- Parabolic one piece stamped carbon fiber polypropylene cone
- Double stitched Vega red santoprene surround
- Vega concealed mounting gasket
- High power integrated impedance selector
- Proprietary stamped cast vega basket design
- Optimized high power single stacked motor structure
Specifications:
- 12" Dual 4 ohm Vega Series Subwoofer
- Power Handling:
- Peak: 1300 watts
- RMS: 450 watts
- Xmax - Inch(mm): 17.3
- Fs-Free Air Resonance: (Hz) 27.4
- Vas (Liter): 62.3
- Qts: 0.653
- Qes: 0.71
- Qms: 8
- Re (Ω)[series]: 4.0/4.0
- Sd (cm²): 0.049
- Cms (mm/N): 0.42
- Mms (g): 184.6
- BL (T*M): 16.6
- SPL (db): 85.6
- Pwr (W) NOM/MAX: 450/1300
- Mounting Depth: 5.67″ (144mm)
- Total Diameter: 12.6″ (320mm)
- Mounting Diameter (inch/mm): 10.7″ (272mm)
- Screw Hole Diameter: 0.7″ (18mm)
- Displacement (ft3/L): 0.09ft3 (2.5L)
- UPC: 847169019593
- Weight: 12
- Authorized Internet Dealer
Warranty: 1 Year Onlinecarstereo.com warranty.
1 Year warranty from Onlinecarstereo.com implies that repairs must be returned to Onlinecarstereo.com, not the manufacturer. More information can be found in our help section under returns & warranties.
What's not covered : Misuse, abuse, defacement, physical damage of any kind, and improper installation / operation. Video and multimedia equipment with damaged or cracked screens.Subwoofers and speakers are not warrantied if the defect is due to physical damage.
