- Diameter : 12 Inch
- Maximum Power : 1200 Watts
- Sensitivity : 85.0 dB
- Impedance : 4 Ohm
- RMS Power Range : 250 Watts
- Peak Power Handling : 1200 Watts
- Shallow Mount : Yes
- Number of Voice Coils : Dual
- Mounting Depth : 3.81 Inches
- RMS Power Handling : 250 Watts
What's Inside?

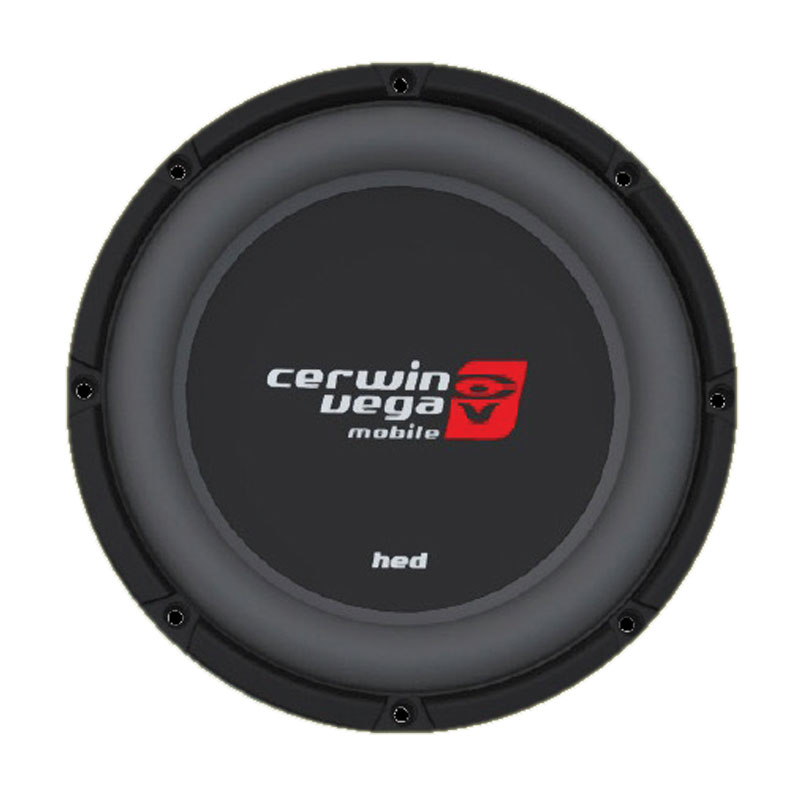

- 1 12" HED Series Dual 4-Ohm Shallow Mount Subwoofer
Features:
- Stamped Steel Slim-Mount Frame With
- Encapsulated Motor
- Vented Motor Structure For Optimal Thermal
- Heat Dissipation
- Poly-Cotton Spider With Spaced Woven In Tinsel Wires
- Oversized Parabolic Dustcap For Extreme Rigidity
- Unimount Gasket Surround
Specifications:
- 12 Inch Dual 4-ohm Shallow Subwoofer
- Power Handling: 250W RMS / 1200W MAX
- Xmax - Inch(mm): 8.3
- Fs-Free Air Resonance (Hz): 31.0
- Vas (Liter): 50.9
- Qts: 0.92
- Qes: 1.13
- Qms: 5.0
- Re (Ω)[series]: 3.0/3.0
- Sd (cm²): 0.053
- Cms (mm/N): 0.13
- Mms (g): 205
- BL (T*M): 14.6
- SPL (db): 85.0
- Mounting Depth: 3.81” (97mm)
- Total Diameter: 12.57” (319.4mm)
- Mounting Diameter (inch/mm): 11.14” (283mm)
- Screw Hole Diameter: 0.216” (5.5mm)
- Displacement (ft3/L): 0.035 ft3 (1.05L)
- UPC: 0847169025846
- Weight: 12
