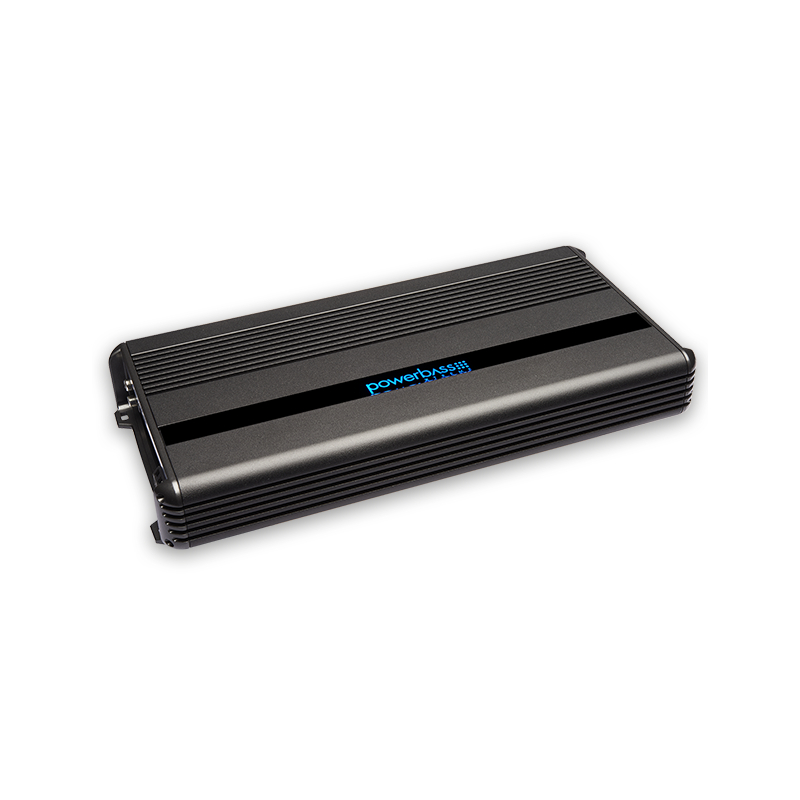

PowerBass  XMA-1205D

Mono Block Class D Compact Amplifier 1200 Watts

Item #45471

Product Highlights

  • Compact Amplifier
  • Mono Block
  • Class D
  • 1200 Watts

  Free 2-Years Warranty Included!
60 DAYS Returns Accepted.
FREE Lifetime Tech Support.
FREE Shipping (No Minimum).
60 DAYS Price change protection.
Sorry, this product is no longer available.
Checkout other products listed below

Huge Saving on Other items:



Huge Saving on Other items:



SPECIFICATIONS


  • Maximum Power : 2400 Watts
  • Number of Channels : 1
  • Frequency Response : 10-300 Hz
  • Amplifier Class : D

FEATURES


Features:

  • 1,200 Watt High Efficiency Class D Design
  • 1-OHM Stable Mono Block Amplifier
  • Ultra Low Current Draw
  • Double Sided Copper Plated PCB
  • PWM MOSFET Power Supply
  • Digital Sound Optimization Circuitry
  • High Damping Control Circuit
  • Variable Subsonic Filter
  • High Current Voltage Ripple Rejection Circuitry
  • Balanced RCA Inputs
  • Auto Turn On/Off
  • Remote Soft Delay Turn On/Off Circuit
  • 40 Click Variable Low Pass Electronic Crossover
  • 40 Click Variable Frequency/18dB Bass Boost EQ
  • Variable Gain Control
  • Wired Secondary Remote Gain Control Included
  • Protection Circuit: Impedance Over-load, Speaker Short, Circuit, Thermal Overheating, and DC Output
  • Strapable Dual Amp Power Doubling Circuit (Amp-to-Amp Bridged at 2 ohm minimum)



Specifications

  • Selectable Subwoofer EQ: 0 - 18 dB @ 40 Hz - 100 Hz,
  • Variable Subsonic Freq: 10 Hz - 50 Hz
  • Inputs: RCA (speaker level compatible)
  • Subwoofer Frequency Range: 10Hz - 250 Hz
  • Power Supply: Unregulated PWM
  • Height: 2.0"
  • Width: 7.1"
  • Depth: 14.7"
  • 4-ohm Mono Power: 500 watts x 1
  • 4-ohm Power: 500 watts x 1
  • 1-ohm Mono Power: 1200 watts x 1
  • 2-ohm Power: 800 watts x 1
  • Subwoofer EQ Frequency: 40 Hz- 100 Hz
  • Variable Subwoofer EQ: 0 - 18 dB
  • Low-Pass Crossover Freq: 20 Hz - 250 Hz
  • High-Pass Crossover Freq: N/A
  • Peak Power: 2400 watts
  • Crossover Slope: 24 dB
  • Dimensions (in Inches): 14.7" x 7.1" x 2.0"
  • Input Sensitivity: 0.25 V - 10.0 V
  • S/N Ratio: >100 dB
  • Total Harmonic Distortion: 0.4% at Rated Power
  • Strapped Output Power @ 2ohms: 2400 watts x 1
  • Output Power (14.4 V) @ 4 ohm: 500 watts x 1
  • Output Power (14.4 V) @ 2 ohm: 800 watts x 1
  • Output Power (14.4 V) @ 1 ohm: 1200 watts x 1
  • Channels (mono): 1
  • Frequency Response: 10 Hz - 300 Hz
  • UPC: 823871006519
  • Weight: 10
  • Authorized Internet Dealer
Warranty: 2 Year(s) Warranty.
This item is accompanied by a manufacturer's warranty. If it is found to be defective, it may be returned to OnlineCarstereo.com for replacement within 2 Year(s) from the original date of purchase with proper return authorization.
