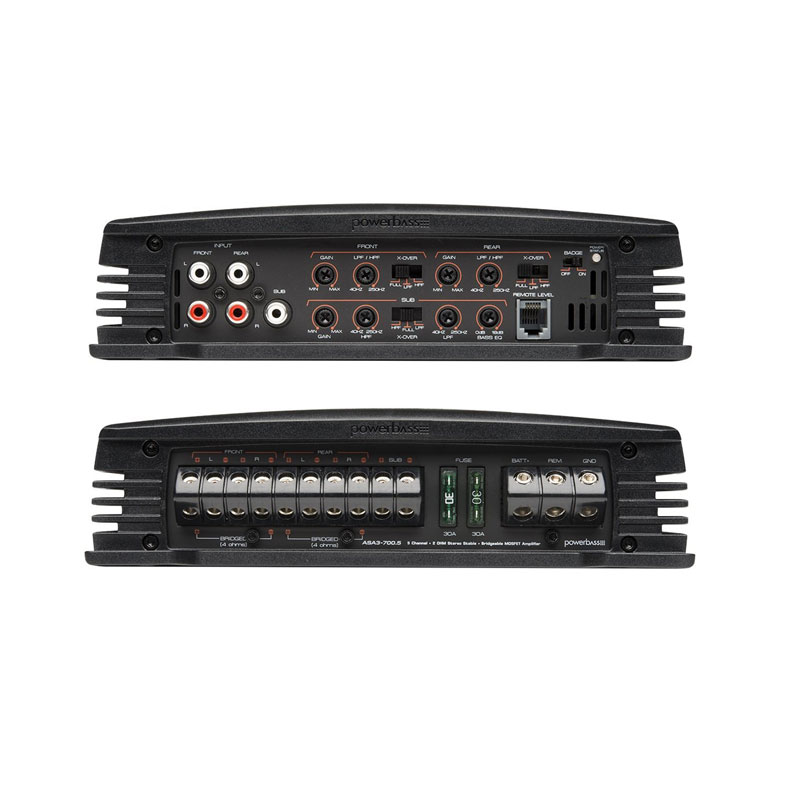

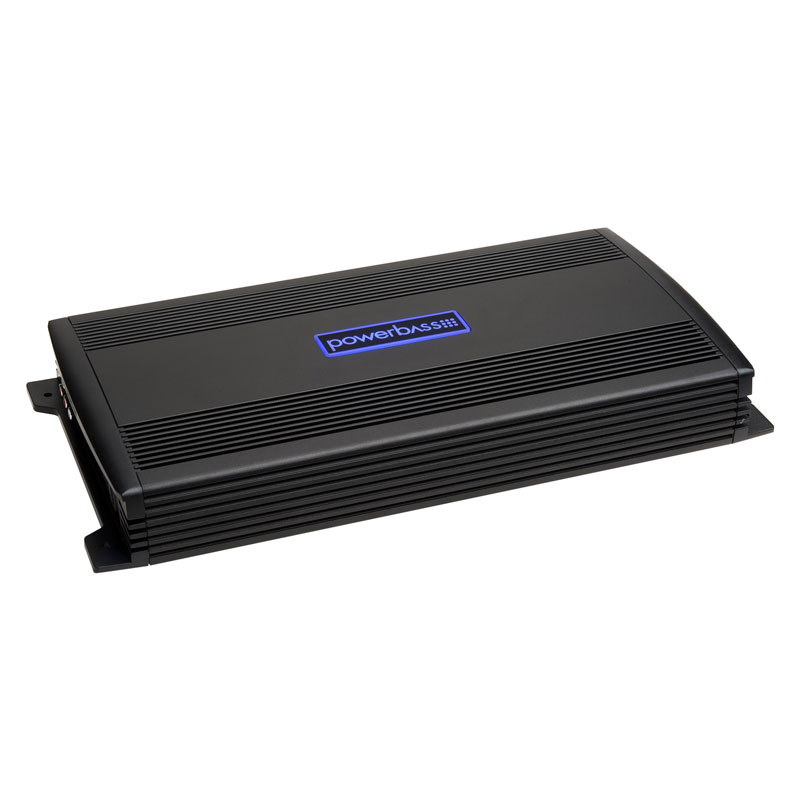

PowerBass  ASA3-700.5

5-channel Full Range A/B Amplifier 1400 Watts Car Amplifier

Item #45474

Product Highlights

  • 5-channel full range amplifier
  • 1400W car audio power
  • High performance sound system
  • Durable amplifier construction
  • Easy installation setup

  Free 2-Years Warranty Included!
60 DAYS Returns Accepted.
FREE Lifetime Tech Support.
FREE Shipping (No Minimum).
60 DAYS Price change protection.
Sorry, this product is no longer available.
Checkout other products listed below

Huge Saving on Other items:



Huge Saving on Other items:



SPECIFICATIONS


  • Maximum Power : 1400 Watts
  • Number of Channels : 5
  • Frequency Response : 20-22000 Hz
  • Amplifier Class : A/B

FEATURES


Features:
  • 5-Channel 800 Watt High Efficiency Class A/B Design
  • 2-ohm Stable (4-ohm in Bridged Mode)
  • PWM MOSFET Power Supply
  • Low Level RCA Input/Low Level RCA Pass Through Output
  • Remote Soft Delay Turn On/Off Circuit
  • Variable High/Low Pass Electronic Crossover
  • Variable 18dB Bass Boost EQ @ 45 Hz
  • Variable Gain Control
  • Protection Circuit: Impedance Over-load, Speaker Short, Circuit, Thermal Overheating, and DC Output.
  • Wired Secondary Remote Gain Control (Optional PB-GAIN1)
  • Switchable Logo Back Lighting



Specifications:

  • Selectable Subwoofer EQ: 0-18 dB Gain @ 45Hz
  • Variable Subsonic Freq: N/A
  • Inputs: 3 Pairs of RCA
  • Equalization Boost/Cut: 0 - 18 dB
  • Subwoofer Frequency Range: 20 Hz - 250 Hz
  • Power Supply: Unregulated PWM
  • Height: 2.3"
  • Width: 8.3"
  • Depth: 16.8"
  • 4-ohm Mono Power: 200 watts x 2 + 400 x 1 (2-ohm)
  • 4-ohm Power: 50 watts x 4 + 200 x 1
  • 1-ohm Mono Power: N/A
  • 2-ohm Power: 100 watts x 4 + 400 x 1
  • Subwoofer EQ Frequency: 45 Hz
  • Variable Subwoofer EQ: 0 - 18 dB
  • Low-Pass Crossover Freq: 40 Hz - 250 Hz
  • High-Pass Crossover Freq: 40 Hz - 250 Hz
  • Peak Power: 1600 watts
  • Crossover Slope: 12 dB
  • Dimensions (in Inches): 16.8" x 8.3" x 2.3"
  • Input Sensitivity: 0.25 V - 6.0 V
  • S/N Ratio: >94 dB
  • Total Harmonic Distortion: 0.05% at Rated Power
  • Strapped Output Power @ 2ohms: N/A
  • Output Power (14.4 V) @ 4 ohm: 50 watts x 4 + 200 x 1
  • Output Power (14.4 V) @ 2 ohm: 100 watts x 4 + 400 x 1
  • Output Power (14.4 V) @ 1 ohm: N/A
  • Channels (mono): 5
  • Frequency Response: 20 Hz - 22 kHz
  • UPC: 823871006076
  • Weight: 12
  • Authorized Internet Dealer
Warranty: 2 Year(s) Warranty.
This item is accompanied by a manufacturer's warranty. If it is found to be defective, it may be returned to OnlineCarstereo.com for replacement within 2 Year(s) from the original date of purchase with proper return authorization.
