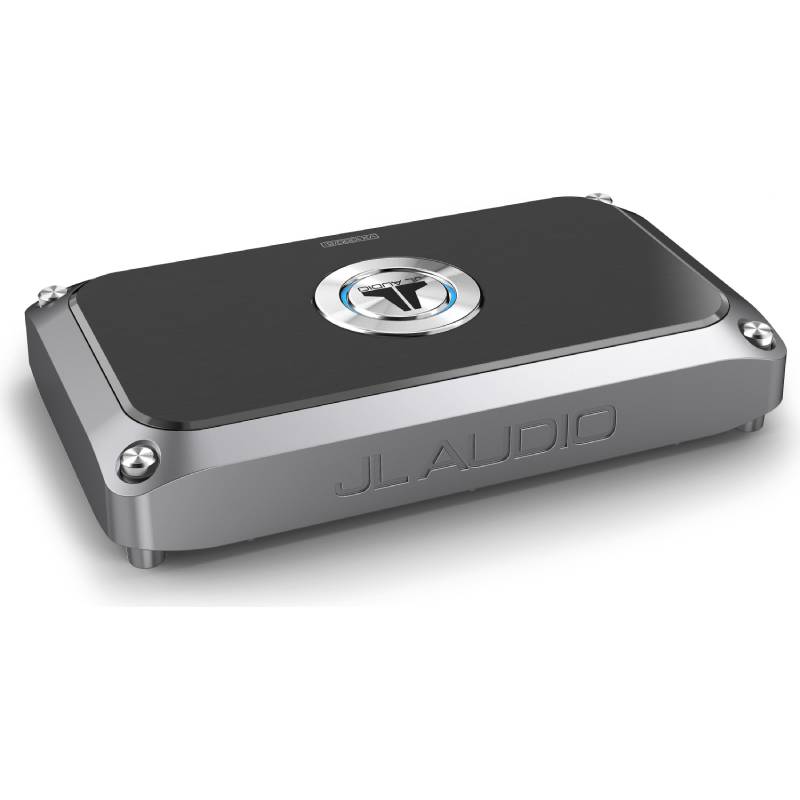

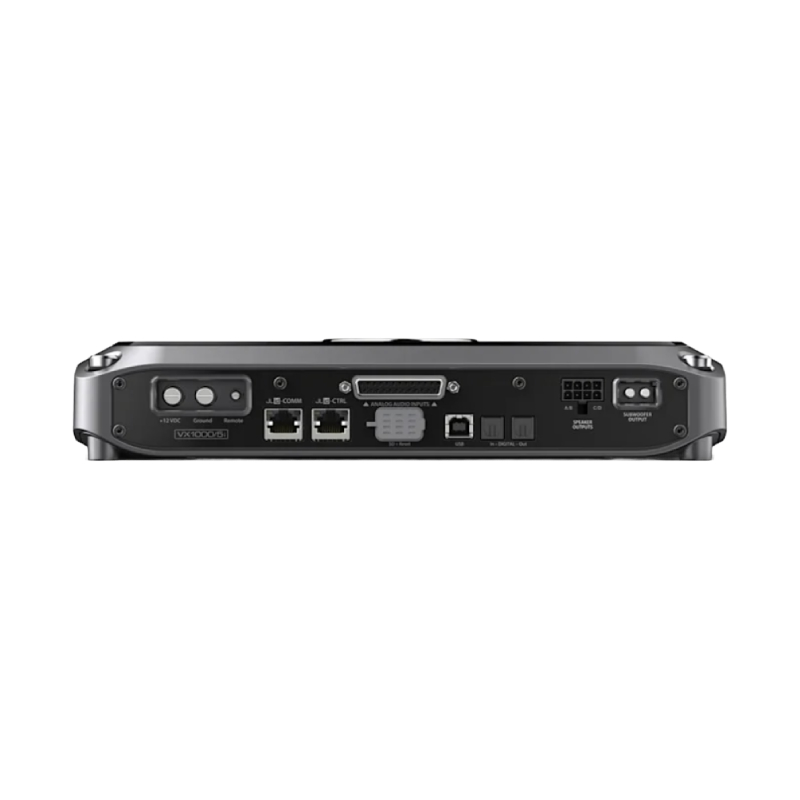

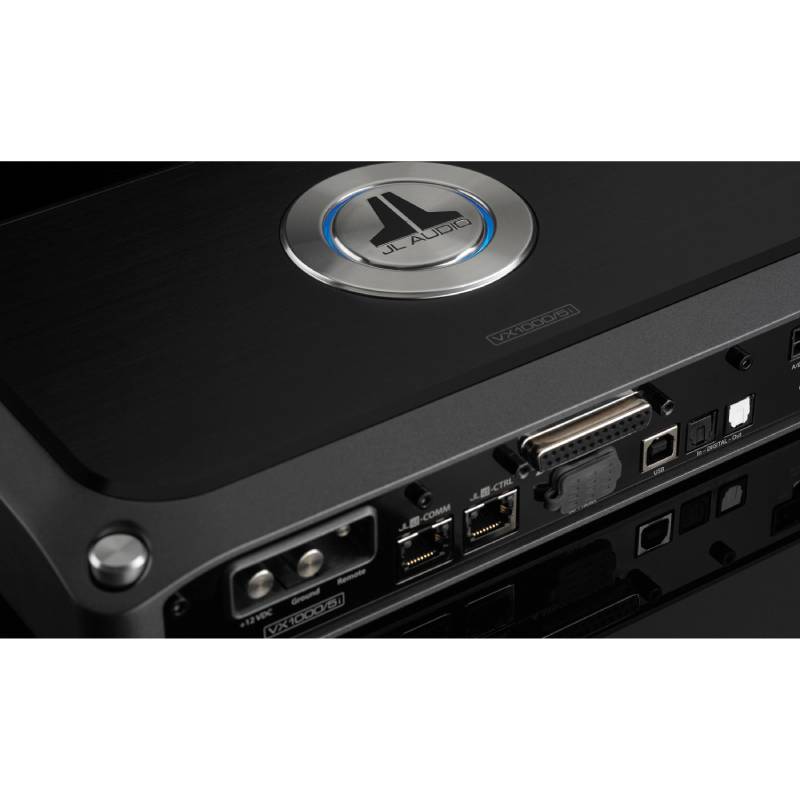

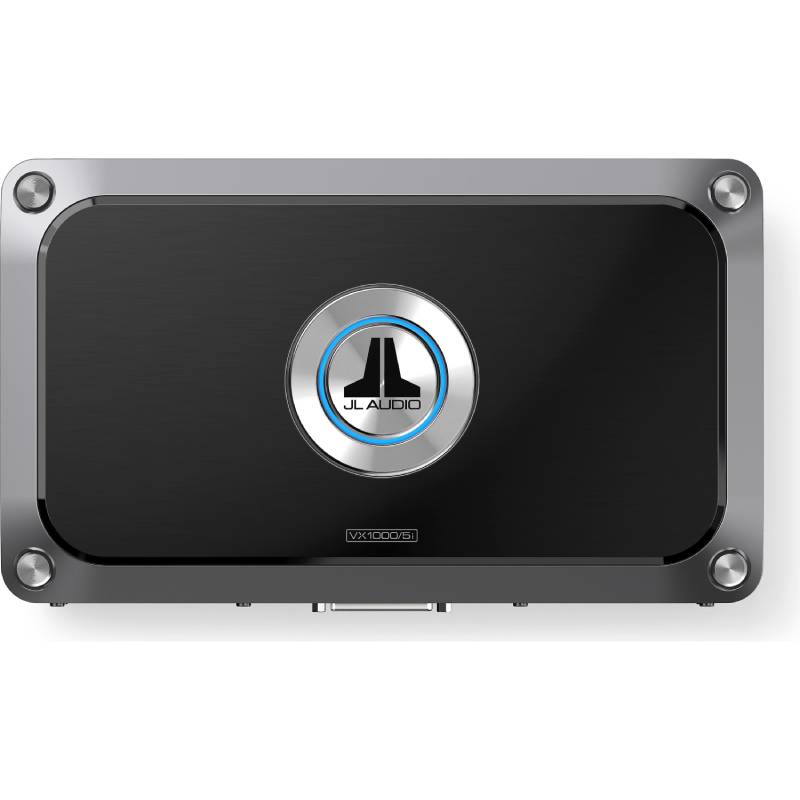

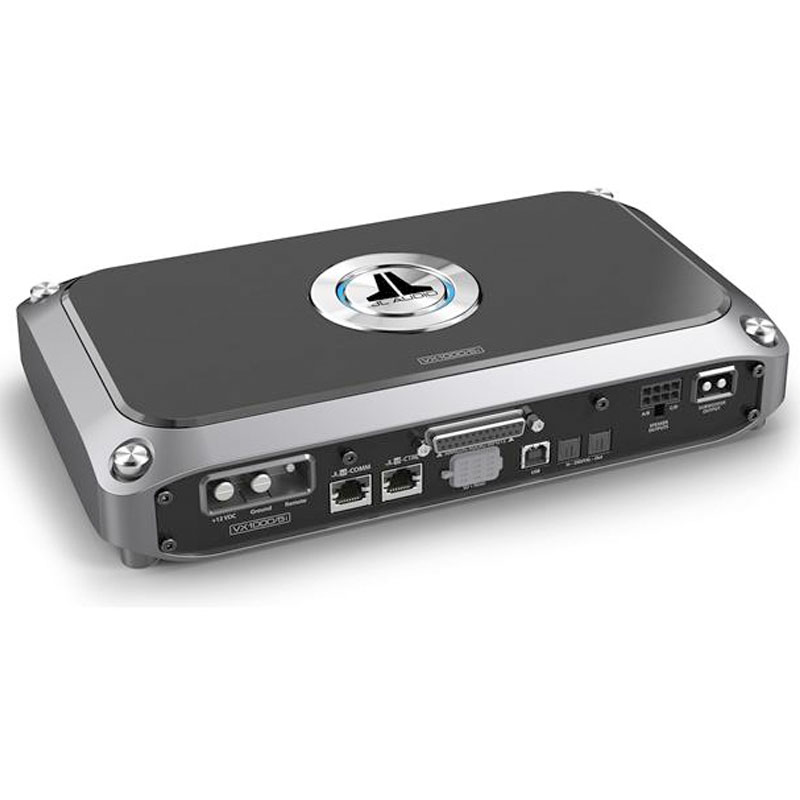

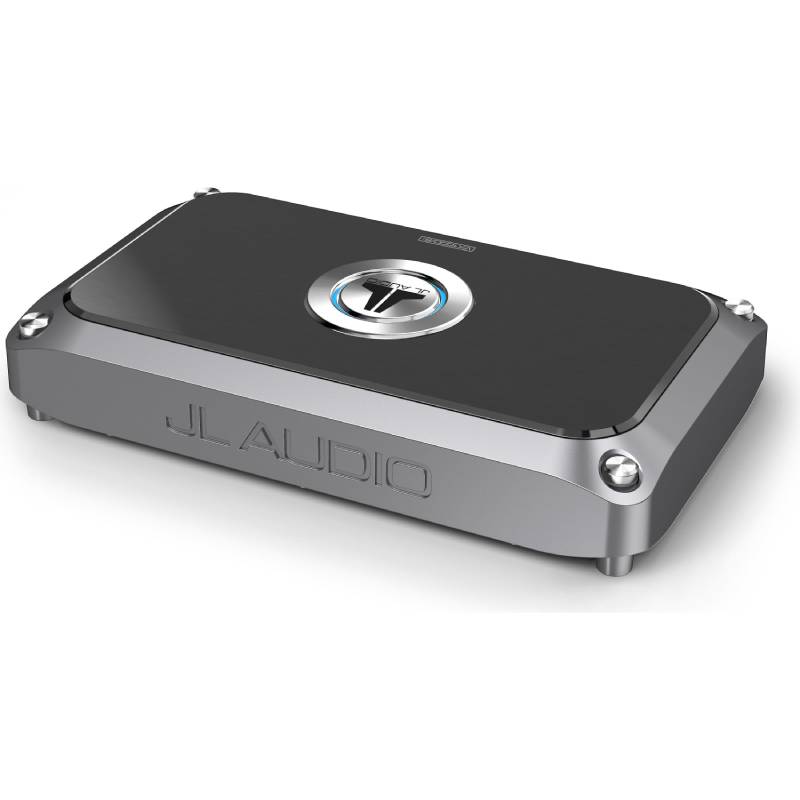

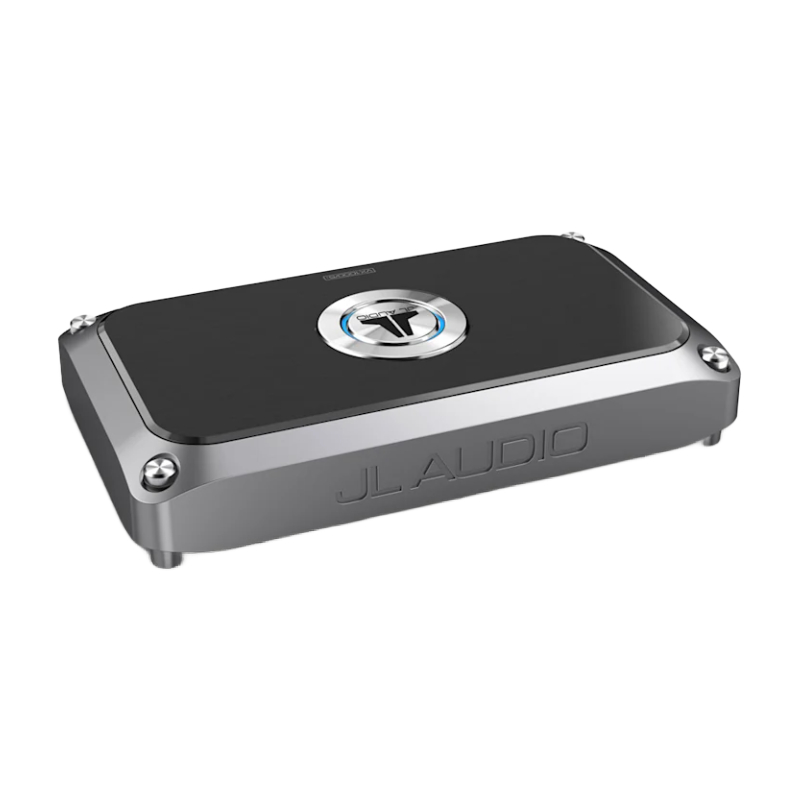

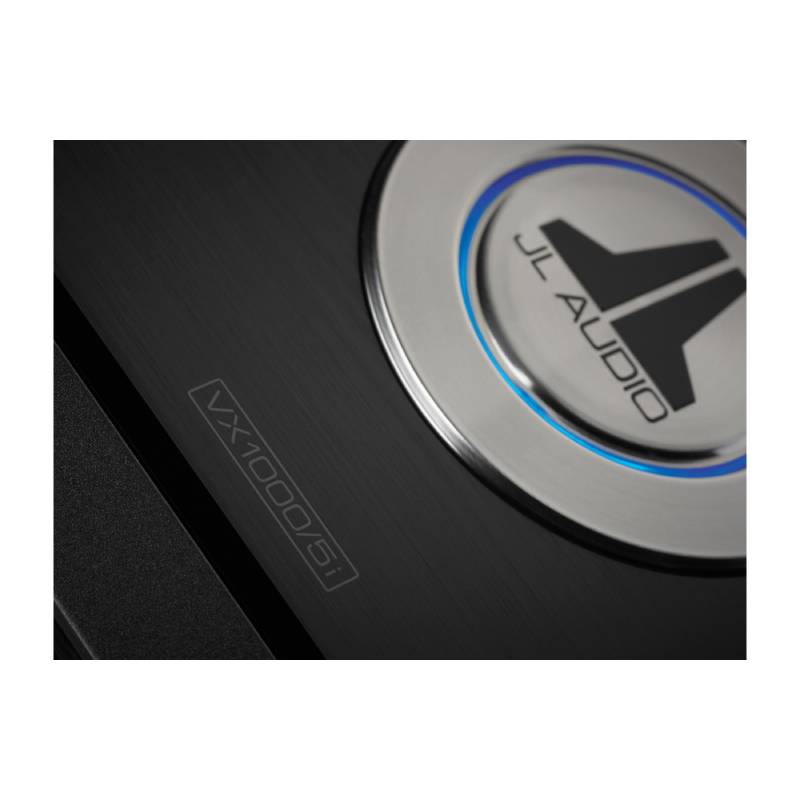

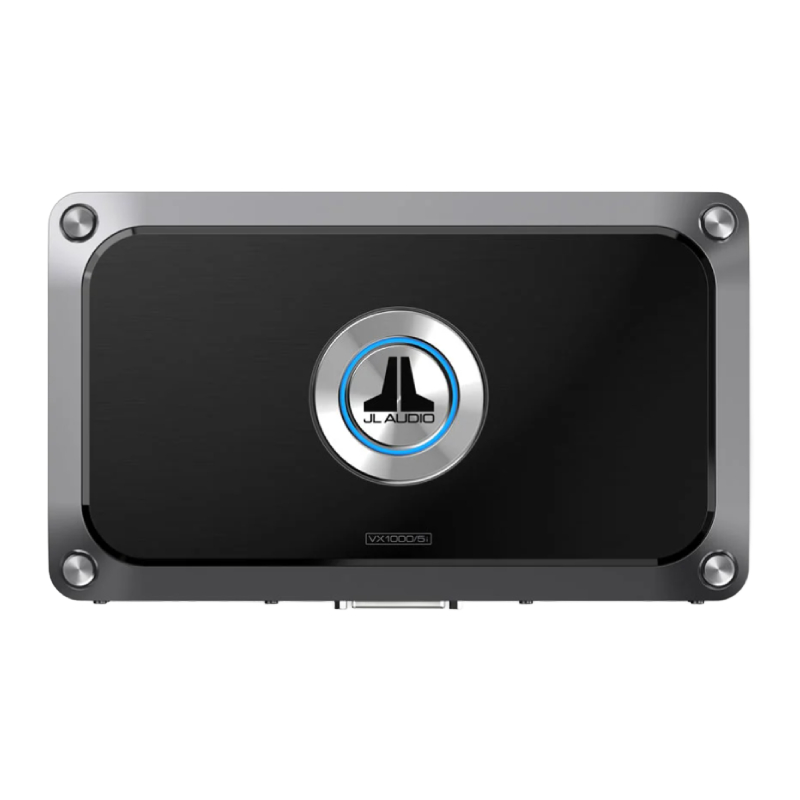

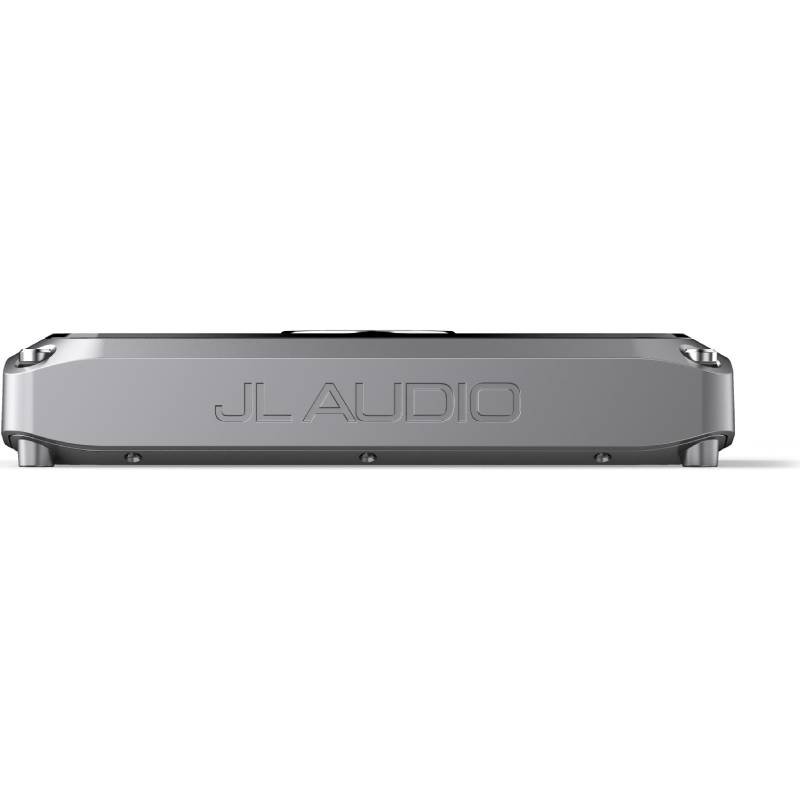

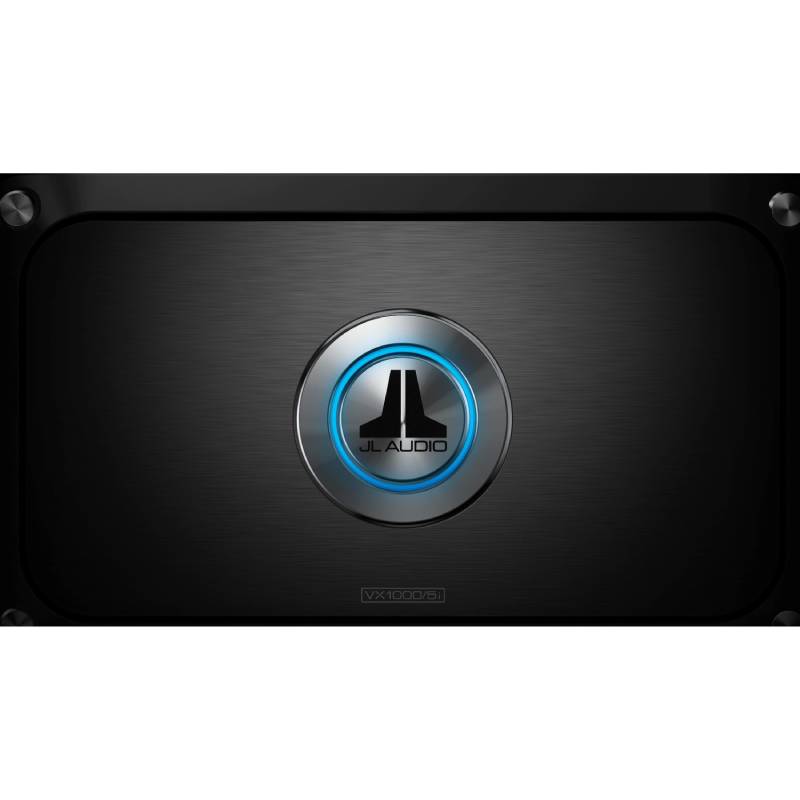

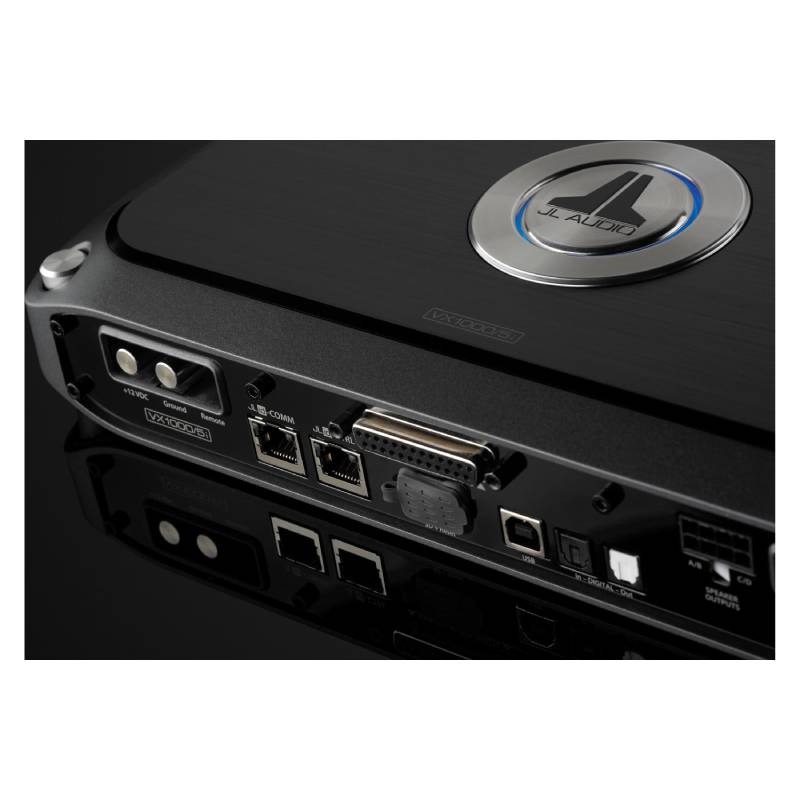

JL Audio  VX1000/5i

• Number of Channels : 5
• Frequency Response : 12-24000 Hz
• Built In Crossovers : Yes
• Amplifier Class : D
• Fuse Rating : 80 A
• Promo : Yes
• Built In DSP : Yes

Features:

• Noise-Free Signal: Differential-balanced inputs eliminate noise from your vehicle's electrical system, including alternator whine and other unwanted sounds.
• Versatile Inputs: Preamp and speaker-level inputs (speaker wire to RCA adapter required for speaker-level input) allow flexible connectivity.
• High-Level Input Capacity: Handles up to 16 volts RMS (about 60 watts) for robust signal handling.
• Smart Auto Turn-On: DC offset or signal sensing eliminates the need for a remote lead.
• Digital Connectivity: 2-channel digital input and output (S/PDIF: up to 24-bit 192 kHz in, 24-bit 96 kHz out).
• Analog Output: 2-channel analog preamp output (4V RMS).
• JLid™ Expansion: Connections available for optional Network Hub, Bluetooth Communicator, and Digital Remote Control.
• USB Control: USB connection for devices running the TüN® app (6-foot cable included).
• Onboard Tuning Power: Full suite of DSP tools including equalization, delay, crossover routing, mixing, and more for precise audio customization.
• Advanced Class-D Amplifier Design: High-speed switching synchronizes power supply and output stages for exceptional fidelity with ultra-low noise and distortion.
• No Knobs or Switches: Entire setup and tuning is performed via TüN® software on computers or most handheld devices.
• Eliminate Audible Noises: Accepts speaker-level signals without a LOC and provides superior noise rejection.
• Advanced Rollback Protection: Proprietary thermal-monitoring system adjusts operation to prevent shutdowns and ensure continuous playback.
• Fully Configurable Output Channels: TüN® software allows complete control over signal routing, EQ, output levels, and DRC functionality.
• Hardware Note: Wiring, fuse, and other hardware are not included.
• Recommended Power Setup: 4-gauge power and ground leads with a 80-amp fuse recommended.

Digital Signal Processing:

• High-Resolution Audio Processing: 24-bit / 96 kHz digital audio processing
• Smart App-Based Tuning: DSP adjustments and settings via JL Audio’s TüN™ app (PC & Mac) using USB or Bluetooth with optional BTC module
• Multi-Level Tuning Control: Three project tuning levels: Basic, Advanced, and Expert
• Flexible Signal Management: Input routing and signal mixing
• Clean, Clipping-Free Setup: Adjustable gain controls with clip indication
• Fully Custom Crossovers: Adjustable high-pass, low-pass, and band-pass filters
• Precision Filter Slopes: Selectable slopes: 6, 12, 18, 24, 30, 36, 42, or 48 dB/octave
• Advanced Equalization: 10-band EQ with graphic control in Basic mode and parametric control in Advanced and Expert modes
• Total Phase Control: Phase and polarity adjustment
• Pinpoint Time Alignment: Time alignment adjustable in 0.01 ms (1/8") increments

TUN Desktop App:

• Windows
• MAC

Specifications:

• RMS Power Output (Watts x Channels): 75 x 4, 600 x 1
• Peak Power Output (Watts x Channels): N/A
• Power at 2 Ohms (Watts x Channels): 100 x 4
• Power at 1 Ohm (Watts x Channels): ---
• Bridged Power (Watts x Channels): 200 x 2
• Minimum Impedance Bridged: 4
• Minimum Impedance Unbridged: 2
• Best Frequency Response: 12–24 kHz
• THD at Rated RMS Power: 1%
• Signal to Noise Ratio: 80 dB
• Input Voltage: 14.4 V
• Amplifier Class: D
• Built-in DSP: Yes
• Remote Control: Via Tun software
• Low-Pass Crossover Frequency: Via Tun software
• Low-Pass Slope (dB/octave): Via Tun software
• High-Pass Crossover Frequency: Via Tun software
• High-Pass Slope (dB/octave): Via Tun software
• Bass Boost: No
• Bass Boost Frequency: N/A
• Fan Cooled: No
• Fuse Rating: 80
• Speaker Level Inputs: Yes
• Preamp Outputs: 2
• Width (inches): 11-5/16
• Height (inches): 2-1/8
• Depth (inches): 6-11/16

• UPC: 699440986328
• Weight: 10
