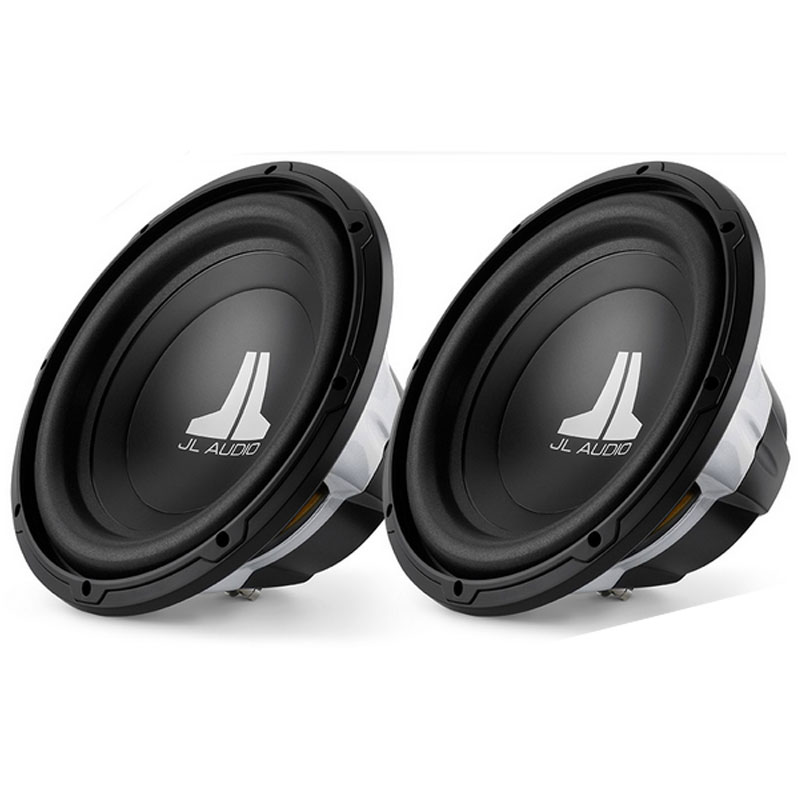

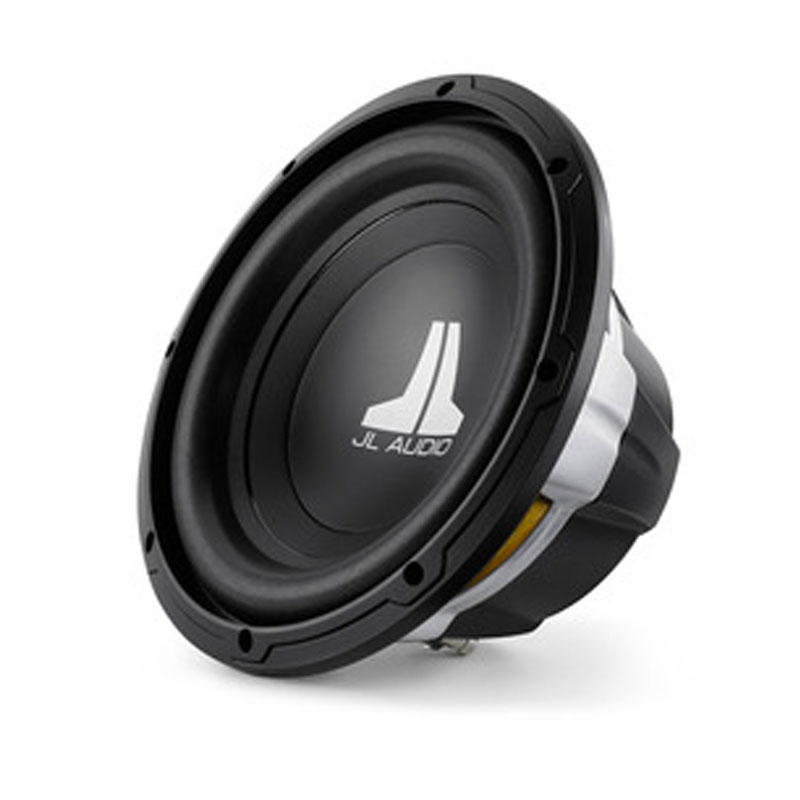

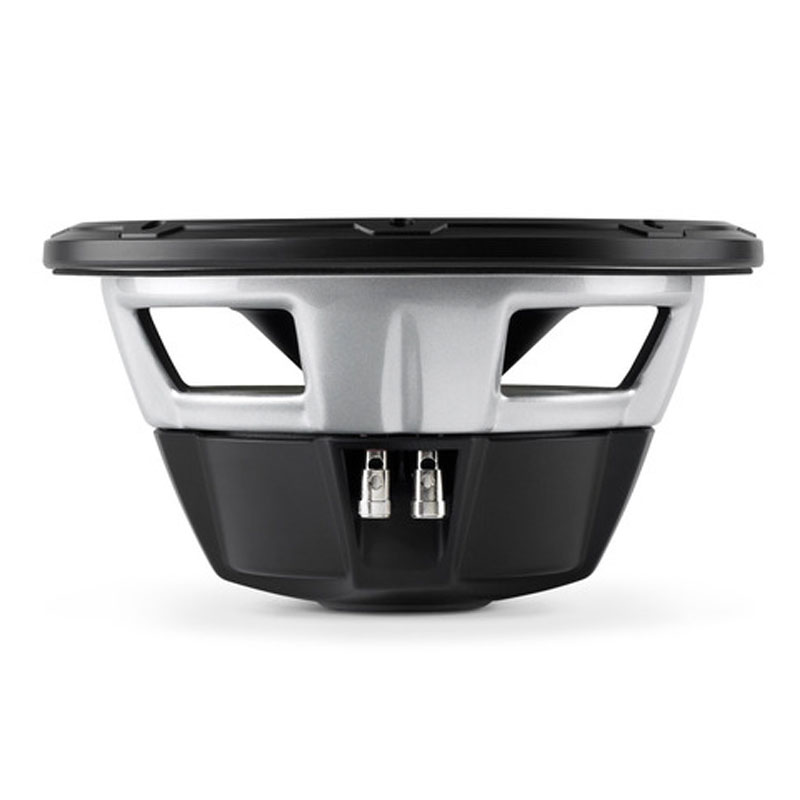

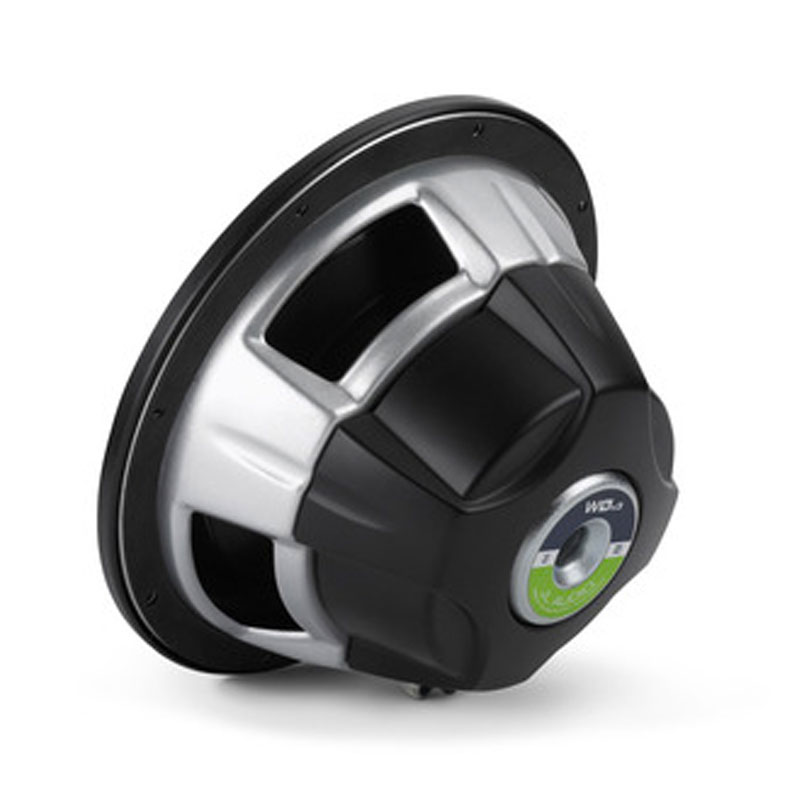

The 12W0v3 is a rugged performer with excellent efficiency, excursion capability and linearity. Its overall performance envelope that puts it right at the top of its price class. It features a beefy 2 in. diameter voice coil and our patented Elevated Frame Cooling design for enhanced power handling and reliability.
The 12W0v3 is best used with amplifier power in the 75W - 300W range and is optimized to operate in a moderately sized 1.375 cu. ft. (38.9 l) sealed enclosure, or a 1.75 cu. ft. (49.6 l) ported enclosure. Detailed enclosure recommendations can be found in the "Specifications" tab.
Description:
• 12" W0v3 Series Subwoofer Driver
• Power Handling: RMS: 300 watts
• Recommended Power Range: 75 - 300 watts
• Impedance: Single 4-Ohm
• Frequency response: 22 - 250 Hz
• Reference Efficiency (no): 0.2200%
• Sensitivity: 85.64 dB
• Free Air Resonance (Fs): 28.43 Hz
• Mounting depth: 5.40 "
• 2.0" High temperature voice coil
• DMA Optimized motor system reduces distortion and tight, clean bass
• Elevated frame cooling brings air directly to the voice coil
• Designed for compact sealed enclosures or medium-sized ported enclosures
