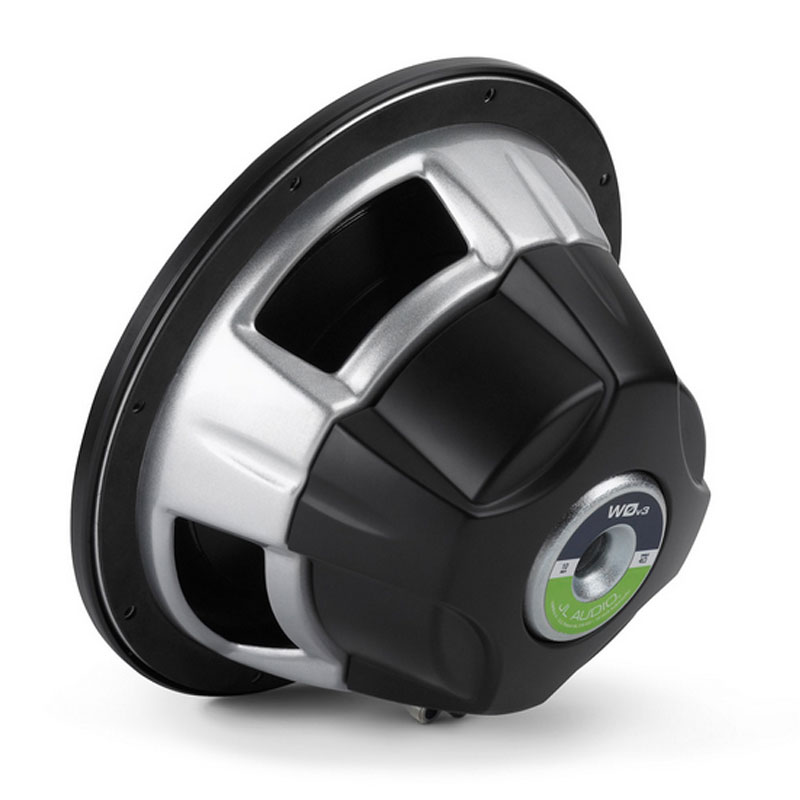

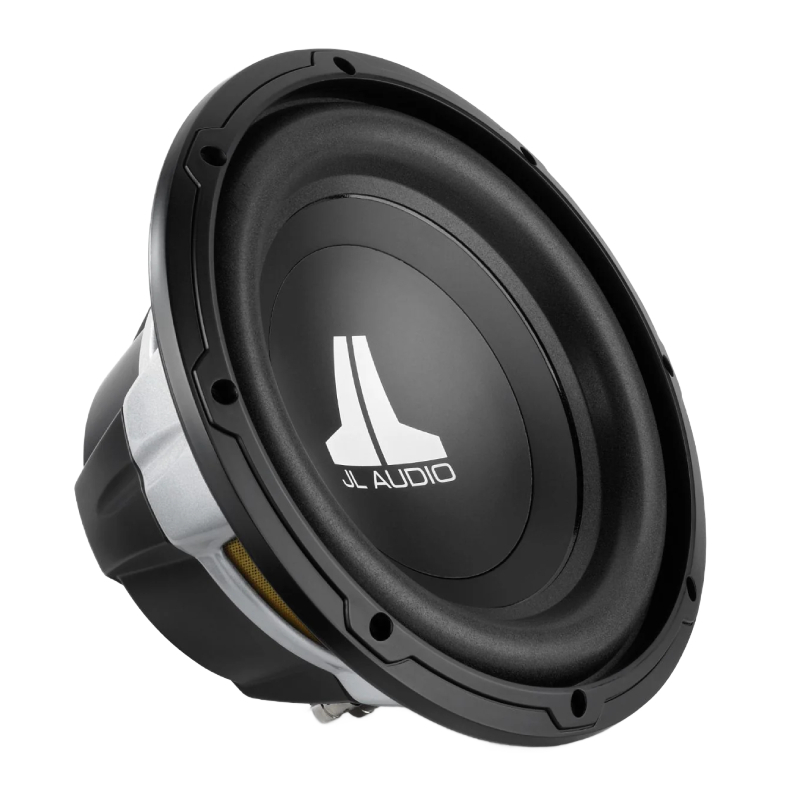

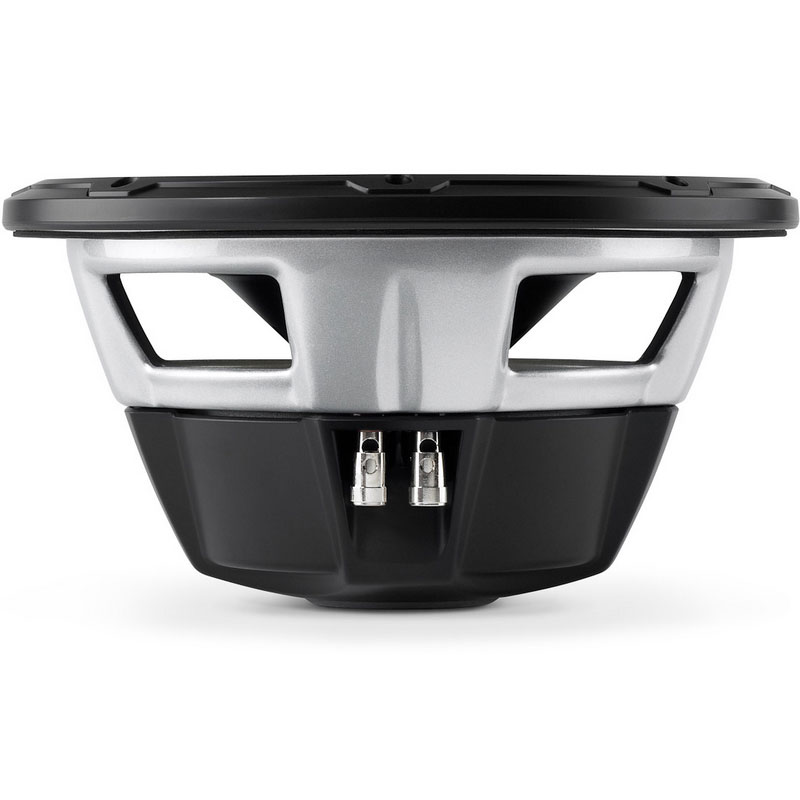

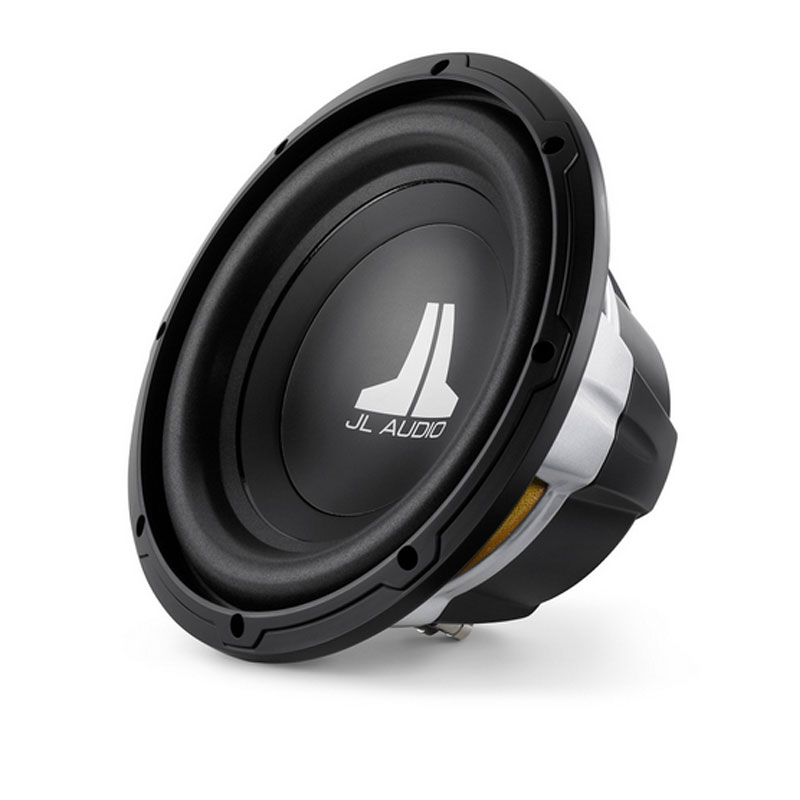

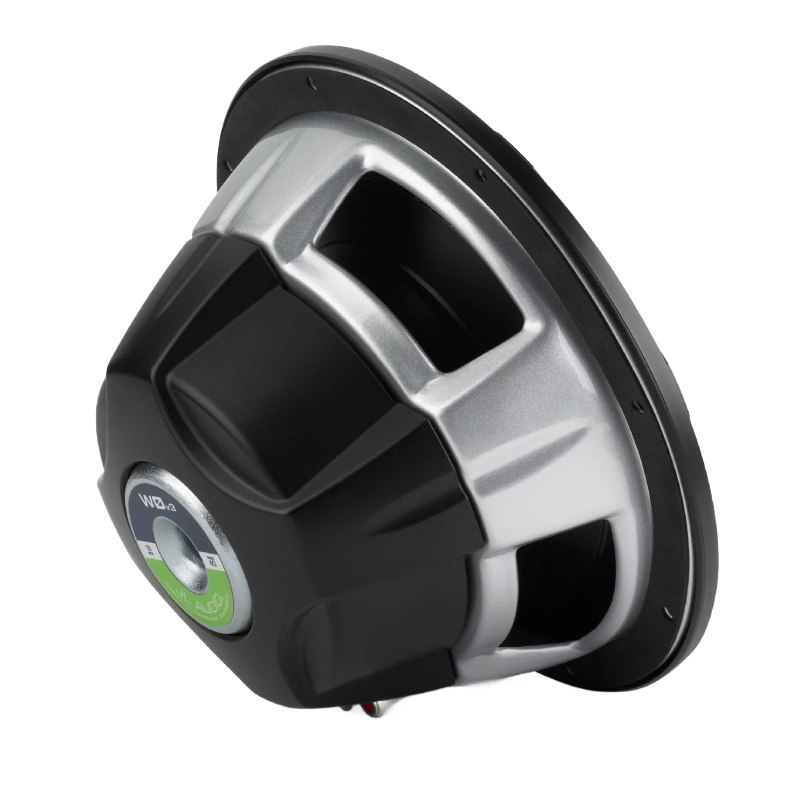

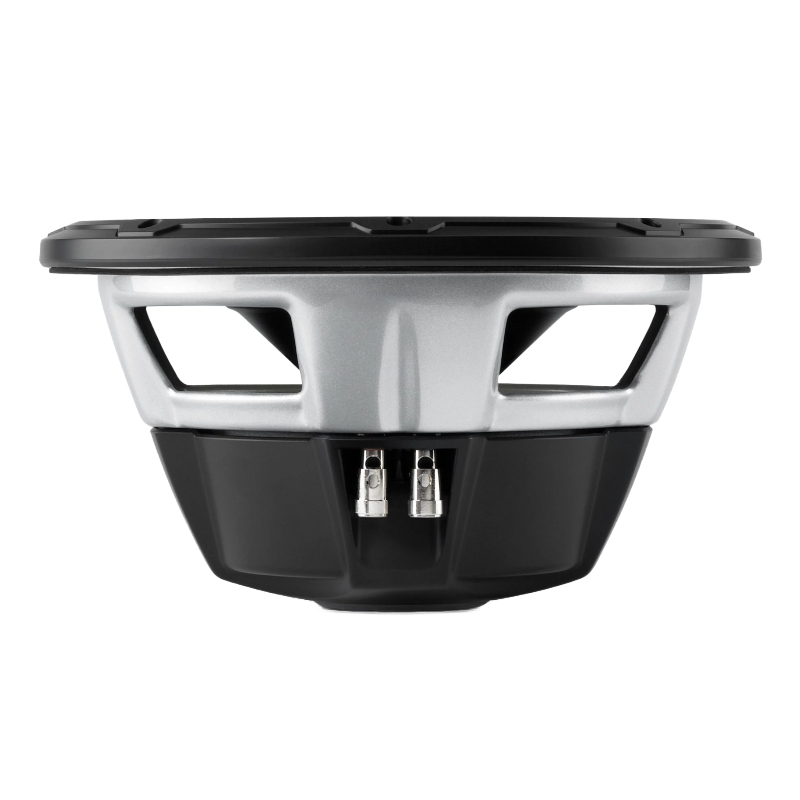

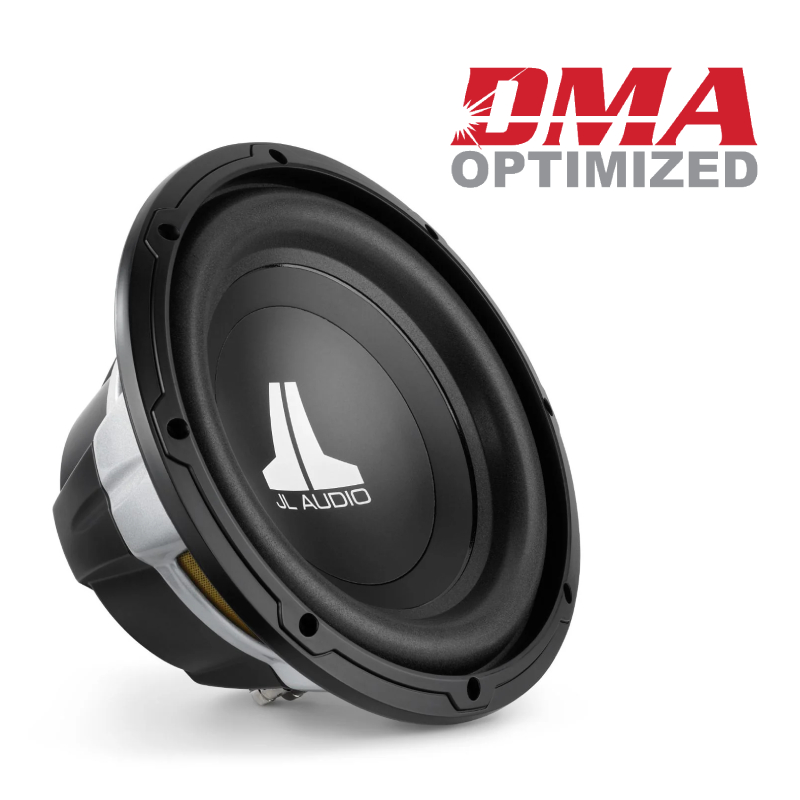

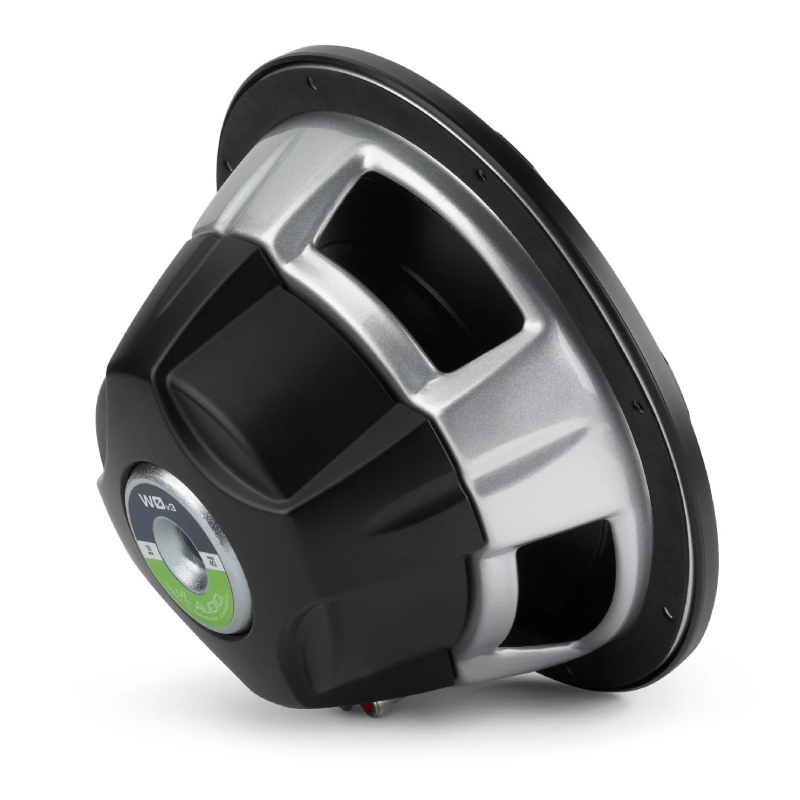

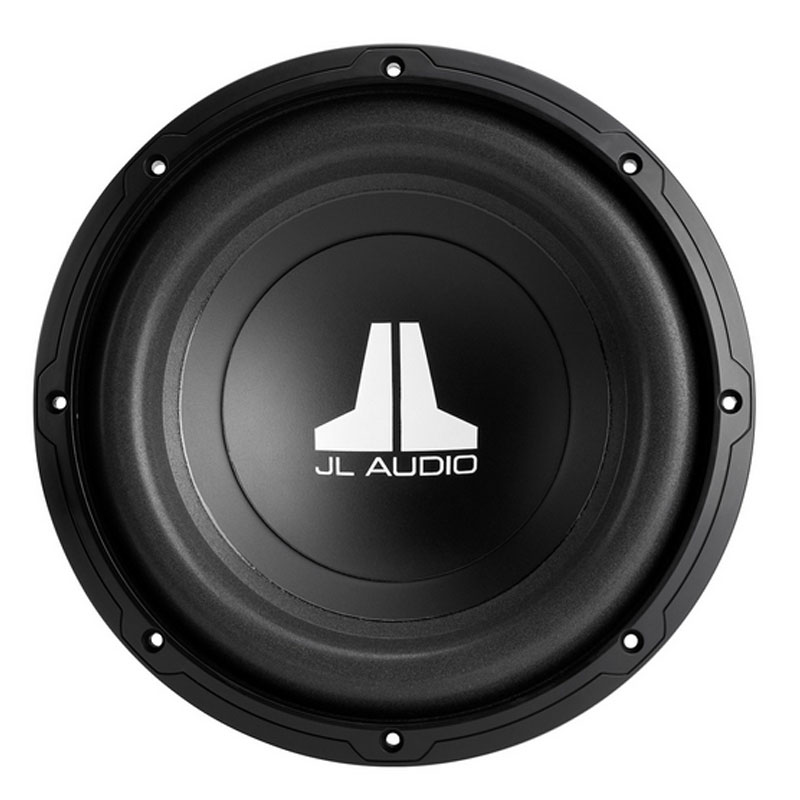

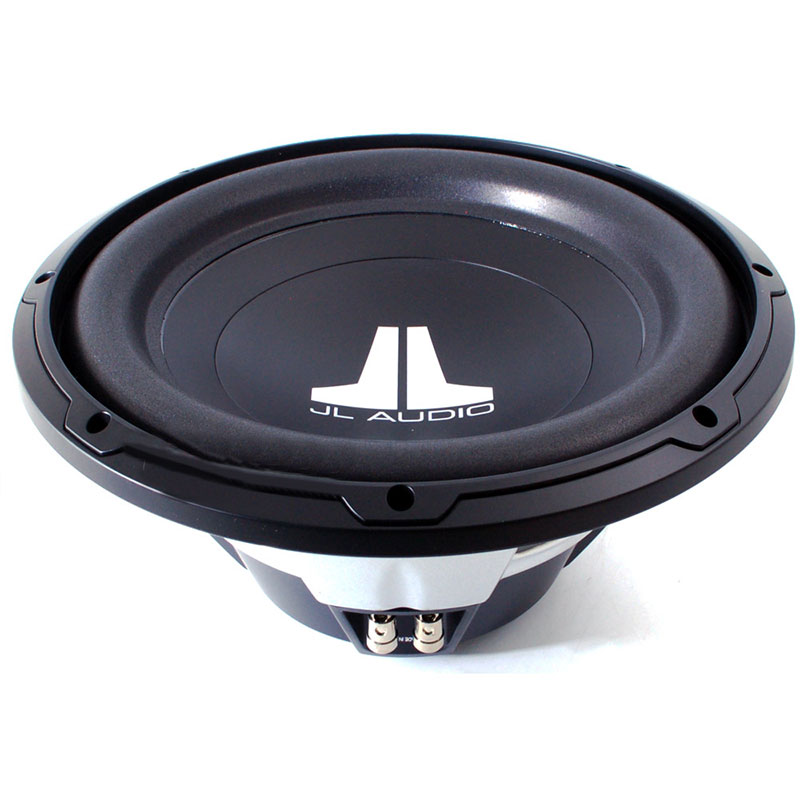

JL Audio 10W0v3-4 W0v3 Series 10" 600W Peak Power Handling at 4 Ohms, Single Voice Coil Component Car Subwoofer
We are a JL Audio authorized dealer so you get up-to-date, fully warrantied products. Shipping is free to the lower 48 states on everything you order!
Why Choose JL Audio 10W0v3-4 Component Speakers
Unleash Powerful Bass with JL Audio 10W0v3-4 Subwoofer Performance
Experience deep, clean bass output with the JL Audio 10W0v3-4 10-inch subwoofer, built for reliable daily performance and efficient power handling. Designed for tight excursion control and accurate low-frequency response, it features a durable 2-inch voice coil that delivers strong output while maintaining clarity. Perfect for users looking for a budget-friendly JL Audio subwoofer with premium sound quality and durability.
High-Performance Car Audio Upgrade with Efficient Cooling & Amplifier Matching
The JL Audio 10W0v3-4 car subwoofer uses Elevated Frame Cooling technology to keep performance stable during long sessions. It works best with 75W–300W RMS amplifiers, making it ideal for compact monoblock setups. Install it in a sealed 0.65 cu ft box for tight bass or a ported 1.125 cu ft enclosure for louder output, giving you flexible tuning for any car audio upgrade system.
JL Audio DMA Technology for Clean, Distortion-Free Deep Bass Output
Powered by JL Audio DMA (Dynamic Motor Analysis) technology, the 10W0v3-4 delivers precise, low-distortion bass with excellent control even at higher volume levels. It stabilizes motor force for consistent output, ensuring tight, accurate bass response for daily driving and SQ-focused systems. Ideal for users searching for a clean sounding JL Audio subwoofer without distortion or clipping issues.
JL Audio 10W3v3-4 vs 10W1v3-2 vs 10W1v3-4 vs 10W0v3-4 | Which 10" JL Audio Subwoofer Is Best?
| JL Audio 10" Subwoofer Performance Battle |
JL Audio 10W3v3-4
10" W3v3 Series Single 4-Ohm High-Performance Subwoofer
BEST OVERALL
- • 10" Subwoofer
- • 500 Watts RMS
- • 1000 Watts Peak
- • Single 4-Ohm Voice Coil
- • DMA Optimized Motor
- • Excellent Sound Quality
- • Highest Output Capability
- • Best for SQL Systems
|
JL Audio 10W1v3-2
10" W1v3 Series Single 2-Ohm Sound Quality Subwoofer
BEST VALUE SQL
- • 10" Subwoofer
- • 300 Watts RMS
- • Single 2-Ohm Voice Coil
- • Compact Enclosure Friendly
- • Excellent Sound Quality
- • Easy to Power
- • Strong Low-End Extension
- • Ideal for Mono Amps
|
JL Audio 10W1v3-4
10" W1v3 Series Single 4-Ohm Sound Quality Subwoofer
MOST FLEXIBLE
- • 10" Subwoofer
- • 300 Watts RMS
- • Single 4-Ohm Voice Coil
- • Excellent Sound Quality
- • Compact Box Compatible
- • Flexible System Matching
- • Tight & Accurate Bass
- • Great Daily Driver
|
JL Audio 10W0v3-4
10" W0v3 Series Single 4-Ohm Entry-Level Subwoofer
BUDGET PICK
- • 10" Subwoofer
- • 300 Watts RMS
- • Single 4-Ohm Voice Coil
- • Affordable JL Audio Option
- • Smooth Musical Bass
- • Easy Installation
- • Small Sealed Box Friendly
- • Great for Factory Upgrades
|
JL Audio 10W0v3-4 Recommended Amplifiers | Best Monoblock Amp Pairing for Clean Bass, Daily Power & Reliable Performance
JL Audio 10W0v3-4 Amplifier Matching Guide
Best Monoblock Amplifiers for Clean Power Delivery, Tight Bass Response & Long-Term Subwoofer Reliability
Amplifier Matching Overview
10W0v3-4 Power Rating: 300W RMS
Voice Coil Configuration: Single 4-Ohm
Ideal Amp Range: 200W – 350W RMS @ 4Ω
Goal: Clean bass output with tight control, low distortion, and long-term reliability
Best Setup: Compact monoblock amplifier with clean 4Ω output and proper gain tuning
Top Recommended Amplifiers for JL Audio 10W0v3-4
JL Audio JD500/1: Best overall match – delivers clean, controlled power with excellent efficiency (gain must be properly tuned to stay within 300W RMS range).
JL Audio RD500/1: Premium upgrade option – extremely clean output with high headroom for future system expansion and lower distortion at moderate gain.
Rockford Fosgate R2-500X1: Best budget-performance choice – strong daily power, stable output, and great value for entry-to-mid level builds.
Alpine S2-A60M: Best future-proof option – higher power headroom for expansion while running safely at lower gain for the 10W0v3-4.
Gain & Tuning Recommendations
Gain Setting: Set amplifier gain to match ~300W RMS output using test tones, multimeter method, or oscilloscope for distortion-free performance.
Low-Pass Filter (LPF): 70Hz – 90Hz for smooth blending with door speakers and midbass response.
Subsonic Filter: 20Hz – 25Hz (sealed box) | 25Hz – 30Hz (ported box) to protect the subwoofer from over-excursion.
Bass Boost: OFF recommended – only use minimal adjustment (+1 to +3 dB max if necessary).
Phase Adjustment: Tune for strongest bass at the driver seat for proper wave alignment.
EQ: Start flat and adjust slightly based on cabin response and personal listening preference.
Enclosure Matching Tips
Sealed Box: Best for tight, accurate bass with excellent transient response and sound quality focus.
Ported Box: Best for louder output, deeper bass extension, and higher efficiency at the cost of size and tuning sensitivity.
Power Recommendation: The 10W0v3-4 performs best with a clean 250W–300W RMS signal for daily use without strain.
Pro Tip: The JL Audio 10W0v3-4 is designed for clean, efficient bass rather than extreme SPL. A properly tuned 250–300W RMS monoblock amplifier will deliver louder, cleaner, and more reliable performance than oversized or clipped power setups.
Frequently Asked Questions (FAQ)
- • Why isn't my JL Audio 10W0v3-4 hitting as hard as I expected?
The most common cause is underpowered amplification or incorrect gain tuning. The 10W0v3-4 performs best with a clean 200–300W RMS signal and a properly designed enclosure. Distortion or weak output usually comes from clipping or poor setup, not the subwoofer itself.
- • Can I run the JL Audio 10W0v3-4 on a 500W amplifier?
Yes, but only if the gain is properly set. The sub is rated at 300W RMS, so a higher-powered amp is safe when tuned correctly. Without proper tuning, overpowering and clipping can damage the subwoofer.
- • Why does my JL Audio 10W0v3-4 sound weak in a sealed box?
A sealed enclosure prioritizes accuracy and tight bass over loud output. If you want more volume and low-end extension, a ported enclosure tuned around 28–32Hz will produce higher output.
- • Why does my JL Audio 10W0v3-4 distort at high volume?
Distortion is typically caused by amplifier clipping, excessive gain, or boosted EQ settings. The most effective fix is resetting gain using a test tone and keeping bass boost OFF or minimal.
- • What amplifier power is ideal for the JL Audio 10W0v3-4?
The ideal range is 200–300W RMS at 4Ω. This ensures clean headroom without stressing the subwoofer. Overpowering is not required for daily listening performance.
- • Why doesn't my JL Audio 10W0v3-4 play very low bass?
Low bass issues are often caused by incorrect subsonic filter settings, poor box tuning, or a leaky enclosure. A properly sealed box or correctly tuned ported box will significantly improve low-frequency response.
- • Is a single JL Audio 10W0v3-4 enough for daily bass?
Yes. A properly powered single 10W0v3-4 delivers strong, clean bass that is more than enough for most daily drivers. Many users only upgrade to dual subs for extreme SPL levels.
- • Why is my JL Audio 10W0v3-4 making popping or knocking sounds?
This is usually caused by over-excursion, clipped signal, or enclosure air leaks. Immediate inspection of gain settings, wiring polarity, and box sealing is recommended to prevent damage.
- • Does the JL Audio 10W0v3-4 need a break-in period?
Yes. A break-in period of 10–20 hours of moderate listening allows the suspension to loosen slightly, improving bass smoothness and overall response.
- • Is the JL Audio 10W0v3-4 worth upgrading from entry-level subs?
Yes. Compared to entry-level subwoofers, the 10W0v3-4 offers better power handling, deeper bass extension, and noticeably cleaner output when properly installed and tuned.
JL Audio 10W0v3-4 Videos & Reviews
← Swipe left or right to browse videos →
Learn How To Wire Subwoofers
- Diameter : 10 Inch
- Sensitivity : 84.07 dB
- Impedance : 4 Ohm
- Frequency Response : 25-250 Hz
- Peak Power Handling : 600 Watts
- Number of Voice Coils : Single
- Suggested Sealed Box Volume : 0.65 Cubic ft.
- Suggested Ported Box Volume : 1.125 Cubic ft.
- Mounting Depth : 4.90 Inches
- RMS Power Handling : 300 Watts
- Free Air : No
Features:
- Rugged Performance: Offers excellent excursion capability and linearity, ensuring top-tier performance in its price class.
- Beefy 2-Inch Voice Coil: Equipped with a 2-inch diameter voice coil for enhanced power handling and reliability.
- Elevated Frame Cooling: Designed for improved cooling to maintain performance during prolonged use.
- Amplifier Compatibility: Best used with amplifiers in the 75W - 300W range for optimal sound output.
- Enclosure Optimization: Optimized for a compact 0.65 cu. ft. (18.4 l) sealed enclosure or a 1.125 cu. ft. (31.9 l) ported enclosure.
Specifications:
- Size: 10-inch
- Impedance: 4 Ohms
- Cone Material: Polypropylene
- Surround Material: Foam
- Free-Air: No
- Dual Voice Coil: No
- Sensitivity: 84.07 dB at 1 watt
- Frequency Response: 25 - 250 Hz
- Max RMS Power Handling: 300 Watts
- Peak Power Handling: 600 Watts
- Top Mount Depth: 4 15/16 inches
- Cutout Diameter: 8 13/16 inches
- Frame Width: 10.526 inches
- Frame Length: 10.526 inches
- Vas: 31.01 liters
- Fs: 32.09 Hz
- Qts: 0.604
- Xmax: 11.4 millimeters
Box Requirements:
- Ideal Sealed Box Volume: 0.65 cubic feet
- Ideal Ported Box Volume: 1.125 cubic feet
- Minimum Ported Box Volume: 0.87 cubic feet
- Maximum Ported Box Volume: 1.35 cubic feet
- UPC: 699440921657
- Weight: 10
