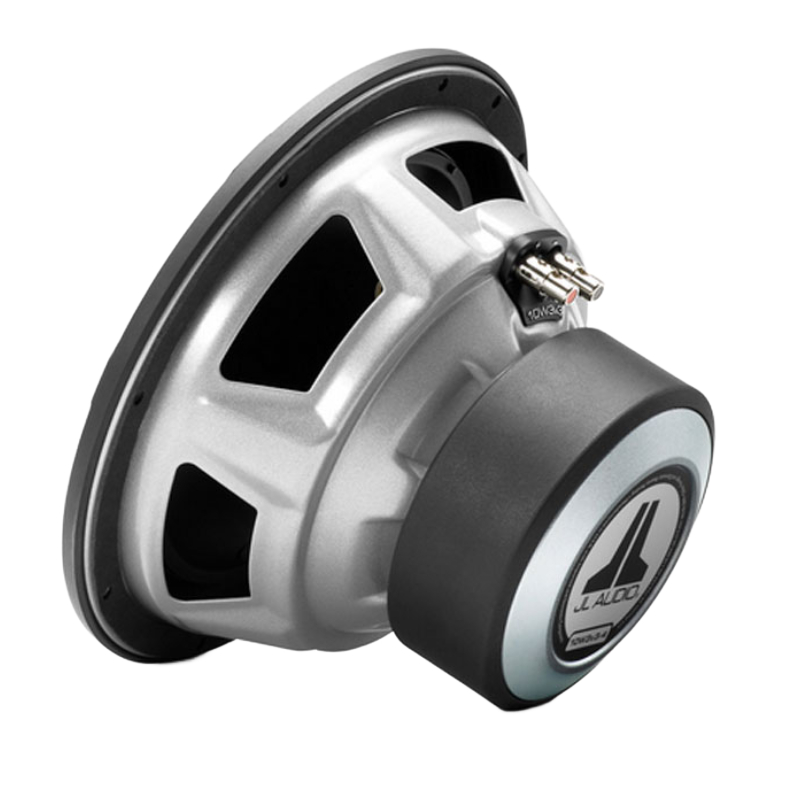

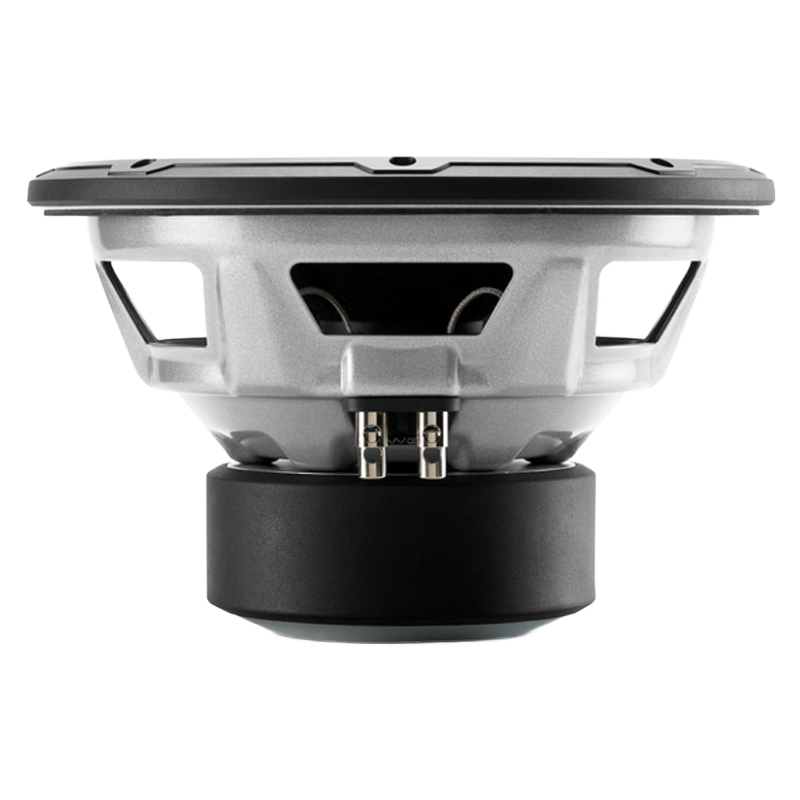

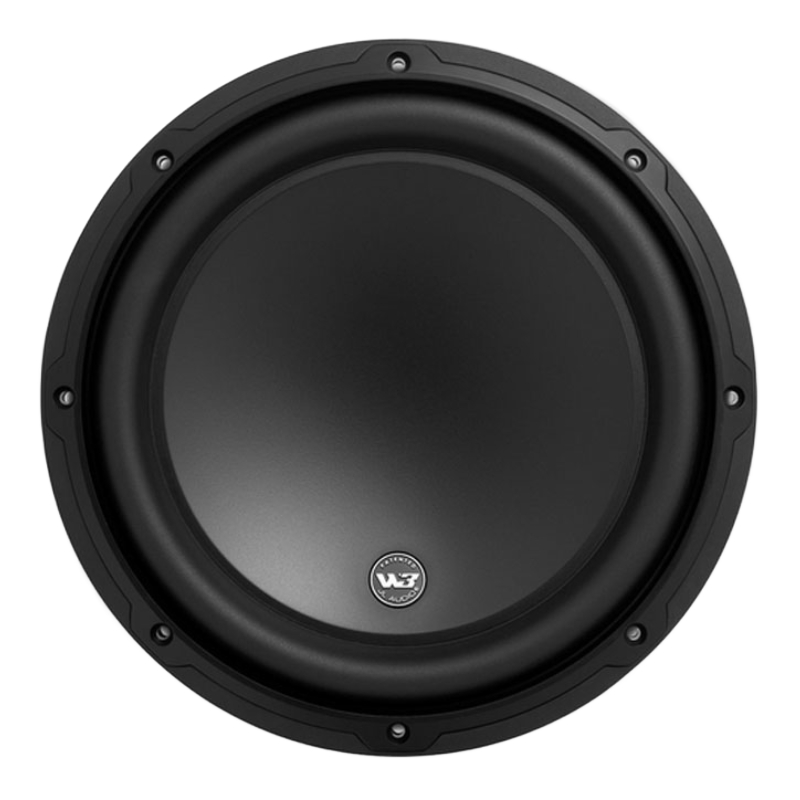

JL Audio 10W3v3-2 W3v3 Series 10" 500W RMS (1000W Peak Power Handling) Single 2 Ohms Voice Coil Subwoofer
We are a JL Audio authorized dealer so you get up-to-date, fully warrantied products. Shipping is free to the lower 48 states on everything you order!
•(1) 10" Subwoofer
•Black plastic trim ring
Efficient Thermal Management
A 10-inch subwoofer that is a perfect pair for an amplifier with a power output of 150 up to 500 Watts range, the JL Audio 10W3v3-2 is a highly touted product known for its power and accurate audio performance.
The subwoofer has a stamped steel basket with an elevated cooling frame design for efficient thermal management, allowing quick heat dissipation from extended use at higher volume levels and protecting the motor from getting damaged. Its DMA-optimized motor design allows the subwoofer to perform and produce a clean bass with minimal distortion.
Better Excursion Performance
Using the company's patented floating cone attached method, the bonding of the polypropylene cone and rubber surround assembly to the spider assembly results in the subwoofer's better excursion performance and ability to produce better bass. Its patented Vented Reinforcement Collar improves the stability of the voice coil/spider/cone junction and helps in better thermal performance.
Can Last a Very Long Time
The JL Audio 10W3v3-2 has a continuous power of 500 Watts and can go up to 1000 Watts peak power with an impedance of 2 ohms. With a frequency response of 25 up to 250 Hz and a sensitivity of 85.37 dB, you can say that this subwoofer can go hard with the deep bass, while it won't have any problems with volumes being cranked up at high levels.
Made in the USA using global components, you can trust that this subwoofer can last a very long time while giving you the audio quality you want in a car subwoofer.
Diameter : 10 Inch
Sensitivity : 85.37 dB
Impedance : 2 Ohm
Frequency Response : 25-250 Hz
Peak Power Handling : 1000 Watts
Top Mount Depth : 5-7/8 Inches
Shallow Mount : No
Number of Voice Coils : Single
Suggested Sealed Box Volume : 0.625 Cubic ft.
Suggested Ported Box Volume : 1.25 Cubic ft.
Mounting Depth : 5.93 Inches
RMS Power Handling : 500 Watts
10" 2-ohm subwoofer
Mineral-filled polypropylene cone with nitrile-butylene rubber surround
Vented Reinforcement Collar - reinforces the critical cone / spider / voice coil joint, resulting in superior mechanical integrity
DMA Optimized Motor System - Dynamic Motor Analysis system aimed at improving dynamic motor behavior
Elevated Frame Cooling - delivers cool air through slots directly above the top-plate to the voice coil of the speaker
Spider and Lead Wire Assembly - Nickel-plated brass push terminals combine with strain relief features to ensure solid contact and lead-wire reliability
Surround Stress-Relief - resulting in longer life and more consistent surround behavior
Floating Cone Attach Method (FCAM™) - ensure concentricity of the surround, spider and voice coil without torquing the suspension to achieve it
Customizable Trim Ring
Top-mount depth: 5-7/8"
Sealed box volume: 0.625 cubic feet
Ported box volume: 1.25 cubic feet
Priced per speaker
Size: 10 -inch
Impedance (Ohms): 2
Cone Material: Mineral-filled poly
Surround Material: Rubber
Port diameter (inches): N/A
Port length (inches): N/A
Dual Voice Coil: No
Sensitivity: 85.37 dB at 1 watt
Frequency Response: 25 - 250 Hz
Max RMS Power Handling: 500
Peak Power Handling (Watts): 1000
Top Mount Depth (inches): 5 7/8
Bottom Mount Depth (inches): N/A
Cutout Diameter or Length (inches): 8 15/16
Vas (liters): 32.17
Fs (Hz): 32.97
Xmax (millimeters): 14
