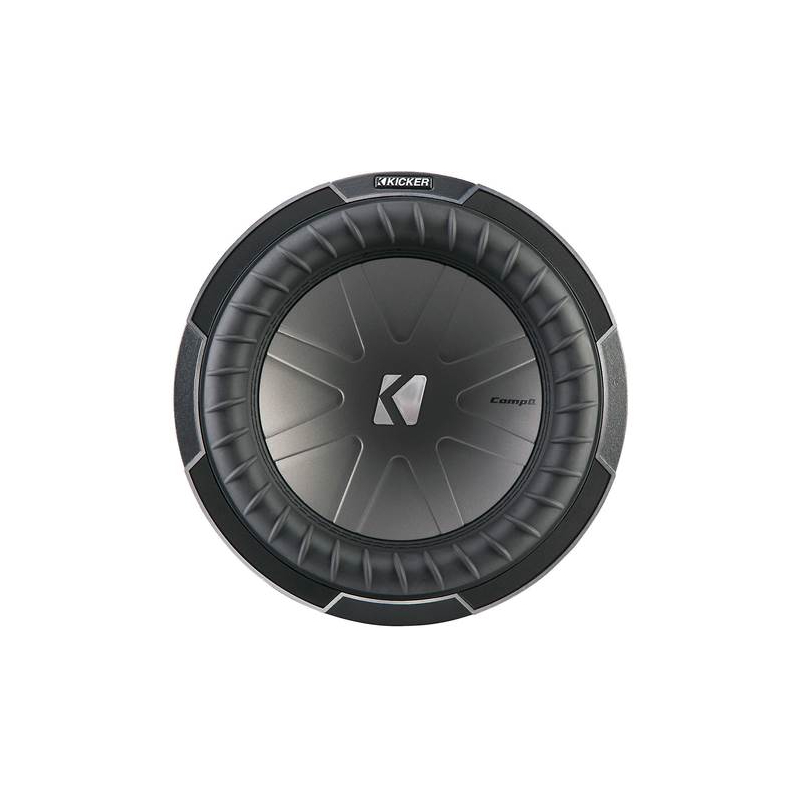

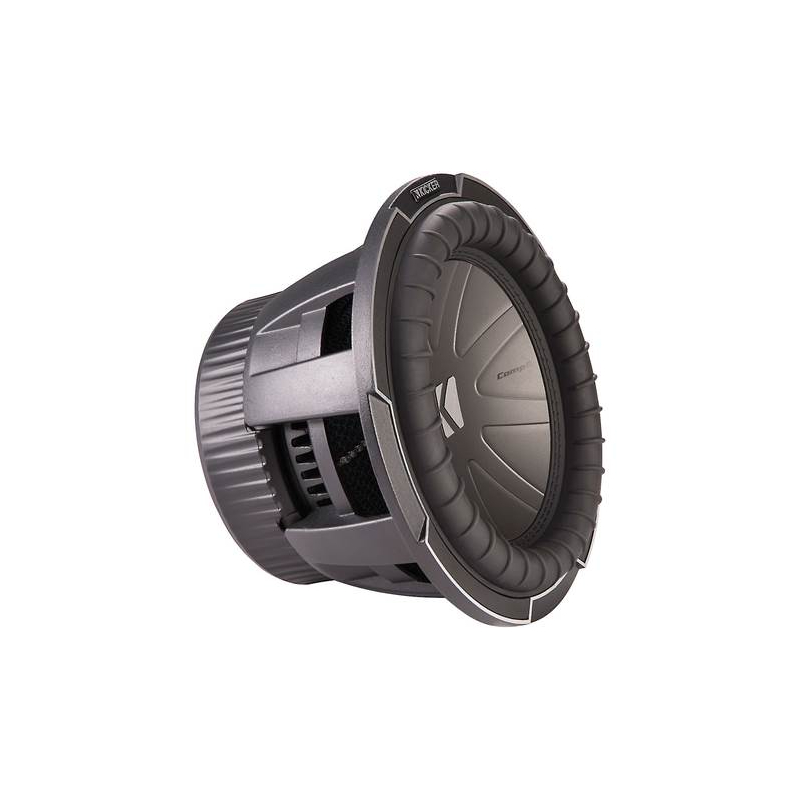

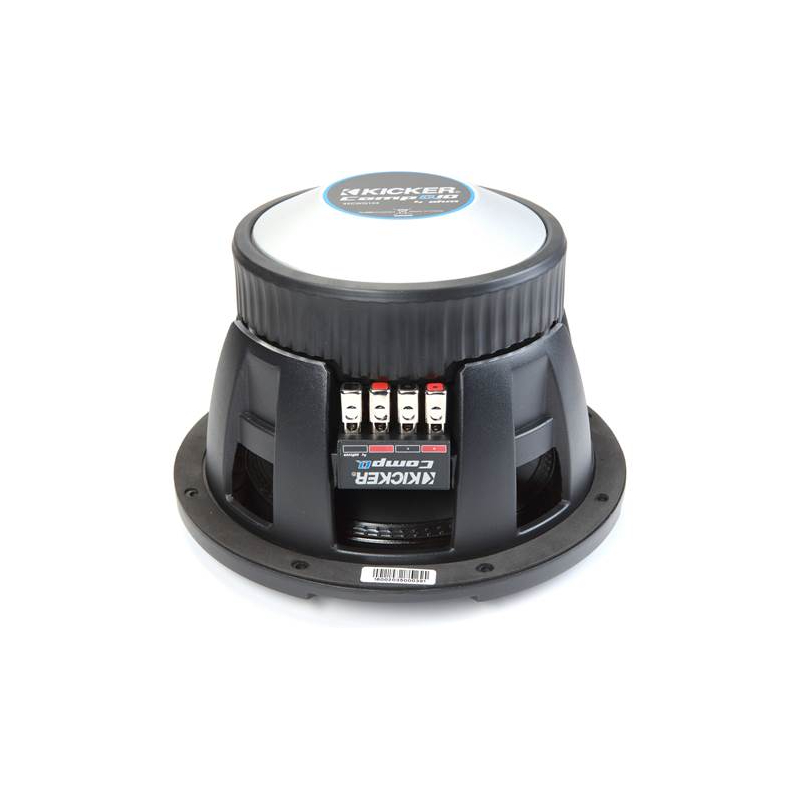

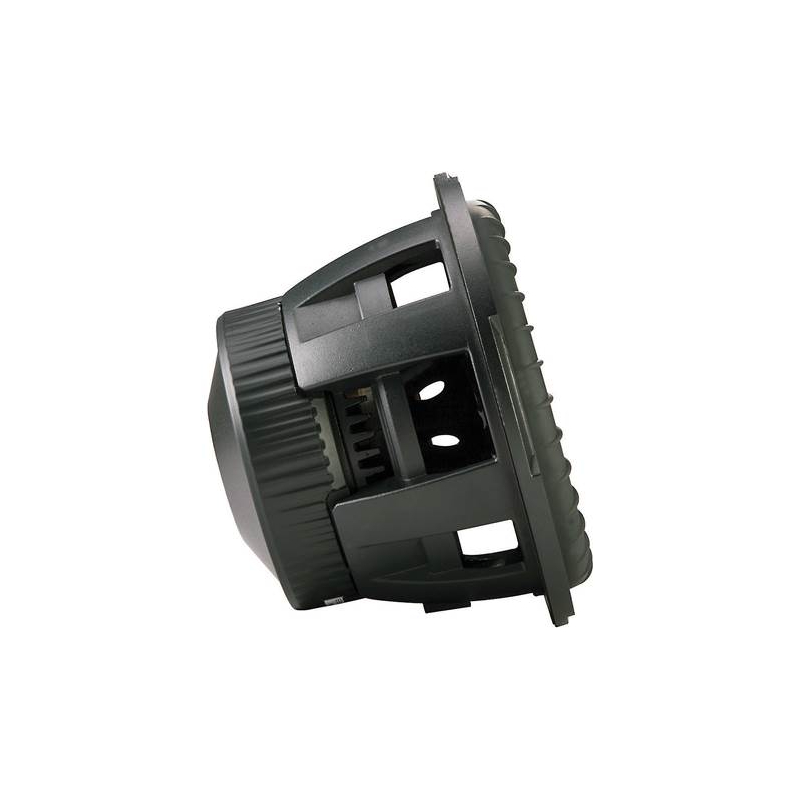

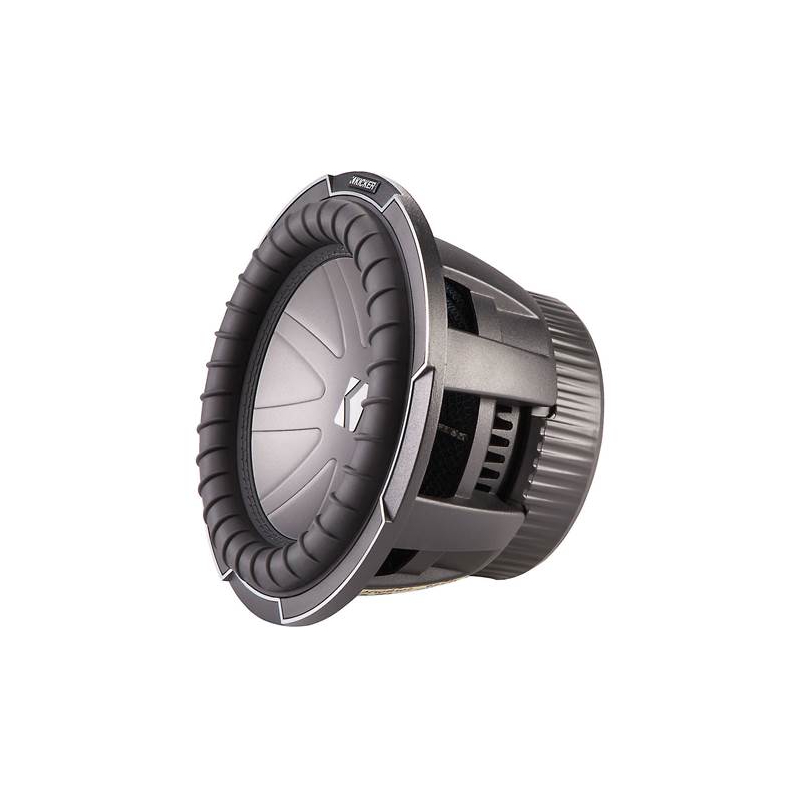

Kicker Q-Class 42CWQ104 CompQ Series 10" 700W RMS (1400W Peak Power Handling) Dual Subwoofer DVC 4 Ohm, RoHS Compliant
We are a Kicker Q-Class authorized dealer so you get up-to-date, fully warrantied products. Shipping is free to the lower 48 states on everything you order!
What's Inside?
- •One 10" Round dual 4-ohm voice coil woofer
- •Kicker logo
- •4 Hardware covers
- •Template
- •Owner's Manual
CompQ Series Subwoofer
If you are looking for a flagship subwoofer to replace your car's stock subwoofer, then the Kicker Q-Class 42CWQ104 is maybe the perfect option for you. Belonging to its Q-Class CompQ Series, this subwoofer can deliver a no-nonsense bass performance and can be easily installed on aftermarket enclosures.
SoloKon Cone and Santoprene Rubber Surround
This 10-inch subwoofer comes with the famous combination of Kicker's SoloKon cone and Santoprene rubber surround, ensuring an accurate low-frequency performance with minimal distortion while having the durability to withstand the rigors of long usage periods at high volume levels.
Cast Aluminum Basket
It has a cast aluminum basket that comes with perimeter venting to allow the subwoofer to stay cool even if you have to use it for many hours. Its voice coils allow the subwoofer to produce massive bass output with ease.
Power Output
The Kicker Q-Class 42CWQ104 can handle a power output of 700 Watts RMS and can reach up to 1,400 Watts of maximum power. Its frequency response of 24 up to 100 Hz and sensitivity rate of 85.7 dB allows the subwoofer to give a deep and highly extensive low-frequency performance while being able to go out loud with minimal distortion.
- Diameter : 10 Inch
- Sensitivity : 85.7 dB
- Impedance : 4 Ohm
- Frequency Response : 24-100 Hz
- Peak Power Handling : 1400 Watts
- Design : 1 Way
- Top Mount Depth : 6-3/8 Inches
- Shallow Mount : No
- Number of Voice Coils : Dual
- RMS Power Handling : 700 Watts
Specifications:
- Rated Impedance [Ω]: 4
- Fs [Hz]: 38
- Sensitivity [1W, 1m]: 85.7
- Qts: 0.437
- Qms: 8.916
- Qes: 0.46
- Re [Ω]: 6.52
- Vas [ft³, L]: .59, 16.75
- Continuous Power Handling [Watts RMS]: 700
- Outer Frame Dimension [in, cm]: 10-11/16, 27.2
- Mounting Depth [in, cm]: 6-3/8, 16.2
- Mounting Cutout [in, cm]: 9-3/16, 23.4
- Frequency Response [Hz]: 24 – 100
Sealed Enclosure Specs:
- Minimum Sealed Volume ft3 (L): .66 (18.7)
- Minimum Sealed Power Handling: 700 RMS
- Maximum Sealed Volume ft3 (L): 1.25 (35.4)
- Maximum Sealed Power Handling: 700 RMS
Panel Dimensions for Minimum Sealed Enclosures using 3/4” (1.9cm) thick MDF:
- Box Volume [ft³, L]: .66 (18.7)
- Panel A [in, cm]: 12x12, 30.5x30.5
- Panel B [in, cm]: 12x10.5, 30.5x26.7
- Panel C [in, cm]: 10.5x10.5, 26.7x26.7
Vented Minimum:
- Box Volume, ft³ (L) + port displacement: 1.25, 35.4
- Port Opening Size, in x in (cm x cm): 2.5x11.25, 6.4x29
- Port Length, in (cm): 19.75, 50
- Power Handling, RMS: 700
Vented Maximum:
- Box Volume, ft³ (L): 2.25, 63.7
- Port Opening, in x in (cm x cm): 3x11.25, 7.6x29
- Port Length, in (cm): 18, 46
- Power Handling, Watts RMS: 700
What's Included?
- UPC: 713034073567
- Weight: 32
- Authorized Internet Dealer
Warranty: 1 Year Manufacturer warranty.
This item is accompanied by a manufacturer's warranty. If it is found to be defective, it may be returned to OnlineCarstereo.com for replacement within 1 year from the original date of purchase with proper return authorization.
