Alpine  X-W10D4

X-Series 10" 2700W Peak Power Handling 4 Ohms Dual Voice Coil Mobile Subwoofer

Item #50262

Product Highlights

  • X-Series 10" Mobile Subwoofer
  • 2700W Peak Power Handling
  • Impedance: 4 Ohms
  • Dual Voice Coil

  Free 2-Years Warranty Included!
60 DAYS Returns Accepted.
FREE Lifetime Tech Support.
FREE Shipping (No Minimum).
60 DAYS Price change protection.
Sorry, this product is no longer available.
Checkout other products listed below

Huge Saving on Other items:



Huge Saving on Other items:


Alpine Banner for Onlinecarstereo

Alpine X-Series 10" Dual 4 Ohm Voice Coil Mobile Subwoofer

Alpine_iLX-407

We are an Alpine authorized dealer so you get up-to-date, fully warrantied products. Shipping is free to the lower 48 states on everything you order!

What's Inside?
  • • 10" Dual 4-ohm voice coil subwoofer

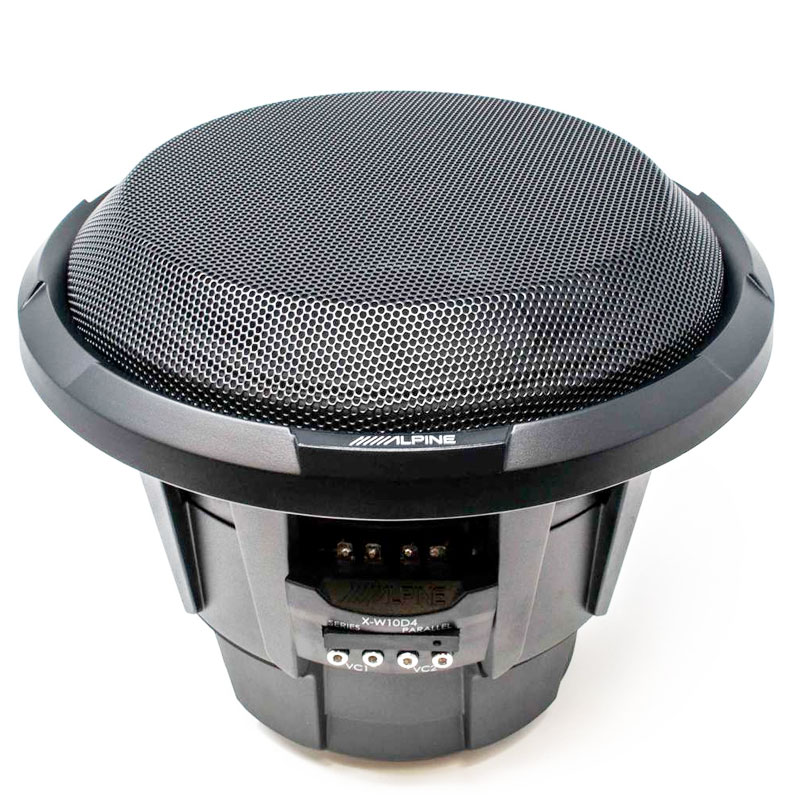

  • • Grille (installed)
  • • X-Series Subwoofer Application Guide (English/ French)
  • • On-line product registration information (English/ French/ Spanish)
  • • Warranty information (English/ French)
Alpine_X-W10D4
High-quality Components

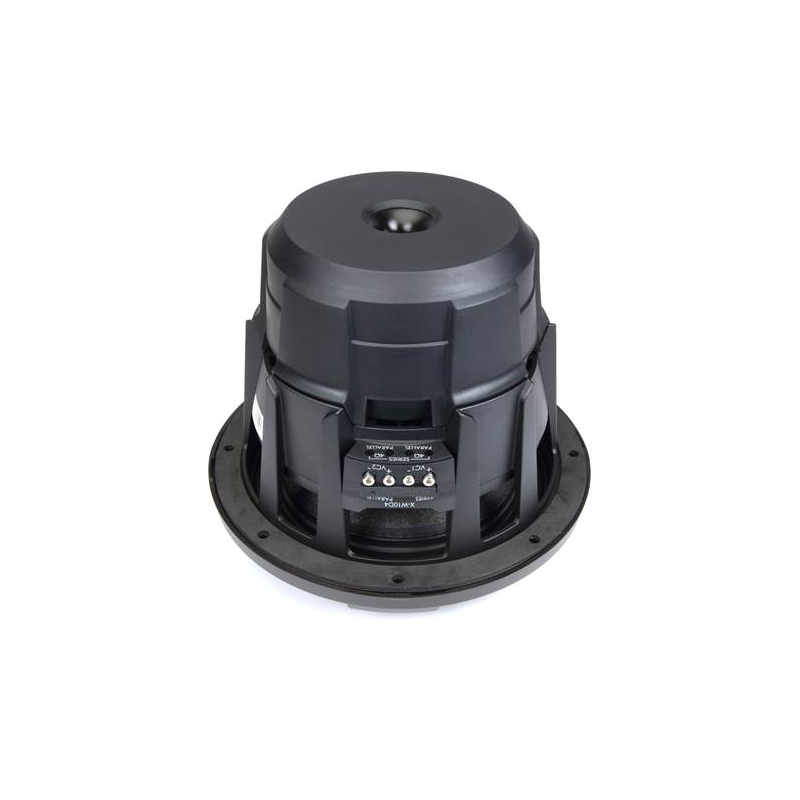

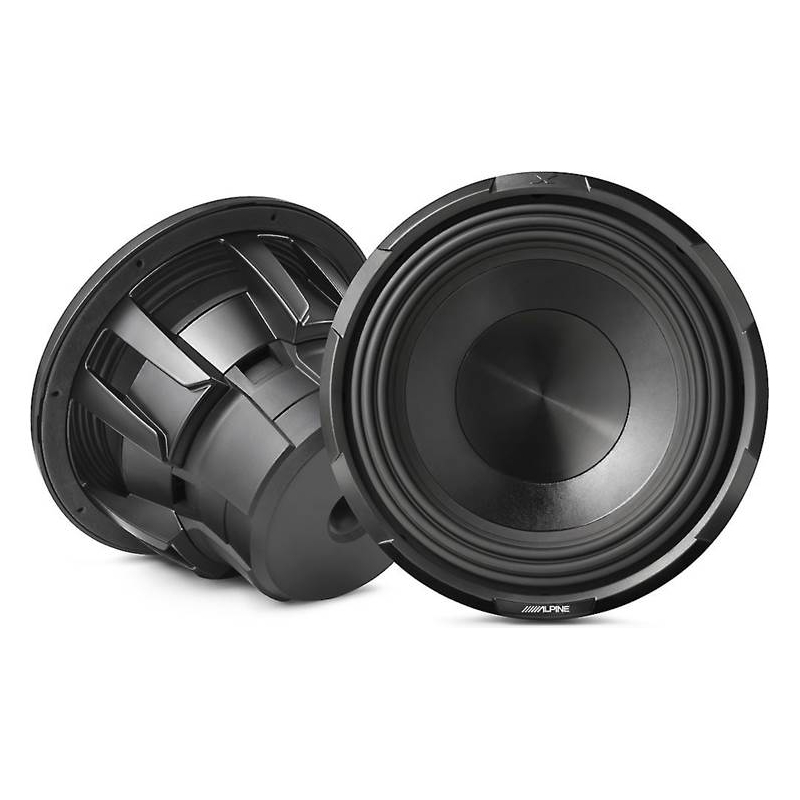

The Alpine X-W10D4 is a 10-inch dual 4-ohm voice coil subwoofer designed to deliver powerful and precise bass to your audio car system. Engineered with high-quality components and advanced technologies, this subwoofer is built to enhance your audio experience.

Cone Made of Pulp

The X-W10D4 features a cone made of pulp and mica that combines strength and lightness, resulting in accurate and responsive bass reproduction. With its R.M.S. power rating of 900 watts and peak power handling of 2700 watts, this subwoofer can handle high power levels and deliver deep, impactful bass.



Alpine_X-W10D4
Alpine_X-W10D4
Compatibility With Various Car Audio Systems

Equipped with dual 4-ohm voice coils, the X-W10D4 offers flexibility in wiring configurations, allowing you to match different amplifier setups. It provides options for impedance adjustments and compatibility with various car audio systems.

Incorporates Alpine's Patented

The subwoofer incorporates Alpine's patented H.A.M.R. (High Amplitude Multi-Roll) surround technology, allowing precise cone movement and minimizing distortion. This technology enables the subwoofer to reproduce low frequencies and perform optimally accurately. .



Alpine_X-W10D4
Alpine_X-W10D4
Sealed and Ported Enclosures

The X-W10D4 is designed to work well in both sealed and ported enclosures, allowing you to tailor the subwoofer's sound to your preferences and the vehicle's acoustics.


SPECIFICATIONS


  • Diameter : 10 Inch
  • Sensitivity : 83 dB
  • Impedance : 4 Ohm
  • Frequency Response : 24-200 Hz
  • Peak Power Handling : 2700 Watts
  • Shallow Mount : No Inch
  • Number of Voice Coils : Dual
  • Suggested Sealed Box Volume : 0.67 Cubic ft.
  • Suggested Ported Box Volume : 1.68 Cubic ft.
  • RMS Power Handling : 900 Watts

FEATURES


Features:

  • Dual Voice Coils: For system flexibility, the woofer has two 4? voice coils. When the voice coils are wired in parallel, the woofer presents a 2? load; when wired in series, the woofer presents an 8? load.
  • HAMR: The woofer features a High Amplitude Multi Roll (HAMR) Surround, made of rubber, that allows a large linear excursion and greater SPL. The HAMR design allows extreme excursions without sacrificing valuable cone area.
  • Dual Progressive Spider: The dual progressive spiders have integrated tinsel leads to ensure reliable and consistent control of the tinsel leads and eliminate any mechanical noise or interference often seen in high excursion cone designs.
  • Compound Radius Curve Pole Geometry: Alpine's Patented Compound Radius Curve pole geometry ensures a symmetrical magnetic field, while optimizing flux density to reduce distortion and further improve power handling and output.
  • Oversized Voice Coil: The oversized (65mm) dual voice coils are wound on an aluminum former.

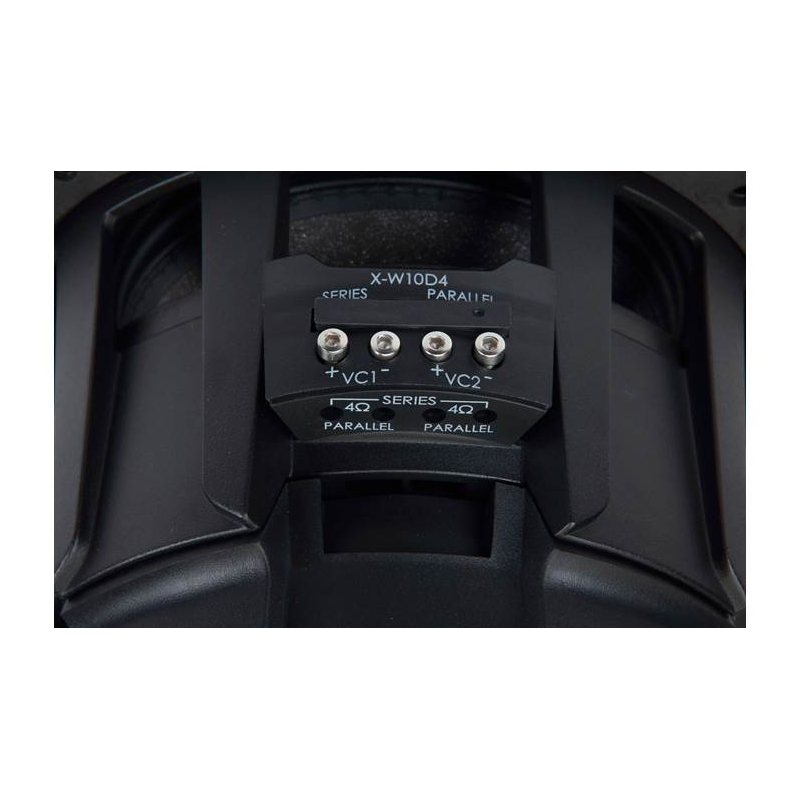

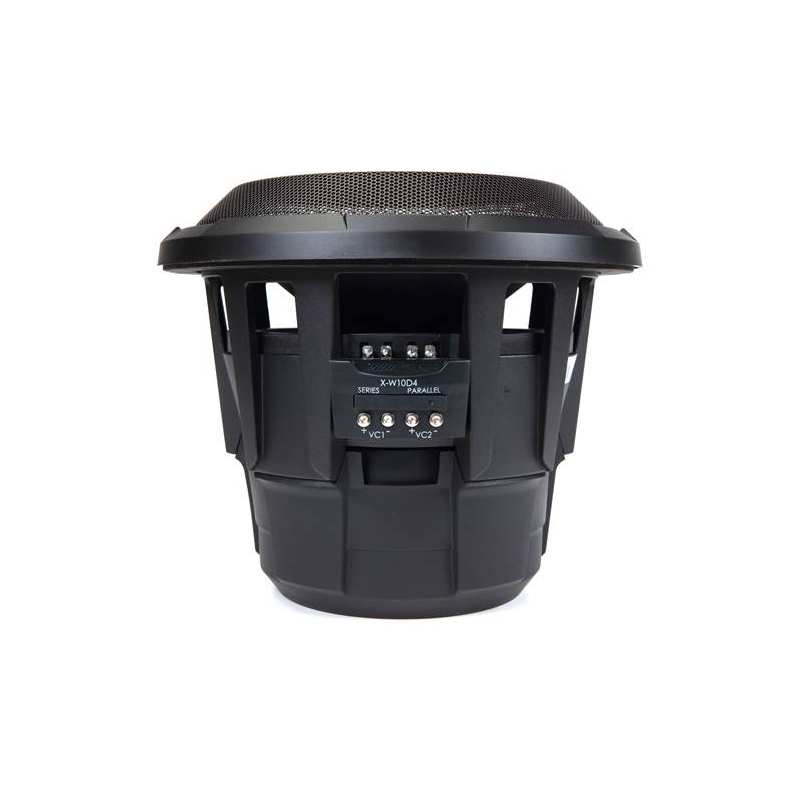

  • Terminals: The set screw terminals are all located on one side of the woofer. The terminals will accept bare wire up to 8 gauge.
  • Jumper Plug: A jumper plug on the terminal block allows you to easily wire the voice coils in parallel (for a 2? load) or series (for an 8? load).
  • Sealed Box Volume: The recommended sealed box volume ranges from 0.52 ft³ to 0.87 ft³, with 0.67 ft³ being the ideal size. (Most volumes in the manual are given as net, before accounting for the displacement of the subwoofer when installed.)
  • Ported Box Volume: The recommended ported box volume ranges from 1.18 ft³ to 2.08 ft³. The ideal size is 1.68 ft³, using a slot port measuring 3.75" (Width) x 4" (Height) x 18" (Length), resulting in a tuning frequency of 35 Hz. (Most volumes in the manual are given as net, before accounting for the displacement of the subwoofer and slot port.)



Specifications:

  • Size: 10”
  • Dimensions: 9.875” x 9.875” x 6.875”
  • Frequency Response: 26Hz - 200Hz
  • Power Range: 450W - 900W RMS
  • Power Handling: 900W RMS / 2700W Peak
  • Magnet Weight: 174 oz (x3)
  • Voice Coil Diameter: 65.5 mm (2.6”)
  • Sold Individually
  • UPC: 793276040497
  • Weight: 30.01
  • Authorized Internet Dealer
Warranty: 2 Year(s) Warranty.
This item is accompanied by a manufacturer's warranty. If it is found to be defective, it may be returned to OnlineCarstereo.com for repair within 1 year from the original date of purchase with proper return authorization.
