Pioneer TS-Z10LS4 Z Series 10" 1300W Peak Power Handling at 4 Ohms, Single Voice Coil Car Subwoofer
We are a Pioneer authorized dealer so you get up-to-date, fully warrantied products. Shipping is free to the lower 48 states on everything you order!
What's Inside?

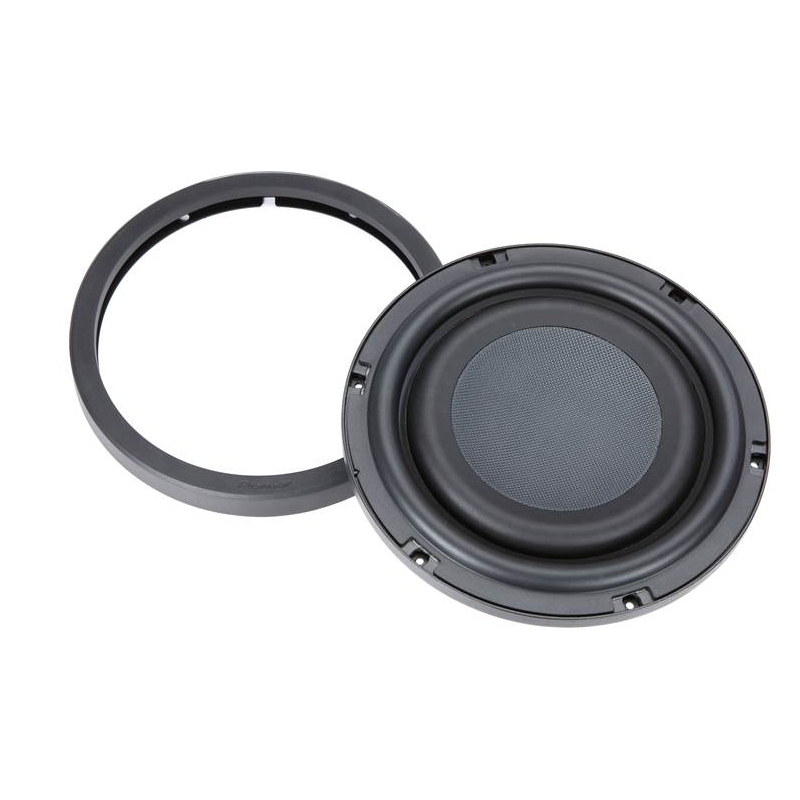

- • (1) 10" Shallow mount subwoofer
- • (6) 1-1/8" Self-tapping screws
- • Rubber gasket (installed)
- • Warranty information
- • Owner's Manual
Why Choose Pioneer TS-Z10LS4 Component Car Subwoofer?
Enhancing Your Car Audio System
When it comes to enhancing your car audio system, the Pioneer TS-Z10LS4 subwoofer is a true game-changer. Designed with precision engineering and advanced technology, this subwoofer delivers powerful and immersive bass that will elevate your in-car audio experience to new heights.
Superior Durability and Enhanced Sound Reproduction

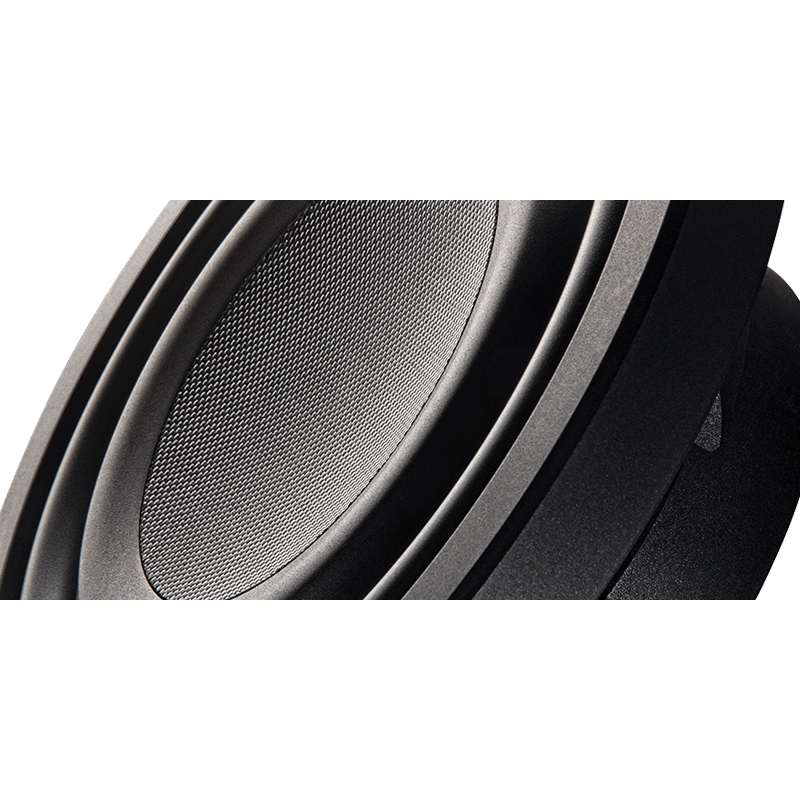

The Pioneer TS-Z10LS4 boasts a 10-inch oversized cone constructed with a rigid yet lightweight material for superior durability and enhanced sound reproduction. Its dual-layered cone of cellulose and Aramid fiber ensures accurate and tight bass response, making every beat and thump resonate with exceptional clarity.
Peak Power Handling Capacity
With a powerful 1,300-watt peak power handling capacity, the TS-Z10LS4 can deliver thunderous bass, filling your vehicle with deep, impactful low frequencies. Its dual 4-ohm voice coil configuration provides flexibility in wiring options, allowing you to optimize the subwoofer's performance according to your specific setup.
Frequently Asked Questions (FAQ)
- • Why isn't my subwoofer producing much bass after installation?
Weak bass is commonly caused by an enclosure that doesn't match the recommended specifications or incorrect amplifier settings. Double-check the enclosure volume, crossover, and gain adjustments for optimal performance.
- • Can I install this in a sealed enclosure?
Yes. It is designed to perform in a properly sized sealed enclosure, but always follow the recommended enclosure specifications for the best sound quality.
- • Why does the bass sound distorted even at moderate volume?
Distortion is usually caused by amplifier clipping, excessive gain, or an improperly tuned crossover. Reducing the gain and matching the amplifier's output to the subwoofer can improve sound quality.
- • Why does the subwoofer make a popping noise during heavy bass notes?
Popping sounds may indicate amplifier clipping or the speaker reaching its mechanical limits. Lower the volume immediately and inspect the amplifier settings to prevent damage.
- • Can I use this with my factory radio?
Yes, but you'll typically need an external amplifier and a line output converter if the factory radio doesn't provide RCA outputs. This ensures the subwoofer receives adequate power and signal.
- • Why does my amplifier keep entering protection mode?
Protection mode is commonly caused by incorrect speaker impedance, wiring faults, or overheating. Verify the wiring configuration and ensure the amplifier is compatible with the connected load.
- • Why does the subwoofer become hot after extended listening?
Some heat is normal during operation, especially when playing at higher power levels. Excessive heat may indicate overpowering, poor enclosure ventilation, or incorrect amplifier settings.
- • Why does the bass almost disappear when I close my trunk?
Vehicle acoustics and enclosure placement can greatly affect low-frequency output. Experimenting with enclosure orientation and phase settings can often improve bass response.
- • Can I wire multiple subwoofers to the same amplifier?
Yes, as long as the combined impedance stays within the amplifier's supported operating range. Always calculate the final impedance before connecting multiple subwoofers.
- • How can I get deeper bass without sacrificing sound quality?
Use the recommended enclosure, set the gain correctly, and fine-tune the low-pass crossover instead of relying on heavy bass boost. Proper system tuning delivers stronger, cleaner bass with less distortion.
- Diameter : 10 Inch
- Sensitivity : 81 dB
- Impedance : 4 Ohm
- Frequency Response : 20-3800 Hz
- Peak Power Handling : 1300 Watts
- Shallow Mount : Yes Inch
- Number of Voice Coils : Single
- Suggested Sealed Box Volume : 0.6 Cubic ft.
- Suggested Ported Box Volume : 0.6 Cubic ft.
- RMS Power Handling : 400 Watts
- Free Air : Yes
Features:
- Twaron® Aramid Fiber + Cellulose Fiber Dual Layer Cone Construction
- Extended Voice Coil, Dual Spider Design for Increased Linearity and High Excursion
- Shallow Basket, Small Enclosure Design for Sound Optimization and Installation Flexibility
- Designed for Hi-Res Audio
Specifications:
KEY FEATURES
- System Type: Component Subwoofer
- Sensitivity (1W/1m): 76 dB
- Frequency Range: 20 Hz to 3.8 kHz
- Hi-Res Certified: Yes
- CTA-2031 Compliant: Yes
- Warranty: 1 Year
- Continuous Power handling (RMS): 400 Watts
- Maximum Peak Power Handling: 1300 Watts
- Nominal Impedance: 4 Ohms
BUILD
- Shape: Round
- Size: 10" oversized
- Cone Material: IMPP - Composite
- Drive Cone Material: Twaron Aramid Fiber
- Surround Material: Rubber
- Surround Type: Rolled

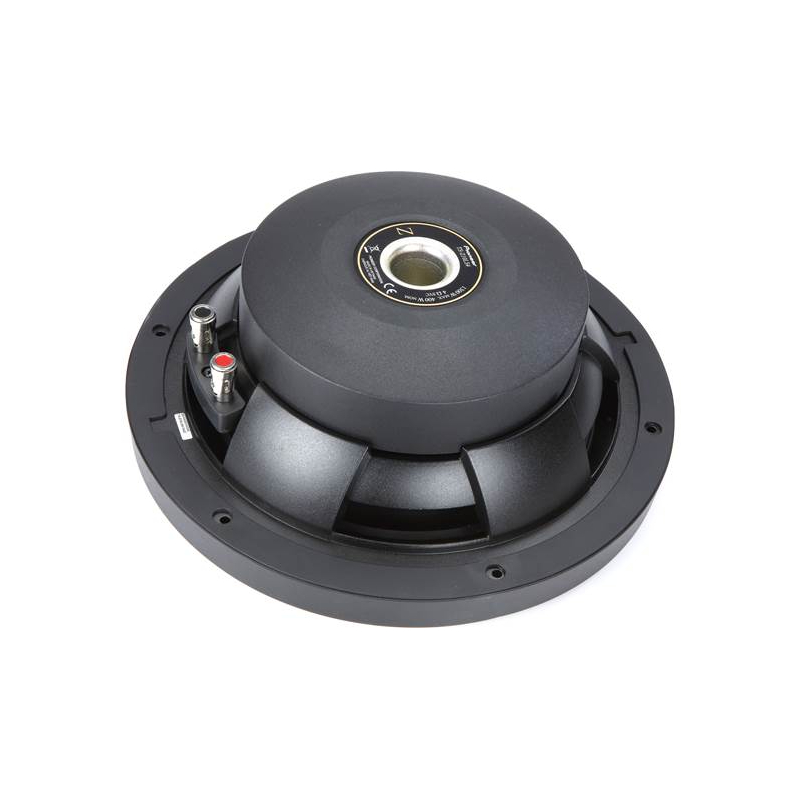

- Basket Material: Die Cast Aluminum
- Magnet Material: Ferrite
- Magnet Weight: 70.2 oz
- Voice Coil Type: Single Voice
- Voice Coil Bobbin: Glass imide
- Voice Coil wire: Copper
- Damper: Poly cotton
- Gasket: Rubber

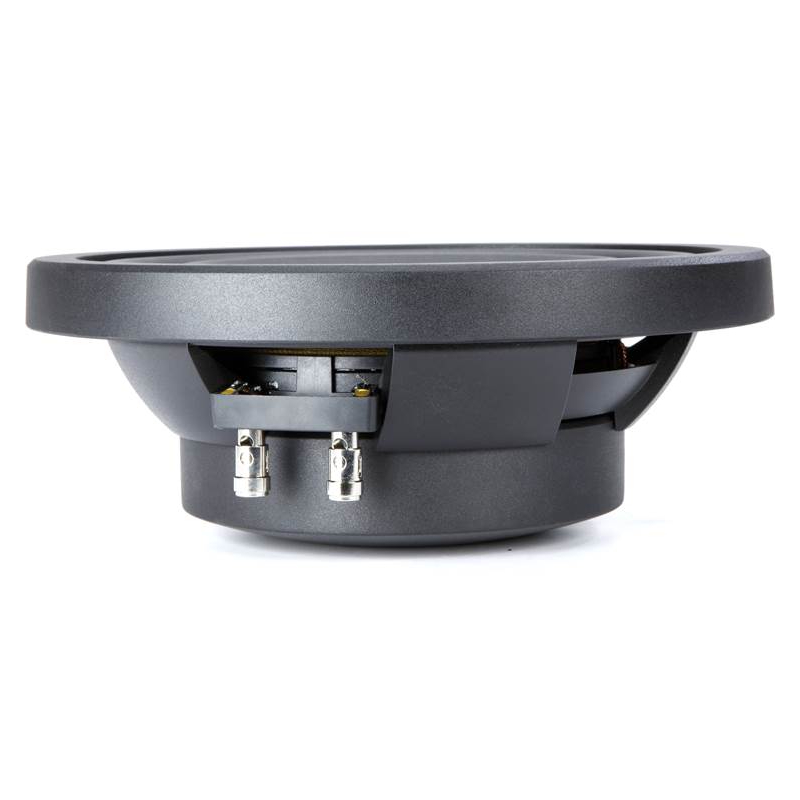

- Wire Terminals: Push Type
- Unit Size (Dimensions): 11-1/8"
- Mounting Depth: 3-1/4"
- Cut Out dimensions: 9-1/8"
- Equivalent Compliance (VAS) [L]: 23.7
- Free Air Resonance (Fs) [Hz]: 35
- Total Speaker "Q" (Qts): 0.52
- Linear Excursion (Xmax) [mm]: 9.5
- Recommended Sealed Box Volume [L]: 17
- Port Box volume [L]: 17
- Port Length: 7-1/2"
- Port Diameter: 3"
- UPC: 884938374576
- Weight: 14
