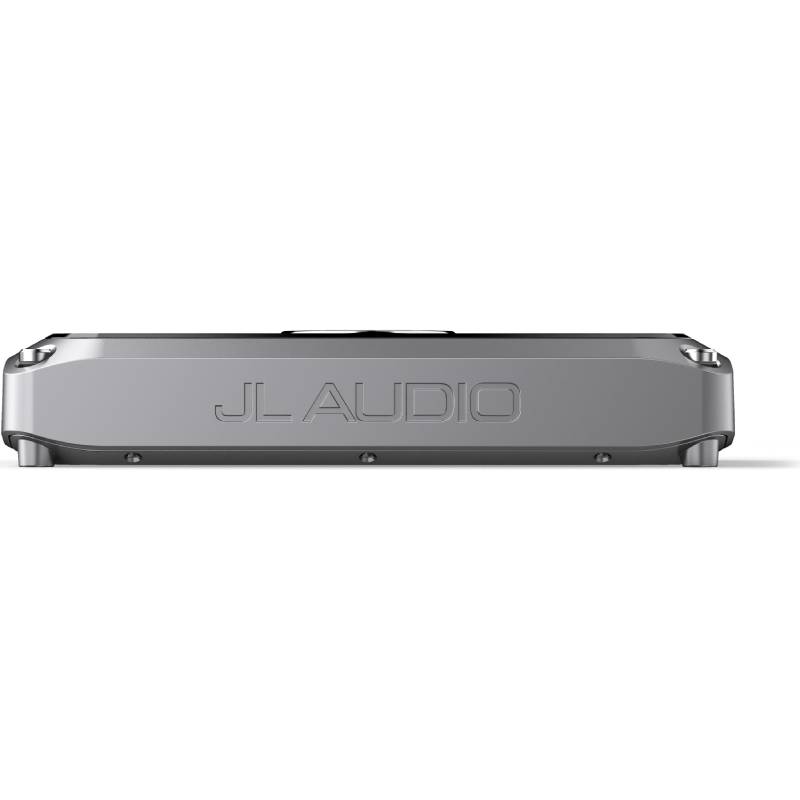

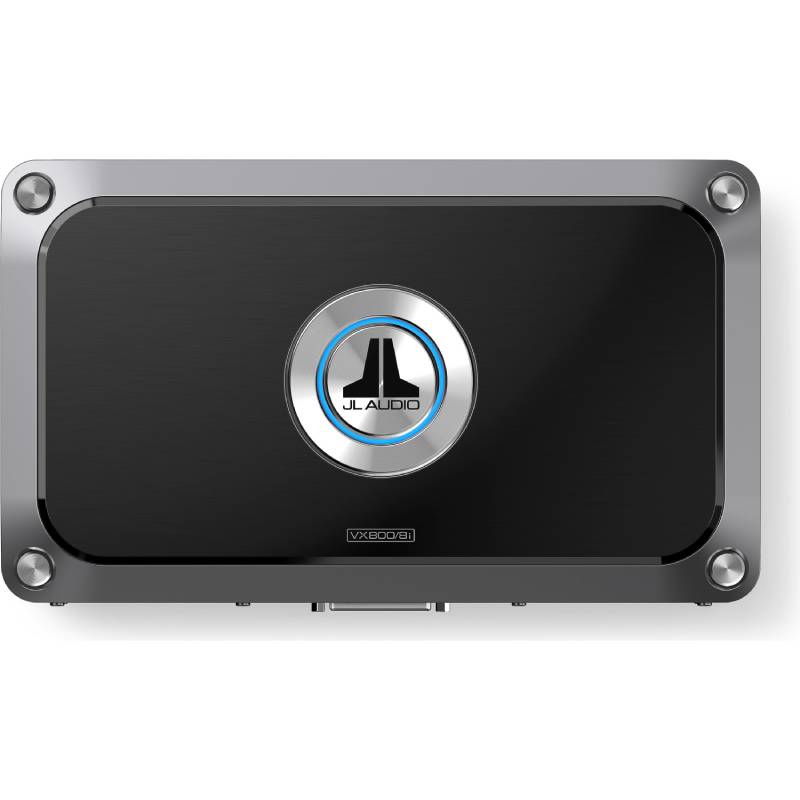

JL Audio VX800/8i VXi Series 8-Channel 100W RMS x 8 at 2 Ohm, Class-D Full Range Car Amplifier with NexD2 Switching Technology and Built-In Digital Signal Processing Output
We are a JL Audio authorized dealer so you get up-to-date, fully warrantied products. Shipping is free to the lower 48 states on everything you order!
What's Inside?
- • 8-Channel Class-D Full Range Car Amplifier
- • Power connector
- • Analog input harness
- • Speaker output harness
- • 6-foot USB A/B cable
- • Four corner caps
- • Corner cap tool
- • 2.5 mm Allen wrench
- • 3 mm Allen wrench
- • Owner's Manual
Digital Sound Revolution!
Experience top-tier fidelity and ultra-low distortion powered by our ADVANCED CLASS-D AMPLIFIER DESIGN, featuring innovative high-speed switching that perfectly synchronizes power and output channels, while the comprehensive ONBOARD TUNING POWER gives you a complete package of DSP functions—including equalization, delay, and mixing—all adjusted seamlessly and precisely through JL Audio's free üN® Software, eliminating the need for any physical knobs and switches!
Uninterrupted and Noise-Free Audio
Enjoy a perfectly clean audio signal because the versatile design can ELIMINATE AUDIBLE NOISES by accepting speaker-level signals without needing a line-output converter and offering exceptional noise rejection to prevent alternator whine; meanwhile, our ADVANCED ROLLBACK PROTECTION ensures the music never stops by monitoring thermal conditions and automatically adjusting amplifier operation to prevent shutdowns, all while giving you full control to custom-tune routing, EQ, and output levels through the FULLY CONFIGURABLE OUTPUT CHANNEL via the intuitive TüN® software interface!
Digital Power and Pure Sound
Unlock audio perfection with NexD2 SWITCHING TECHNOLOGY for significantly enhanced fidelity and efficiency, all controlled seamlessly via the proprietary JLid™ PROTOCOL COMMAND. Enjoy sound optimized by powerful DSP INSIDE and keep it crystal-clear with DIFFERENTIAL-BALANCED INPUTS that actively combat cable noise.
- Number of Channels : 8
- Frequency Response : 12-24000 Hz
- Built In Crossovers : Yes
- RMS Power Output : 8x100 Watts
- Amplifier Class : D
- Fuse Rating : 80 A
- Promo : Yes
- Built In DSP : Yes
Features:
- Noise-Free Signal: Differential-balanced inputs eliminate noise from your vehicle's electrical system, including alternator whine and other unwanted sounds.
- Versatile Inputs: Preamp and speaker-level inputs (speaker wire to RCA adapter required for speaker-level input) allow flexible connectivity.
- High-Level Input Capacity: Handles up to 16 volts RMS (about 60 watts) for robust signal handling.
- Smart Auto Turn-On: DC offset or signal sensing eliminates the need for a remote lead.
- Digital Connectivity: 2-channel digital input and output (S/PDIF: up to 24-bit 192 kHz in, 24-bit 96 kHz out).
- Analog Output: 2-channel analog preamp output (4V RMS).
- JLid™ Expansion: Connections available for optional Network Hub, Bluetooth Communicator, and Digital Remote Control.
- USB Control: USB connection for devices running the TüN® app (6-foot cable included).
- Onboard Tuning Power: Full suite of DSP tools including equalization, delay, crossover routing, mixing, and more for precise audio customization.
- Advanced Class-D Amplifier Design: High-speed switching synchronizes power supply and output stages for exceptional fidelity with ultra-low noise and distortion.
- No Knobs or Switches: Entire setup and tuning is performed via TüN® software on computers or most handheld devices.
- Eliminate Audible Noises: Accepts speaker-level signals without a LOC and provides superior noise rejection.
- Advanced Rollback Protection: Proprietary thermal-monitoring system adjusts operation to prevent shutdowns and ensure continuous playback.
- Fully Configurable Output Channels: TüN® software allows complete control over signal routing, EQ, output levels, and DRC functionality.
- Hardware Note: Wiring, fuse, and other hardware are not included.
- Recommended Power Setup: 4-gauge power and ground leads with a 80-amp fuse recommended.
Digital Signal Processing:
- High-Resolution Audio Processing: 24-bit / 96 kHz digital audio processing
- Smart App-Based Tuning: DSP adjustments and settings via JL Audio’s TüN™ app (PC & Mac) using USB or Bluetooth with optional BTC module
- Multi-Level Tuning Control: Three project tuning levels: Basic, Advanced, and Expert
- Flexible Signal Management: Input routing and signal mixing
- Clean, Clipping-Free Setup: Adjustable gain controls with clip indication
- Fully Custom Crossovers: Adjustable high-pass, low-pass, and band-pass filters
- Precision Filter Slopes: Selectable slopes: 6, 12, 18, 24, 30, 36, 42, or 48 dB/octave
- Advanced Equalization: 10-band EQ with graphic control in Basic mode and parametric control in Advanced and Expert modes
- Total Phase Control: Phase and polarity adjustment
- Pinpoint Time Alignment: Time alignment adjustable in 0.01 ms (1/8") increments
TUN Desktop App:
Specifications:
- RMS Power Output:75x8
- Peak Power Output:N/A
- Power at 2 Ohms:100x8
- Power at 1 Ohm:---
- Bridged Power:200x4
- Minimum Impedance Bridged:4
- Minimum Impedance Unbridged:2
- Frequency Response:12-24kHz
- THD at Rated RMS Power:1%
- Signal to Noise Ratio:80dB
- Input Voltage:14.4V
- Amplifier Class:D
- Built-in DSP:Yes
- Remote Control:Via TüN software
- Low-Pass Crossover:Via TüN software
- Low-Pass Slope:Via TüN software
- High-Pass Crossover:Via TüN software
- High-Pass Slope:Via TüN software
- Bass Boost:No
- Bass Boost Frequency:N/A
- Fan Cooled:No
- Fuse Rating:80
- Speaker Level Inputs:Yes
- Preamp Outputs:2
- Width:11-5/16in
- Height:2-1/8in
- Depth:6-3/4in
- UPC: 699440986335
- Weight: 10
- Authorized Internet Dealer
Warranty: 2 Year(s) Warranty.
This item is accompanied by a manufacturer's warranty. If it is found to be defective, it may be returned to OnlineCarstereo.com for repair within 1 year from the original date of purchase with proper return authorization.
