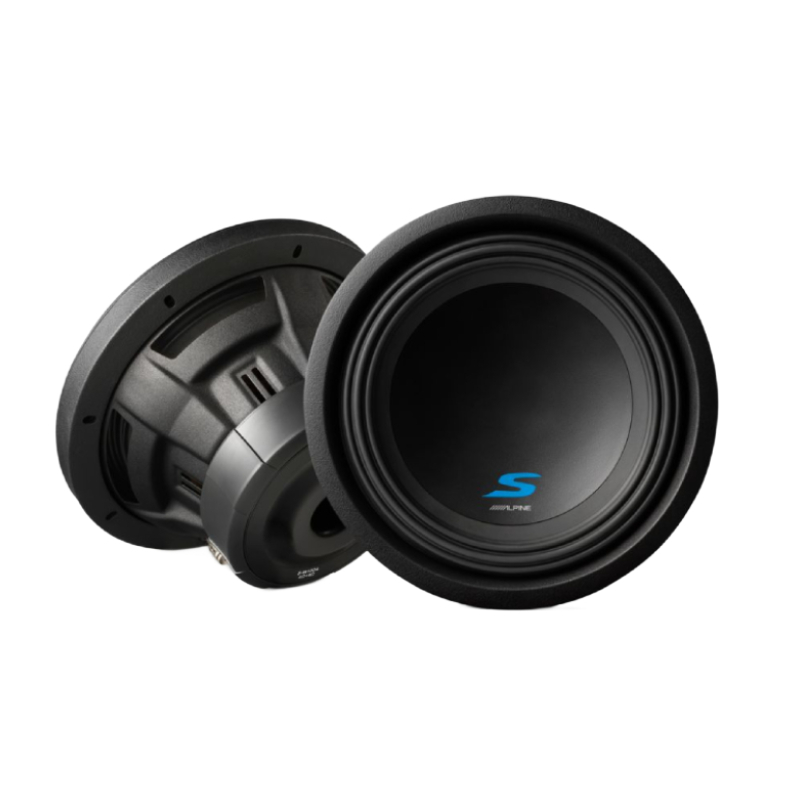

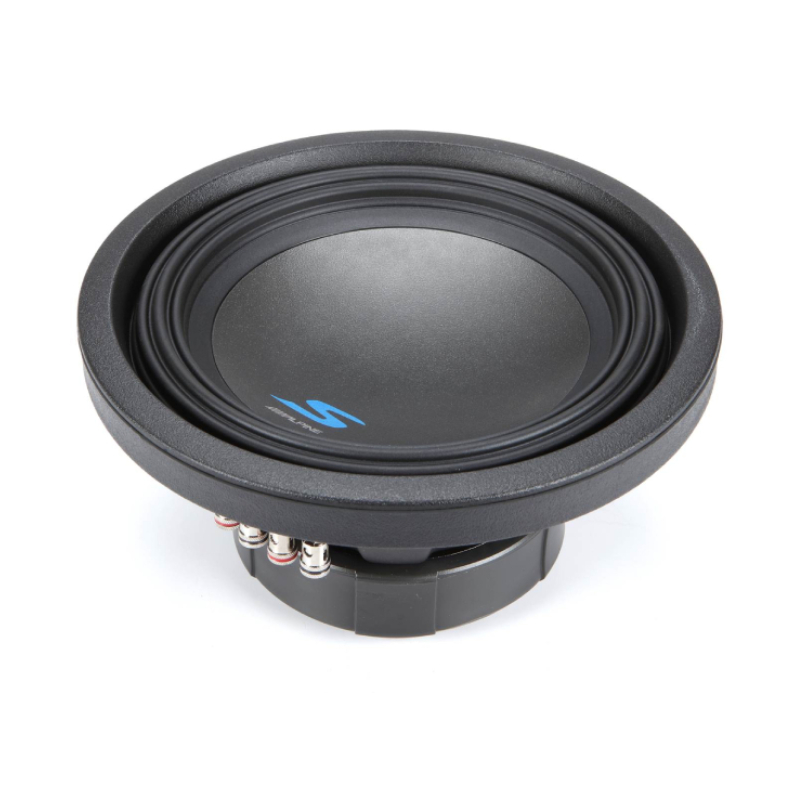

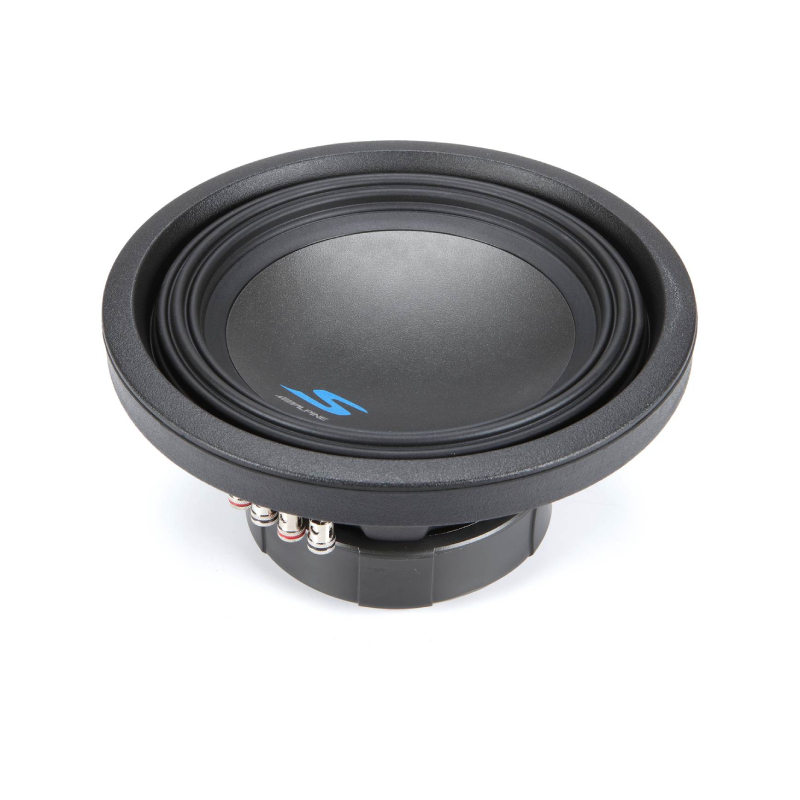

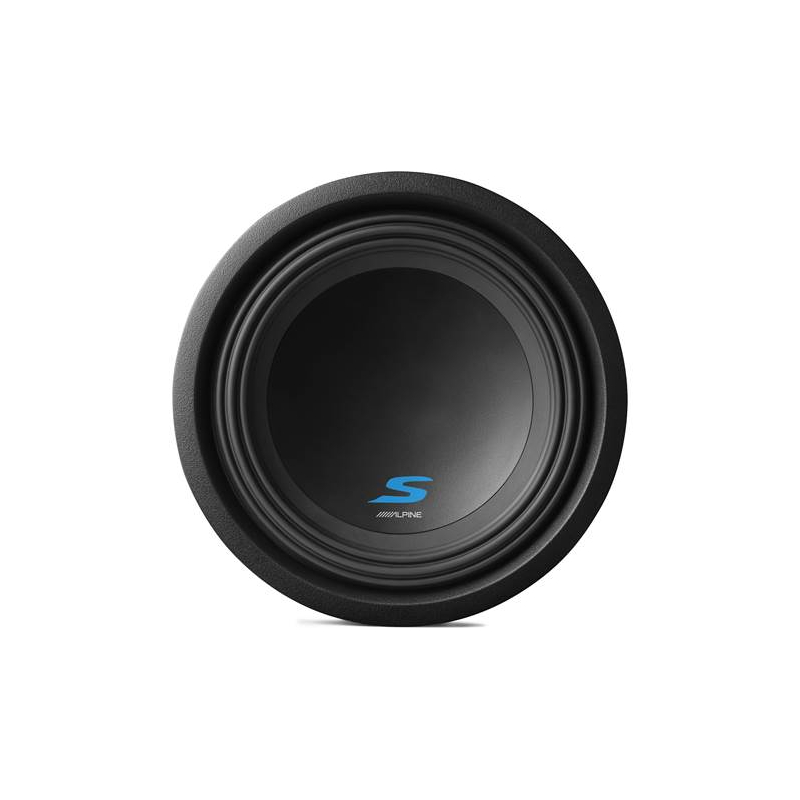

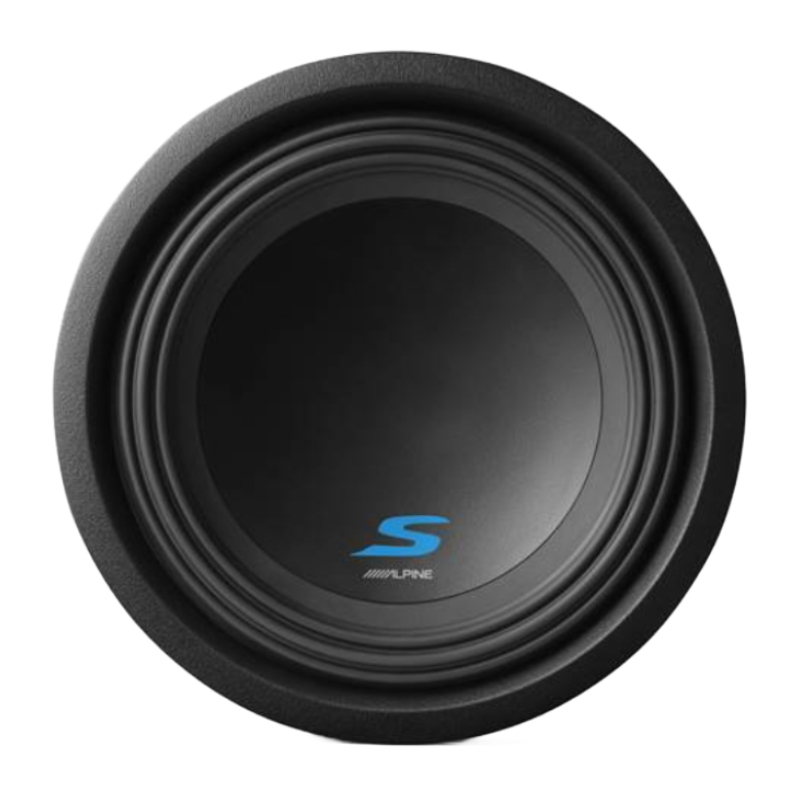

Alpine S-Series 10" Dual 4 Ohm Voice Coil Car Subwoofer
We are an Alpine authorized dealer so you get up-to-date, fully warrantied products. Shipping is free to the lower 48 states on everything you order!
• (1) 10" Dual 4-ohm voice coil subwoofer

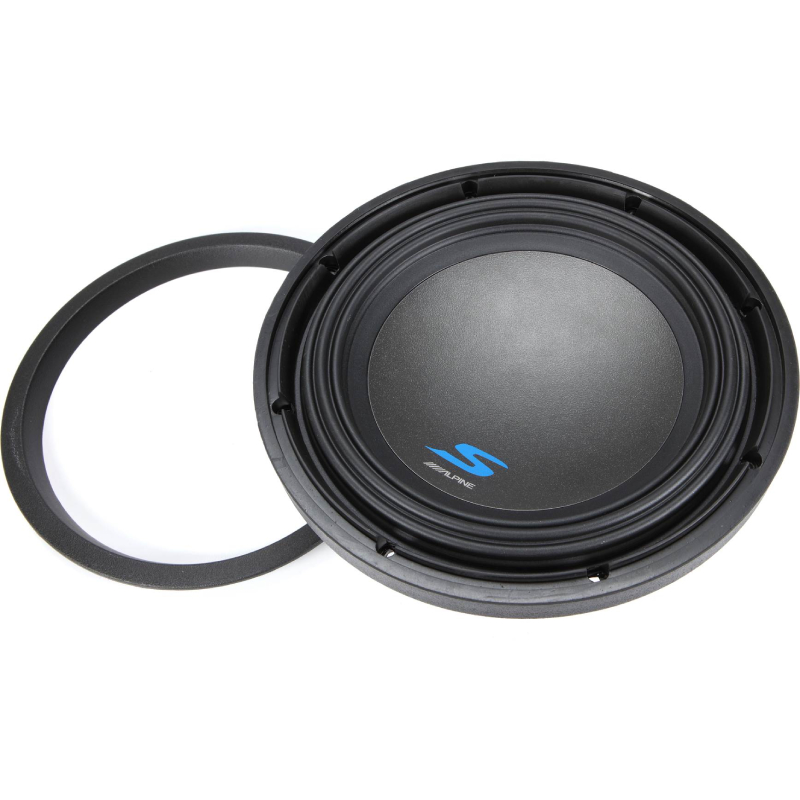

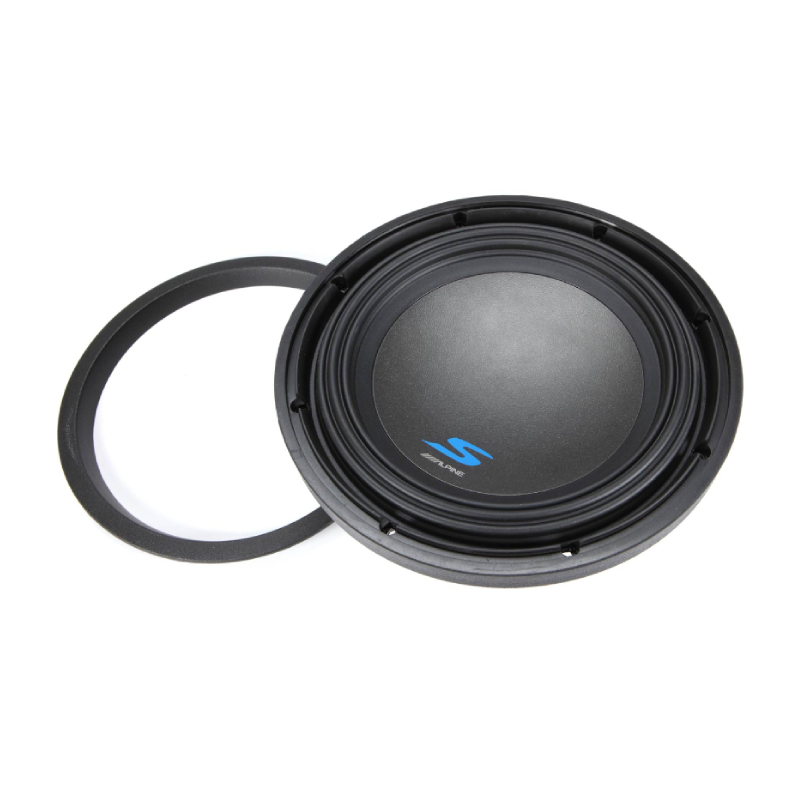

• (1) Rubber concealing ring (installed)

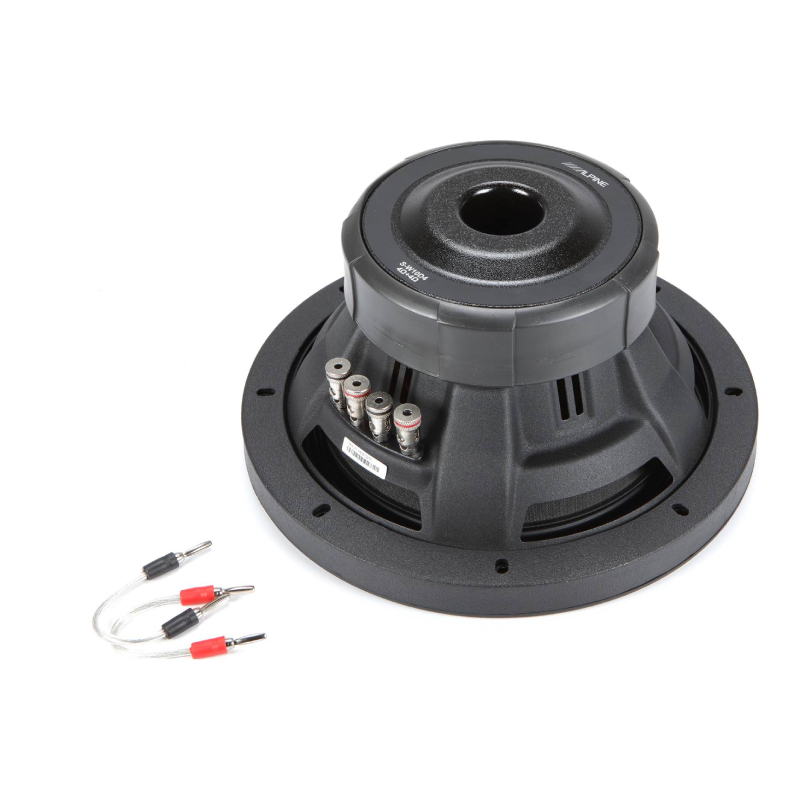

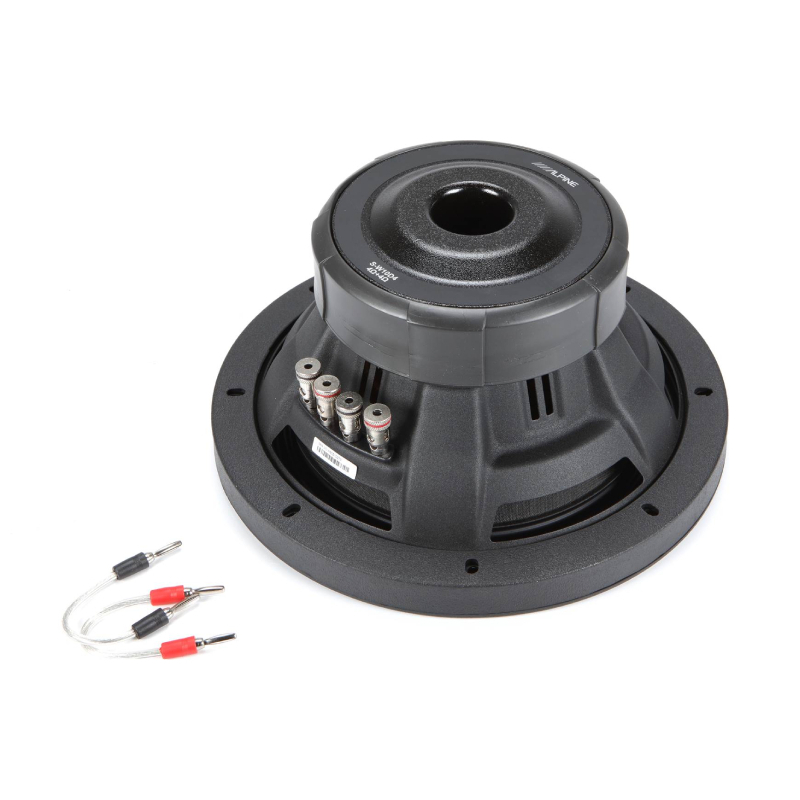

• (2) 3" jumper cables (each has a single banana connector on each end)
• Subwoofer Application Guide (English/ French)
• On-line product registration information (English/ French/ Spanish)
• Warranty information (English/ French)
• Important Notice! (English/ French)
• Bracket (for microphone)
Along with the new 8” woofer, the 10” and 12” S-Series subwoofers have been re-designed from the ground up. The mounting depth of the 10” and 12” subwoofers are almost 1” more shallow than previous models at just over 4.5” for the 10” models and just over 5” for the 12” models, allowing them to fit into a wide variety of installation applications.
CUSTOM-STAMPED STEEL FRAME
Each S-Series Subwoofer uses a custom-stamped steel frame. These high-strength frames were designed to withstand the rigors of the improved S-Series motor. They have frame leg vents as well as vented back plate to help cool the subwoofer voice coil and motor parts, plus a shallow design to help fit in smaller spaces.
Learn how to wire subwoofers
Diameter : 10 Inch
Sensitivity : 85.3 dB
Impedance : 4 Ohm
Frequency Response : 28-200 Hz
Peak Power Handling : 1800 Watts
Top Mount Depth : 4-3/4 Inches
Bottom Mount Depth : 5-1/2 Inches
Shallow Mount : No
Number of Voice Coils : Dual
Suggested Sealed Box Volume : 0.58 Cubic ft.
Suggested Ported Box Volume : 1.13 Cubic ft.
RMS Power Handling : 600 Watts
Impedance: 2 or 8 ohms
Cone Material: Kevlar-Reinforced Pulp
Surround Material: Rubber
Sensitivity: 85.3 db @ 1 watt
Frequency Response: 26-200hz
RMS Power Handling: 600 watts RMS
Peak Power Handling (Watts): 1800
Custom-Stamped Steel Frame
Push-Type Insert Terminals with Dual Voice Coil Jumper System
Strontium Ferrite Double-Stacked Magnets
Clean, Concealed Mount Gasket System
Authorized Internet Dealer
Warranty: 1 Year Manufacturer warranty.
