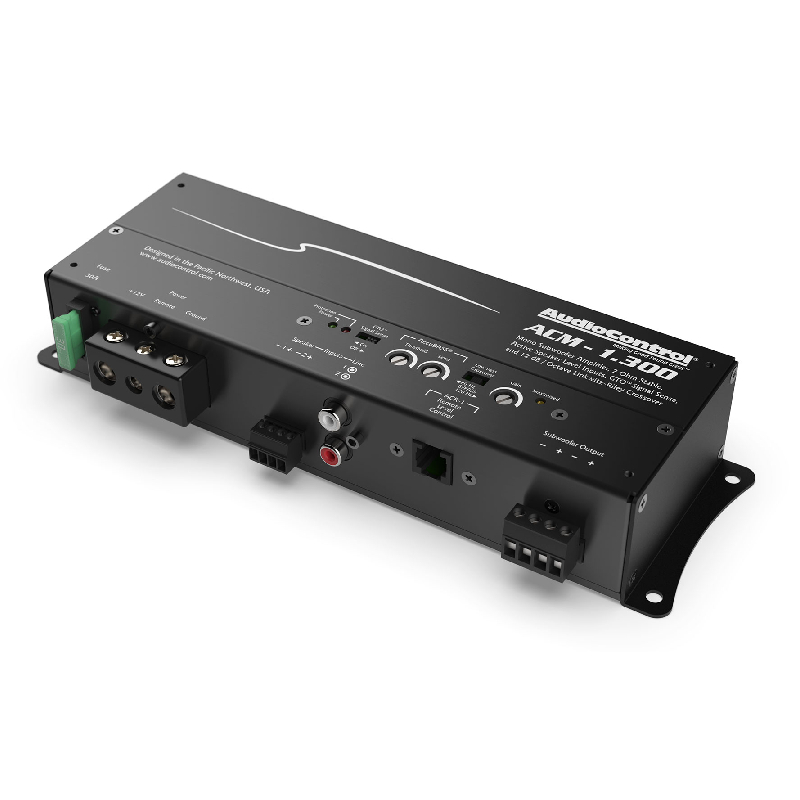

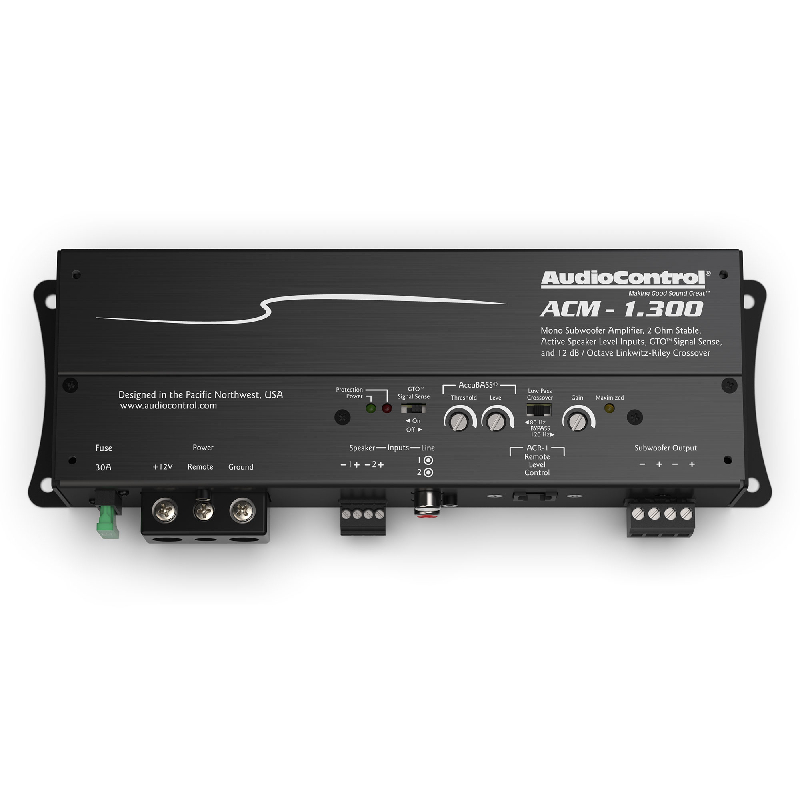

AudioControl ACM-1.300 175x 1 @2Ohms, 300W Max Power Class D Monoblock Car Amplifier
We are a AudioControl authorized dealer so you get up-to-date, fully warrantied products. Shipping is free to the lower 48 states on everything you order!
What's Inside?
- • ACM-1.300
- • Speaker Connectors
- • Fuse
- • Manual
- • Warranty
Making Good Sound Great
ACM series amplifiers by AudioControl are the perfect blend of power and features for car audio systems from mild to wild. Compact size, high power and the ability to help integrate with factory stereo systems are features that assure “Making Good Sound Great” can happen in any installation.
Flexible Mounting Options
Reversible cover plates allow flexible mounting options when paired with AudioControl DM Series Processors or when using multiple ACM series amplifiers in confined spaces. Once again AudioControl comes to the rescue combining features and benefits needed to assure audio euphoria in an automotive setting.
- Maximum Power : 300 Watts
- Number of Channels : 1
- Frequency Response : 10-22000 Hz
- RMS Power Output : 175x1 Watts
- Amplifier Class : D
- Fuse Rating : 30 A
- XP750-SE OFFER : Yes
Features:
- AccuBASS® Processing
- GTOTMSignal Sense
- Active speaker-level inputs for OEM integration
- RCA Line Inputs
- Linkwitz-Riley Crossover
- Optional ACR-1 remote level control
- Reversible Cover Plate
- Bulletproof 5 year warranty (when installed by an authorized AudioControl dealer)
Specifications:
- 300 watts @ 2 ohms
- 175 watts @ 4 ohms
- Preamp Inputs: 2 Balanced
- Preamp Input Voltage Range: 500 mV – 6 Vrms
- Speaker Level Inputs: 2
- Speaker Level Input Voltage Range: 3 V – 40 Vrms
- Frequency Response: 10 Hz – 22 kHz
- Signal to Noise: 102 dBA, Ref 175 W @ 4 Ohm
- THD+N: < 0.01%
- Power / Ground Wire Gauge: 10 to 4 AWG wire
- Fuse Rating: 1 x 30 A
- Crossover: 12 dB/octave Linkwitz-Riley, 80 Hz, 120 Hz, Bypass
- PFM Subsonic Filter: 24 Hz
- Dimensions: 9.4″W x 3.0″D x 1.75″H
- UPC: 851523007461
- Weight: 5
- Authorized Internet Dealer
Warranty: 1 Year Onlinecarstereo.com warranty.
1 Year warranty from Onlinecarstereo.com implies that repairs must be returned to Onlinecarstereo.com, not the manufacturer. More information can be found in our help section under returns & warranties.
What's not covered : Misuse, abuse, defacement, physical damage of any kind, and improper installation / operation. Video and multimedia equipment with damaged or cracked screens.Subwoofers and speakers are not warrantied if the defect is due to physical damage.
