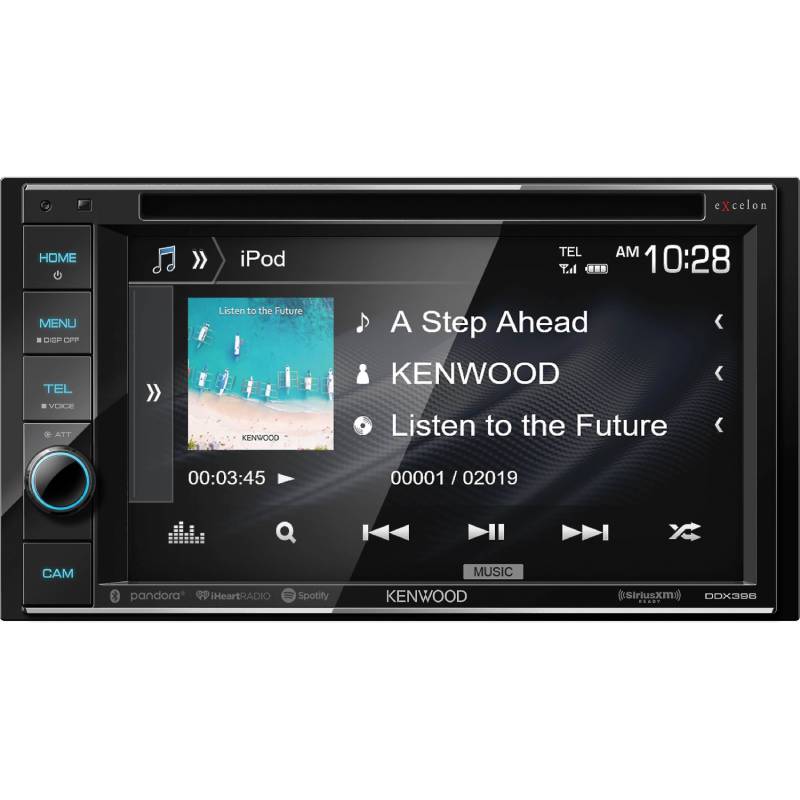

Music Application Controls
Connect your iPhone or Android device to access and control the most popular music application sources. Simply install the Spotify, Pandora, and/or iHeartAuto apps on your device, then connect iPhone (USB or Bluetooth) or Android (Bluetooth only) to enjoy music playback.
Kenwood Music Mix
Up to 5 Bluetooth® devices can be connected to the receiver at the same time, allowing you to take turns streaming music with your friends and family.
Rear View Camera Input with Parking Guide Lines
An optional rear view camera enhances safety while backing up and monitoring behind your vehicle. Built-in, adjustable parking guidelines further add to its effectiveness.
Dual Phone Connection
While you are connected through Bluetooth, with a touch of a button you can switch between two phones.
- Maximum Power : 200 Watts
- CD-R/CD-RW Compatible : Yes
- CD Text : Yes
- Satellite Radio Ready : Yes
- DIN : 2
- Preamp Voltage : 5 volts
- Display Size : 6.2 Inch
- Bluetooth : Yes
- MP3 Playback : Yes
- WMA Playback : Yes
- HD Radio : Yes
- Rear USB Input : 1
- Preamp Outputs : 3
- Audio/Video Outputs : 1
- Rear View Camera Input : Yes
- Apple CarPlay : No
- Android Auto : No
General Features:

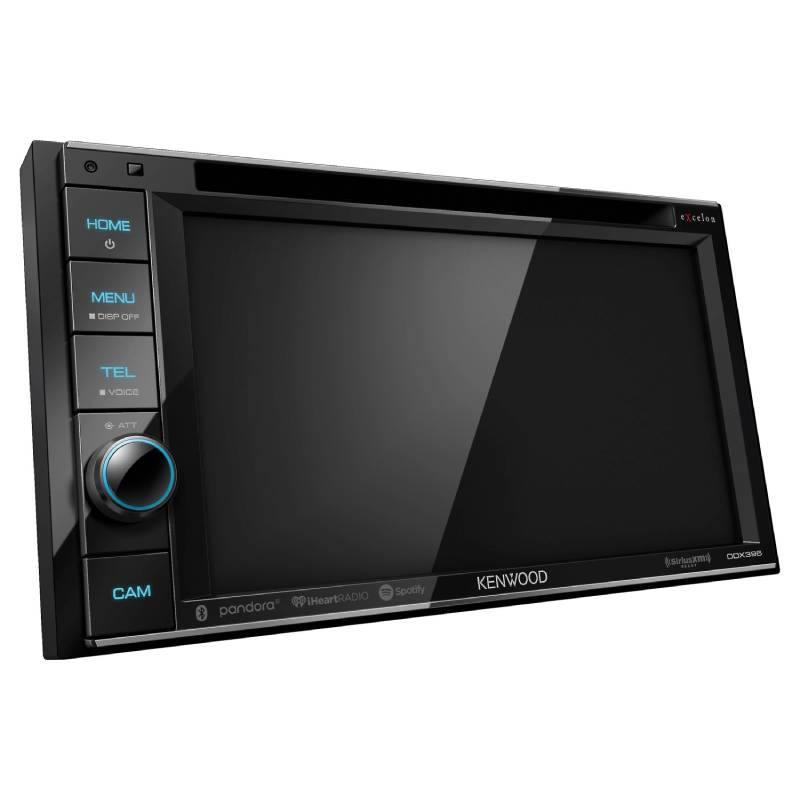

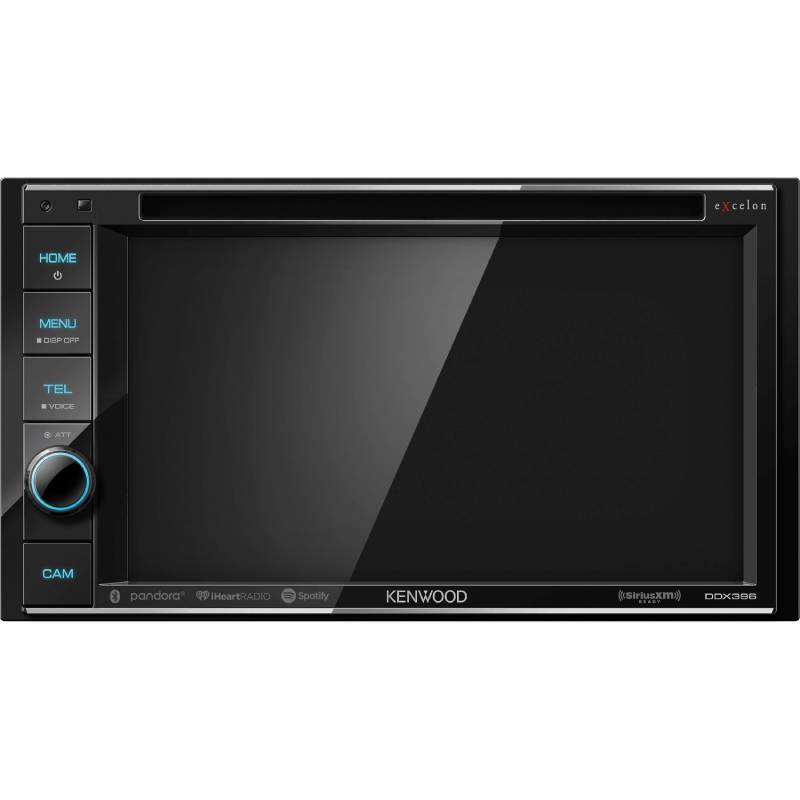

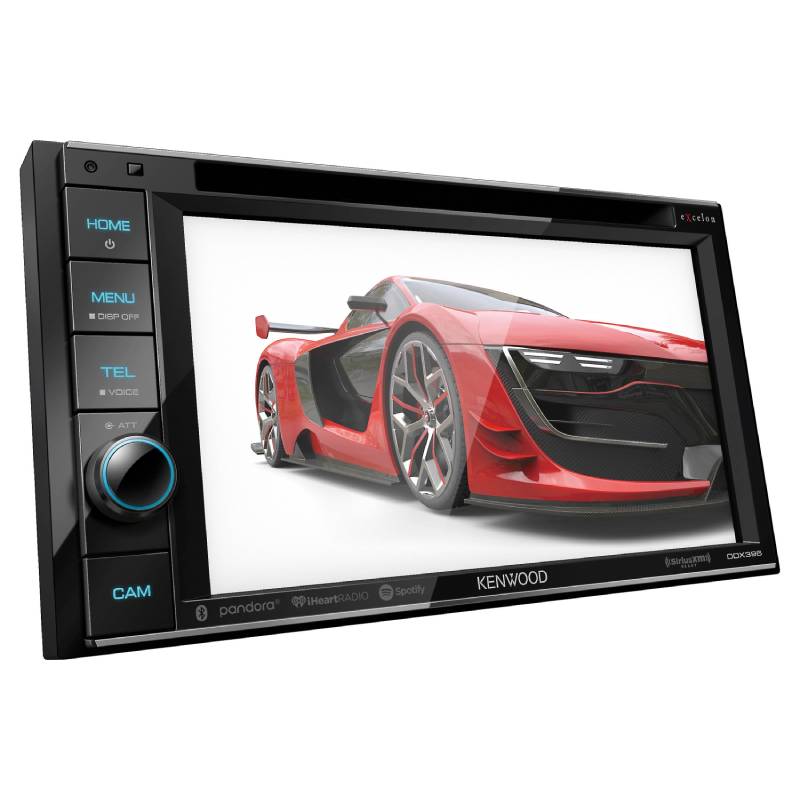

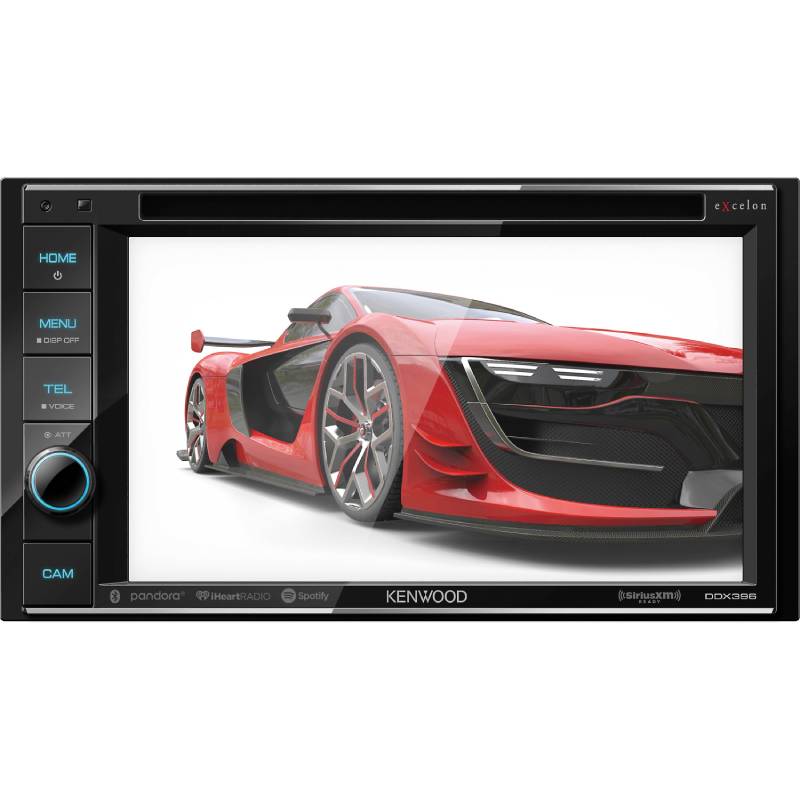

- 6.2 inch Wide VGA Color LCD Display with LED Backlight
- Clear Resistive Panel
- Touch Panel Control
- Variable Key Illumination

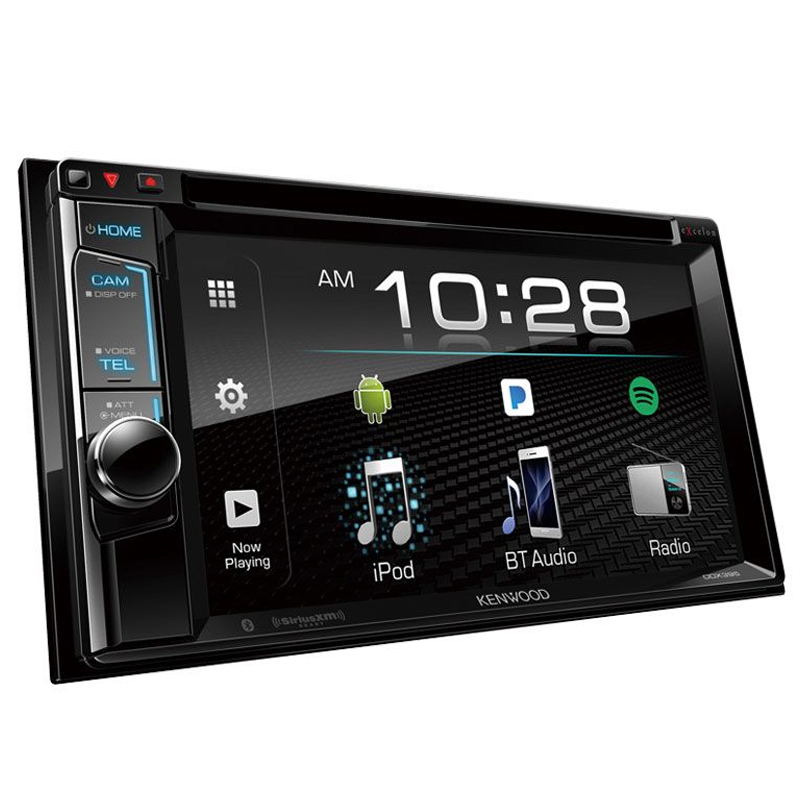

- Top Menu and Background Customize
- Multi-Language Menu & Tag (22 Languages (English, Spanish, French and others)
Audio/Video Features:
- Maximum Output Power : 50W x 4 (MOSFET Power IC)
- 3 Preouts (5V)
- 1 AV Output (V:RCA)

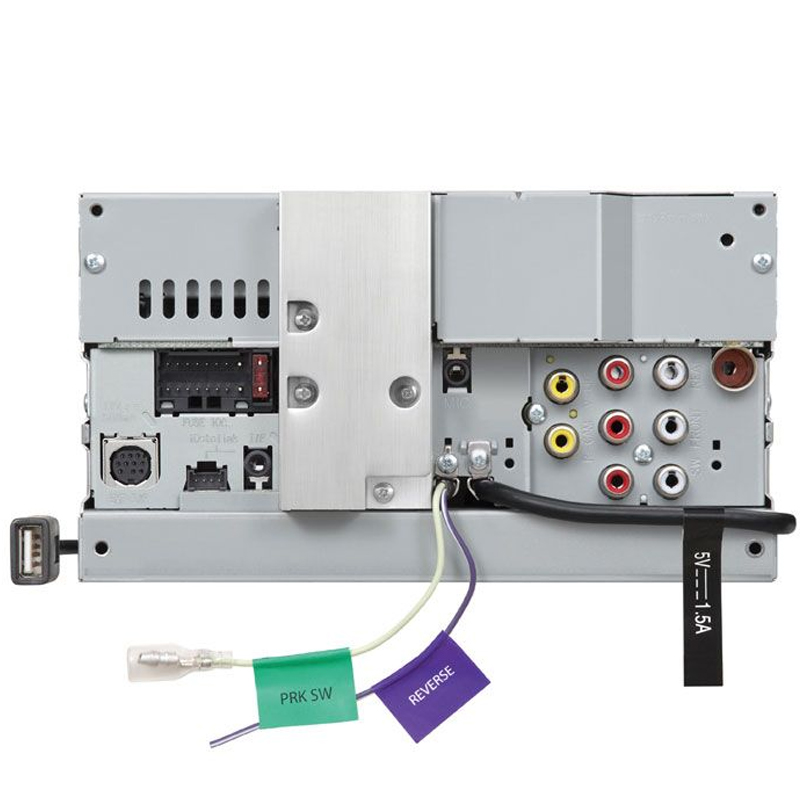

- 1 RCA Video Input for Rear View Camera
- Parking Guide Line
- 13 Band Graphic Equalizer
- Time Alignment
- System E's (Built-in HPF & LPF)
- Loudness
- Installer & Backup Memory (Store & Backup Audio/Video Settings)
DVD/CD Features:
- DVD Video/±R/RW Playback, MPEG 1/2 Video Playback
- VCD Compatible, MP3 / WMA / WAV / CD-R / -RW Playback
- CD Text Ready, Repeat / Random Play
- 24 Bit D/A Converter
Tuner Features:
- Sirius XM Ready
- FM / AM 20 Station Presets (FM x 15, AM x 5)
- RBDS with Radio Text Plus
- AME (Automatic Memory Entry), Up/Down Seek Tuning
USB Features:

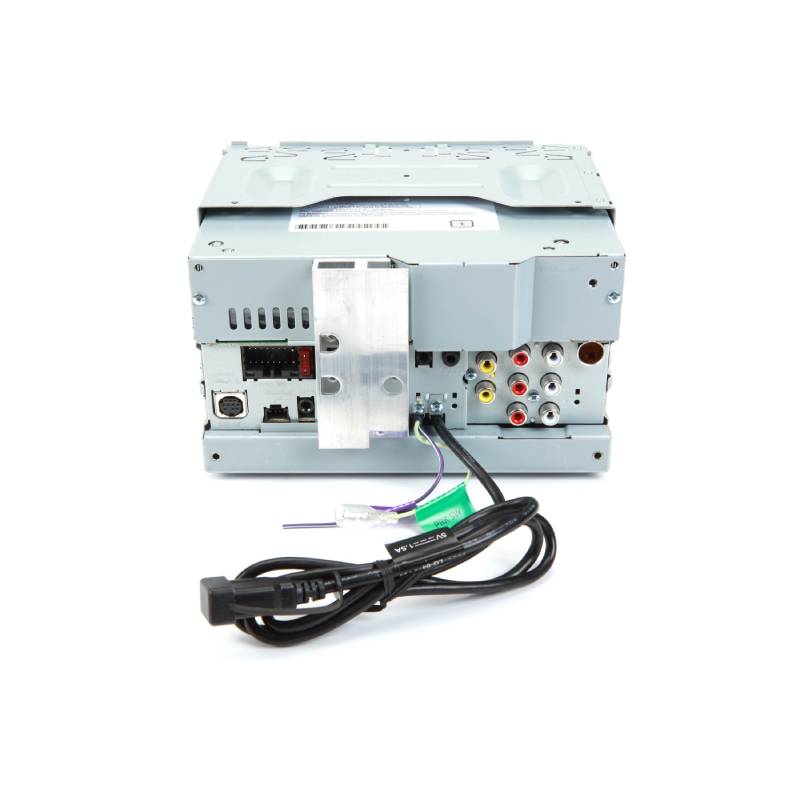

- USB Interface x 1 (Rear)
- MP3 / WMA / AAC / WAV / FLAC Playback, MPEG 1/2 Video / JPEG Playback
- iPhone/iPod USB Direct Connection with Optional Cable *1
- iPhone App Mode
- Pandora / iHeart Radio / Spotify App Ready (iPhone App)
- Android Music Play Back
- Android Rapid Charge
Specifications:
Monitor Section:
- Picture size: 6.2 inches(diagonal) wide
- W x H: 137.5mm x 77.2 mm , 5-7/16 x 3-1/16
- Display system: Transparent TN LCD panel
- Drive system: TFT active matrix system
- Number of pixels: 1,152,000(800H x 480V x RGB)
- Effective pixels: 99.99%
- Pixel arrangement: RGB striped arrangement
- Back lighting: LED
DVD Section:
- DVD Section D/A Converter: 24Bit
- Audio Decoder: Linear PCM,Dolby digital,MP3/WMA/AAC(.m4a)/WAV
- Video Decoder: MPEG1/MPEG2/JPEG
- Total harmonic distortion 1kHz: 0.010%
- Signal to Noise ratio: 99dB(DVD-Video 96k)
- Dynamic range: 99dB(DVD-Video 96k)
- DISC Format: DVD-Video/VIDEO-CD/CD-DA
- Sampling frequency: 44.1kHz/48kHz 96kHz
- Quantifying bit number: 16/20/24bit
USB I/F Section:
- USB Standard: USB2.0 Full Speed / High Speed
- Compatible Devices: Mass storage class
- File System: FAT 16/32
- Maximum Power Supply Current: DC5V(DC logo)=1.5A
- D/A Converter: 24bit
- Audio Decoder: MP3/WMA/AAC(.m4a/.aac)/WAV/FLAC
- Video Decoder: MPEG1/MPEG2/JPEG
Bluetooth Section:
- Technology: Bluetooth V3.0
- Frequency: 2.402 - 2.480 GHz
- Output Power: +4dBm (MAX),0dBm (AVE) Power Class 2
- Maximum Communication range: Line of sight approx.10m (32.8ft)
- Audio Codec: SBC/AAC
FM:
- Frequency Range: 87.9 MHz - 107.9 MHz
- (Frequency step): (200 kHz)
- Usable sensitivity: 7.2 dBf
- S/N:30dB: 0.63 μV / 75 Ohms
- Quieting sensitivity: 15.2 dBf
- S/N:50dB: 1.58 μV / 75 Ohms
- Frequency response (±3.0 dB): 30 Hz - 15 kHz
- S/N (dB): 68 dB(MONO)
- Selectivity: Over 80 dB(±400 kHz)
- Stereo separation:40 dB(1 kHz)
AM:
- Frequency Range: 530 kHz - 1700 kHz
- (Frequency step): (10 kHz)
- Usable sensitivity: 29 dBμ
- UPC: 019048224651
- Weight: 7.01
