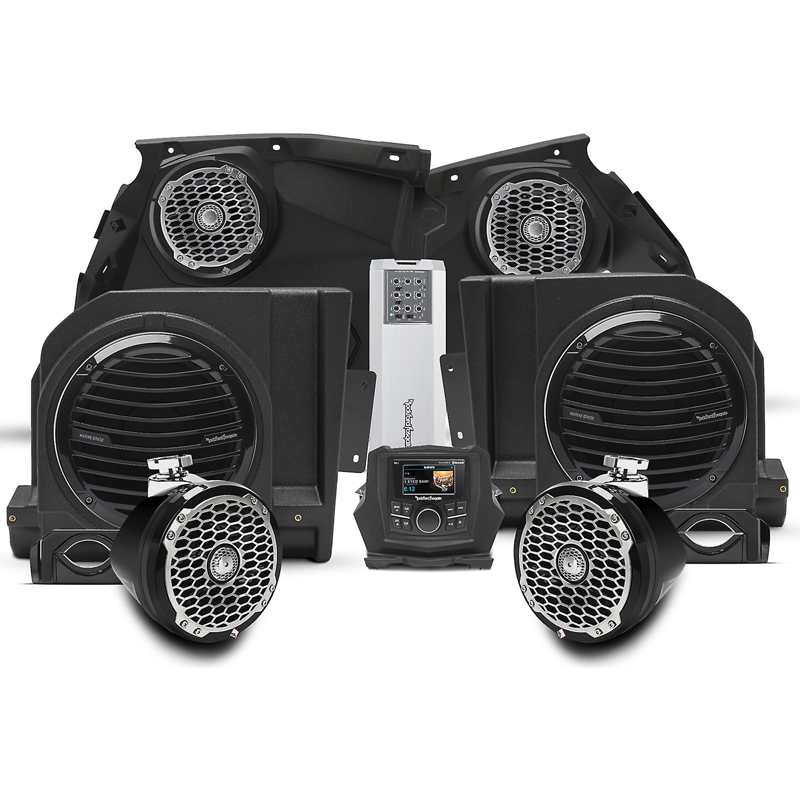

If you want to take things to the next level then the X3 Stage 5 kit is for you. Featuring all the same hardware as the Stage 4 kit, Rockford Fosgate has upgraded the speakers and minicans to their Punch PM series for even more output. Rockford Fosgate is including their Power small chassis 5-channel amplifier ramping the power total up to a whopping 1,000 watts and the subwoofer option is upgraded with an additional under seat enclosure that allows for all factory seating adjustments and positions with a 10 inch Prime woofer. If you're ready to be the loudest and baddest X3 on the ride then you've found exactly what you need.
Estimated Installation Time: 3-1/2 HOURS
- Direct connect wiring harnesses for MAVERICK models
- System is Element Ready™ to withstand harsh outdoor environment
- Speaker & sub enclosures integrate with no loss of passenger/cargo space
- PMX-2: Punch Marine Compact AM/FM/WB Digital Media Receiver 2.7" Display
- RFX3-PMXDK: MAVERICK PMX-2 dash kit
- PM2652B: Punch Marine 6.5" Full Range Speakers - Black (Pair)
- RFX3-FSE: MAVERICK 6.5” Front Speaker Enclosure (Pair)
- RM110D2B: Prime Marine 10" Dual 2-Ohm Subwoofer Black
- RFX3-FWED: MAVERICK 10” Front Driver Side Subwoofer Enclosure
- RFX3-FWEP: MAVERICK 10” Front Passenger Side Subwoofer Enclosure
- TM1000X5ad: Power Marine 1000 Watt Class-ad 5-Channel Amplifier
- RFX3-K4: MAVERICK 4 AWG Amp kit
- PM2652W-MB: Punch Marine 6.5" Rear Speakers in Enclosure - Black (Pair)
- PM-CL2B: Punch Diecast Clamp for Rear Enclosure - Black (Pair)
- RFX3-RSW16: MAVERICK Rear Speaker Add-on Harness
- *Antenna not included
PMX-2 Features:
The PMX-2 is an AM/FM/WP tuner and compact digital media receiver with a 2.7" full color display.
- ISO8846/SAE J1171 Ignition Protection Certified
- Pandora Internet Radio
- A2DP and AVRCP Bluetooth Wireless Streaming
- FCC, CE, IC, and C-Tick Certified
- Multi Region Radio Frequencies
- Low Voltage Warning Alert
- AUX and USB Inputs with USB Charging
- On Board Punch EQ Control
- Independent Subwoofer Level Control
- iPod playback with on-screen display
- Selectable HP / LP / AP Crossovers with Selectable Slope 12 / 24 dB/Oct
- IPX6 Marine Grade
- 7-Band Graphic EQ
- 2.7" full color display w/ auto dimming backlightning
- AM / FM / WB Tuner
- Zone Control: 1 Zone / 1 Source (F/R or Sub)
PM2652B Features:
The PM2652X is a Punch 6.5" 2-way component system with a coaxially mounted tweeter featuring marine grade weather proofing technologies. Supplied in all black with a UV stable centrex injection molded plastic grille.
- True Marine Grade compliance
- UV stable Centrex™ 814 injection molded plastic parts
- Corrosion resistant gold plated polarized input terminals
- Injection molded mineral filled polypropylene cone body with UV inhibitors
- UV and Salt-Fog resistant TPE (Thermo-Plastic Elastomer) surround
- 1" (25mm) bridge mounted component grade coated aluminum alloy tweeter
- Moisture, tear and fatigue resistant Aramid fiber spider
- Linear, high excursion matched motor magnetics and suspension design
- Fully insulated flex lead wire stitched under spider
- Integrated aluminum heat sinking shortening ring (IDHS)
- Spare terminal set for optional additional tweeters
- Integrated 12dB/octave sealed crossover with integrated protection circuit
RM110D2B Features:
The RM110D2B is a black 10" Prime R1 subwoofer designed for marine watercraft or powersports applications. It features color matched grille and is UV and moisture resistant. Can be used in sealed, vented or infinite baffle installations.
- True Marine Grade compliance
- 100% UV stable ASA injection molded plastic parts
- Injection molded mineral filled polypropylene cone body with UV inhibitors
- UV and salt fog resistant Santoprene surround
- Ultra-flexible fully insulated silicone lead wire
- Proprietary corrossion resistant spring loaded push terminals
- Moisture, tear and fatigue resistant Aramid fiber spider
- Removable trim ring/grille
- Available in black or white
TM1000x5ad Features:
The Power Marine TM1000x5ad is an compact, Class ad 1000 Watt multi-channel amplifier. It features differential inputs with high-level auto turn-on, CLEAN circuit with input/output clip detection, top mounted controls and dual fan forced induction cooling. Additionally, it has our patented Punch EQ circuit built in and Differential inputs with auto turn-on capabilities making it perfect for hybrid, electric, small cars, trucks, motorcycles, and side-by-side UTVs
- Rockford Fosgate proprietary Class-AD technology
- Class bd Technology
- Differential inputs with high level auto turn-on feature
- AP remote out feature when using high level inputs
- 4/2 Ohm Multi-Impedance Constant Power
- 2013 PLC2 remote ready
- C.L.E.A.N. input/output clip detection and indicator LEDs
- Top mounted controls
- Dual fan cooled
- Real time thermal sensing
- Dual extruded heat sinks
- All other Rockford protection schemes
- CEA-2006 and CE Compliant
- Discrete surface mount technology
- Marine grade two part epoxy coating on circuit boards
PM2652W-MB Features:
The PM2652W-MB is a Punch 6.5" 2-way mini wakeboard tower speaker enclosure featuring marine grade weather proofing technologies. Supplied in all black with a stainless steel sport grille.
- True Marine Grade compliance
- High density poly-ethylene enclosure with UV inhibitors
- Near 360° rotational mounting capability for unlimited flexibility
- Includes safety lanyard
- Direct Malibu® mount (where applicable)
- Comes loaded with PM2652B Marine Speakers
- Available in Black only
- Optional C-clamp available fits bar sizes 1" to 2"
Model Compatibility:
- Maverick X3 Turbo: 2017. 2018
- Maverick X3 Turbo R: 2017, 2018
- Maverick X3 X DS Turbo: 2017, 2018
- Maverick X3 X RS Turbo: 2017, 2018
- Maverick X3 MAX Turbo: 2017, 2018
- Maverick X3 MAX Turbo R: 2017, 2018
- Maverick X3 Max DS Turbo R: 2017, 2018
- Maverick X3 MAX RS Turbo R: 2017, 2018
What's Included?:
- PMX-2
- RFX3-PMXDK
- PM2652B
- RFX3-FSE
- RM110D2B
- RFX3-FWED
- RFX3-FWEP
- TM1000X5ad
- RFX3-K4
- PM2652W-MB
- PM-CL2B
- RFX3-RSW16
- UPC: 780687353636
- Weight: 30
- Authorized Internet Dealer
Warranty: 1 Year Manufacturer warranty.
This item is accompanied by a manufacturer's warranty. If it is found to be defective, it may be returned to OnlineCarstereo.com for replacement within 1 year from the original date of purchase with proper return authorization.
