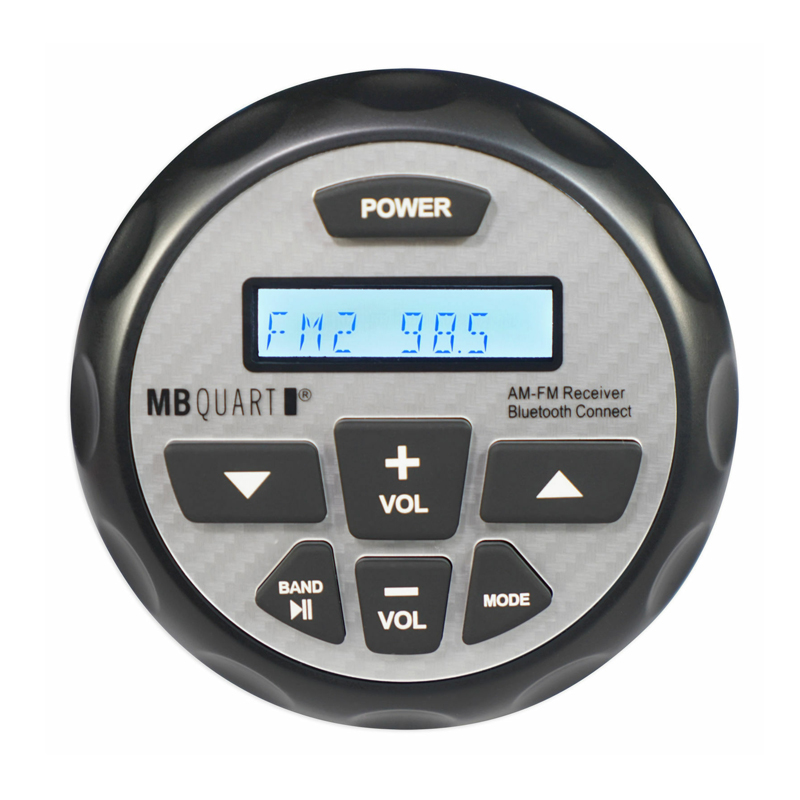

OFF-ROAD & Marine Multimedia Source Unit
160 Watt AM/FM/Bluetooth®, USB, Mobile Entertainment Controller
Bluetooth™ Connect & Quick-Pair
Quick and secure pairing of devices with your music library with album art displayed
USB Control
Easily connect smartphones, portable media devices and streaming services. iPod control allows full Apple® connectivity.
Dual Audio Zone Capability
Control volume in two different areas independently, such as passenger area and tower speakers
Radial Shift UX
Intuitive control navigation with master control and radial menu selection
Maximum Connectivity
Connect external amplifiers for speakers and subwoofers with six channels of connectivity.
Media Screen
On board 3.5 inch high-contrast LED screen to view media artwork and external camera input
LIFE SHIELD
Marine certified to IPX67 with large waterproof buttons
- Maximum Power : 40x4 Watts
- Frequency Response : 20-20000 Hz
- Preamp Voltage : 4 volts
- Bluetooth : Yes
- Aux Input : Yes
Features:
- MARINE GRADE PROTECTION
- Meets or exceeds IPX67 requirements for water and dust proofing
- LIFE SHIELD
- This product has been designed and tested against the elements. Waterproof, dustproof, snowproof or shockproof. Built to handle the outdoors
- APPLE® CONTROL
- Quick control and access of iTunes collection with iPhone, iPod and iPad
- SOURCE TYPE
- AM/FM/Bluetooth® Enabled Gauge Mount Radio allows all access to radio stations and content from Bluetooth enabled devices
- INPUT TYPES
- Bluetooth, RCA, USB nearly nothing the device can not play
- CONTROL BUTTONS
- Unit is adjusted by master knob and menu selection
- BLUETOOTH® CONNECT
- Bluetooth® Connect allows your phone or other Bluetooth enabled device to be quickly paired to the controller without a complicated pairing process
- SECURE SIMPLE PAIRING™
- Quick and secure wireless connection between your Bluetooth enabled device. This reliable connection is impervious to outside interference, providing a lock-tight connection to your audio system
- QUICK PAIR™
- No more frustration with trying to pair. When the unit powers up, it immediately connects to the last device connected. For a first time connection, you only have to select "MB Quart" from your Bluetooth menu and you are connected, QUICKLY
- BUILT-IN POWER
- Four channels of output. These channels remain active when running external amplifiers (RCA Output) to run additional speakers in the vehicle
- CONTROL METHOD
- Unit is adjusted by master knob and menu selection
- AM/FM TUNER PRESETS
- AM: 12 station, FM: 18 station
- AM1, AM2, FM1, FM2, FM3 each memorize 6 stations each
- FREQUENCY RANGE
- FM: 87.5 - 108, AM: 530 - 1710
- RDS INFORMATION
- WEATHER BAND
- Includes built-in weather band radio
- VIDEO INPUT
- RCA Style Connector (No Audio)
- VIDEO INPUT TRIGGER
- Single ground wire triggers video input
- USB / APPLE® / CHARGING PORT
- BLUETOOTH VERSION
- ALBUM ART
- USER PRESETS
- Separate presets for radio functions by two users
- MAIN CONNECTOR TYPE
- MOLEX connector for simple installation and removal of unit when needed
- DUAL AUDIO ZONE CAPABILITY
- Control volume in two different areas independently, such as passenger area and tower speakers
- MEDIA SCREEN
- On board 3.5 inch high-contrast LED screen to view media artwork and external camera input from an optional backup camera
Specifications:
- RMS POWER OUTPUT: 4 x 20 Watts
- PEAK POWER OUTPUT: 4 x 40 Watts
- MAXIMUM THD+N AT 4 OHMS: 81.2dBA
- EFFICIENCY AT FULL POWER 4 OHM (1KHZ): 0.639
- IDLE CURRENT : 0.3A
- MAXIMUM UNDISTORTED PREAMP VOLTAGE (WITH 20K OHM LOAD): 4 Volts
- SIGNAL TO NOISE (CTA-2006B) : Bluetooth -76.2 dBA, Aux -86.4dBA
- SIGNAL TO NOISE RATIO OF LINE LEVEL OUTPUTS (AT MAX VOLUME): Bluetooth -76.2 dBA, Aux -86.4dBA
- PREAMP FREQUENCY RESPONSE (+/- 3.0DB): Bluetooth 20Hz-20KHz, Aux 20Hz-20KHz
- AMPLIFIER FREQUENCY RESPONSE (+/- 3.0DB): Bluetooth 20Hz-20KHz, Aux 20Hz-20KHz
- STEREO SEPARATION (AUX INPUT): -64.1dB @ 5kHz
- FM MONO USABLE SENSITIVITY: 13dBf / 2.5μV
- AM MONO USABLE SENSITIVITY: 15 - 16μV
- MINIMUM IMPEDANCE: 4 Ohms
- PRE-AMP OUTPUTS: 3 Pair Front/Rear/Subwoofer, 1 CVBS Video Output
- AUDIO INPUTS: 1 Pair (Aux), 1 USB, 1 Composite Video (Camera)
- DISPLAY TYPE: The unit display features a 3.3 inch full color round LED panel
- UNIT DIMENSIONS HEIGHT: 4.2 inches (107.2mm)
- UNIT DIMENSIONS WIDTH: 5 inches (127.2mm)
- UNIT DIMENSIONS DEPTH FROM FACE: 4 inches (99.7mm)
- UNIT DIMENSIONS TOTAL MOUNTING DEPTH: TBD
- DIMENSIONS MOUNTING HOLE: 3.12 inches (7.93 cm)
- DIMENSIONS MOUNTING DEPTH: 2.87 inches (7.30 cm)
- TUNER SECTION FM STEREO FREQUENCY RANGE: 87.5MHz-108MHz
- TUNER SECTION SIGNAL TO NOISE RATIO: >55dB
- BLUETOOTH RANGE : 32 Feet (10 Meters)
- OUTPUT VOLTAGE: 2V Single Ended (4V)
- UPC: 806576229841
- Weight: 10
