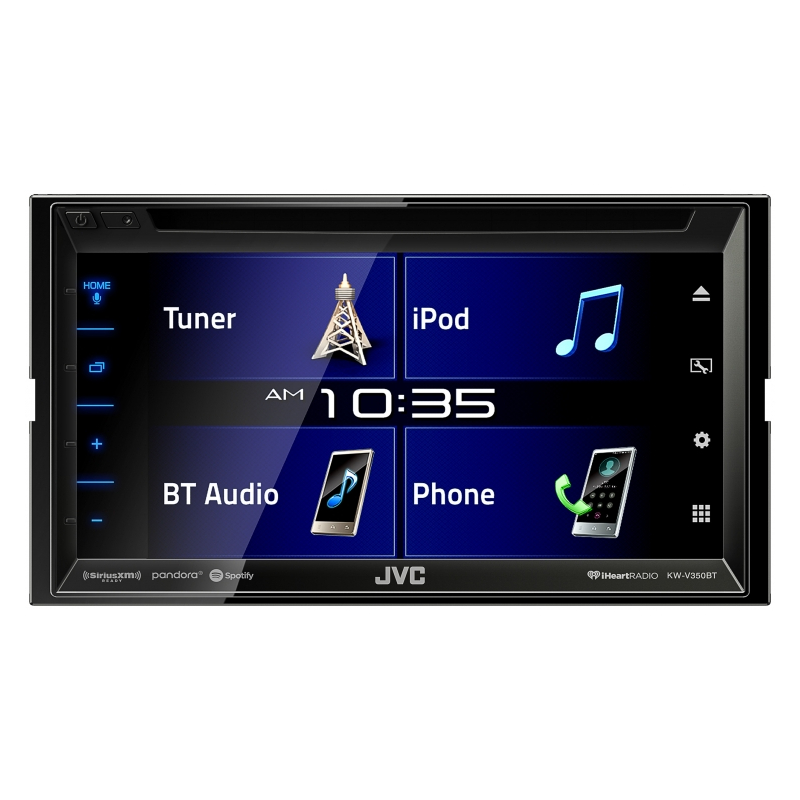

JVC KW-V350BT 2-DIN 6.8" DVD Receiver featuring Clear Resistive Touch Panel
We are a JVC authorized dealer so you get up-to-date, fully warrantied products. Shipping is free to the lower 48 states on everything you order!

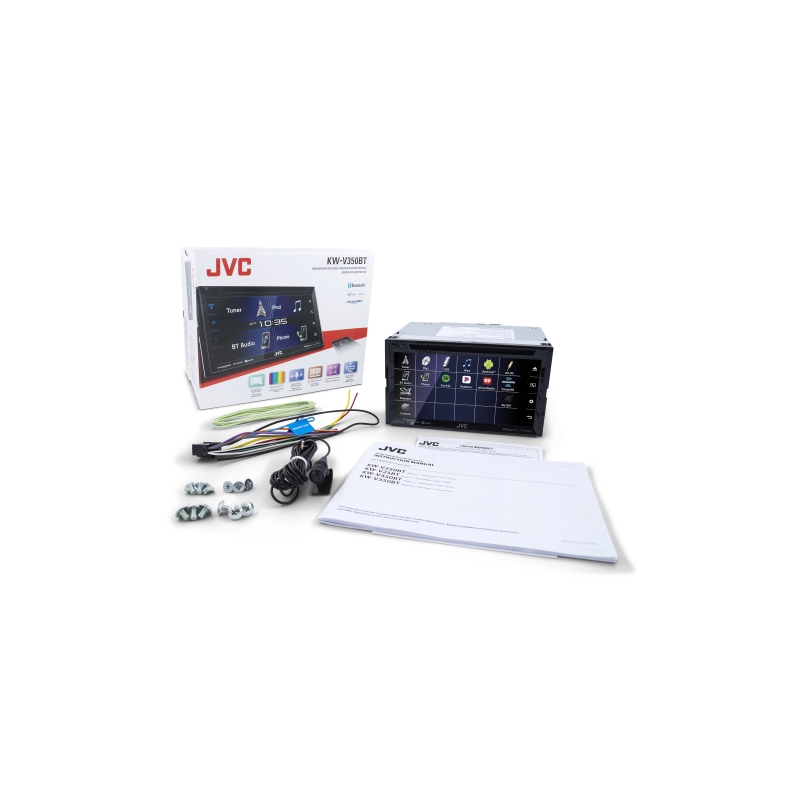

What's Inside?
- •DVD receiver w/ 6.8" touchscreen monitor (10A fuse)
- •Wiring harness
- •6.5' Parking brake wire (light green)
- •Microphone w/ bracket (attached 10' cable terminated by a mono 3.5mm connector)
- •6 Pan head ISO-mount machine screws (M5 x 8mm)
- •6 Flat head ISO-mount machine screws (M5 x 8mm)
- •Warranty Information
- •Owner's Manual
Clear Resistive Touch Panel Display
The clear resistive touch panel with high transparency and high luminance provides bright images with vivid colors.
Changes illumination patterns according to the rhythm of the music. Illumination key colors can be preset the way you like. Functions registered in the Function Menu can easily be called up by simply pressing the ”Power" key.
Bluetooth® Wireless Technology
You can connect two phones full time via Bluetooth, with secure and simple pairing. Calls to either phone can be received by a push of a key on the receiver.
Just connect your iPhone via USB and the automatic Bluetooth pairing function will work to complete the pairing. No complicated manual procedure to worry about.
In addition to repeat and random playback of music files, you can also easily search for songs using the browsing function. Just look for and choose the song you want to hear from the folder name and song name lists.
Ready for SiriusXM Radio
Ready for SiriusXM Radio. You can listen to over 100 Channels of music, sports, and entertainment.
(optional SiriusXM tuner required, sold separately) Factory steering wheel control functions can be retained with a third-party adapter (sold separately).
Rapidly charge your smartphone using the USB port, with up to a maximum of 1.5A.
*Compatibility depends on the smartphone.
iDatalink Maestro
iDatalink Maestro RR (sold separately) enables the retention of the factory steering wheel audio controls, factory amplifier, secondary displays and can even display vehicle information (performance data, climate controls, battery voltage etc) when connected to compatible vehicles.
Control the receiver's source directly from the smartphone using simple finger gestures with "JVC Remote" app* (now available for both iOS and Android). You can even customize your audio setting, and see detailed source information such as song title, artist name and album art etc. from the smartphone.

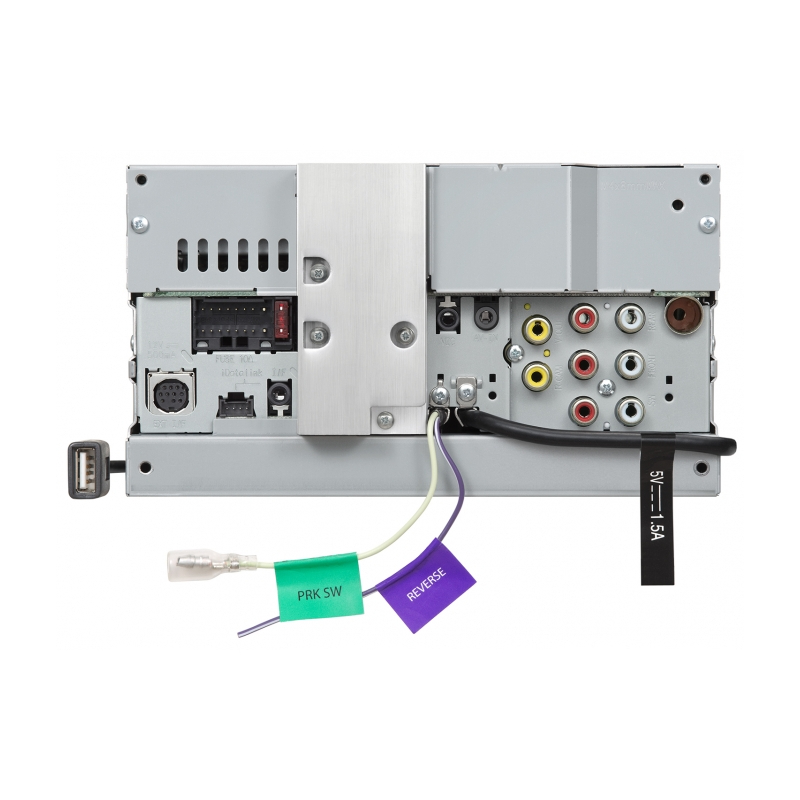

Equipped with three RCA terminals for pre-outs with 4.0V high voltage. Increasing the output voltage from the pre-outs helps reduce transmission noise and distortion when connected with an external amplifier.
- Maximum Power : 50 Watts
- CD-R/CD-RW Compatible : Yes
- CD Text : Yes
- Satellite Radio Ready : Yes
- Built-in EQ : Yes
- DIN : 2
- Preamp Voltage : 4 volts
- Display Size : 6.8 Inch
- Bluetooth : Yes
- Aux Input : Yes
- MP3 Playback : Yes
- WMA Playback : Yes
- HD Radio : No
- Rear USB Input : 1
- Audio/Video Outputs : 1
- Apple CarPlay : No
- Android Auto : No
Features:
- Screen Size: 6.2" Wide VGA
- Touch Panel: Clear Resistive
- Monitor Touch Control: Yes
- Customizable GUI: Yes
- Key Illumination Color: Variable
- Dimmer: Yes
- Multilingual Display: Yes[2]
- Wallpaper Capture: Yes
- MP3 Compatible with Tag: CD / DVD / USB
- WMA Compatible with Tag: CD / DVD / USB
- WAV Compatible with Tag: CD / DVD / USB
- AAC Compatible with Tag USB
- FLAC Compatible with Tag: USB( Up to 96kHz/24bit )
- MPEG 1/2 Compatible: CD / DVD / USB
- JPEG File Playback: CD / DVD / USB
- CD-R/RW Compatible: Yes
- DVD-R/-RW, +R/+RW Compatible: Yes
- Video CD Playback: Yes
- Built-in Bluetooth[1]: Yes (Version 3.0, Wired-Mic included)
- Hands Free Call: Yes (HFP1.6 Wideband Speech)
- 2 Phones Full-Time Connection: Yes
- Audio Streaming & Control (A2DP, AVRCP): Yes
- 5 BT-Audio Connection: Yes
- Voice Dialing (voice recognition compatible mobile phone required): Yes
- Siri Eyes Free Mode for iPod/iPhone: Yes
- Phone Book Access Profile (PBAP): Yes
- Alphabetical Search for Phone Book: Yes
- Auto Pairing for iPhone/Android: Yes (iPhone Only)
- Android Music Playback: Yes
- Pandora Control: Yes (via Bluetooth(R))
- iHeartRadio Control: Yes (via Bluetooth(R))
- Spotify Control: Yes (via Bluetooth(R))
- iPod/iPhone Music Playback: Yes (via USB or Bluetooth(R))
- Pandora Control: Yes (via USB or Bluetooth(R))
- iHeartRadio Control: Yes (via USB or Bluetooth(R))
- Spotify Control: Yes (via USB or Bluetooth(R))
- USB Port: x1 (USB2.0 Full Speed/High Speed)
- Position: Rear
Specifications:
- USB Power Supply: Yes (1.5A High Current Charging)
- Drive Change Mode for Mass Storage Class (selectable from internal/external memory): Yes
- SiriusXM Ready: Yes
- Radio Broadcast Data System (RBDS): Yes
- Digital Processing Tuner: Yes
- Preset Stations: 20 (5ch x 4band)
- Automatic Presetting (Strong Station Sequential Memory): Yes
- FM Frequency Range: 87.9-107.9MHz
- AM Frequency Range: 530-1,700kHz
- Maximum Power Output (Front & Rear): 50Wx4
- Full Bandwidth Power (Front & Rear): 22W x 4 (Full Bandwidth Power, at less than 1% THD)
- MOS-FET Amplifier: Yes
- EQ: Yes (13-Band Graphic EQ)
- Preset EQ: Yes (10Preset + 1user)
- Bass Boost: Yes
- High-Pass Filter/Low-Pass Filter: Yes/Yes
- 3-Way X'over: Yes
- K2 Technology: Yes
- Space Enhancement: Yes
- Sound Response: Yes
- Sound Lift: Yes
- Volume Link EQ: Yes
- Time Alignment: Yes
- AV Input: mini jack
- Video Out: RCA
- Rear view camera Input: Yes
- Line Output Terminals: 3 Pairs (Front + Rear + Subwoofer)
- Pre-output Level/Impedance: 4.0V / 10k ohms
- Subwoofer Output with Level/Frequency Control: Yes
- iDatalink Maestro Ready: Yes
- Remote Control Application: Yes
- Back Up Memory: Yes
- Face Type
- Viewing Angle Adjustment: Yes (0 - 20 degree, default : 0 degree) 5 steps
- Wireless Remote Control: Ready (RM-RK258 required)
- Steering Remote Control Ready: Yes
- Dimensions (W x H x D)
- Installation Size: 7-1/16" x 3-15/16" x 6-7/16" (178 x 100 x 162 mm)
- Weight: 3.75 lbs. (1.7kg)
- Unit weight in individual package: 5.29 lbs. (2.4kg)
- UPC: 046838078415
- Weight: 6.01
- Authorized Internet Dealer
Warranty: 1 Year Manufacturer warranty.
This item is accompanied by a manufacturer's warranty. If it is found to be defective, it may be returned to OnlineCarstereo.com for replacement within 1 year from the original date of purchase with proper return authorization.
Do you own this product?
Write a review!
-
This thing totally changed the sound, way better than the crappy factory radio. Works great with my factory steering wheel controls. Loads of settings and amazing sound. Easy to use. So far, awesome product!
