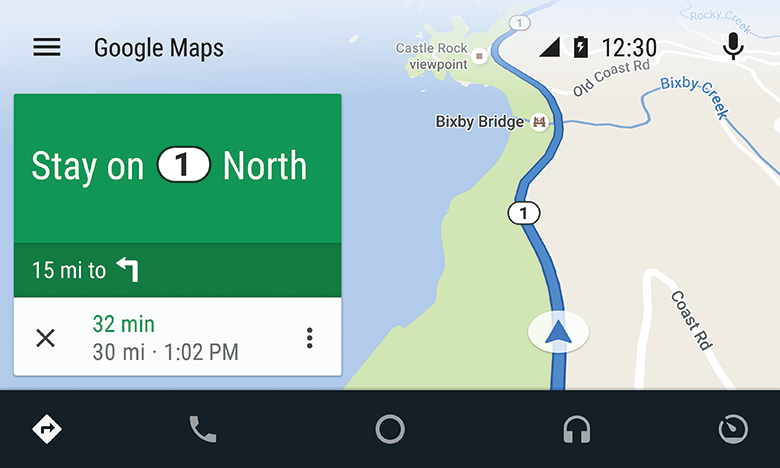

Android Auto
Android Auto was designed with safety in mind, helping you to minimize distractions and stay focused on the road. KENWOOD's multimedia receivers combine an intuitive voice controlled interface with a large touch screen and superior sound quality, making it the perfect complement for your in-car life. With the latest ANDROID OS version (PIE and higher), Google Maps™ and Waze™ are also supported.

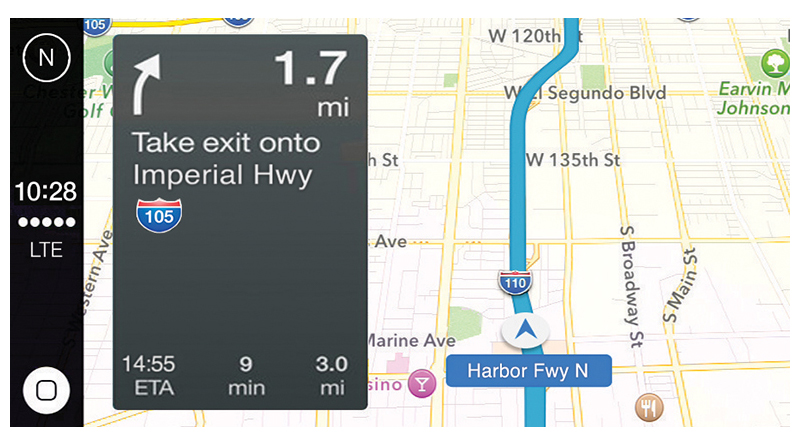

Apple CarPlay
Apple CarPlay is a safer way to use your iPhone in the car. Simply talk to Siri or touch the receiver's display to get directions from Apple Maps, make phone calls, listen to voicemail, send and receive texts, and listen to music, all in a way that allows you to stay focused on the road. With the latest iOS version (iOS 12.0 and higher), 3rd party navigation apps like Google Maps™ and Waze™ are also supported.

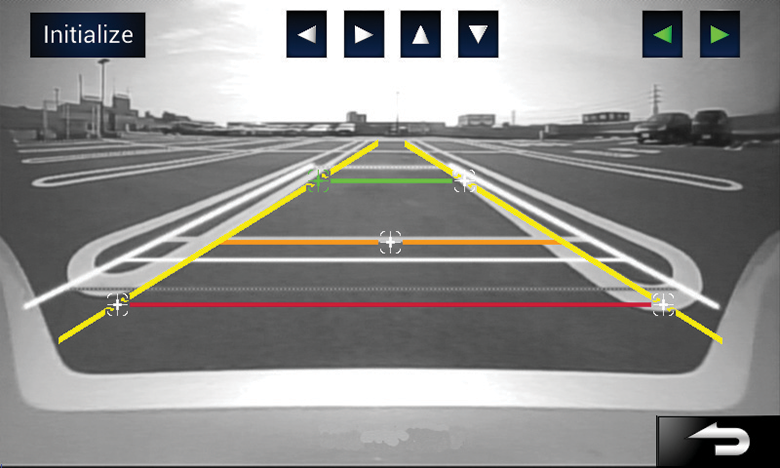

Rear View Camera Input with Parking Guide Lines
An optional rear view camera enhances safety while backing up and monitoring behind your vehicle. Built-in, adjustable parking guidelines further add to its effectiveness.

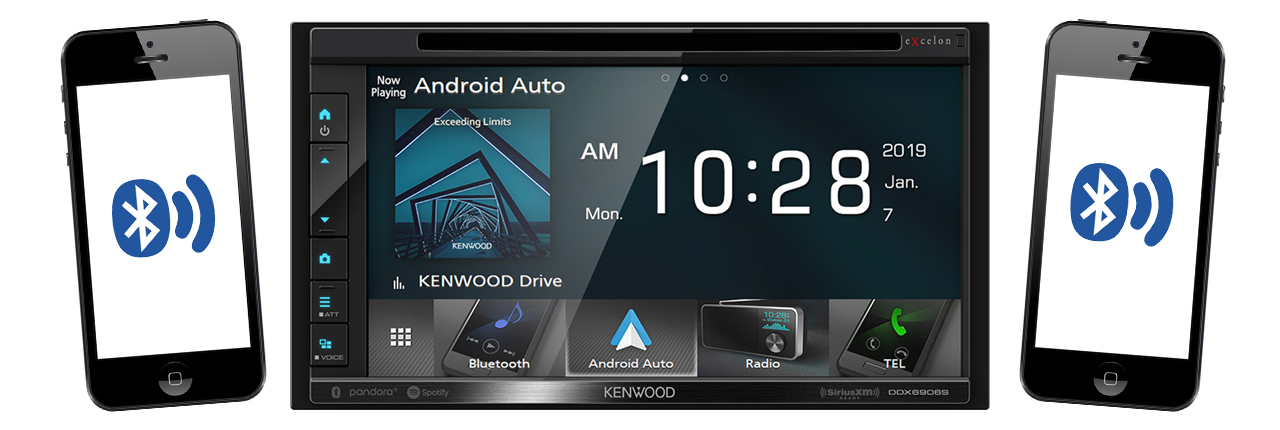

Dual Phone Connection
While you are connected through Bluetooth, with a touch of a button you can switch between two phones.
- Maximum Power : 50 Watts
- CD-R/CD-RW Compatible : Yes
- CD Text : Yes
- Satellite Radio Ready : Yes
- RMS Power Output : 22 Watts
- Subwoofer Preamp Outputs : Yes
- Built-in EQ : Yes
- DIN : 2
- Preamp Voltage : 5 volts
- Display Size : 6.8 Inch
- Audio/Video Inputs : 1
- Bluetooth : Yes
- Aux Input : Yes
- MP3 Playback : Yes
- WMA Playback : Yes
- HD Radio : No
- Rear USB Input : 1
- Preamp Outputs : 6
- RDS - Radio Data System : Yes
- Rear View Camera Input : Yes
- Apple CarPlay : Yes
- Android Auto : Yes
Monitor Section
- Picture size: 6.75 inches(diagonal) wide
- W x H: 151.8 mm x 79.68 mm, 5-31/32 x 3-1/8 inch
- Display system: TN LCD panel
- Drive system: TFT active matrix system
- Number of pixels: 1,152,000, 800H x 480V x RGB
- Effective pixels: 99.99%
- Pixel arrangement: RGB striped arrangement
- Back lighting: LED
DVD Section
- D/A Converter: 24 / 32Bit
- Audio Decoder
- Linear PCM
- Dolby Audio
- MP3 / WMA / AAC / WAV / FLAC / Vorbis
- Video Decoder: MPEG1/2,MPEG4 / WMV / H.264 / MKV
- Wow & Flutter: Below Measurable Limit
- Frequency response
- 96k Sampling: 20 - 44,000 Hz
- 48k Sampling: 20 - 22,000 Hz
- 44.1k Sampling: 20 - 20,000 Hz
- Total harmonic distortion 1kHz: 0.010%
- Signal to Noise ratio: 90.5dB (DVD-Video 96k)
- Dynamic range: 89dB (DVD-Video 96k)
- DISC Format: DVD-Video / VIDEO-CD / CD-DA
- Quantifying bit number: 16 / 20 / 24bit
USB I/F Section
- USB Standard: USB2.0 High Speed
- File System: FAT 16/32, exFAT, NTFS
- Maximum Power Supply Current DC5V=1.5A
- D/A Converter: 24/32Bit
- Audio Decoder: MP3 / WMA / AAC / WAV / FLAC / Vorbis
- Video Decoder: MPEG1/2,MPEG4 / WMV / H.264 / MKV
Bluetooth Section
- Technology: Bluetooth Ver4.1
- Frequency: 2.402 – 2.480 GHz
- RF Output Power (E.I.R.P.): +4dBm (MAX), Power Class 2
- Maximum Communication range: Line of sight approx.10m(32.8ft)
- Audio Codec: SBC / AAC
- Multi Profile Support: Multi Profile
- Profile
- HFP (V1.7) (Hands Free Profile)
- SPP (Serial Port Profile)
- A2DP (Advanced Audio Distribution Profile)
- AVRCP (V1.6) (Audio/Video Remote Control Profile)
- PBAP (Phonebook Access Profile)
DSP Section
- Graphics equalizer
- BAND: 13Band
- frequency (Hz) (BAND1-13): 62.5/100/160/250/400/630/1k/1.6k/2.5k/4k/6.3k/10k/16k
- Gain: -9/-8/-7/-6/-5/-4/-3/-2/-1/0/1/2/3/4/5/6/7/8/9[dB]
- 2Way X'Over
- HIGH PASS FILTER frequency: Through/30/40/50/60/70/80/90/100/120/150/180/220/250[Hz]
- SLOPE: -6/-12/-18/-24[dB/Oct.]
- LOW PASS FILTER frequency: 30/40/50/60/70/80/90/100/120/150/180/220/250/Through[Hz]
- SLOPE: -6/-12/-18/-24[dB/Oct.]
- 3Way X'Over
- HIGH PASS FILTER frequency: 250/300/1k/1.6k/2.5k/4k/5k/6.3k/8k/10k/12.5k
- SLOPE: -12/-18/-24[dB/Oct.]
- Band PASS FILTER frequency: Through/50/60/70/80/90/100/120/150/180/220/250/300[Hz], 250/300/1k/1.6k/2.5k/4k/5k/6.3k/8k/Through
- SLOPE: -12/-18/-24[dB/Oct.]
- LOW PASS FILTER frequency: 30/40/50/60/70/80/90/100/120/150/Through[Hz]
- SLOPE: -12/-18/-24[dB/Oct.]
- Position
- Front / Rear /Subwoofer Delay: 0 - 20.01ft (0.03or0.04ft Step)
- Gain: -8 to 0dB
- Subwoofer Level: -50 to +10dB
FM
- Frequency Range (Frequency step): 87.9MHz - 107.9MHz (200kHz)
- Usable sensitivity (S/N30dB): 9.3dBf (0.8μV/75ohms)
- Quieting sensitivity (DIN S/N 46dB): 10.2dBf (1.13μV/75Ohms)
- Frequency response(±3.0dB): 30Hz - 15kHz
- S/N (dB): 75dB (MONO)
- Selectivity: Over 80dB (±400kHz)
- Stereo separation: 45dB (1kHz)
AM
- Frequency Range (Frequency step): 530kHz - 1700kHz (10kHz)
- Usable sensitivity: 28dBμ
Video
- Color system of external video input: NTSC/PAL
- External video input level (Mini jacks): 1 Vp-p / 75 Ohms
- External audio max input level (Mini jacks): 2 V / 25 kOhms
- Video Input level (RCA jacks): 1 Vp-p / 75 Ohms
- Video Output level (RCA jacks): 1 Vp-p / 75 Ohms
- Audio Output level (Mini jacks): 1.2 V / 10 kOhms
Audio
- Maximum Power Output (Front&Rear): 50Wx4
- Typical Power Output (Front&Rear):
- Full Bandwidth Power
- (at less than 1%THD)
- 22Wx4
- Output frequency band: 20 - 88,000Hz
- Preout level (V): 5V / 10kOhms
- Preout impedance (Ω): =< 300 Ohms
- Speaker Impedance (Ω): 4-8 Ohms
General
- Operating voltage: 12V DC Car Battery
- Maximum Current consumption: 15A
- Installation Dimensions WxHxD: 178mm x 100mm x 155mm, 7 x 3-15/16 x 6-1/8 inch
- (with Sleeve): 182mm x 112mm x 153mm, 7-3/16 x 4-7/16 x 6 inch
- Operational temperature range: -10°C to +60°C
- Weight Main unit: 2.1 kg 4.6 lb
- UPC: 019048225740
- Weight: 8.01
